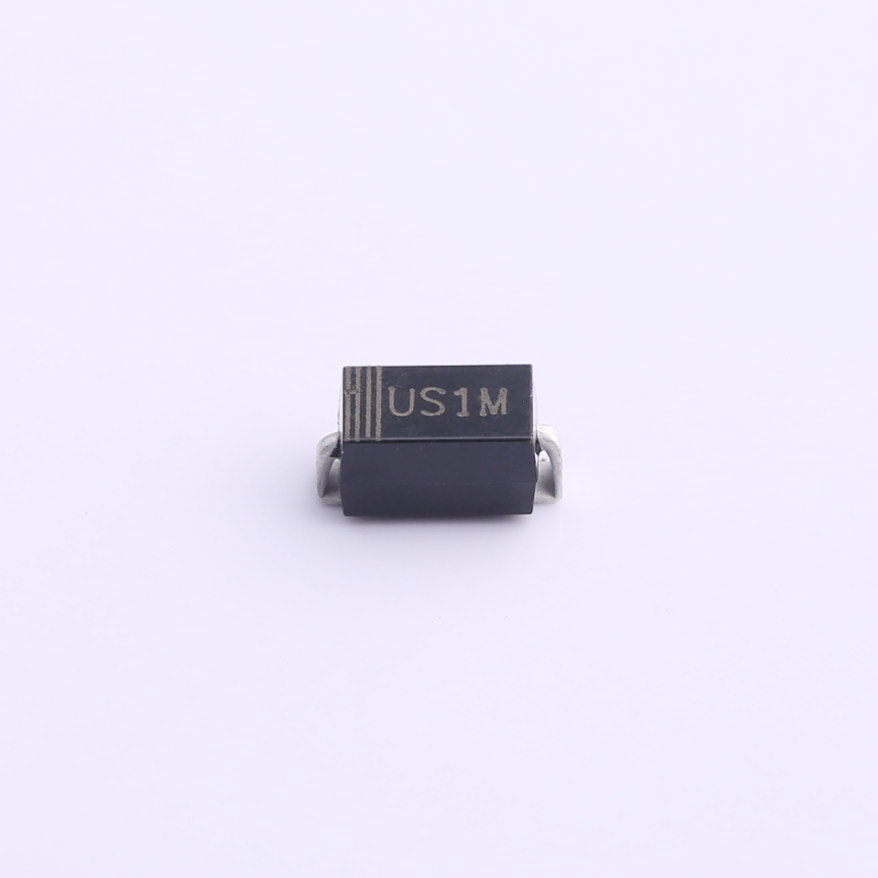

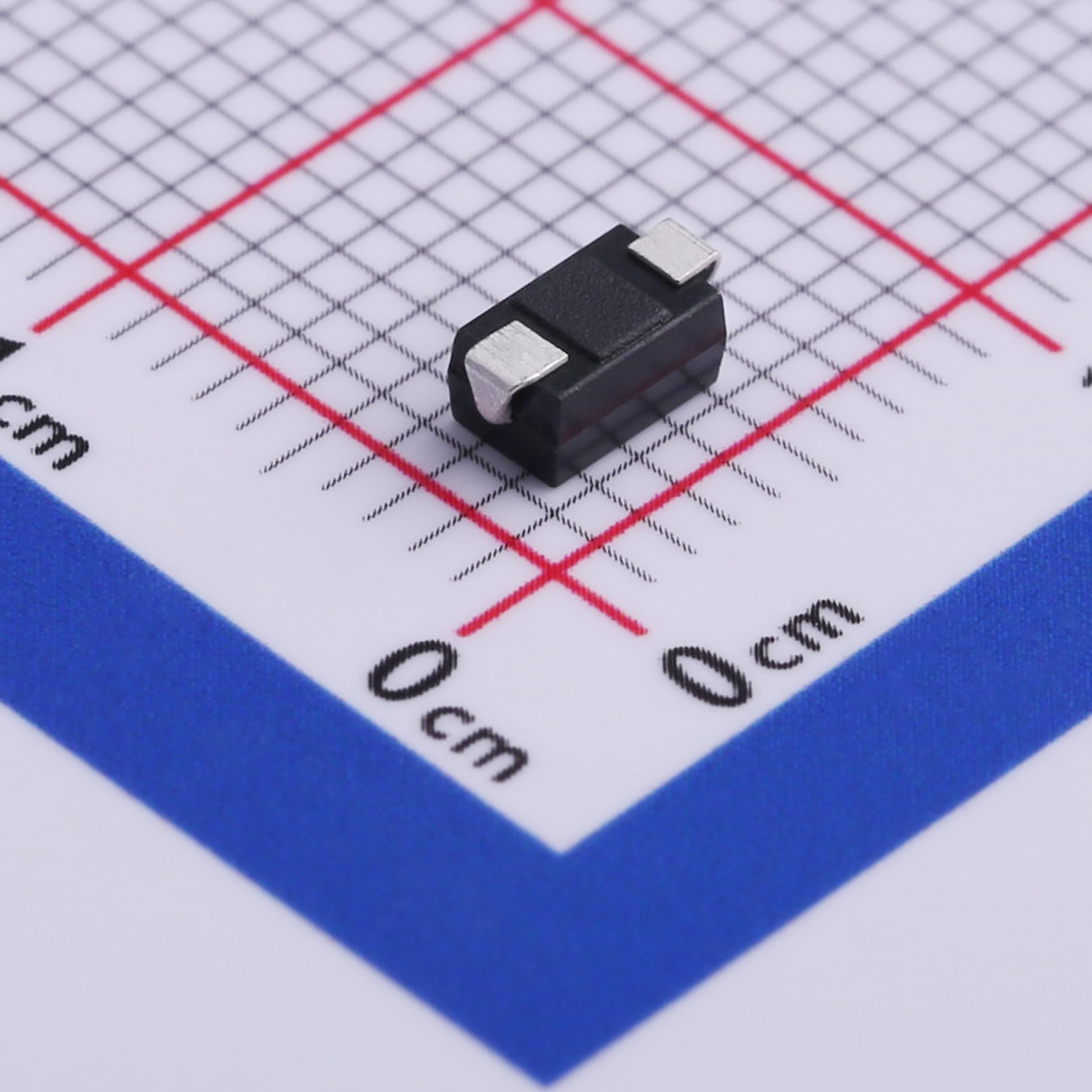

US1M Super Fast Surface Mount Rectifiers
VRRM(V): 1000V
IO(A): 1A
VF(V): 1.7V
IR(A): 5μA
trr(ns): 75ns
Package: SMA

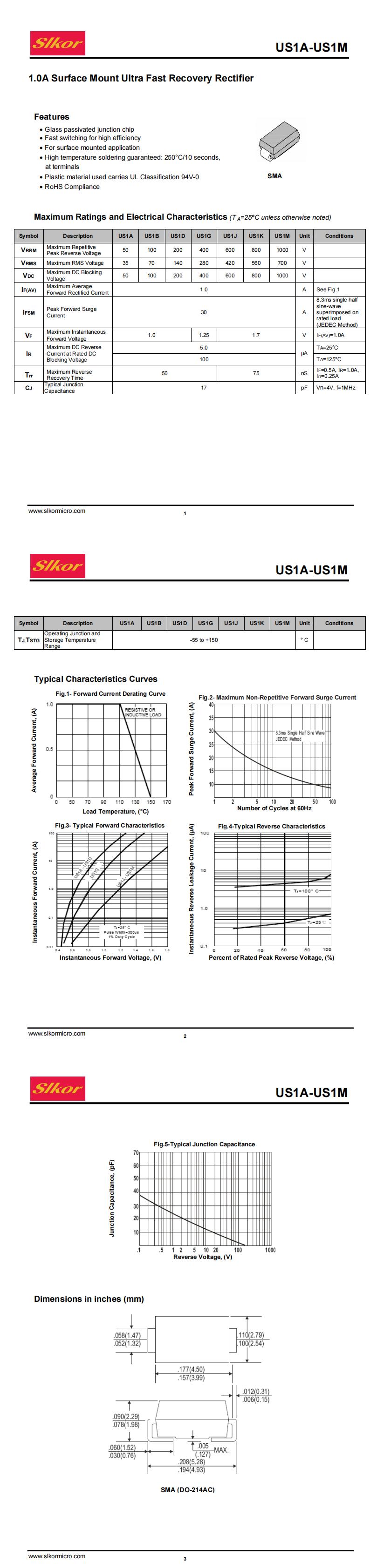

Advisory Download

Product Details

Features

● Glass passivated junction chip

● Fast switching for high efficiency

● For surface mounted application

● High temperature soldering guaranteed:250C/10 seconds at terminals

● Plastic material used carries UL Classification 94V-0

● RoHS Compliance

Quick reference data

Symbol Parameter Conditions Max Unit
IR reverse current VR = 25 V; Tamb = 25 °C 5 μA
VF reverse voltage IF(AV)=1.0A 1.7 V
trr reverse recovery time Tamb = 25 °C, IF=0.5A, IR=1.0A, Im=0.25A 75 ns
