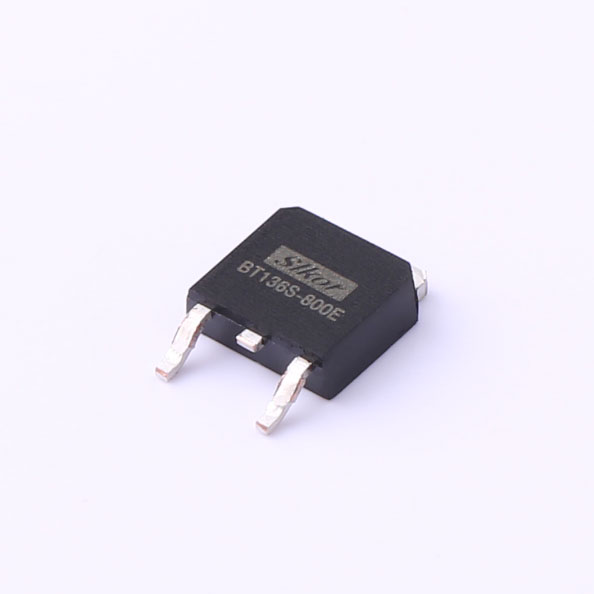

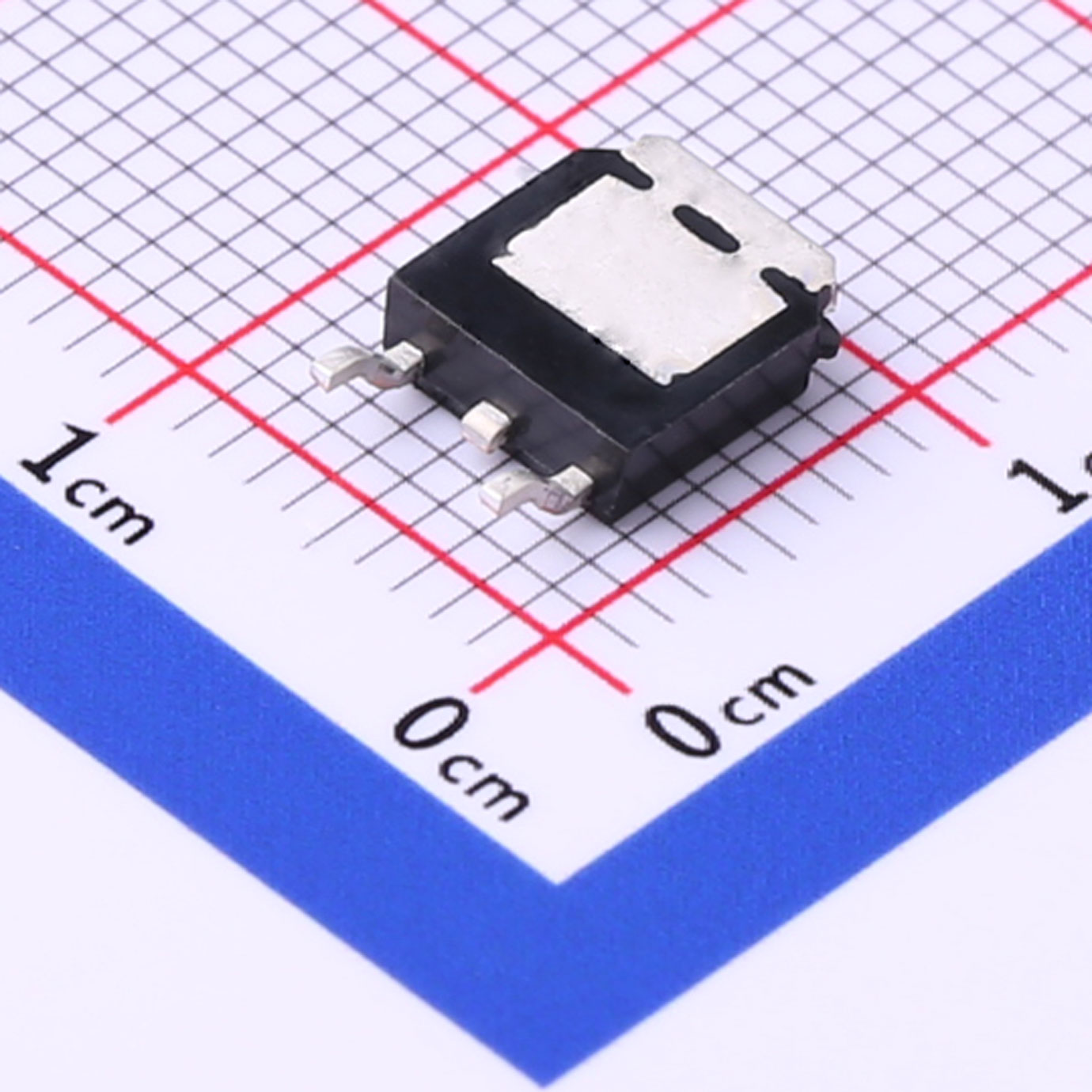

BT136S-800E 4Q Triac BT136S-800E 4Q Triac BT136S-800E 4Q Triac
BT136S-800E 4Q Triac
VDRM(V):800V
IT(RMS)(A):4A
IGT(mA)/Max:25mA
VGT(V) :1.5V
Package:TO-252

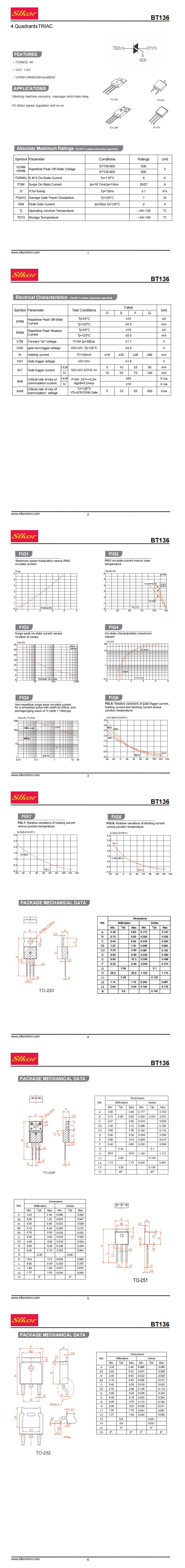

Product Details

Description

Planar passivated sensitive gate four quadrant triac in a TO252 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

Features

● Direct triggering from low power drivers and logic ICs

● High blocking voltage capability

● Low holding current for low current loads and lowest EMI at commutation

● Planar passivated for voltage ruggedness and reliability

● Sensitive gate

● Surface mountable package

● Triggering in all four quadrants


Applications

● General purpose motor control

● General purpose switching


Quick reference data

Symbol Parameter Conditions Max Unit
VDRM Repetitive peak off-state voltages 800 V
IT (RMS) RMS on-state current (full sine wave) Tc=110℃ 4 A
ITSM Surge On-State Current tp=16.7ms/10ms             25 / 27 A
