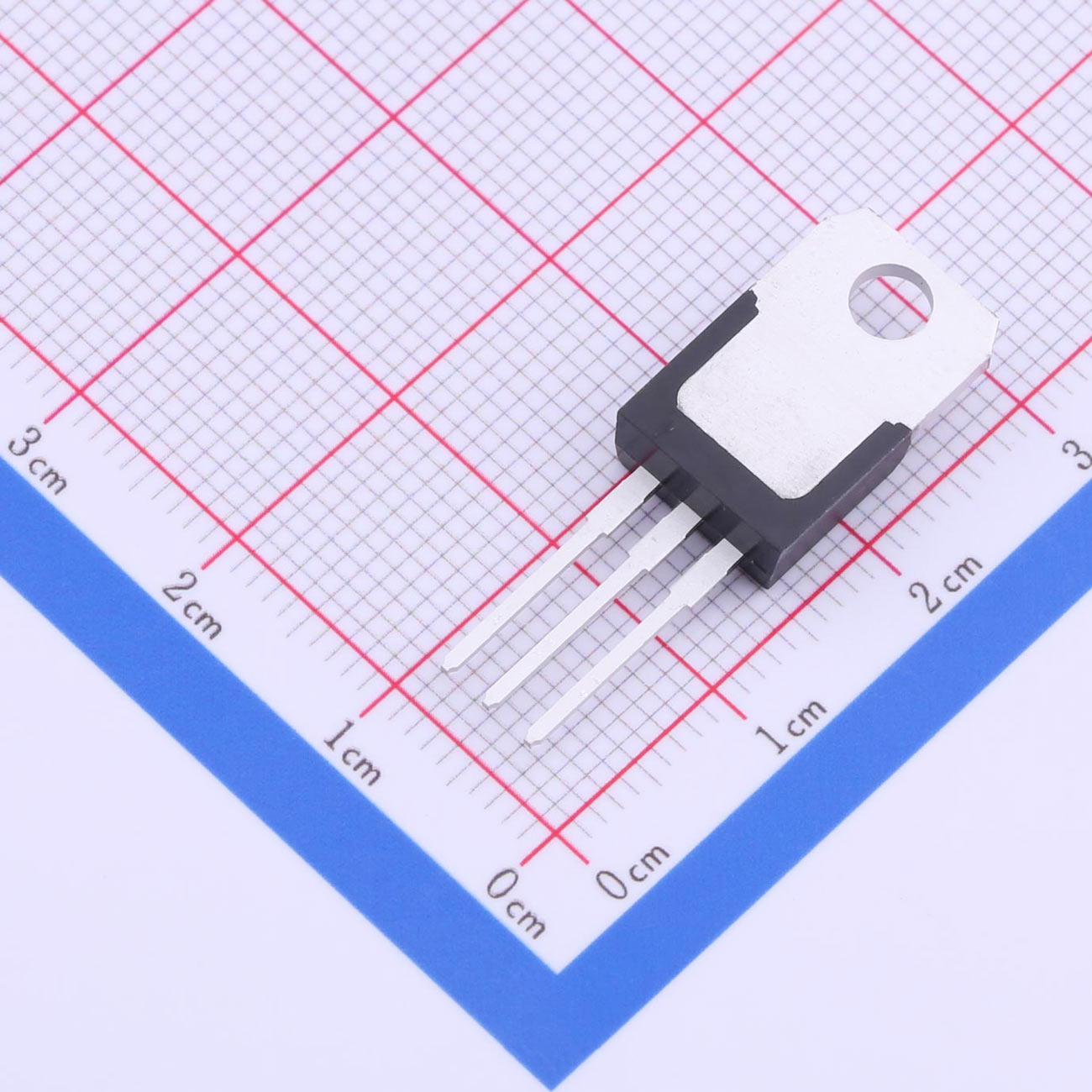

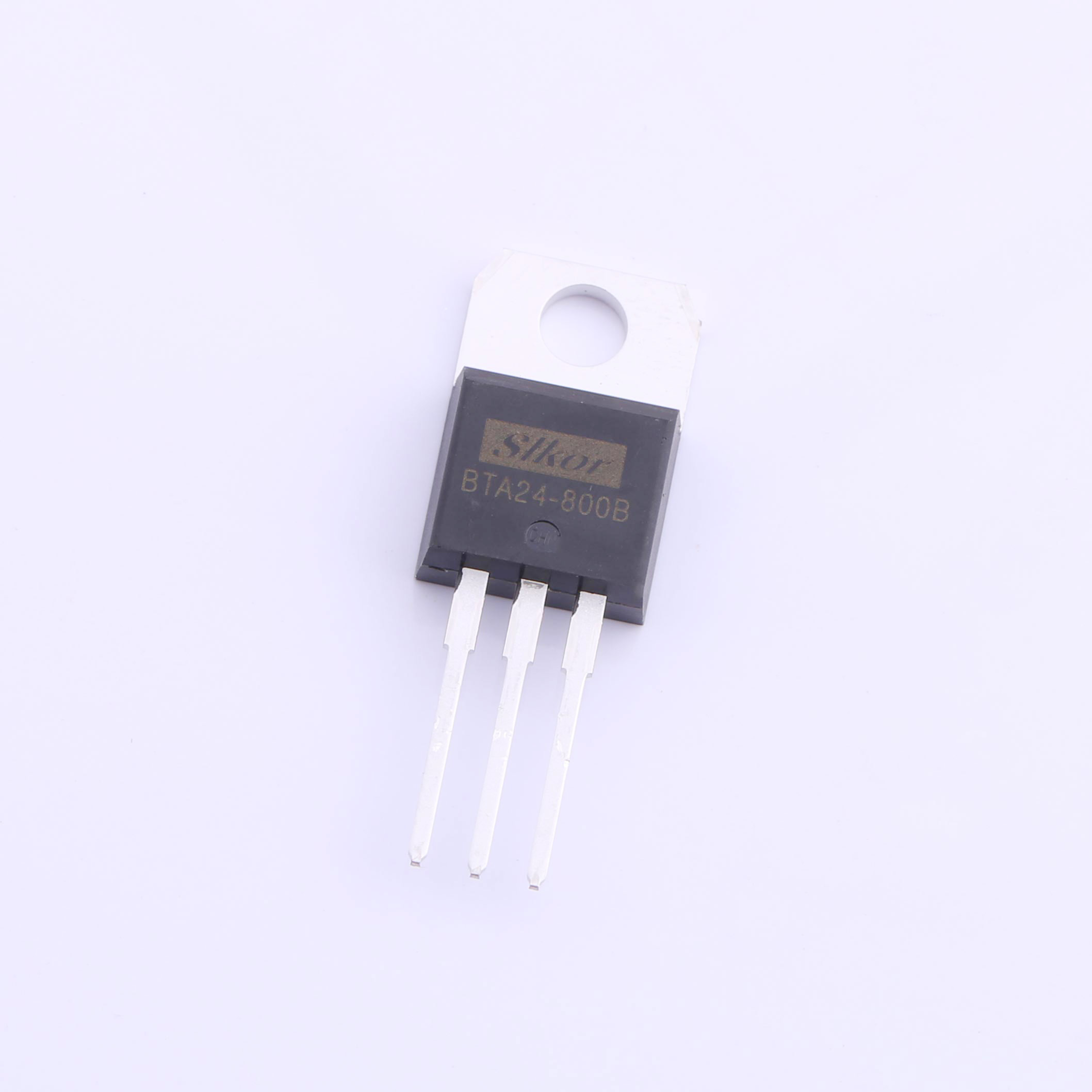

VDRM(V): 800V
IT(RMS)(A): 25A
IGT(mA)/Max: 100mA
VGT(V) : 1.5V
Package: TO-220
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to STMicroelectronics.
| STMicroelectronics | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |

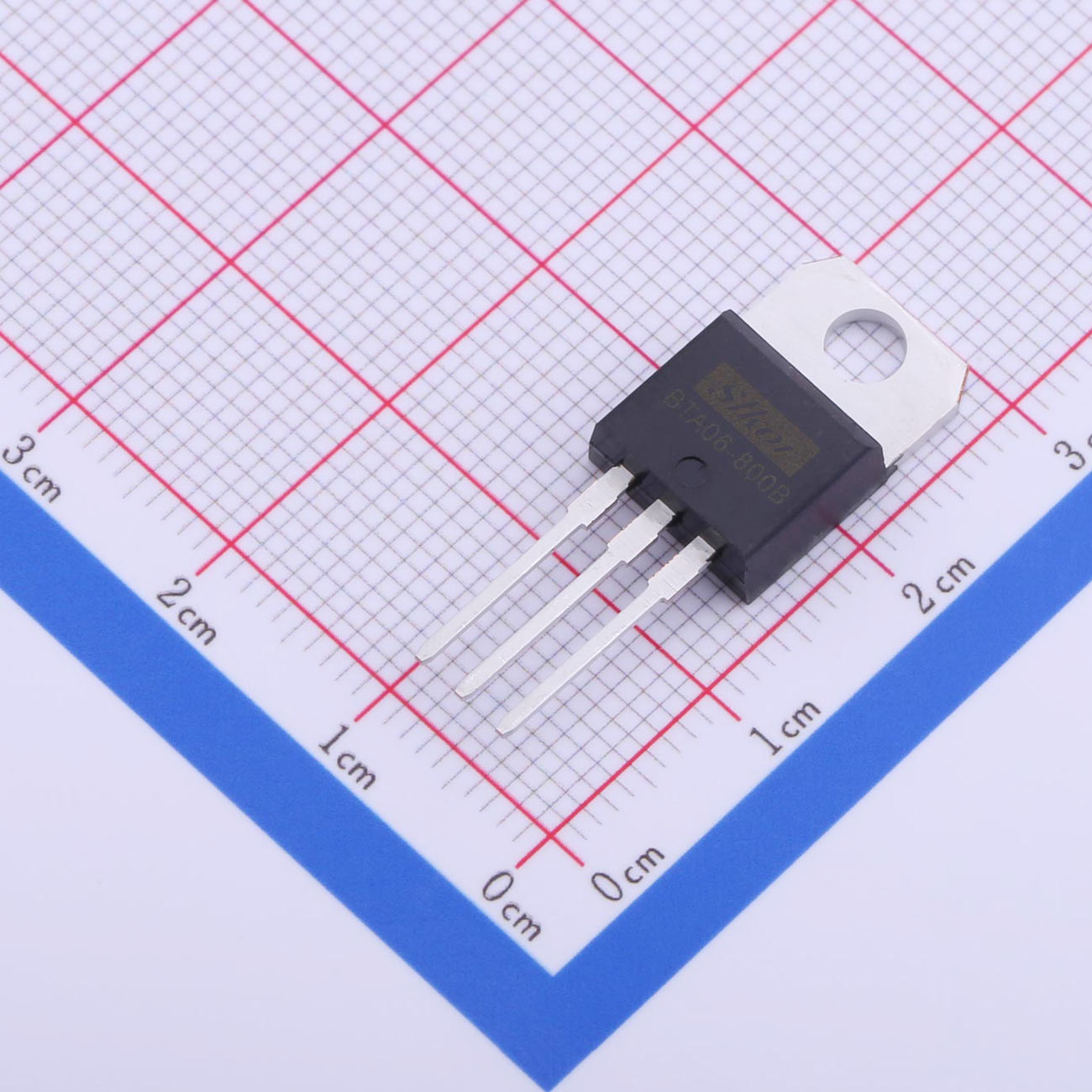

| BTA06-800BWRG | BTA06-800B | SCR | TO-220 |

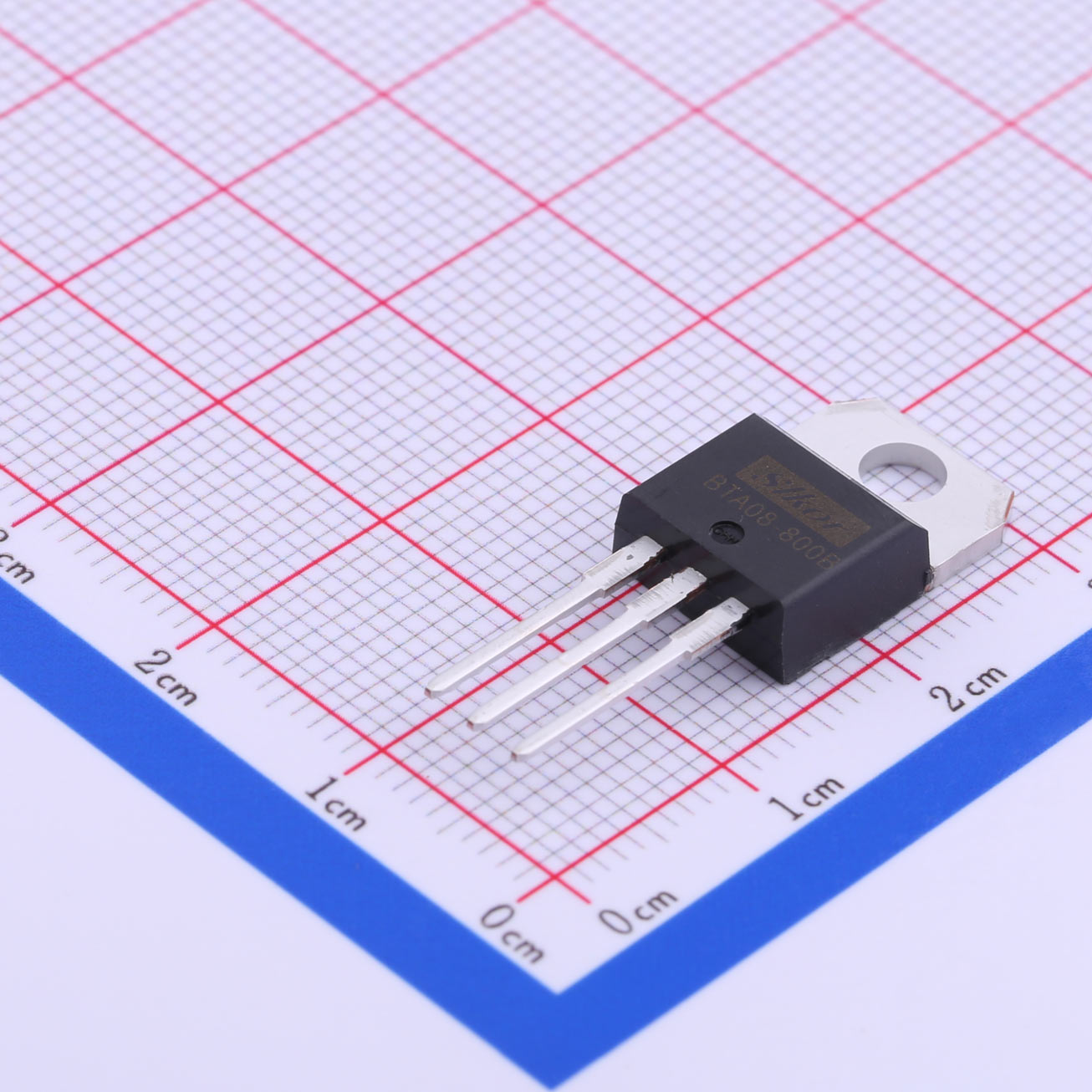

| BTA08-800BWRG | BTA08-800B | SCR | TO-220 |

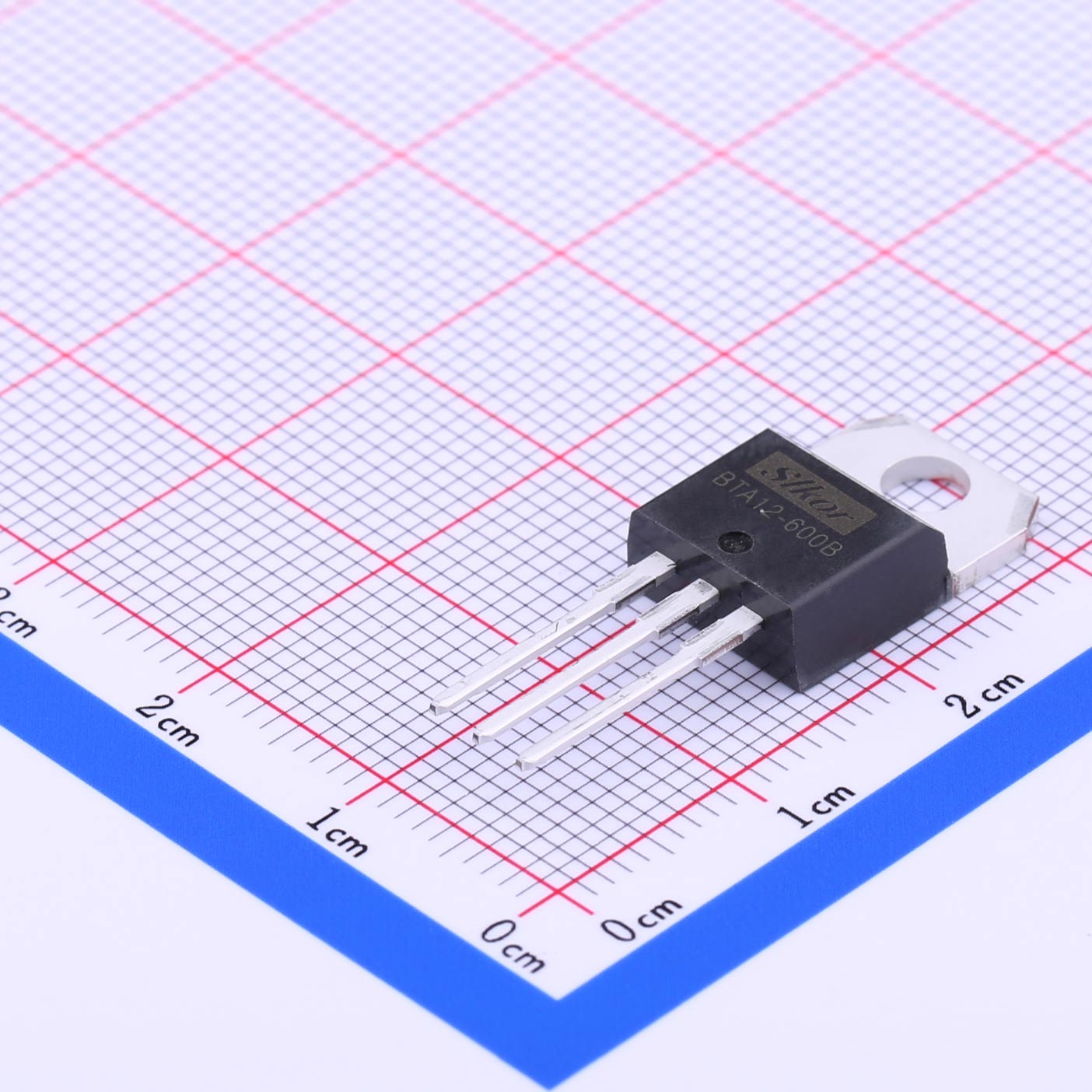

| BTA12-600BWRG | BTA12-600B | SCR | TO-220 |
| BTA16-800BWRG | BTA16-800B | SCR | TO-220 |
| BTA24-800BWRG | BTA24-800B | SCR | TO-220 |

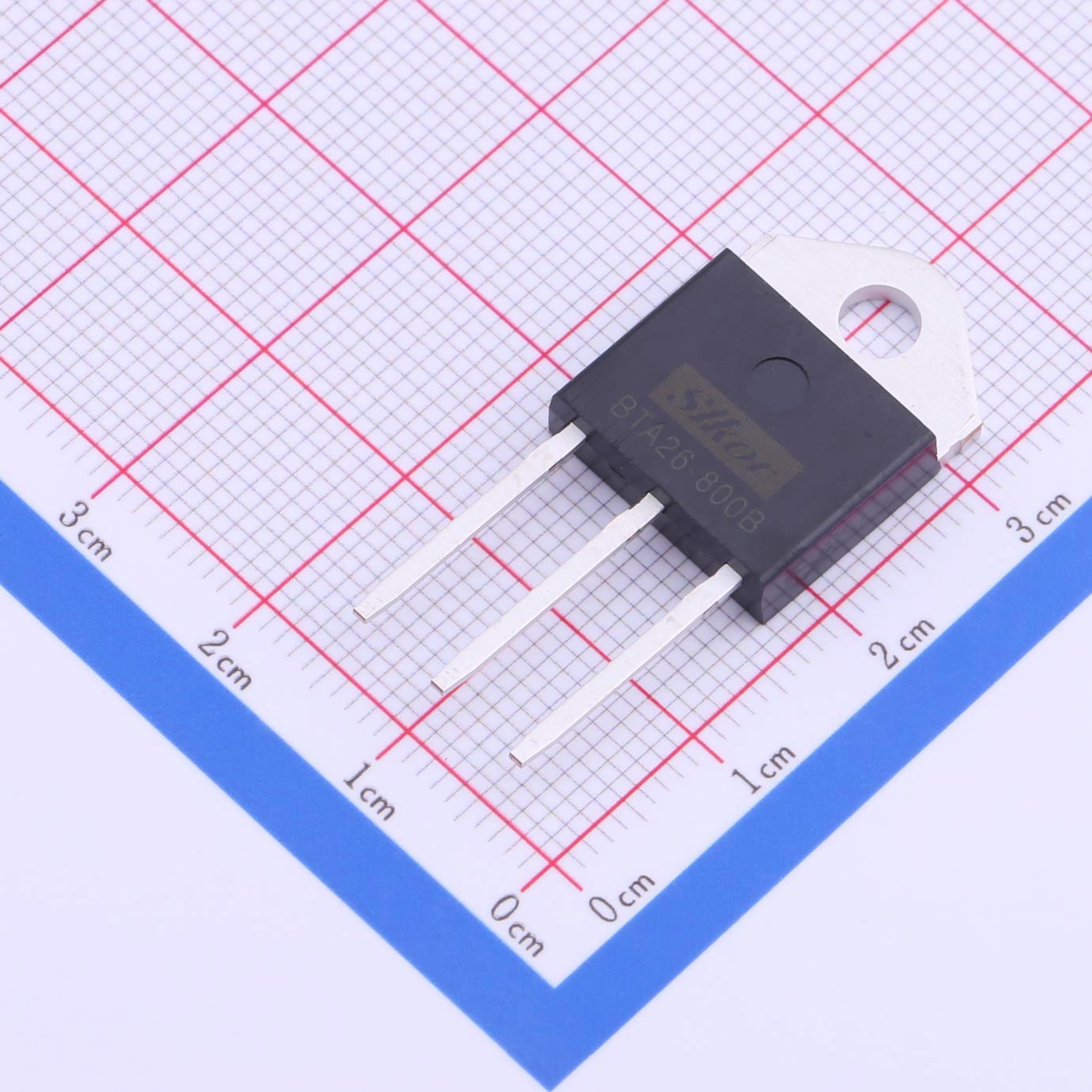

| BTA26-800BWRG | BTA26-800B | SCR | TO-3P |
| BTA41-800BRG | BTA41-800B | SCR | TO-3P |

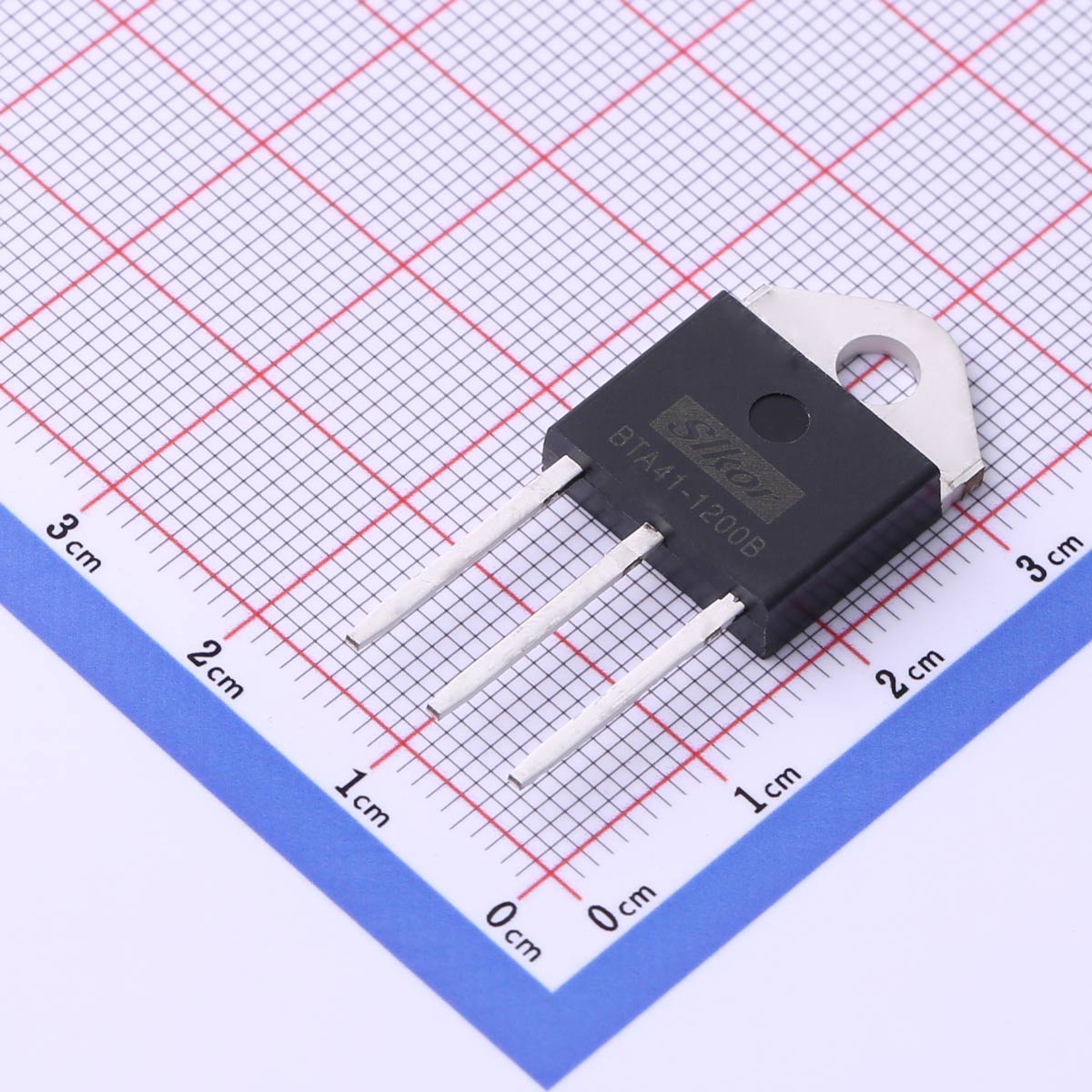

| BTA41-1200BRG | BTA41-1200B | SCR | TO-3P |
| ZMM5V1 | ZMM5V1 | Zener Diode | LL-34 |
| TIP122 | TIP122 | Darlington Array | TO-220 |
| TIP127 | TIP127 | Darlington Array | TO-220 |
| ULN2001D1013TR | ULN2001D | Darlington Array | SOP-16 |
| L4949 | SL4949 | Linear Regulator | SOP-8 |
| LM317T-DGZ | LM317 | Linear Regulator | TO-220 |
| LMV321ILT | LMV321 | Op-amp | SOT-23-5 |
| M24C02-WMN6TP | SL24C02D | EEPROM | SOP-8 |
| MMBTA42 | MMBTA42 | Transistor | SOT-23 |
| MMBT4401 | MMBT4401 | Transistor | SOT-23 |
| MMBT5551 | MMBT5551 | Transistor | SOT-23 |
| MMBT5401 | MMBT5401 | Transistor | SOT-23 |
| MMBT3904 | MMBT3904 | Transistor | SOT-23 |
| MMBT3906 | MMBT3906 | Transistor | SOT-23 |
| MMBT2222A | MMBT2222A | Transistor | SOT-23 |
| D44H11 | SL44H11 | Transistor | TO-220-3L |
Description
Available either in through-hole or surface-mount packages, the BTA24, BTB24 and T25 are suitable for general purpose AC switching.
Features
● High current 25 A RMS current Triac
● Low thermal resistance
● High commutation (4 quadrants) or very high commutation (3 quadrants)
● capability
● BTA series UL1557 recognized components (file ref: 81734)
● RoHS (2002/95/EC) compliant packages
● UL-94, V0 flammability package resin compliance
Applications
● On/off function in static relays, heating regulation, induction motor starting circuits.
● Phase control operations in light dimmers and motor speed controllers.
Quick reference data
| Symbol | Parameter | Conditions | Max | Unit |
| VDRM | Repetitive peak off-state voltages | 800 | V | |
| IT (RMS) | RMS on-state current (full sine wave) | Tc=110℃ | 25 | A |
| ITSM | Surge On-State Current | f=50/60Hz, tp=16.7ms/20ms | 250 / 260 | A |
