S8050 NPN Bipolar Transistor SOT-23 S8050 NPN Bipolar Transistor SOT-23 S8050 NPN Bipolar Transistor SOT-23

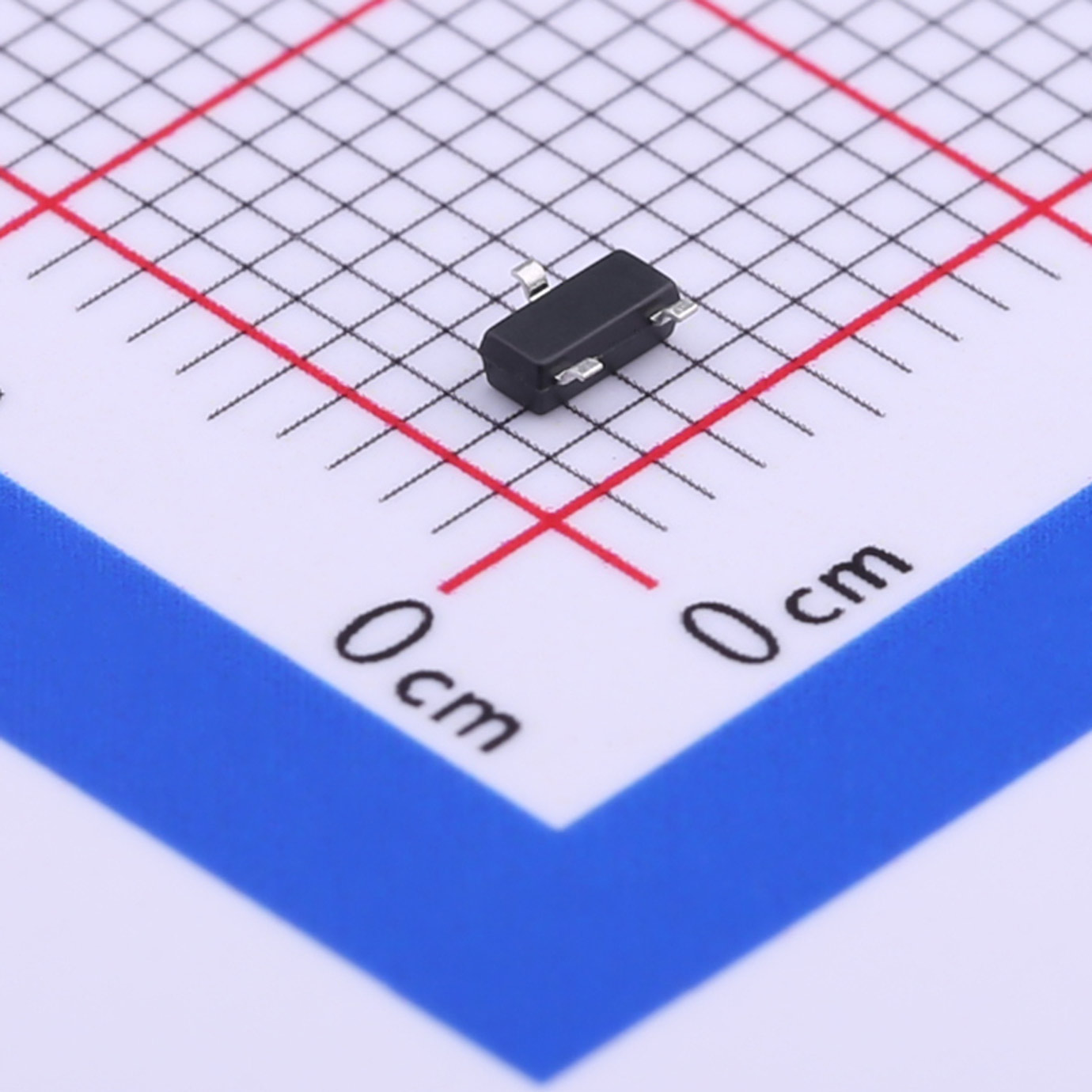

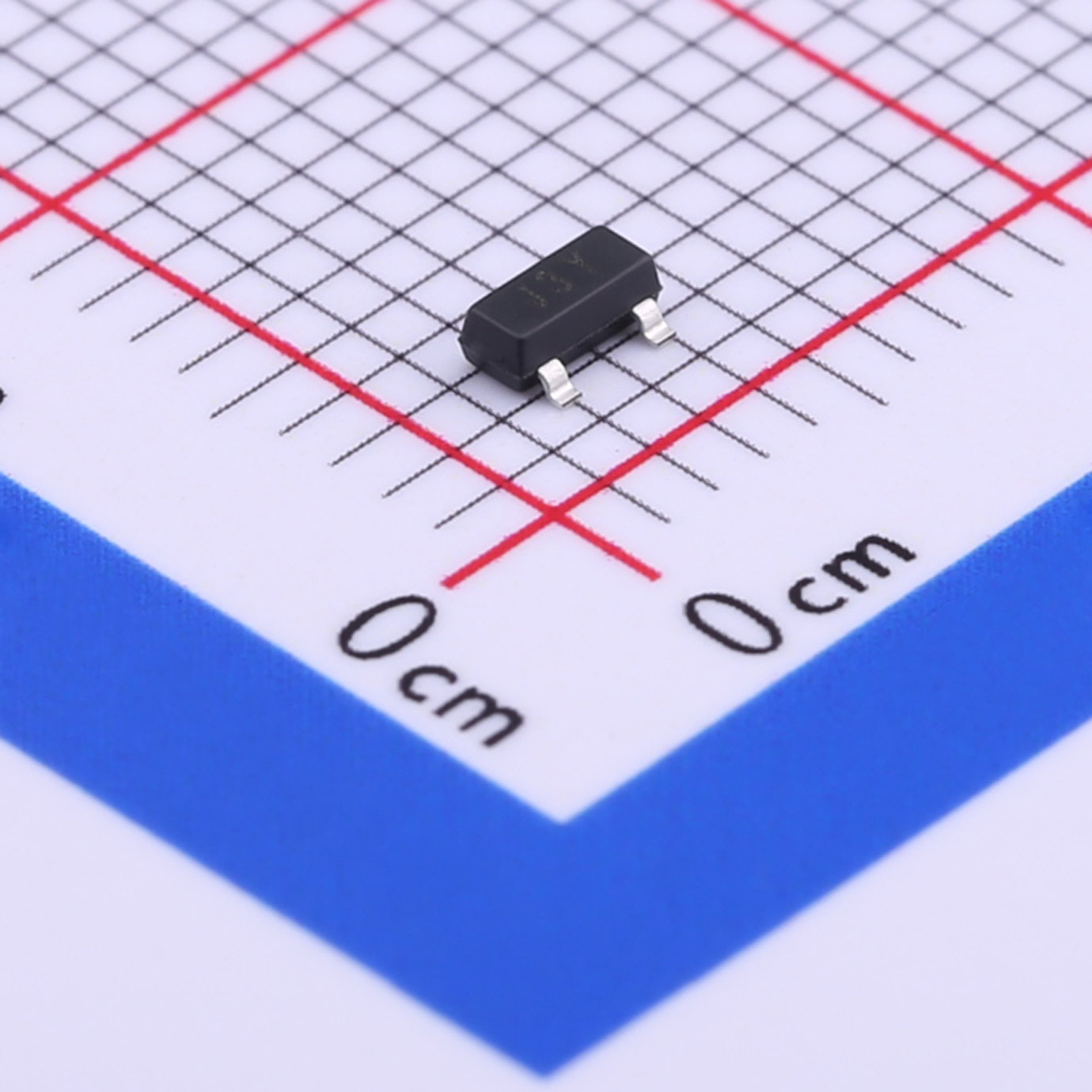

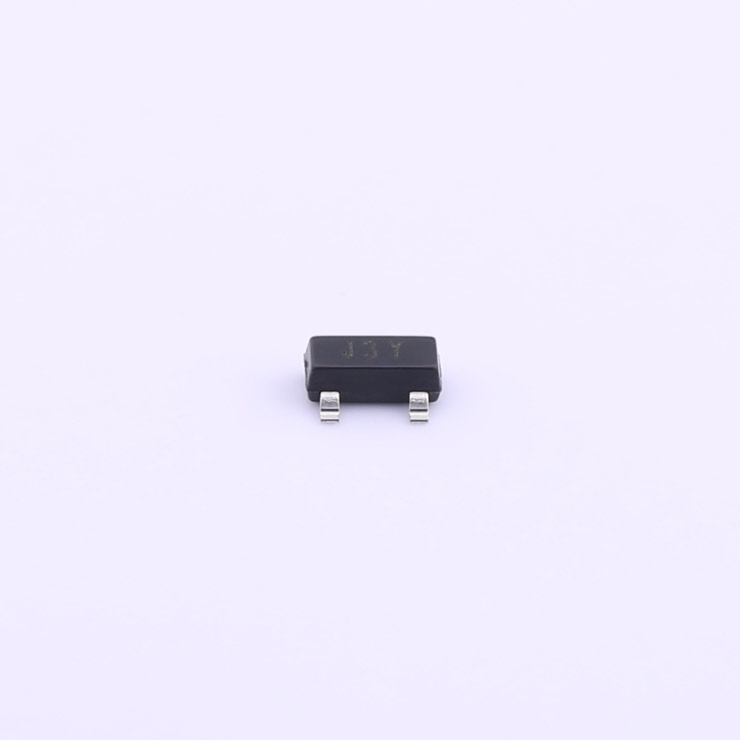

S8050 NPN Bipolar Transistor SOT-23
VCEO(V):25V
IC(A):0.5A
PD(W):0.3W
VCE(sat)(V):0.6V
fT(MHz):150MHz
Package:SOT-23

Product Details

Our advantages:

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.


Description:

This is 25V 0.5A Silicon NPN Transistor.


Features:

● Collector current up to 700mA.

● Collector-Emitter voltage up to 20 V.

● Complementary to S8550 PNP Type.


Applications:

The Slkor S8050 is a low voltage high current small signal NPN transistor, designed for Class B push-pull audio amplifier and general purpose applications.


Quick reference data:

Symbol Parameter Conditions Max Unit
VCEO collector-emitter voltage open base 25 V
IC collector current 0.5 A
VCEsat collector-emitter
saturation voltage
IC = 500mA; IB = 50mA 0.6 V
