SL6204 is a low-power, high-sensitivity bipolar Hall switch chip designed and produced using CMOS technology. The chip integrates a voltage regulator, Hall voltage generator, small signal amplifier, chopper regulator, Schmitt trigger and CMOS output driver. The chip has good temperature stability, strong stress resistance, high sensitivity, etc. The operating voltage is 1.8V-5.5V. It provides TO-92S direct plug-in package and SOT23-3L package, and the package complies with RoHS environmental protection standards.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
SL6204 is a low-power, high-sensitivity bipolar Hall switch chip designed and produced using CMOS technology. The chip integrates a voltage regulator, Hall voltage generator, small signal amplifier, chopper regulator, Schmitt trigger and CMOS output driver. The chip has good temperature stability, strong stress resistance, high sensitivity, etc. The operating voltage is 1.8V-5.5V. It provides TO-92S direct plug-in package and SOT23-3L package, and the package complies with RoHS environmental protection standards.
Features
● CMOS output
● ESD performance can reach: ±6 kV
● Operating voltage: 1.8V-5.5V
● Micropower battery powered applications
● Bipolar output switch
Applications
● Solid state switch
● Instrumentation
● Laptop
● PDA
| File Name | Title | Description |
|---|---|---|
| SL6204-3 SOT-23-3L.pdf | SL6204-3 SOT-23-3L | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
SL8631 is a low-power, highly sensitive bipolar Hall effect switch chip, designed and produced using CMOS technology. The chip integrates internal voltage regulator, Hall voltage generator, small signal amplifier, chopper stabilized regulator, Schmitt trigger, and CMOS output driver. The chip features excellent temperature stability, strong stress resistance, high sensitivity, and operates within a voltage range of 1.8V to 5.5V. It is available in TO-92S through-hole packaging and SOT-23-3L surface-mount packaging, both compliant with RoHS environmental standards.
The SL163X series is a low-power, latching Hall switch sensor. The chip has built-in temperature compensation circuit and clock logic circuit to ensure the stable operating point and switching frequency of the chip. When magnetic field B is applied, when |B|>|BOP|, the chip outputs a low level and maintains a low level. Until |B|>|BRP|, the chip outputs a high level. It can operate in the supply voltage range of 1.8V to 5.5V and adopts standard SOT-23-3L and TO-92S packages.
The SL163X series is a low-power, latching Hall switch sensor. The chip has built-in temperature compensation circuit and clock logic circuit to ensure the stable operating point and switching frequency of the chip. When magnetic field B is applied, when |B|>|BOP|, the chip outputs a low level and maintains a low level. Until |B|>|BRP|, the chip outputs a high level. It can operate in the supply voltage range of 1.8V to 5.5V and adopts standard SOT-23-3L and TO-92S packages.
SL2464 is a high-pressure-resistant and highly sensitive full bipolar Hall effect switch chip, designed using bipolar semiconductor technology.
SL6207 is a low-power, high-sensitivity full bipolar Hall switch chip designed and manufactured using CMOS technology. Integrated within the device are a voltage regulator, Hall voltage generator, small signal amplifier, chopper stabilizer, Schmitt trigger, and CMOS output driver. This chip exhibits excellent temperature stability, strong stress resistance, and high sensitivity, operating within a voltage range of 1.8V to 5.5V. It is available in TO92S through-hole and SOT23-3L surface-mount packages, both compliant with RoHS environmental standards.
The SL253 is a low power, high sensitivity, omnipolar Hall switch designed and manufactured using the CMOS process. The device integrates a voltage regulator, Hall voltage generator, small signal amplifier, chopper regulator, Schmitt trigger and CMOS output driver. The chip is characterised by good temperature stability, high stress resistance and high sensitivity, and operates at voltages from 1.8V to 5.5V.They are available in TO92S in-line package and SOT23-3L SMD package, and all packages are RoHS compliant.
SL6103 is a low-power, high-sensitivity, bipolar Hall switch chip designed and produced using CMOS technology. Integrated within the device are a voltage regulator, Hall voltage generator, small signal amplifier, chopper stabilizer, Schmitt trigger, and CMOS output driver. This chip exhibits excellent temperature stability, strong stress resistance, and high sensitivity, operating within a voltage range of 2.7V to 5.5V. It is available in TO-92S through- hole and SOT23-3L surface-mount packages, both compliant with RoHS environmental standards

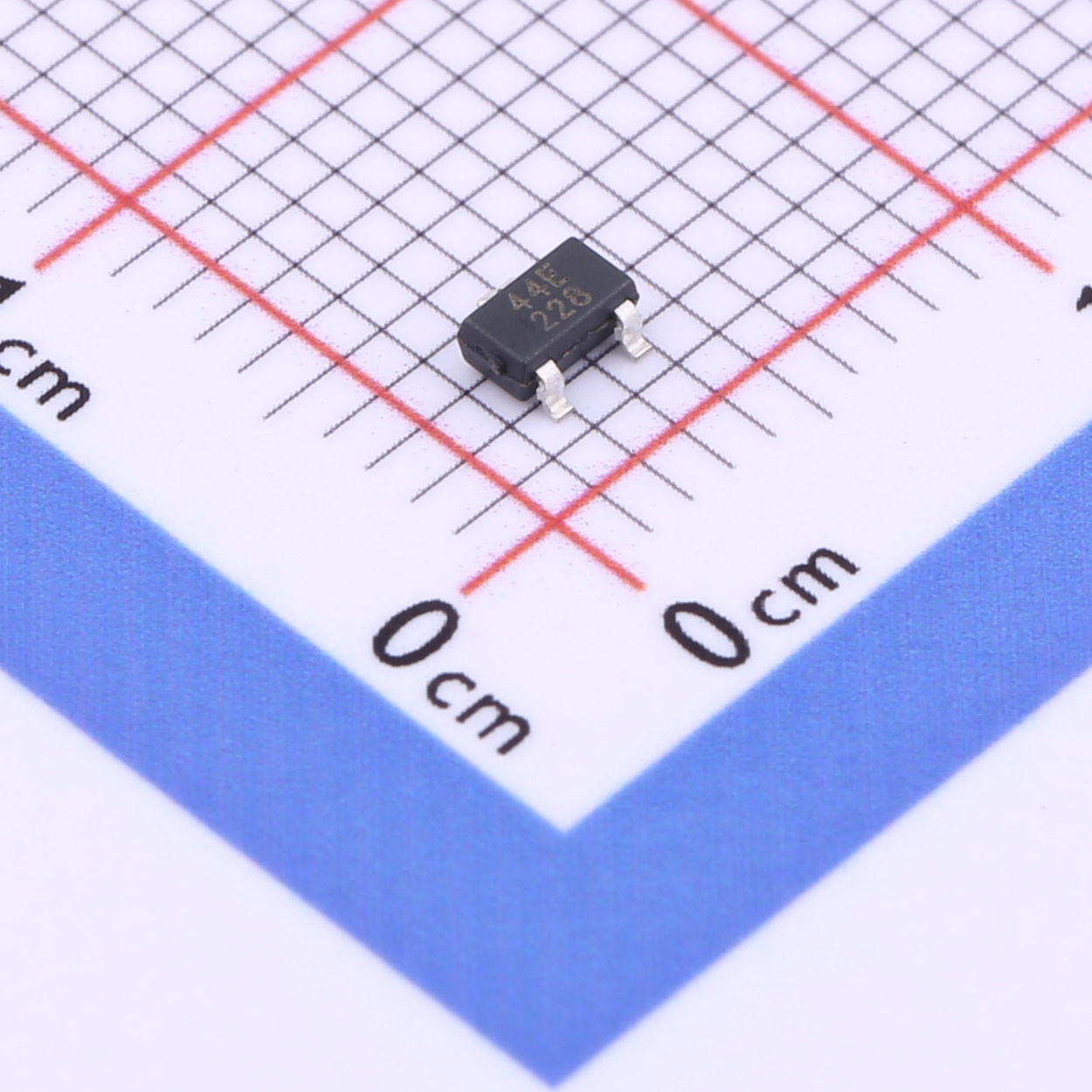

SL44E unipolar Hall effect switch, designed with bipolar semiconductor process, includes Hall voltage generator, voltage regulator that can operate at power supply voltage of 3.8 to 40V, temperature compensation circuit, small signal amplifier, Schmitt trigger and open collector output. This sensor is designed for south pole response. When the magnetic flux density (B) is greater than the operating point Bop, the output is low level, and the output remains unchanged until the magnetic flux (B) is less than the release point Brp, the output is high level. SL44E provides a variety of packages, including TO92S, SOT23 -3L, and the packaging is RoHS compliant.
