Description

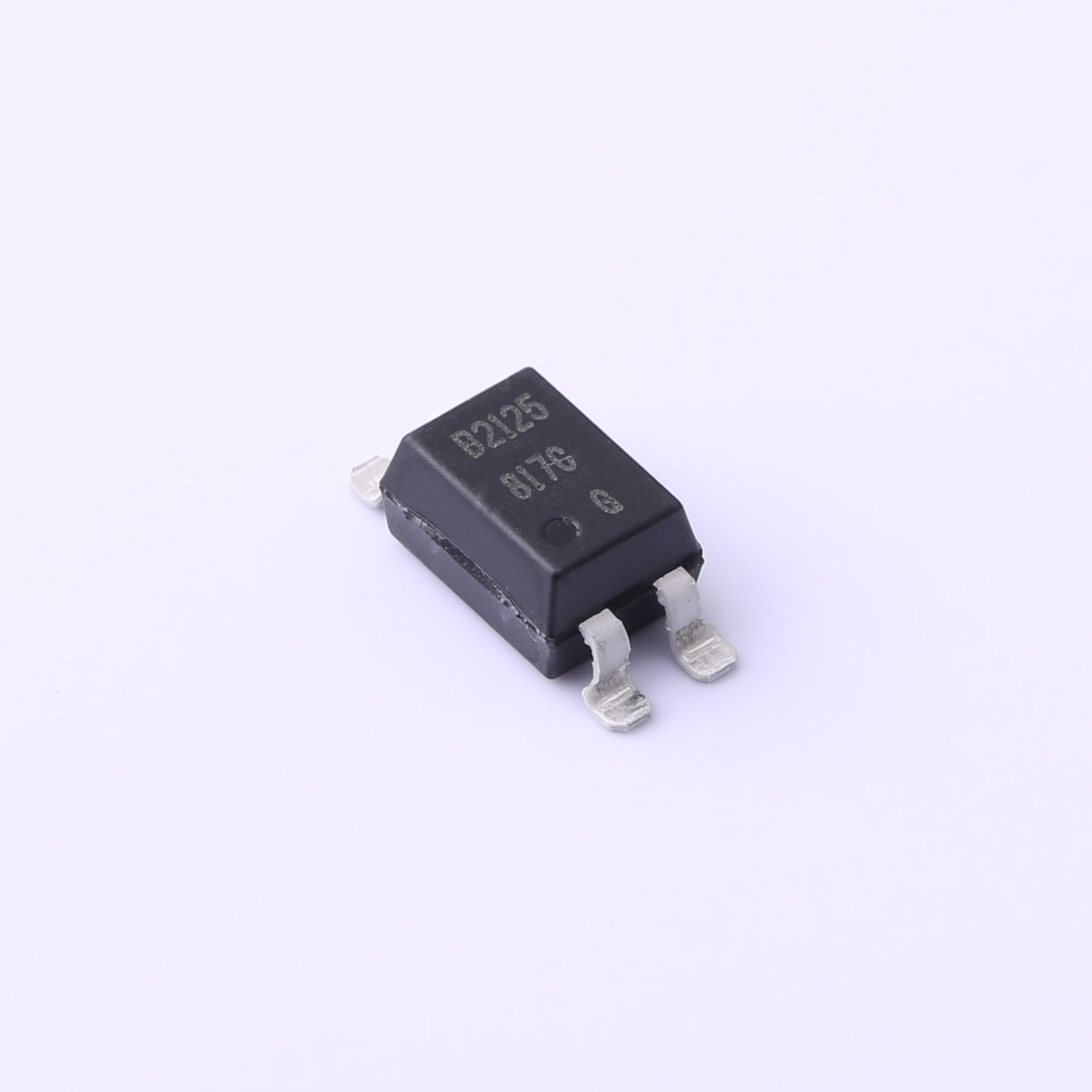

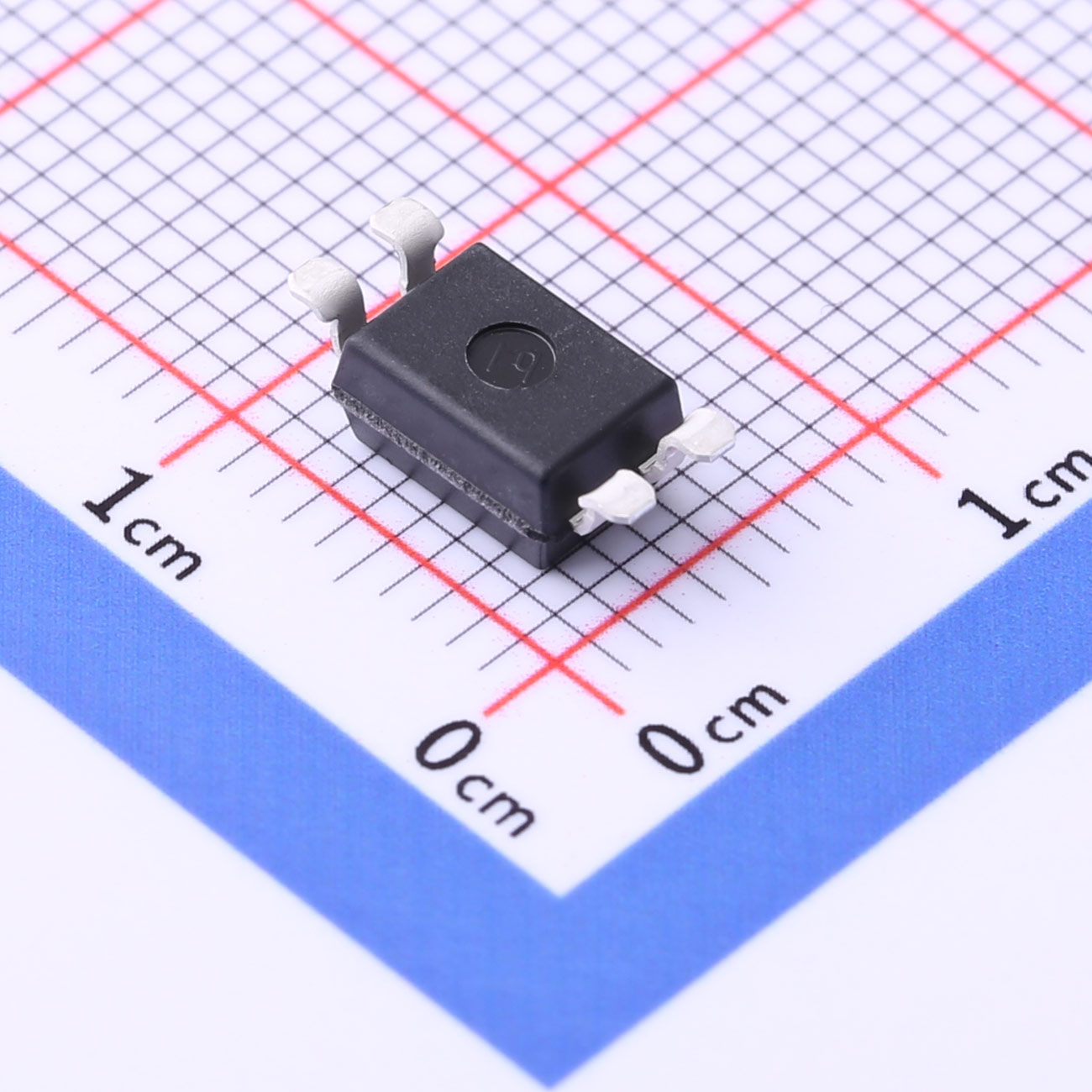

PC817X is a photoelectric coupler product composed by a luminous diode and a photo transistor, with the input-output isolation voltage of 5000Vrms and the typical value of the response time tr of 4 us.The minimum CTR is 80%the at 2mA input current. SOP4 package is adopted for the product.
Features
● Current conversion ratio CTR (in condition of IF=5mA,VCE=5V,CTR:MIN.50%).
● High input-output isolation voltage (Viso=5000 Vrms).
● Collector-emitter breakdown voltage BVCEO280V.
● UL certification (dual-protection.No.E465130).
● VDE certification (No.40039266).
Applications
● Power supply feedback circuits.
● System devices and measurement instruments.
● Registers, copying machines and vending machines.
● Household appliances,such as fans and water heaters.
