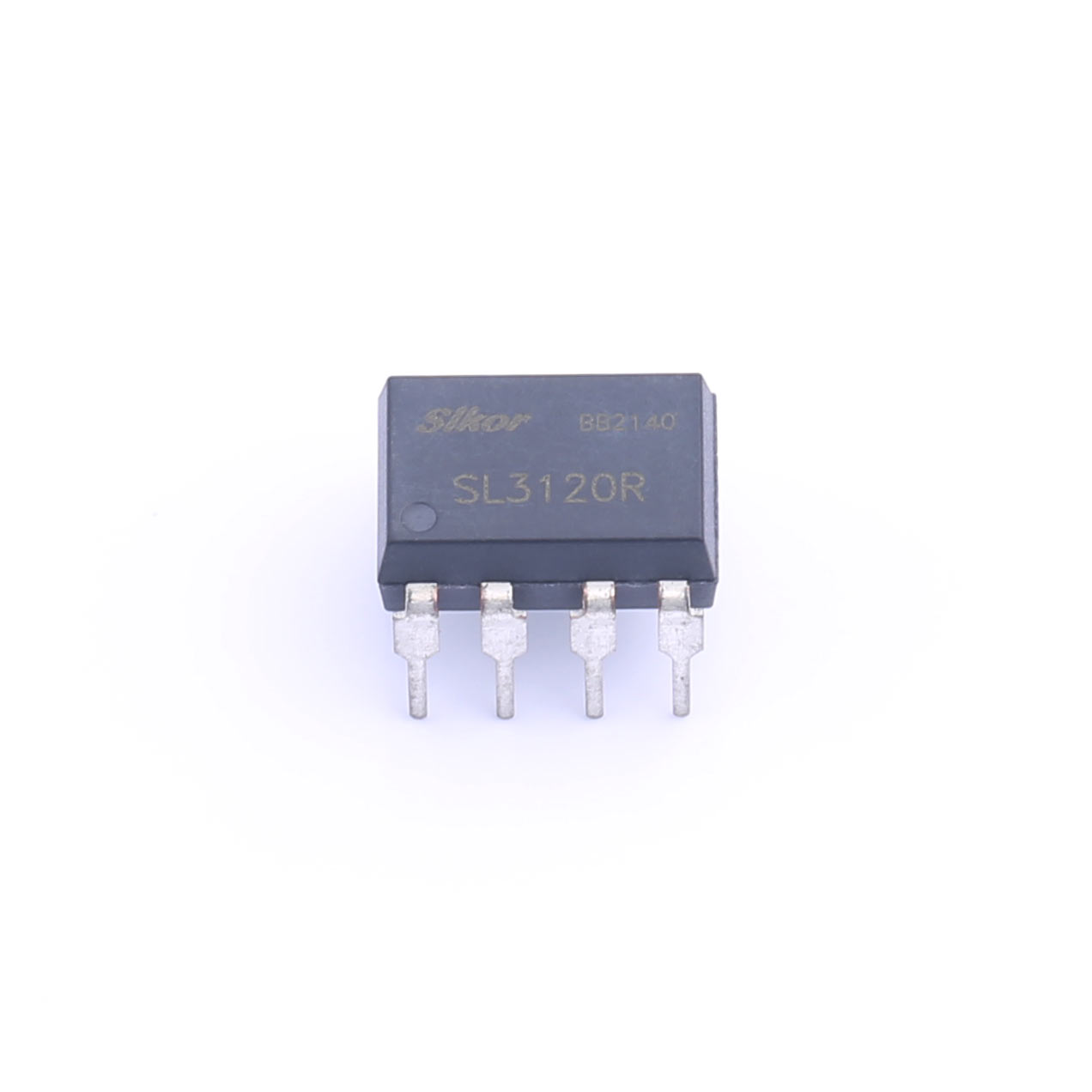

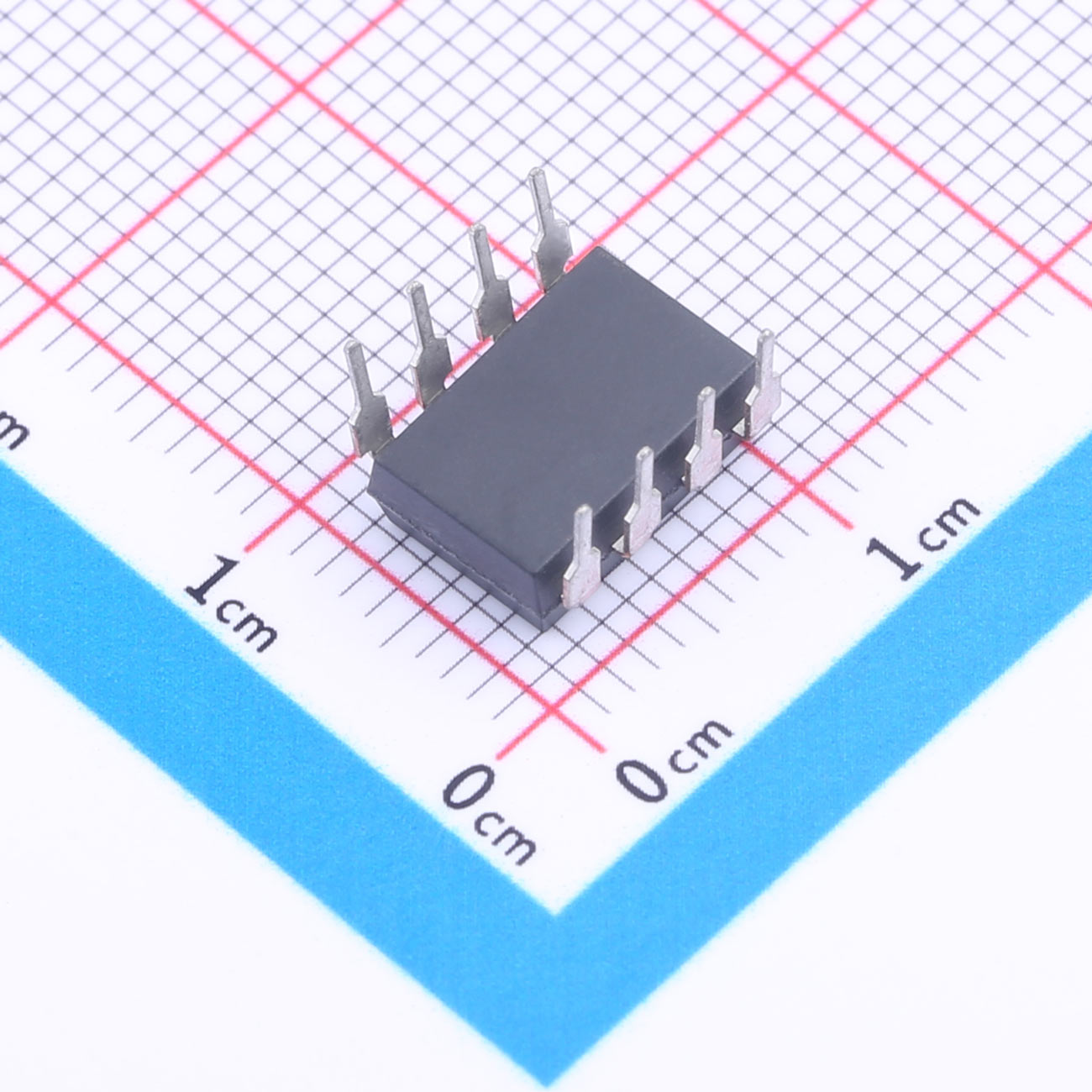

The SL3120R Series is a photocoupler in a DIP8 package that consists of a infrared light-emitting diode (LED)optically coupled to an high-speed photodetector IC chip
The SL3120R Series is ideal for IGBT of small capacity to middle capacity and power MOSFET gate drive
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SL3120R Series is a photocoupler in a DIP8 package that consists of a infrared light-emitting diode (LED)optically coupled to an high-speed photodetector IC chip
The SL3120R Series is ideal for IGBT of small capacity to middle capacity and power MOSFET gate drive
Features
●High isolation 5000 VRMS
●Fast swiching speed
●Operating temperature range - 40 °C to 100 °C
●Supply voltage: 15 to 30 V
●2.5A Peak output current
Applications
●switch power supply
●Industrial Inverter
●Laser driver
●Isolated IGBT/Power MOSFET gate drive
| File Name | Title | Description |
|---|---|---|
| SL3120R DIP-8.pdf | SL3120R DIP-8 | - |
