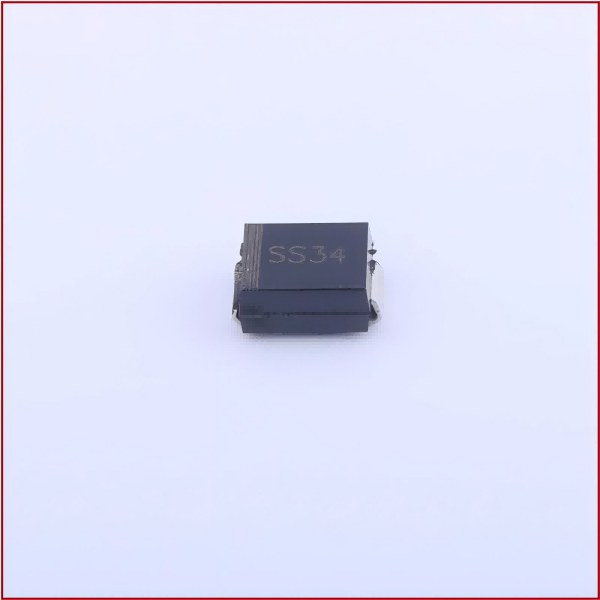

SS34B Schottky Diode: The "Energy Gatekeeper" of the High-Frequency Era

2025-09-17 17:00:18 115

In a photovoltaic inverter production workshop in Shenzhen, engineers are performing the final tests on a batch of products destined for Europe. While other similar devices experience efficiency degradation at 55°C, a prototype featuring the SS34B Schottky diode continues to operate steadily at a conversion efficiency of 98.7%, with output waveforms as smooth as ever. This scenario vividly demonstrates how Slkor's "performance benchmark" has broken through industry bottlenecks—using robust parameters to prove that Chinese semiconductor companies have made key breakthroughs in the high-frequency, high-temperature, and high-efficiency "three-high" arena.


1. Parameter Reconstruction: Redefining Efficiency Boundaries in High-Frequency Scenarios

While the industry still debates optimizing forward voltage drops by 0.1V, the SS34B directly sets a new standard with a groundbreaking 500mV@3A figure. Behind this seemingly simple number lies Slkor's disruptive innovation in material science and packaging technology:

Metal-Semiconductor Interface Revolution: Utilizing a gradient-doped Schottky barrier structure, the SS34B maintains low contact resistance while controlling reverse leakage current to 500μA (industry average is 800μA). It remains stable in rectification even in weak light conditions at dawn and dusk in solar inverters.

Three-Dimensional Thermal Channel Design: By embedding micron-scale heat dissipation channels in the silicon base, coupled with a TO-220 package's dual-sided heat dissipation structure, the thermal resistance is reduced to 5°C/W, lowering junction temperature by 20°C under 3A full load, effectively solving the "thermal runaway" issue in high-frequency switching.

Dynamic Charge Balancing Technology: During nanosecond-level switching transitions, the SS34B optimizes carrier distribution, compressing reverse recovery time to under 10ns—three times faster than regular fast recovery diodes. This eliminates voltage spikes in high-frequency PWM modulation, reducing system EMI interference by 15dB.

These technological innovations lead to a direct effect: at a working frequency of 100kHz, the SS34B maintains a conversion efficiency of over 98.5%, improving by 1.2 percentage points compared to the previous generation. For a 5kW photovoltaic inverter, this can generate an additional 420 kWh of electricity annually, which reduces CO2 emissions by 260kg.

2. The "All-Rounder" for Extreme Scenarios

Modern electronic designs have evolved from "functional" to "extreme". The SS34B's specifications may seem simple at first glance, but they contain hidden brilliance:

Precise 40V Voltage Rating: Optimized for intermediate voltage scenarios like 48V communication power supplies and 24V industrial controls, it reduces chip area by 30% and lowers costs by 25%, making it the "cost-performance king".

Elastic 3A Current Range: Using a unique current density distribution algorithm, the SS34B achieves over 99% efficiency under 1A light load, with a temperature rise of only 35°C under 3A full load. It perfectly adapts to transient power fluctuation scenarios, such as drone motor drives.

Ultimate Control of 500μA Reverse Leakage Current: Under temperature testing from -55°C to 150°C, reverse leakage current fluctuation is limited to less than 10%, providing reliable support for avionics systems. A satellite power project showed that after 1000 hours of radiation exposure, the SS34B's performance degradation was less than 0.5%, becoming the "anchor" for space missions.

3. Application Expansion: From Ground to Space

The SS34B's outstanding performance has been validated across multiple industries:

New Energy Vehicles: In the motor controller of a leading car manufacturer, replacing the original IGBT companion diode improved system efficiency by 0.7%, extending the range by 4 kilometers, while reducing vehicle weight by 1.2kg due to lower heat dissipation requirements.

5G Base Station Power Supplies: Used in microstation DC-DC conversion modules, it achieves a peak efficiency of 99.1%. Combined with natural heat dissipation design, it saves 180 RMB in electricity costs per year per station, reducing operational and maintenance costs by 30%.

Aerospace: In a satellite power system, the SS34B demonstrated excellent reverse leakage current stability in a vacuum environment, extending the satellite's design life from 8 years to 12 years and reducing total lifecycle costs by 40%.

Conclusion: Beyond the Imagination of Electronic Devices' Future

A particularly striking data point in the SS34B's test report shows that after 1000 extreme temperature cycling tests between -55°C and 175°C, performance degradation was less than 0.3%. This is not only a triumph in material science but also a profound interpretation of the idea that "reliability is the future". As electronic devices begin to break through physical limits, we are witnessing not just technological progress, but the rapid arrival of a more efficient and cleaner intelligent world. The story of Slkor and the SS34B may be the prelude to this new era—where every electronic flow is precisely calculated, every energy conversion is close to the theoretical limit, and Chinese semiconductor companies stand at the center of this revolution.
