SS54B Schottky Diode: The "Energy Key" for the High-Frequency, High-Efficiency Era

2025-09-25 17:07:43 77

As artificial intelligence, industrial Internet, and clean energy technologies rapidly converge, the performance requirements for semiconductor devices in electronic systems have shifted from "usable" to "extremely efficient." The SS54B Schottky diode from Slkor has emerged as the "performance benchmark" in fields like high-frequency circuits and power conversion, thanks to its groundbreaking low loss, high speed, and extreme environmental adaptability. It provides crucial technological support for energy efficiency upgrades in smart devices and stable operation in complex scenarios.

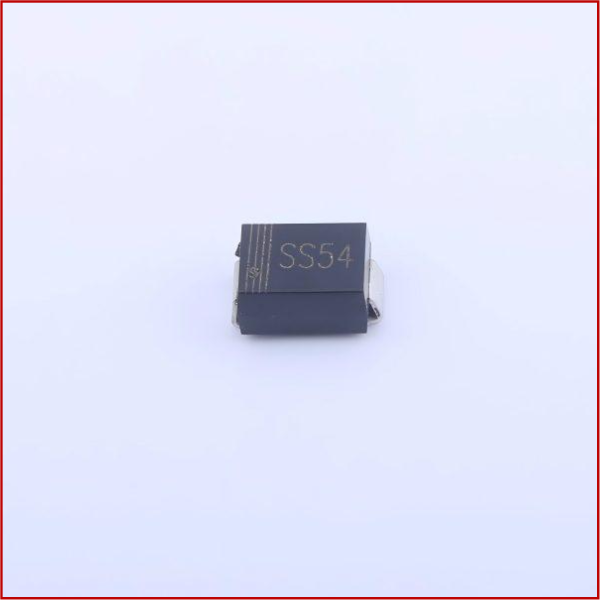

未命名

I. Four Core Advantages: Redefining the Standard for High-Efficiency Semiconductors

1. Ultra-Low Forward Voltage drop: Maximizing Every Milliwatt of Energy

Traditional diodes typically exhibit a forward voltage drop (VF) greater than 0.7V during conduction, leading to significant energy losses under high current conditions. By optimizing the Schottky barrier structure and doping process, the SS54B achieves a typical forward voltage drop as low as 0.4V (at IF=10A), reducing energy loss by more than 30% compared to similar products. For example, using SS54B in a 65W fast-charging adapter reduces conduction loss by 0.6W, saving over 5 kWh per year while lowering device heat and extending lifespan.

2. Nanosecond-Level Reverse Recovery: The "Speed Limit" in the High-Frequency World

In high-frequency applications like RF communication and switching power supplies, the reverse recovery time (trr) of diodes directly impacts signal integrity and system efficiency. Through precise carrier lifetime control, SS54B shortens its reverse recovery time to less than 50ns, making it more than five times faster than regular diodes. This characteristic enables seamless operation at MHz switching frequencies, eliminating signal delay and energy feedback loss, and providing cleaner signal transmission for devices like 5G base stations and Wi-Fi 6 routers.

3. Wide Temperature Range Stability: "Tough Protection" from Extreme Cold to Heat

To address temperature fluctuations in outdoor photovoltaic inverters and industrial control cabinets, SS54B utilizes high-purity silicon materials and special packaging processes to maintain reverse voltage (VR) and forward current (IF) parameters within 5% fluctuation across a temperature range of -55°C to 150°C. This ensures stable operation in extreme environments such as deserts, plateaus, or polar regions. Its 200V high reverse voltage design also enhances system reliability by withstanding grid fluctuations and lightning surges.

4. Standardization and Compatibility: Flexibly Adapting to Diverse Design Needs

Available in popular packages like TO-220 and SMA, the SS54B supports both manual soldering and automated mounting. Its large-area metal substrate design optimizes heat dissipation. For example, the TO-220 package can handle 10W power dissipation under natural convection, while the compact SMA package (3.2mm×1.5mm) is ideal for portable devices, helping engineers balance performance and space efficiency.

II. Design Practices: Three Principles to Ensure Safety and Performance

1. Parameter Matching: Avoiding "Overload Operation"

Ensure that the circuit’s peak current does not exceed 54A, reverse voltage is below 200V, and leave a safety margin of 15%-20%. For instance, in a 48V DC power supply system, if the maximum expected current is 40A, SS54B should be chosen instead of lower current-rated products to prevent device damage under extreme conditions.

2. Heat Dissipation Optimization: The "Fine Art" of Thermal Management

In high-power scenarios, it is recommended to use a combination of thermal grease and a heat sink, or enhance heat dissipation by expanding copper area on the PCB. For example, in a TO-220 package application, using 1mm thick thermal grease and an aluminum heat sink (≥50mm×50mm) can reduce junction temperature by 20°C, significantly improving device reliability.

3. Long-Term Maintenance: "Value Investment" in Preventive Testing

Regularly monitor diode surface temperature with an infrared thermal imager and observe waveform distortion with an oscilloscope to detect potential failure risks early. For example, if the SS54B’s surface temperature consistently exceeds 125°C, check the heat dissipation design or reduce the load current to extend the system’s MTBF (mean time between failures).

III. Slkor: Driving Semiconductor Evolution with Innovation

From smart homes to smart cities, portable devices to large industrial systems, the SS54B Schottky diode is becoming the "energy cornerstone" of the Internet of Things era with its "efficiency, stability, and compatibility." Driven by technological innovation, Slkor not only provides high-performance semiconductor devices but also supports partners with customized solutions and full-lifecycle services. This helps them seize opportunities in the wave of green energy and digital economy. Choosing SS54B is choosing a more efficient and reliable future.

About Slkor：

SLKOR, headquartered in Shenzhen, China, is a rapidly emerging national high-tech enterprise in the power semiconductor sector. With R&D centers in Beijing and Suzhou, its core technical team originates from Tsinghua University. As an innovator in silicon carbide (SiC) power device technology, SLKOR's products are widely used in new energy vehicles, photovoltaic power generation, industrial IoT, and consumer electronics, providing critical semiconductor solutions to over 10,000 clients globally. The company delivers more than 2 billion units annually, with its SiC MOSFETs and 5th-generation ultrafast recovery SBD diodes setting industry benchmarks in efficiency ratio and thermal stability. SLKOR holds over 100 invention patents and offers 2,000+ product models, continually expanding its IP portfolio across power devices, sensors, and power management ICs. Certifications including ISO 9001, EU RoHS/REACH, and CP65 compliance demonstrate the company's steadfast commitment to technological innovation, lean manufacturing, and sustainable development.
