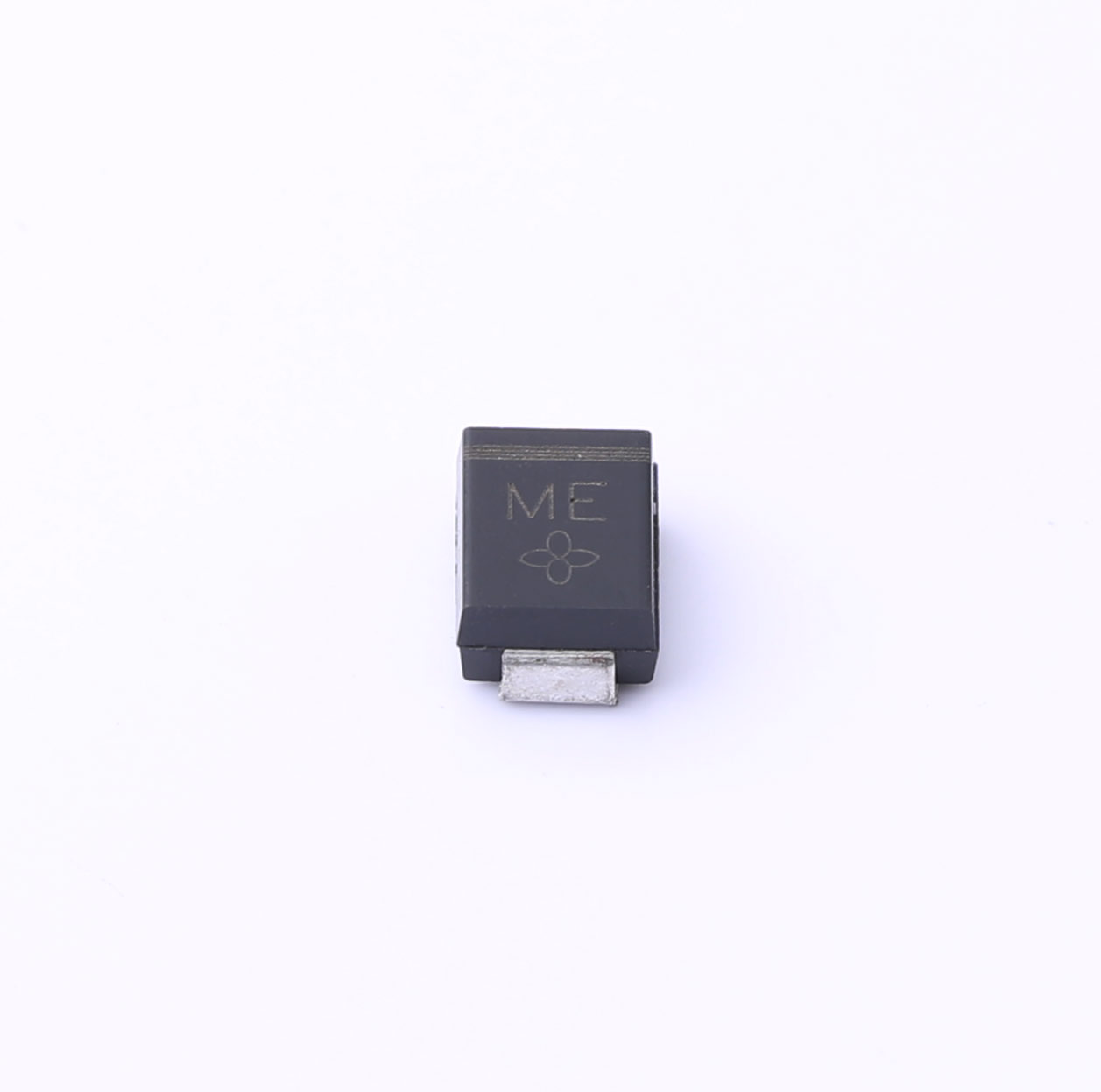

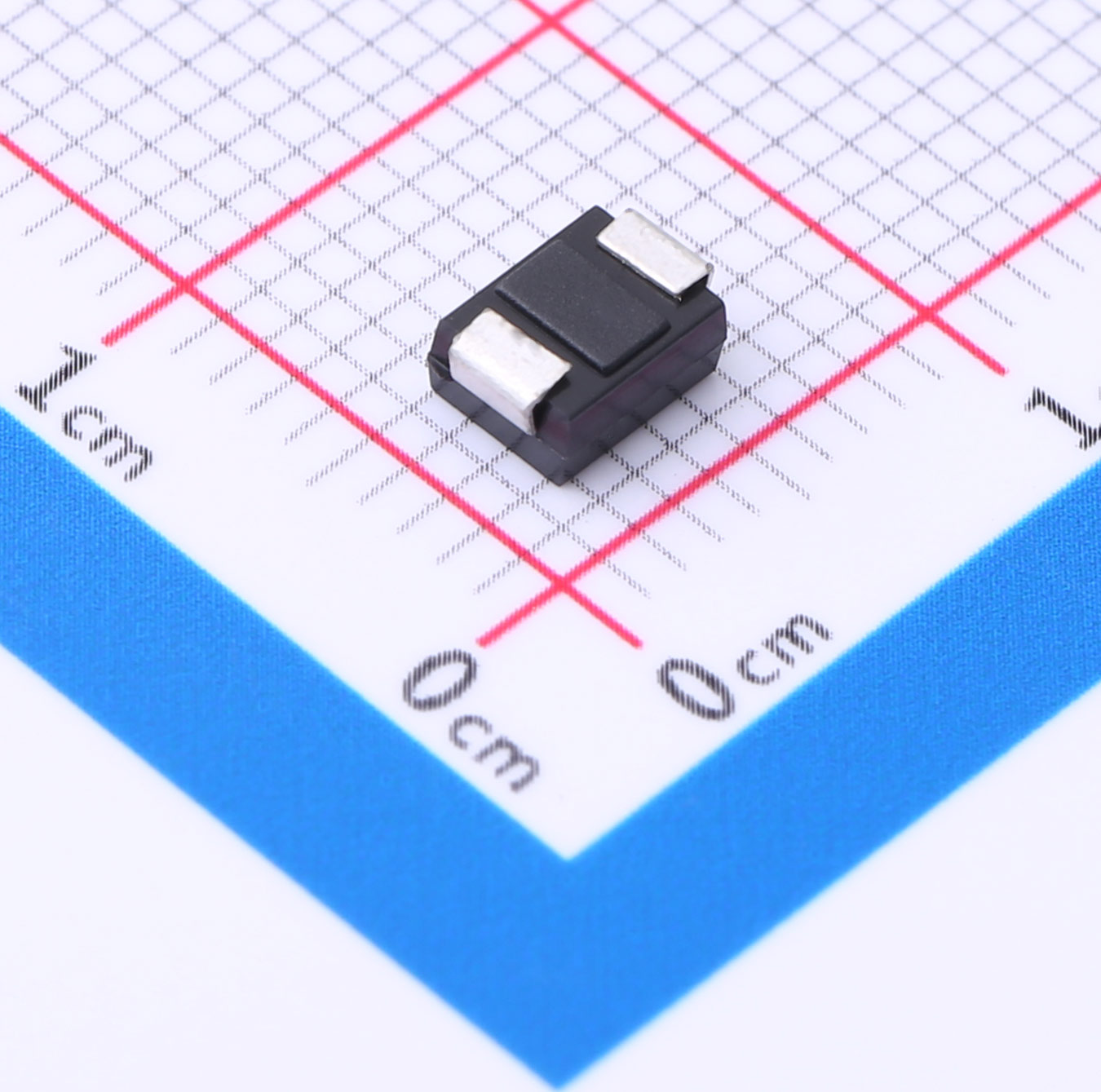

SMBJ26A Transient Voltage Suppressor DO-214AA

SMBJ26A Transient Voltage Suppressor DO-214AA

Download Datasheet Online Consultation

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR


FEATURES

  • Glass Passivated Die Construction

  • Uni-Directional and Bi-Directional Versions Available

  • Excellent Clamping Capability

  • Fast Response Time

  • Plastic Case Material has UL Flammability Classification Rating 94V-O


MECHANICAL DATA

  • Case: SMB/DO-214AA, Molded Plastic

  • Temminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

  • Polarity: Cathode Band or Cathode Notch

  • Marking: Type Number

  • Weight: 0.093 grams (approx.)





Name
Title
Description
SMBJ22A.pdf
-
Datasheet
Support

Support



If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity



The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
