Description

The SLSRV05-4 provides a typical line to linecapacitance of 0.3pF and low insertion loss up to3GHz providing greater signal integrity making itideally suited for USB 2.0 applications,such asDigital TVs, DVD players,Computing,set-topboxes and MDDI applications in mobile computing devices. This series has been specifically designed toprotect sensitive components which areconnected to high-speed data and transmission lines from overvoltage caused  by ESD(electrostatic discharge), CDE (CableDischarge Events),and EFT (electrical fasttransients).

Features

● Protects four l/O lines and one Vcc line

● Low capacitanceWorking voltages:5V

● Low leakage current

● Low capacitance (<1.0pF)  for high-speedinterfaces

● No insertion loss to 3.0GHz

● Response Time is<1 ns

● Meets MSL 1 Requirements

● Solid-state silicon avalanche technology

● ROHS compliant

Machanical Data

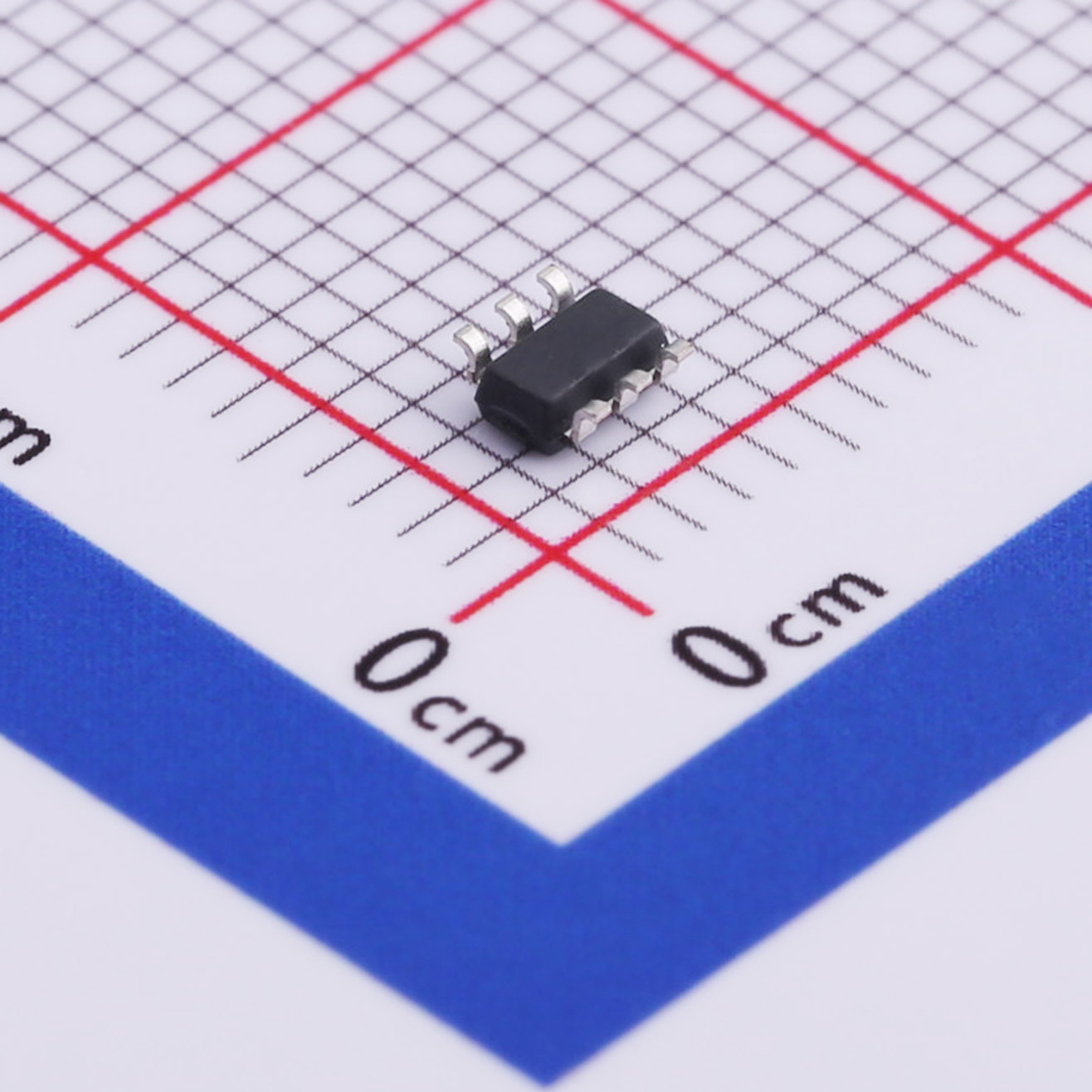

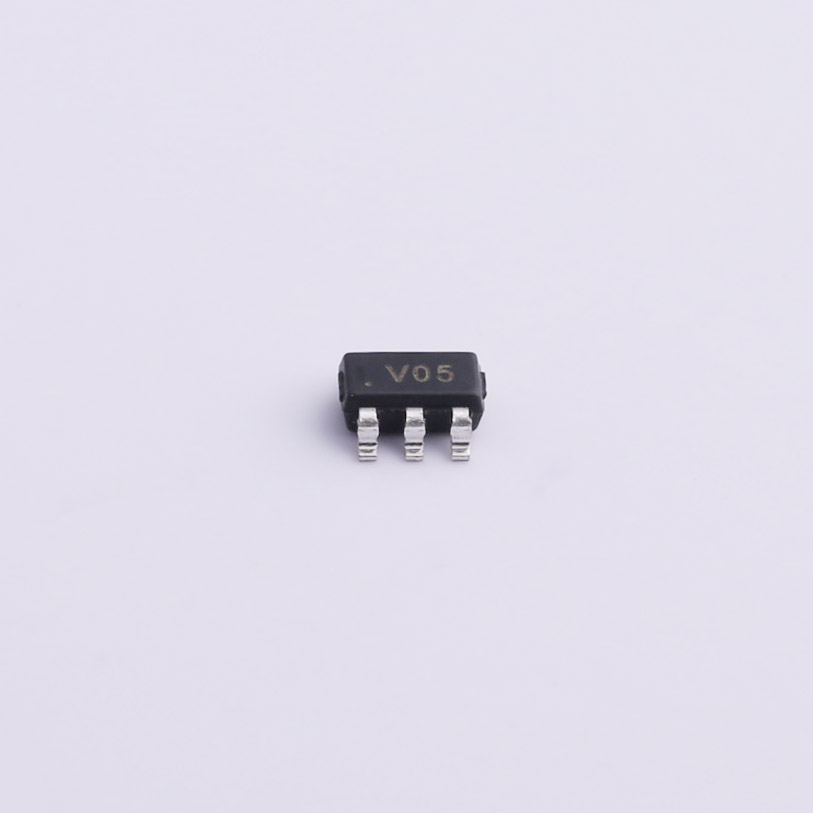

● SOT-23-6L package

● Flammability Rating:UL 94V-0

● Terminal:Matte tin plated.

● Packaging:Tape and Reel

● High temperature soldering guaranted:260℃/10s

● Reel size:7 inch

Applications

● High Definition Multi-Media Interface (HDMI)

● Digital Visual Interface (DVI)

● USB 1.1/2.0/3.0/OTGIEEE 1394 Firewire Ports

● Notebooks &Handhelds

● Projection TV&Monitors

● Set-top boxFlat Panel Displaye

● PCI Express
