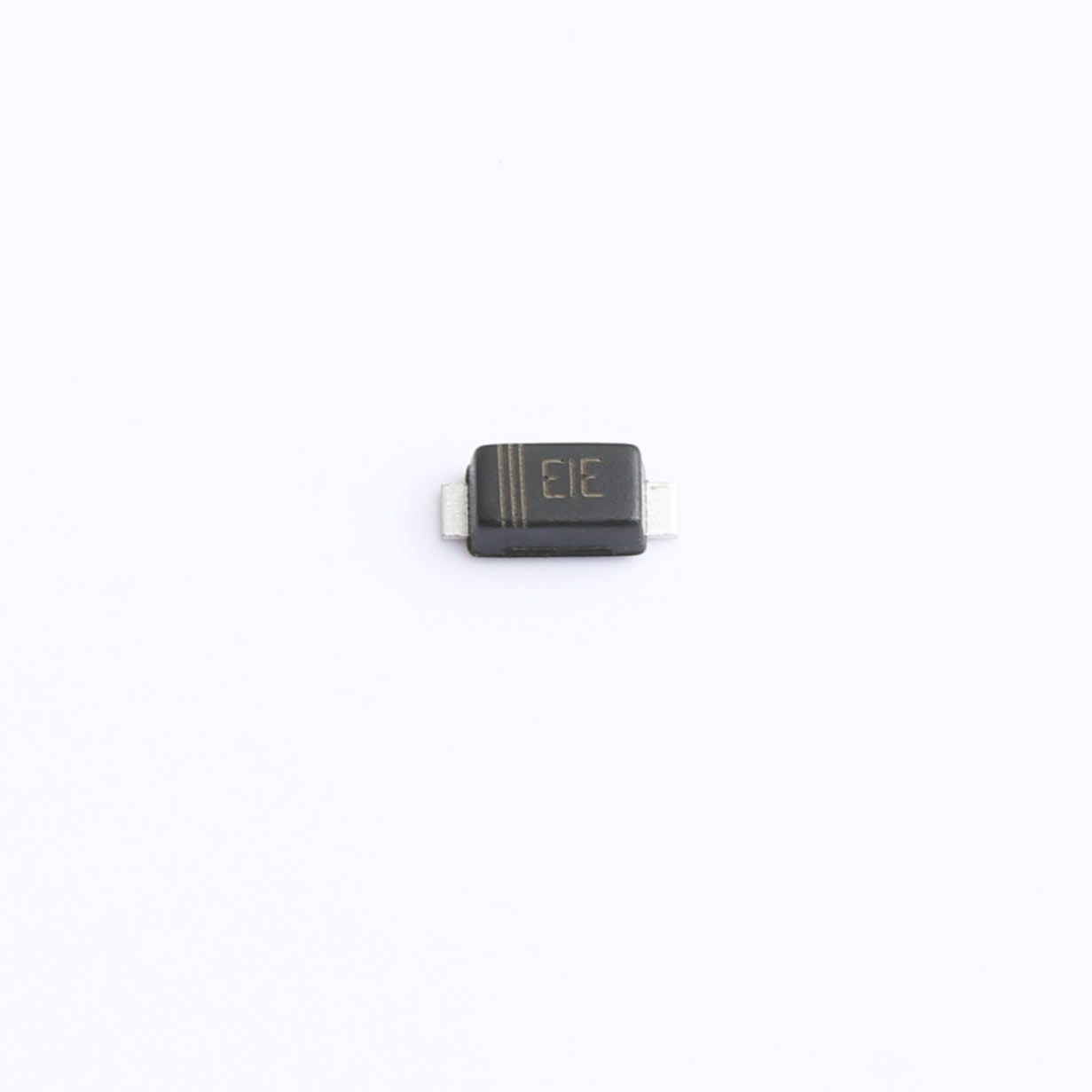

M4SMF12A TVS Diode SOD-123FL
M4SMF12A is a unidirectional SOD-123FL surface mount TVS diode with 4500W peak pulse power at 8/20μs waveform, designed to protect circuit against lightning surge, ESD and instantaneous transient overvoltage.
Description
M4SMF12A is a unidirectional SOD-123FL surface mount TVS diode with 4500W peak pulse power at 8/20μs waveform, designed to protect circuit against lightning surge, ESD and instantaneous transient overvoltage.
Features
- 4500W peak pulse power under 8/20μs surge waveform
- VRWM=12V; VBR:13.3~14.7V@1mA; IR≤1μA@12V; VC=24V@200A
- Ultra-fast response time less than 1ps, low inductance design
- Excellent transient voltage clamping performance

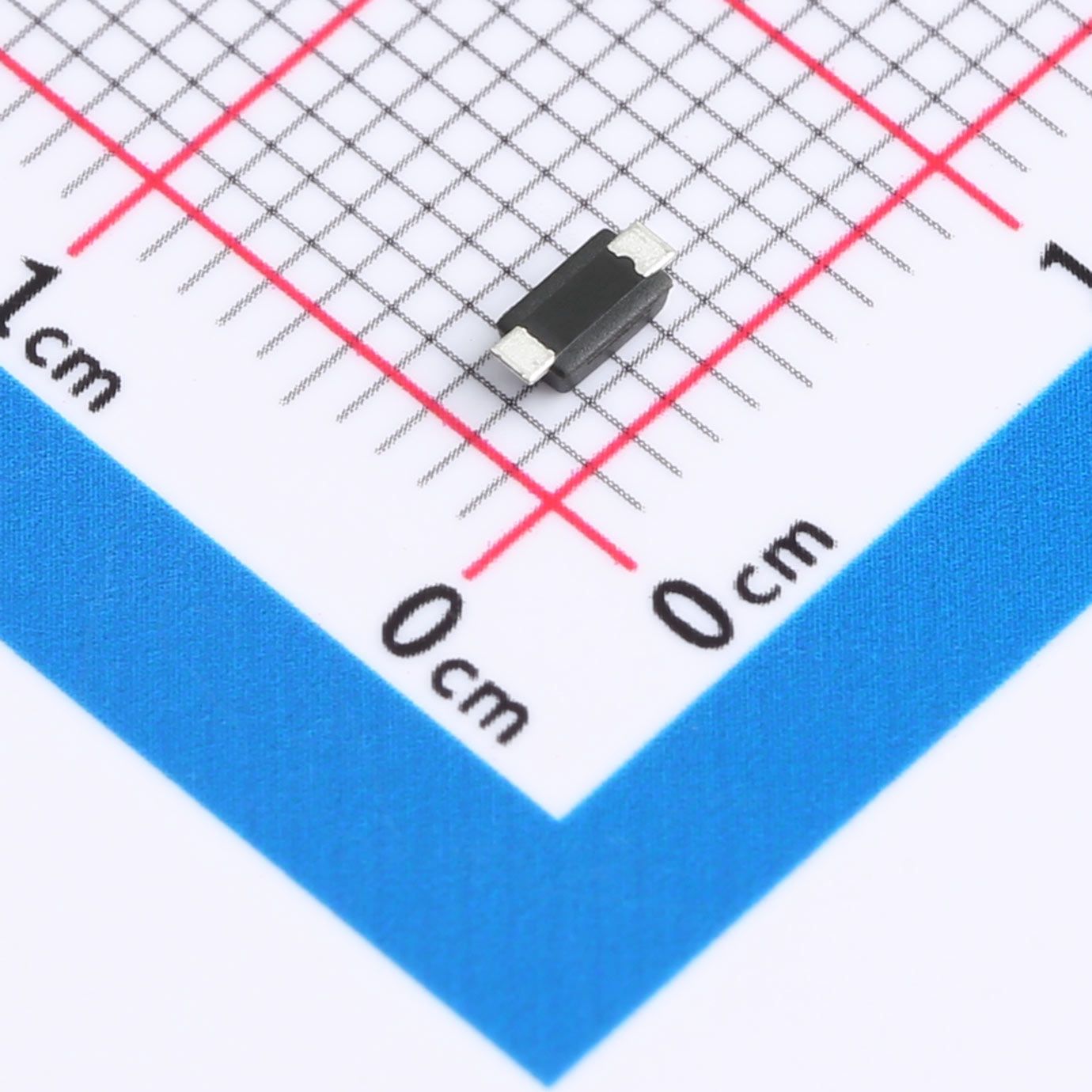

- Compact low-profile SMD SOD-123FL package
Our advantages
- Super high 4500W surge absorption capacity for heavy surge protection scenarios
- Quick clamping efficiently suppress sudden voltage spikes
- Miniature footprint saves PCB layout space
- Ultra-low leakage minimizes standby power consumption
- Standard tape reel packaging supports fully automatic SMT production
Mechanical Data
- Package: SOD-123FL, 94V-0 flame retardant molded plastic
- Color band marks cathode terminal
- Approximate single weight:0.07g
- Operating junction temp: -55℃~+125℃; Storage temp: -55℃~+150℃
- Comply with MSL1 moisture sensitivity standard
Applications
Computer systems, household appliances, video input modules, automotive electronics, industrial control equipment, communication power circuits
