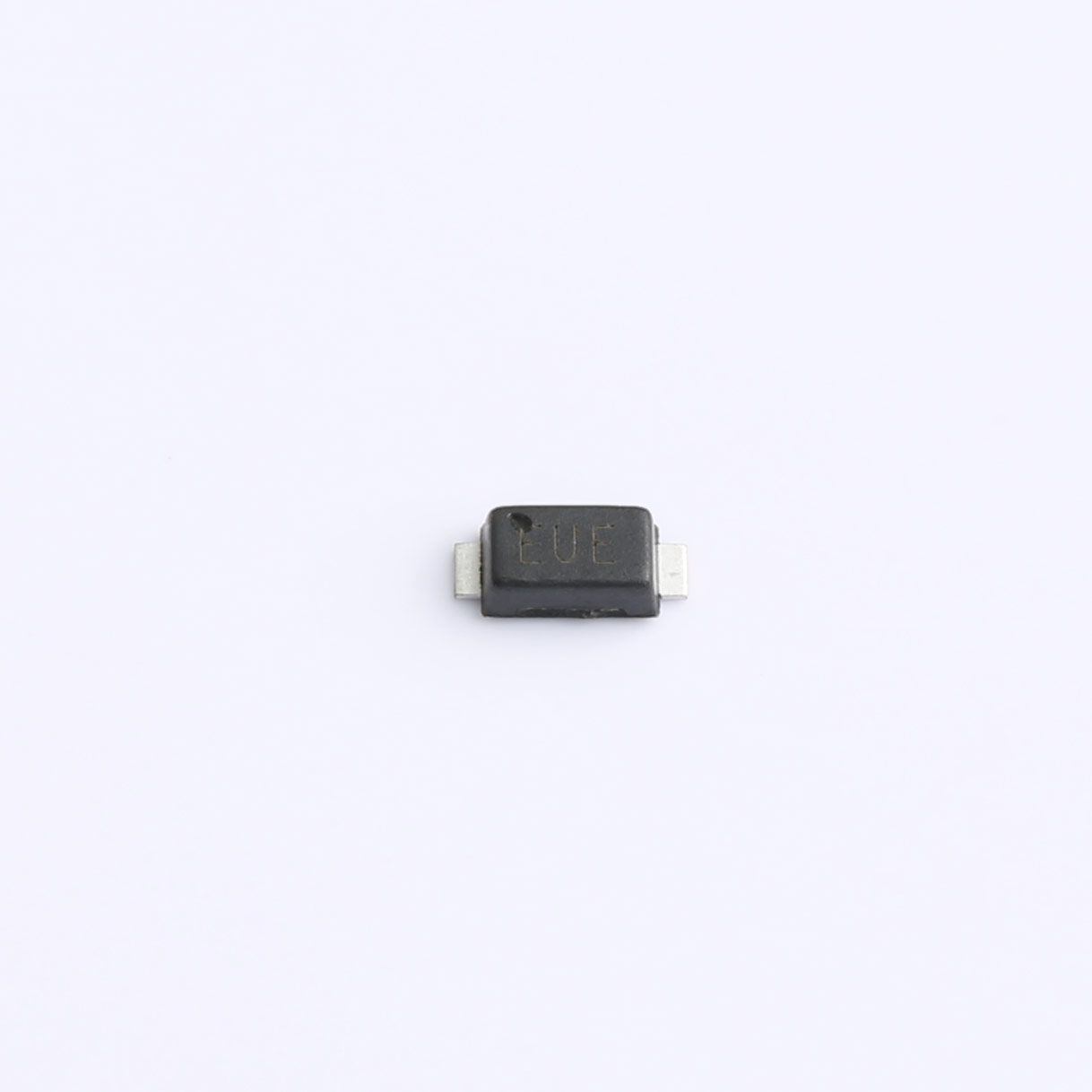

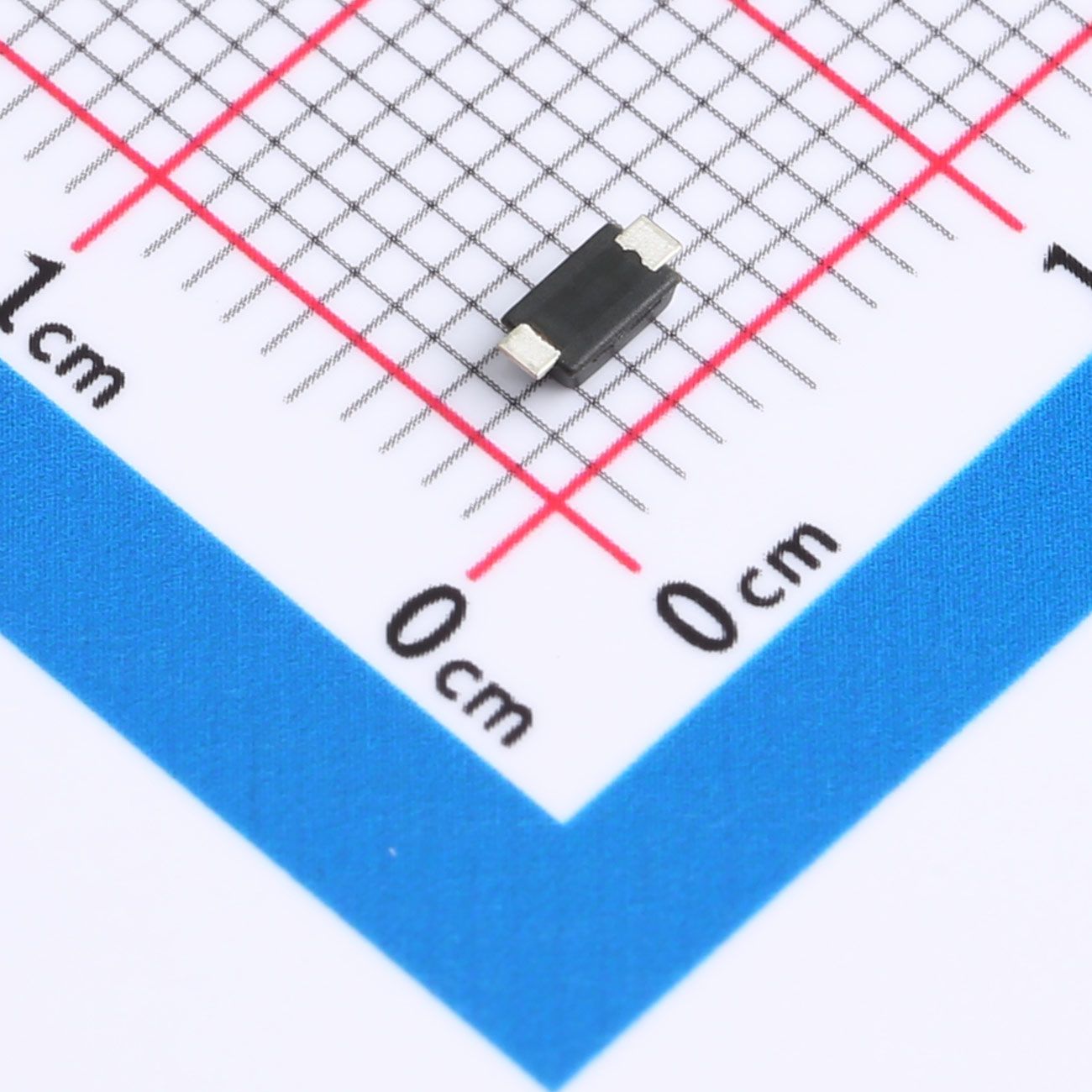

M4SMF12CA TVS Diode SOD-123FL

M4SMF12CA is bidirectional SOD-123FL surface mount TVS diode with 4500W peak pulse power at 8/20μs waveform, designed to protect circuits against positive/negative ESD, lightning surge and transient overvoltage.

Download Datasheet Online Consultation

Description

M4SMF12CA is bidirectional SOD-123FL surface mount TVS diode with 4500W peak pulse power at 8/20μs waveform, designed to protect circuits against positive/negative ESD, lightning surge and transient overvoltage.

Features

  • 4500W peak pulse power rated at 8/20μs surge waveform
  • VRWM=12V; VBR:13.3~14.7V@1mA; IR≤1μA@12V; VC=24V@190A
  • Ultra-fast response ≤1ps, low inductance construction
  • Superior transient voltage clamping performance
  • Compact low-profile SMD SOD-123FL package

Our advantages

  • Bidirectional structure clamps both positive and negative voltage spikes
  • High 4500W surge absorption for heavy transient pulse protection
  • Small footprint optimizes PCB layout space utilization
  • Ultra-low leakage reduces no-load power consumption
  • Standard tape&reel packaging compatible with automatic SMT production

Mechanical Data

  • Package: SOD-123FL, UL94V-0 flame retardant molded plastic
  • Bidirectional device without cathode color band
  • Approximate single weight:0.07g
  • Junction temperature: -55℃~+125℃; Storage: -55℃~+150℃
  • Meet MSL 1 moisture sensitivity requirement

Applications

Household appliances, computer systems, video input circuits, automotive electronics, industrial control equipment, communication signal modules

Name
Title
Description
M4SMF12CA SOD-123FL.pdf
M4SMF12CA SOD-123FL.pdf
-
Datasheet
