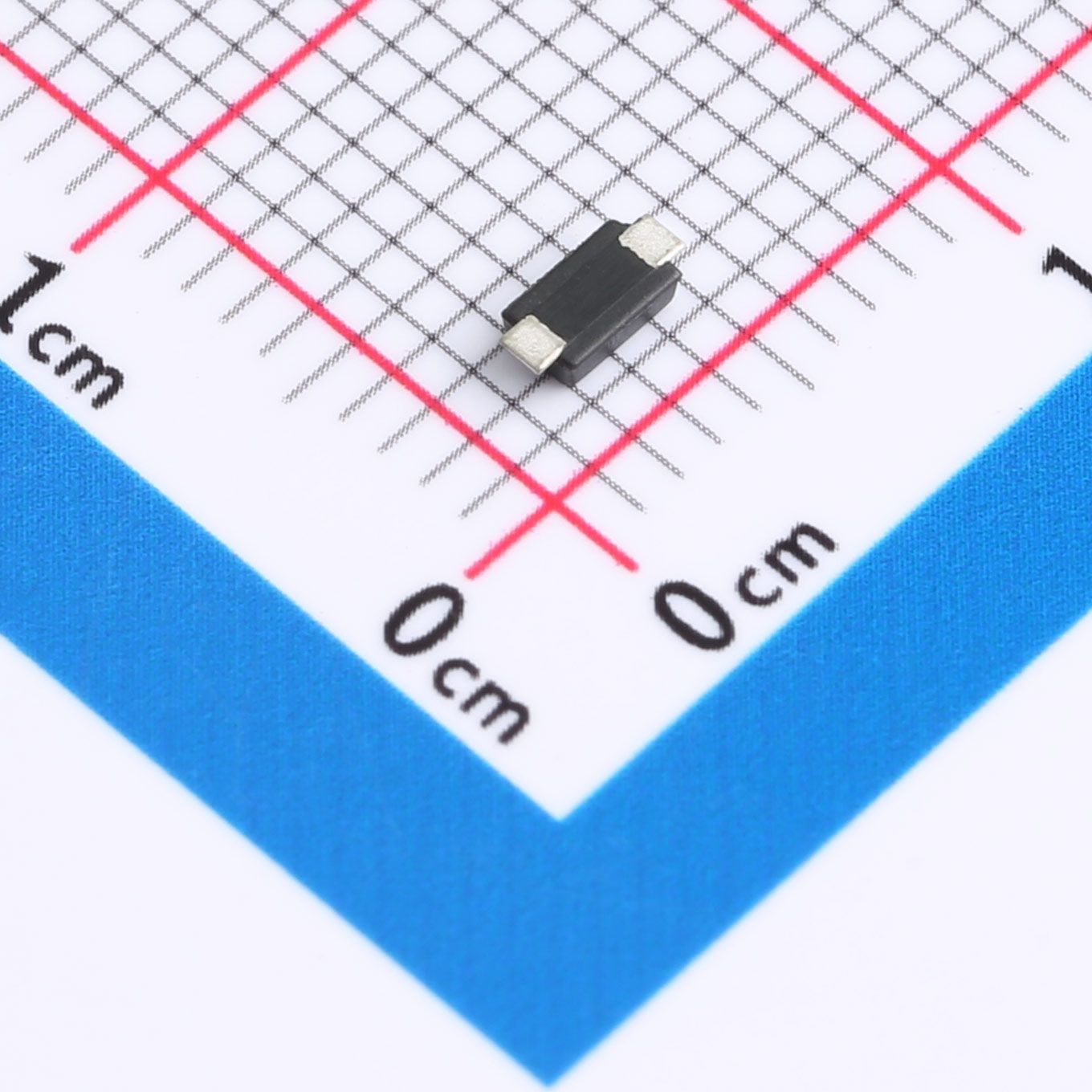

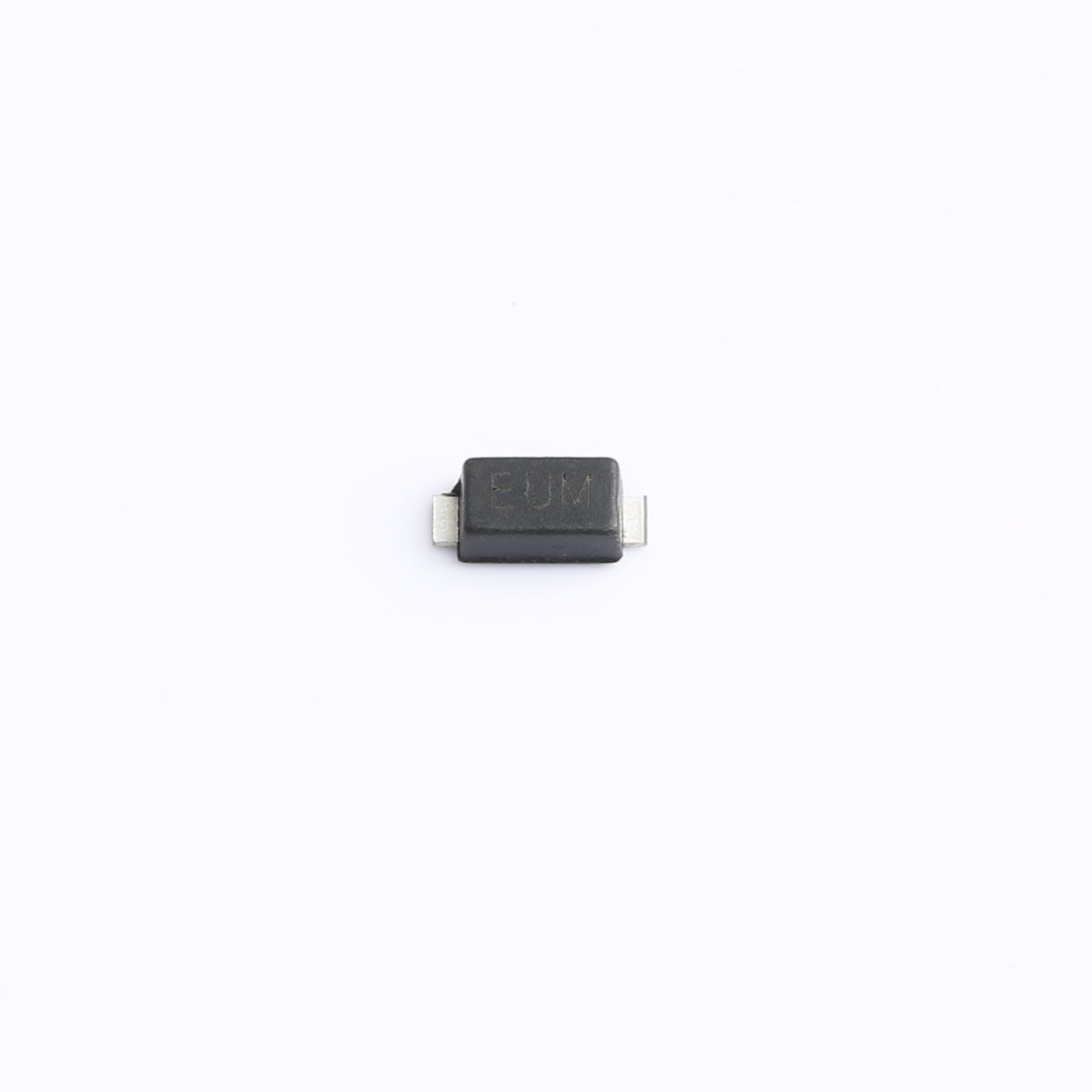

M4SMF15CA TVS Diode SOD-123FL
M4SMF15CA is a bidirectional surface-mount TVS diode packaged in SOD-123FL. It features 4500W peak pulse power at 8/20μs surge waveform, specially designed to protect electronic circuits against positive and negative ESD, lightning surges and transient overvoltage.
Description
M4SMF15CA is a bidirectional surface-mount TVS diode packaged in SOD-123FL. It features 4500W peak pulse power at 8/20μs surge waveform, specially designed to protect electronic circuits against positive and negative ESD, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for 8/20μs surge waveform
- Electrical parameters: VRWM=15V, VBR=16.7~18.5V @ 1mA, IR≤1μA @ 15V, VC=26V @ 180A
- Extremely fast response time less than 1ps with low inductance design
- Outstanding transient voltage clamping performance
- Compact low-profile SMD package for surface mounting
Our advantages
- Bidirectional design provides full protection against both positive and negative voltage spikes
- High power rating ensures reliable protection under severe surge conditions
- Miniature package effectively saves PCB layout space
- Ultra-low leakage current reduces standby power consumption
- Standard tape and reel packaging is fully compatible with automatic SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant grade
- Bidirectional type without cathode color band
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Compliant with MSL 1 moisture sensitivity standard
Applications
Computer systems, household appliances, video input circuits, automotive electronics, industrial control equipment and communication modules
