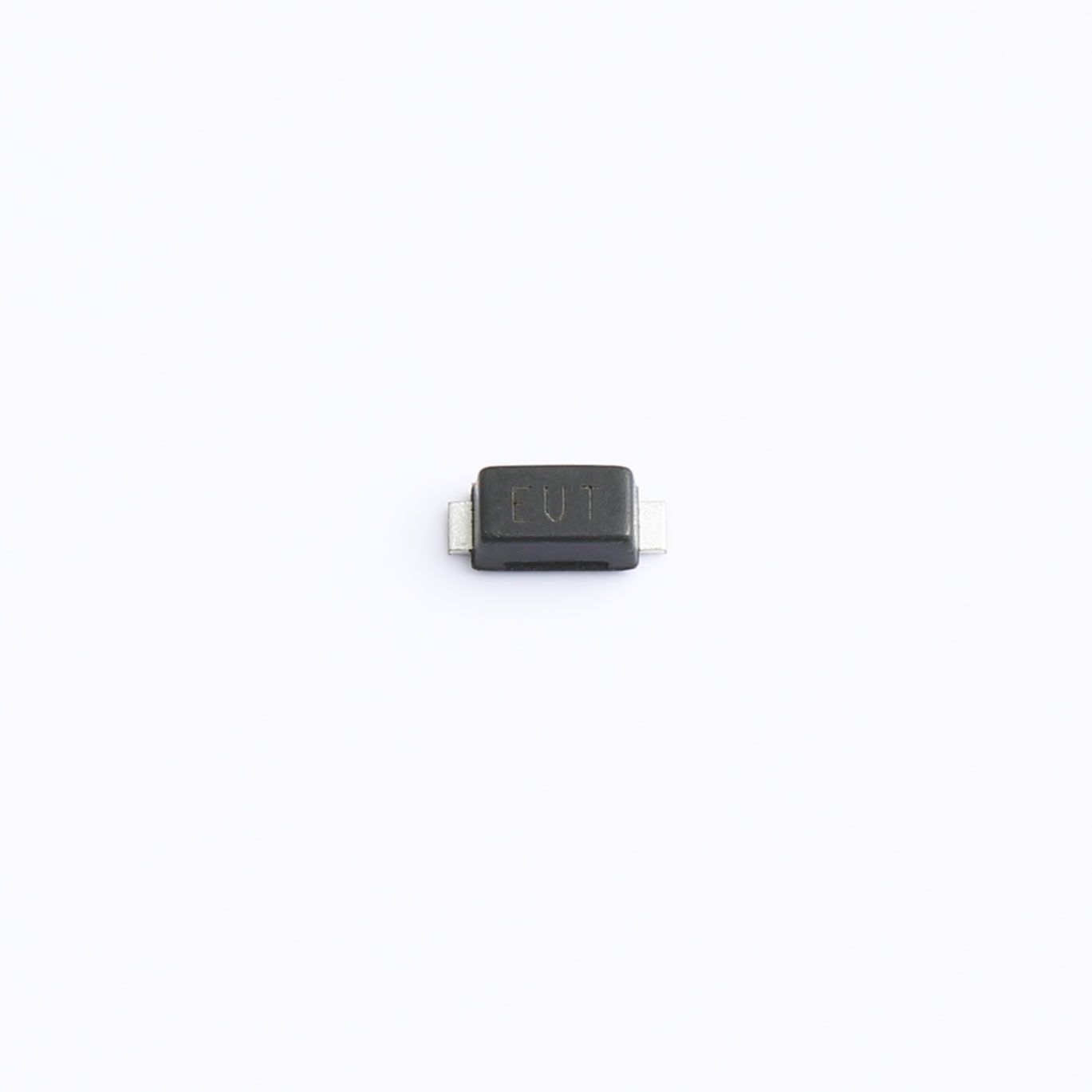

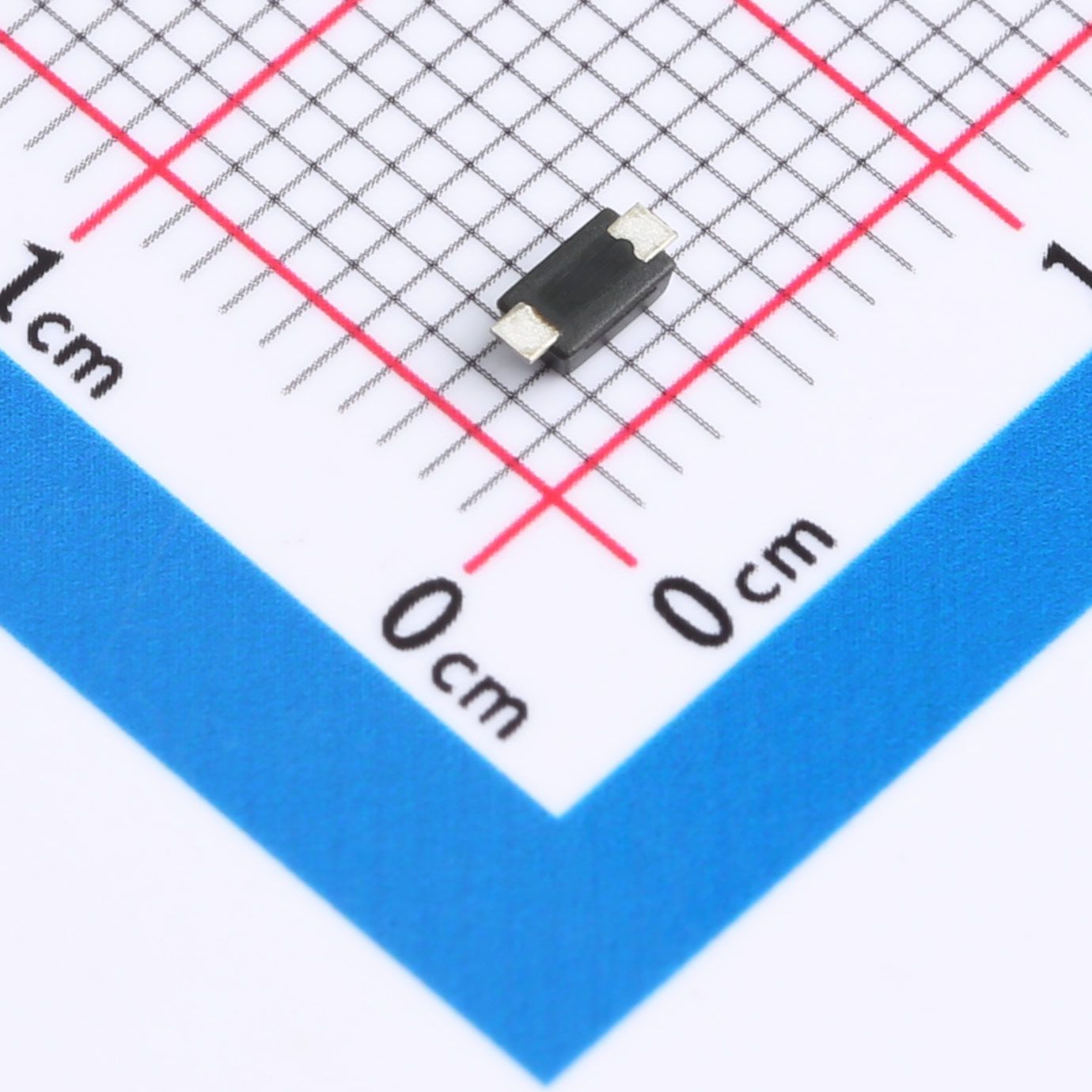

M4SMF18CA TVS Diode SOD-123FL
M4SMF18CA is a bidirectional surface mount TVS diode with SOD-123FL package. It delivers 4500W peak pulse power under 8/20μs surge waveform, designed to protect electronic circuits from positive and negative ESD, lightning surges and transient overvoltage.
Description
M4SMF18CA is a bidirectional surface mount TVS diode with SOD-123FL package. It delivers 4500W peak pulse power under 8/20μs surge waveform, designed to protect electronic circuits from positive and negative ESD, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for 8/20μs surge waveform
- Electrical parameters: VRWM=18V, VBR=20~22.1V @ 1mA, IR≤1μA @ 18V, VC=30V @ 160A
- Ultra-fast response time below 1ps and low inductance design
- Excellent transient voltage clamping capability
- Compact low-profile SMD package for surface mount assembly
Our advantages
- Bidirectional design provides full protection against both positive and negative voltage spikes
- High power endurance ensures stable performance under severe surge conditions
- Miniature size effectively saves PCB layout space for compact devices
- Ultra-low leakage current reduces standby power consumption
- Standard tape and reel packaging is fully compatible with automatic SMT production lines
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant grade
- Bidirectional type without cathode identification band
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Compliant with MSL 1 moisture sensitivity standard
Applications
Computer systems, household appliances, video input circuits, automotive electronics, industrial control equipment and communication modules
