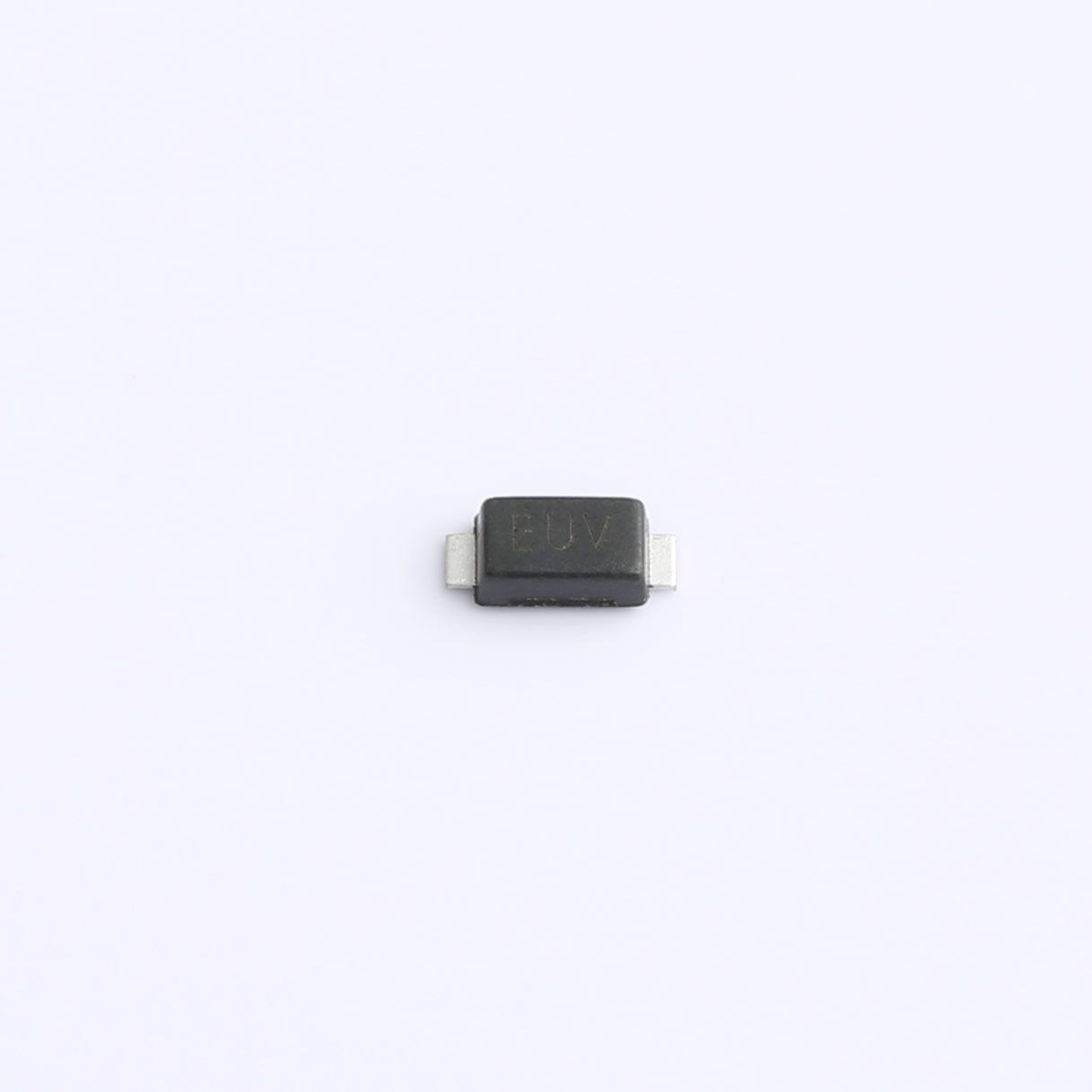

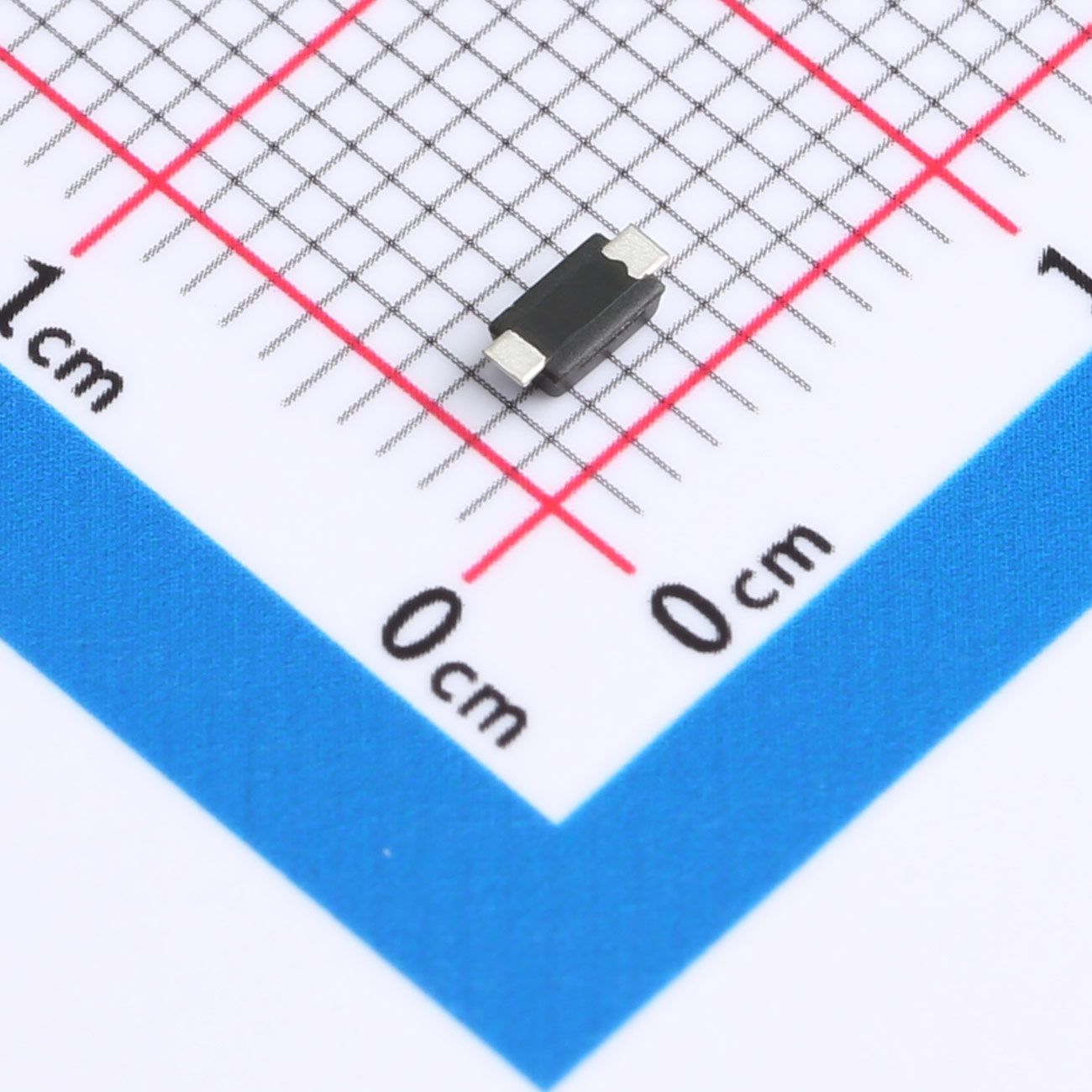

M4SMF20CA TVS Diode SOD-123FL
M4SMF20CA is a bidirectional surface-mount TVS diode packaged in SOD-123FL. It delivers 4500W peak pulse power under 8/20μs surge waveform, and is designed to safeguard electronic circuits against positive and negative ESD, lightning surges and transient overvoltage.
Description
M4SMF20CA is a bidirectional surface-mount TVS diode packaged in SOD-123FL. It delivers 4500W peak pulse power under 8/20μs surge waveform, and is designed to safeguard electronic circuits against positive and negative ESD, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for 8/20μs standard surge waveform
- Key electrical parameters: VRWM=20V, VBR=22.2~24.5V @ 1mA, IR≤1μA @ 20V, VC=35V @ 160A
- Extremely fast response time less than 1ps and low inductance design
- Excellent transient voltage clamping performance
- Low-profile SMD package suitable for surface mount processing
Our advantages
- Bidirectional design provides full protection against both positive and negative voltage transients
- High power endurance ensures stable protection under severe surge conditions
- Compact outline saves PCB space for miniaturized electronic products
- Ultra-low leakage current effectively reduces standby power consumption
- Standard tape and reel packaging supports fully automatic high-speed SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant grade
- Bidirectional type with no cathode color band
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Meets MSL 1 moisture sensitivity requirements
Applications
Computer systems, household appliances, video input circuits, automotive electronics, industrial control equipment and communication modules
