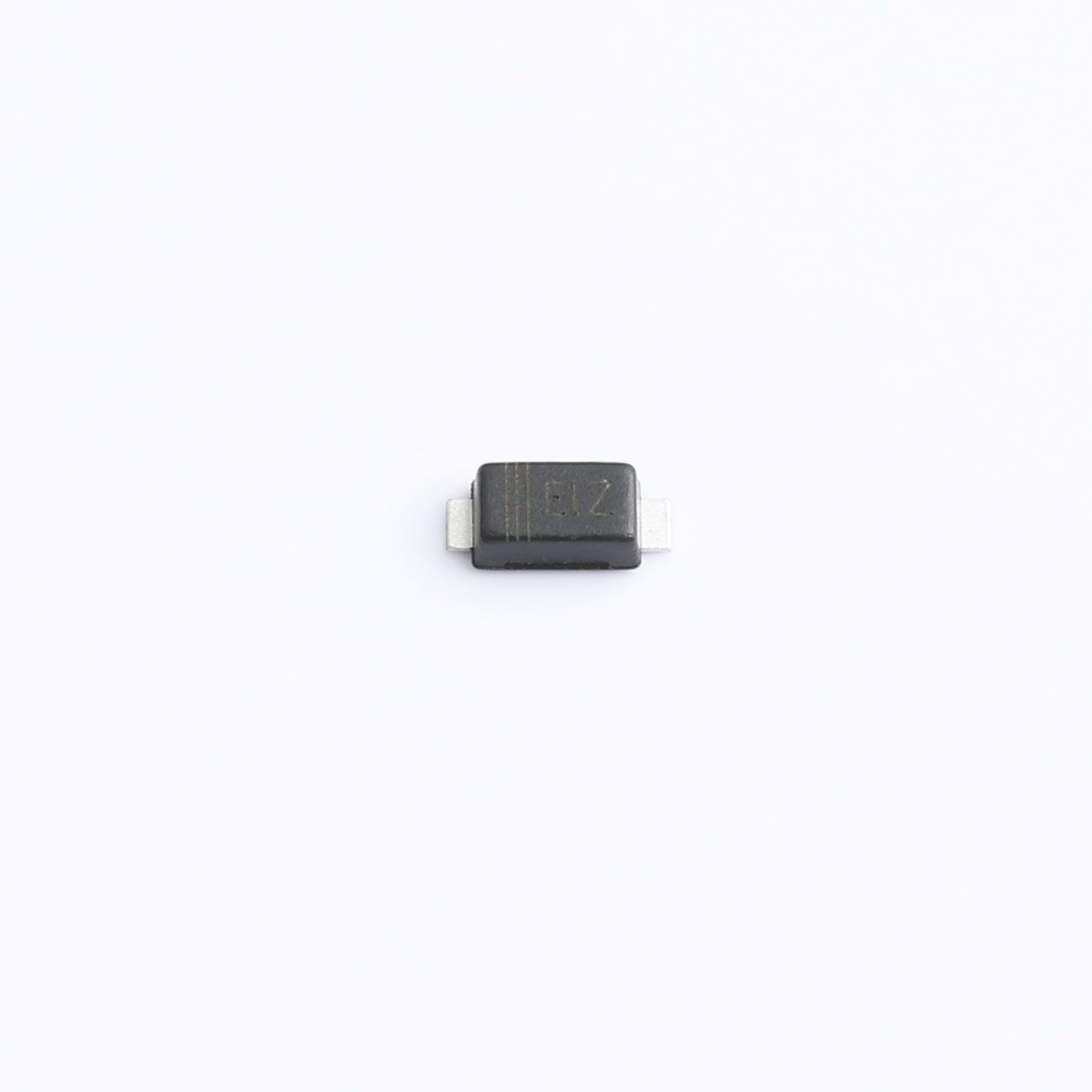

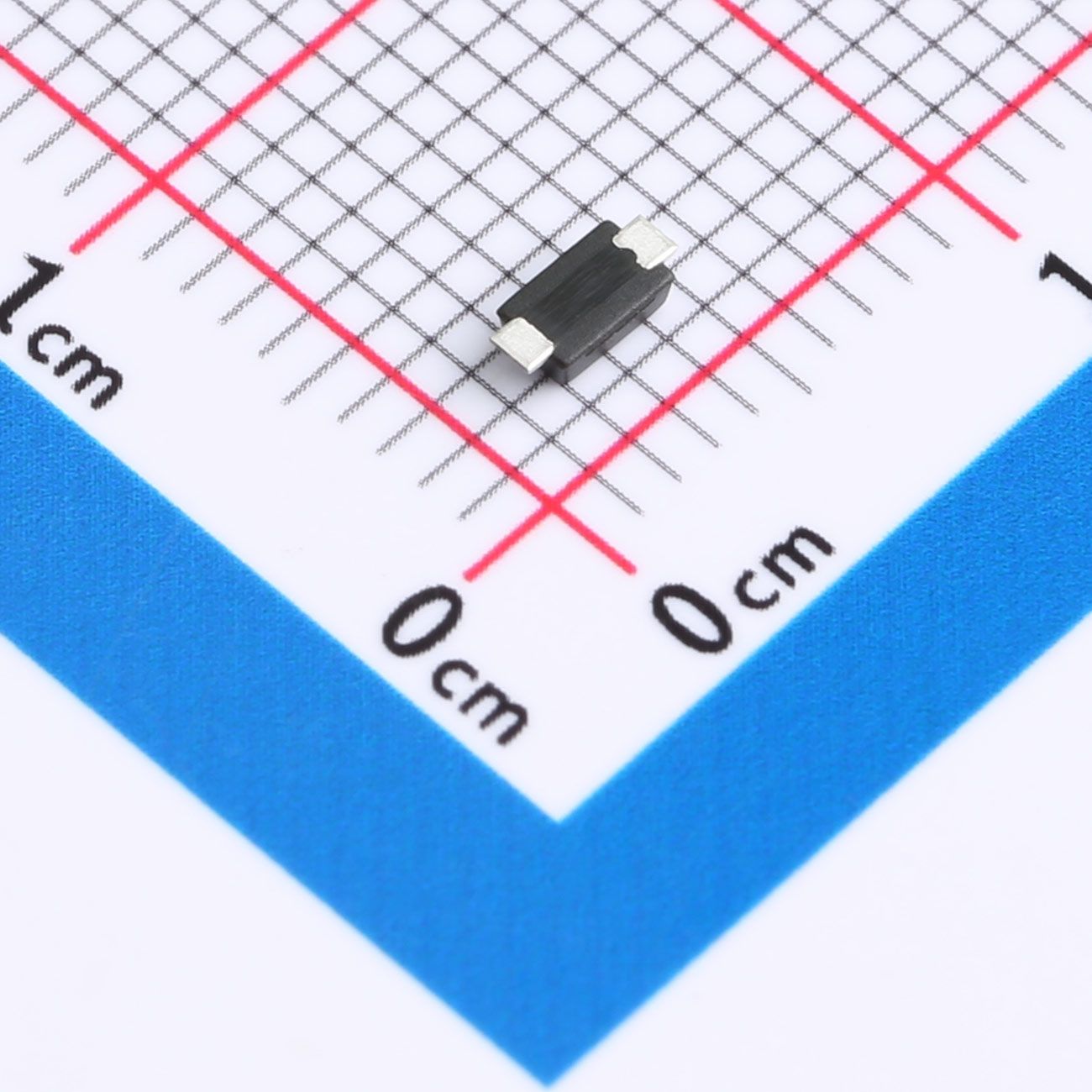

M4SMF24A TVS Diode SOD-123FL
M4SMF24A is a unidirectional surface-mount transient voltage suppressor (TVS) with SOD-123FL package. It features 4500W peak pulse power under 8/20μs surge waveform, designed to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Description
M4SMF24A is a unidirectional surface-mount transient voltage suppressor (TVS) with SOD-123FL package. It features 4500W peak pulse power under 8/20μs surge waveform, designed to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Features
- Rated 4500W peak pulse power for standard 8/20μs surge waveform
- Electrical parameters: VRWM=24V, VBR=26.7~29.5V @ 1mA, IR≤1μA @ 24V, VC=40V @ 200A
- Ultra-fast response time less than 1ps and low inductance design
- Excellent transient voltage clamping performance
- Compact low-profile SMD package for surface mount assembly
Our advantages
- High surge power rating delivers reliable protection against heavy transient pulses
- Quick response effectively suppresses sudden voltage spikes
- Small footprint saves PCB space for compact electronic devices
- Ultra-low leakage current reduces standby power consumption
- Standard tape and reel packaging is compatible with automatic high-speed SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant rating
- Color band is used to identify the cathode terminal
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Compliant with MSL 1 moisture sensitivity requirements
Applications
Computer systems, household appliances, video input modules, automotive electronics, industrial control equipment and communication devices
