DB207S Surface Mount Glass Passivated Bridge Rectifiers DB207S Surface Mount Glass Passivated Bridge Rectifiers DB207S Surface Mount Glass Passivated Bridge Rectifiers

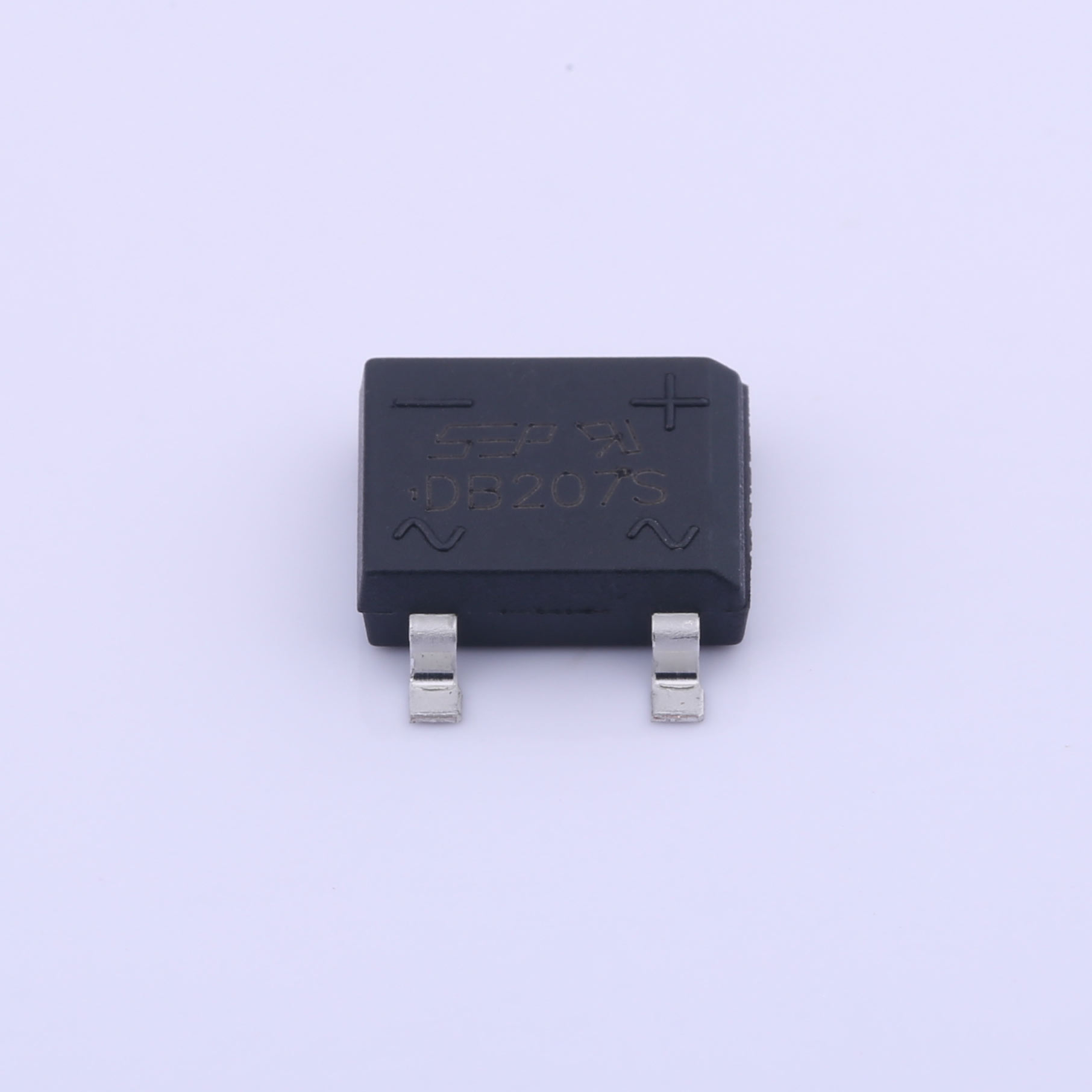

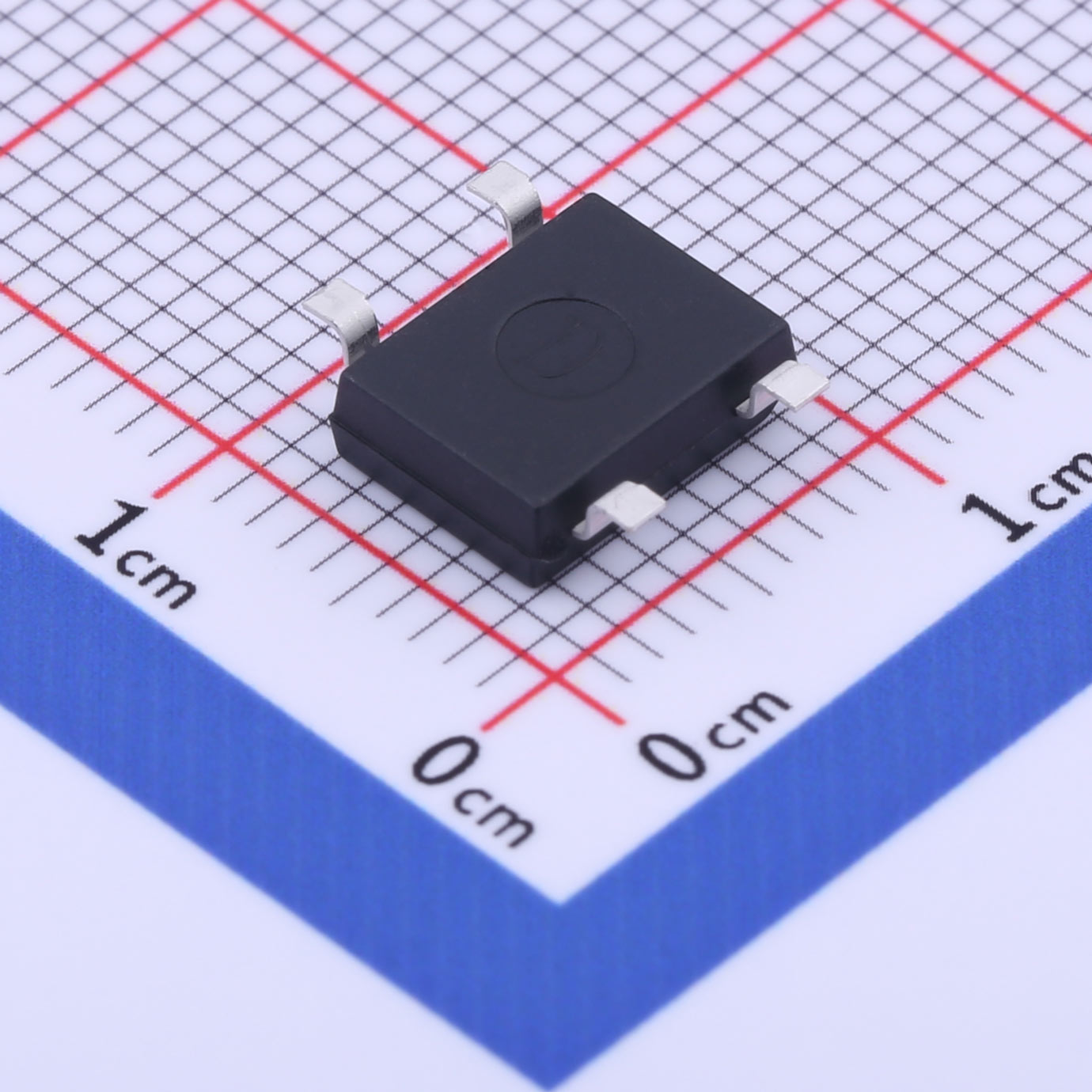

DB207S Surface Mount Glass Passivated Bridge Rectifiers
VRRM(V):1000V
Io(A):2.0A
VF(V):1.1V
IFSM(A):60A
Package:DBS

Product Details

Description

Surface Mount Glass Passivated Bridge Rectifiers in surface mount. Reverse Voltage - 50 To 1000volts, Forward Current-2.0 amperes.

Features

 Rating to 1000V PRV.

 Ideal for printed circuit board.

 Low forward voltage drop,high current capability.

 Reliable low cost construction utilizing molded plastic technique results in inexpensive product.

 Lead tin Pb/Sn copper.

 The plastic material has UL flammability classification 94V-0.

Mechanical Data

 Polarit: As marked on Body

 Weight:0.02 ounces,0.38 grams

 Mounting position:Any
