UMB10F Fast Bridge Rectifier MBF UMB10F Fast Bridge Rectifier MBF UMB10F Fast Bridge Rectifier MBF

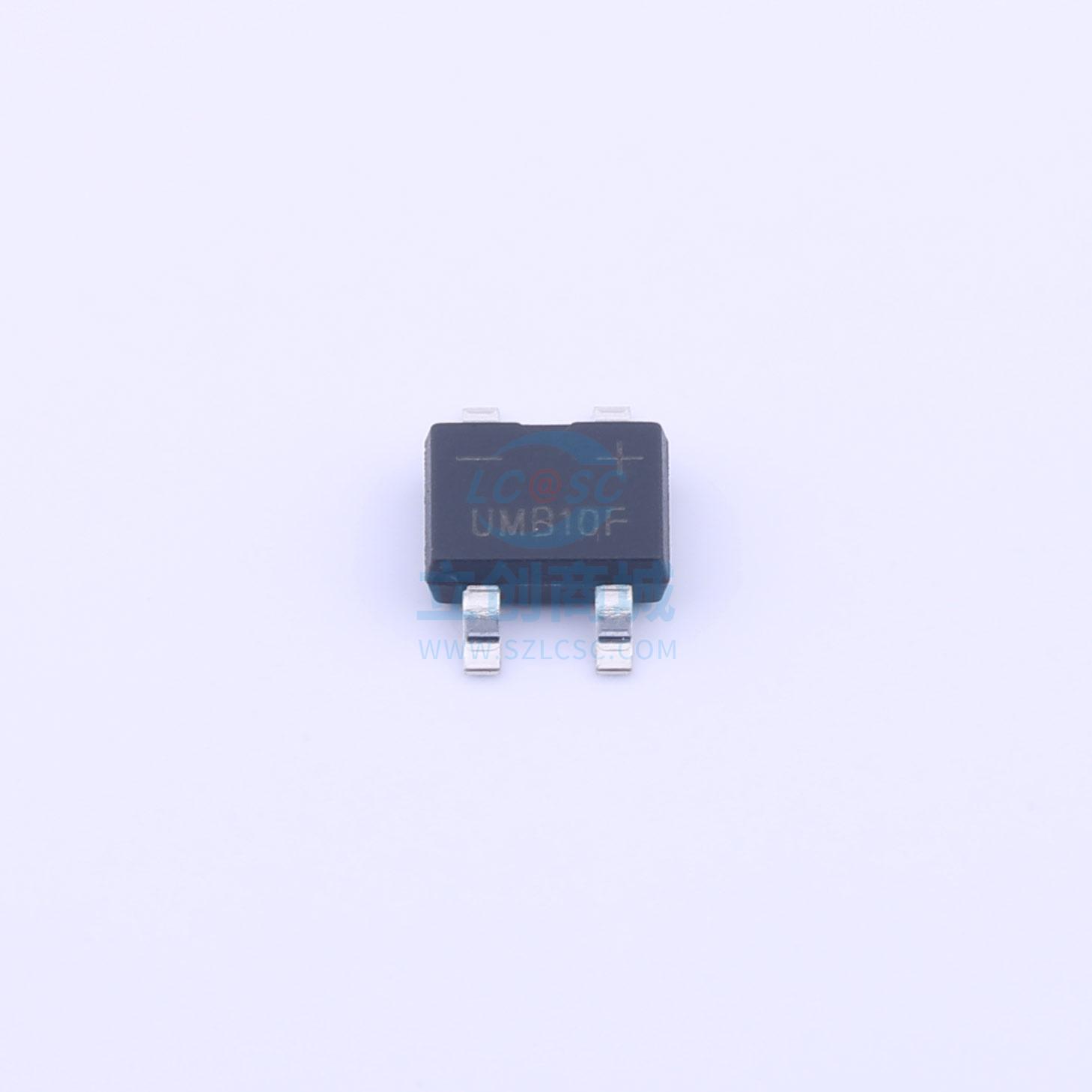

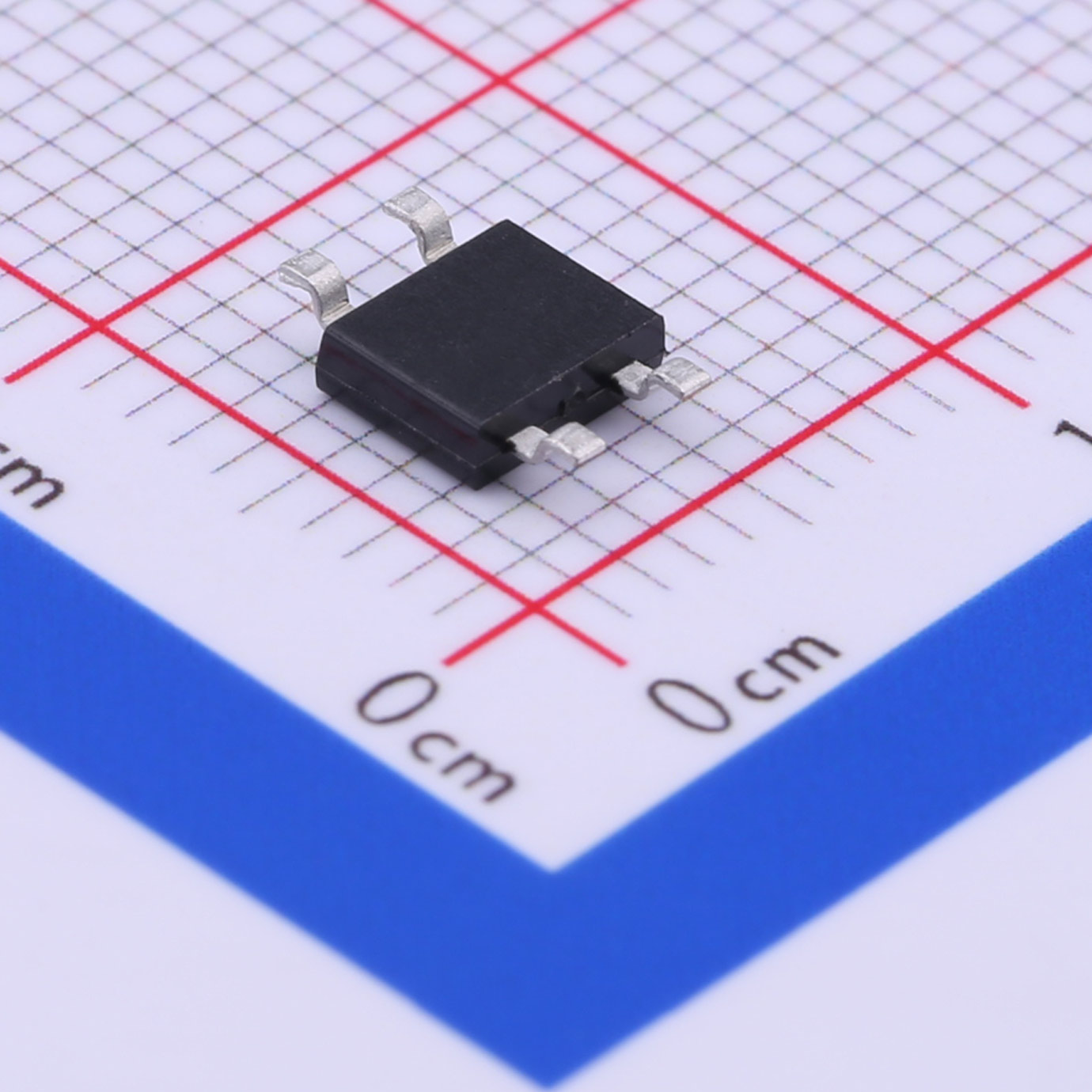

UMB10F Fast Bridge Rectifier MBF
VRRM(V):1000V
Io(A):1A
VF(V):1.5V
IFSM(A):35A
Package:MBF

Product Details

Our advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description:
The UMB10F is a fast bridge rectifier designed for efficient conversion of alternating current (AC) to direct current (DC) in electronic circuits. With its compact design and optimized performance characteristics, the UMB10F is engineered to meet the demands of modern electronic applications requiring rapid switching and reliable power rectification.

Features:

● lGlass Passivated Chip Junction

● lReverse Voltage-100 to 1000V

● lForward Current-1.0A

● lFast reverse recovery time

● lDesigned for Surface MountApplication


Mechanical data:

● lCase: MBF

● lTerminals: Solderable per MIL-STD-750,Method 2026

● lApprox.Weight: 75mg 0.0026oz

Applications:

● Switching Power Supplies: Ideal for fast switching power supply circuits where rapid rectification of AC voltage to DC is required, such as in telecommunications equipment and industrial power supplies.
● LED Lighting: Used in LED driver circuits to convert AC voltage to DC for powering LEDs in lighting applications, ensuring efficient and stable operation.
● Consumer Electronics: Integrated into AC to DC adapters for consumer electronics like laptops, printers, and audio equipment, providing reliable DC voltage conversion.
● Battery Chargers: Suitable for low-power battery chargers in applications such as small electronic devices and portable electronics where compact size and efficiency are critical.
● Industrial Controls: Essential for rectification in control circuits of industrial machinery and equipment, ensuring consistent and reliable DC power supply for automation and control systems.
