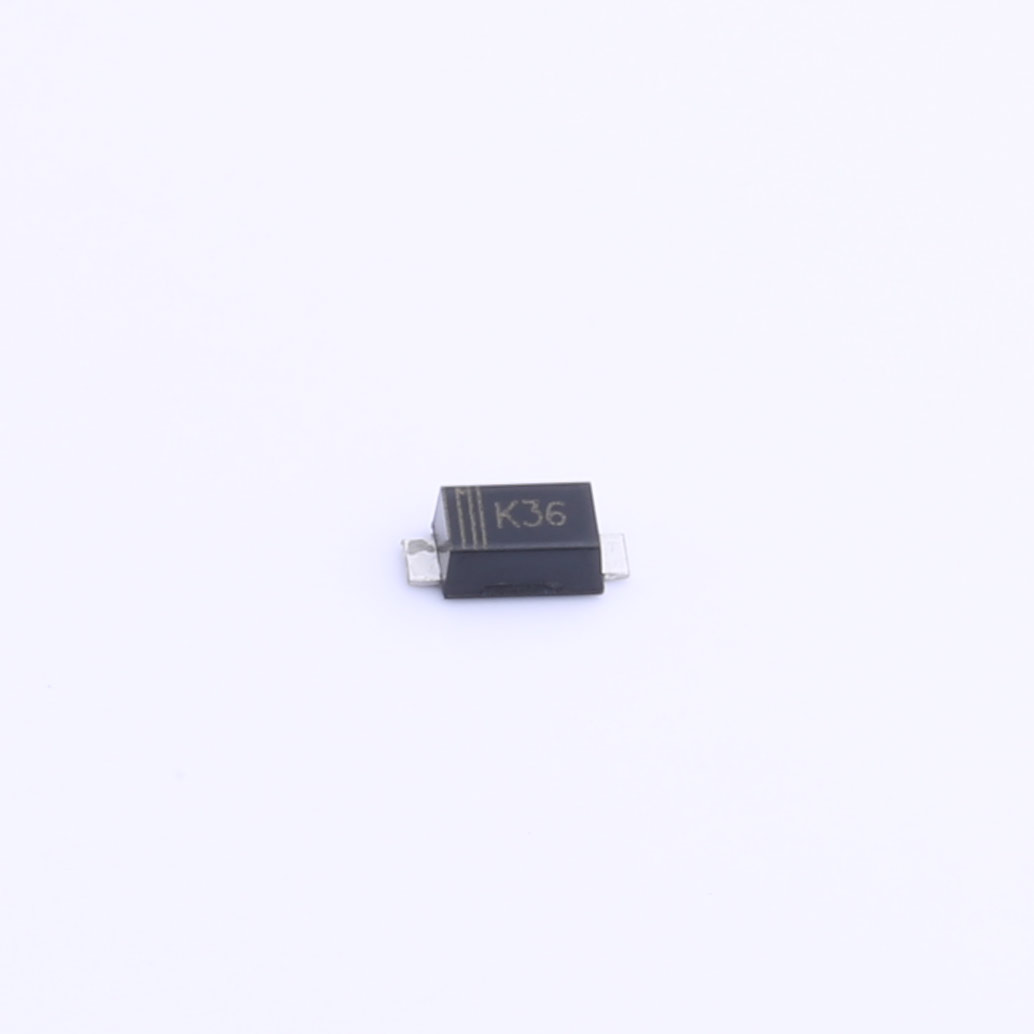

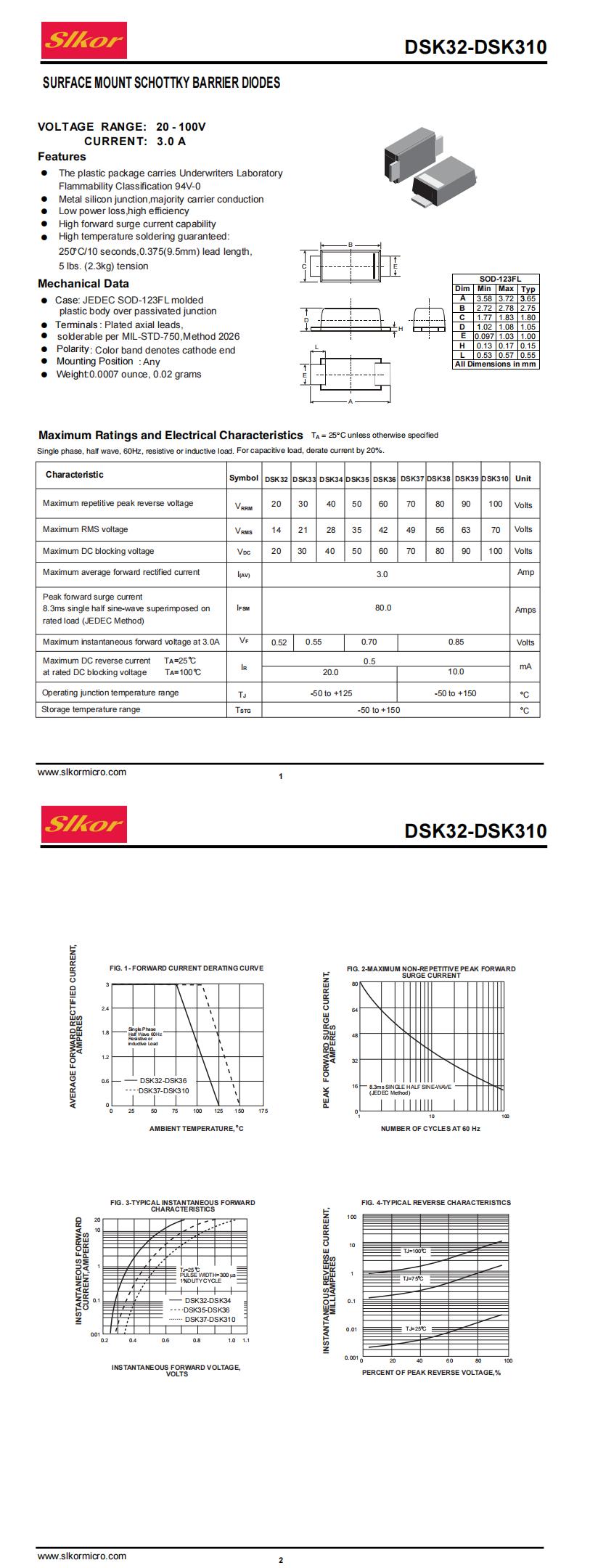

SURFACE MOUNT SCHOTTKY BARRIER DIODES

VOLTAGE RANGE:20-100V

CURRENT:3.0 A

Features

• The plastic package camries Underwriters Laboratory

• Flammability Classification 94V-0

• Metal silicon junction,majority carrier conduction

• Low power loss.high efficiency

• High forward surge current capability

• High temperature soldering guaranteed: 250 C/10 seconds,0.375(9.5mm)lead length, 5 Ibs.(2.3kg)tension

Mechanical Data

• Case: JEDEC SOD-123FLmolded plastic body over passivated junction

• Terminals: Plated axial leads solderable per MIL-STD-750, Method 2026

• Polarity: Color band denotes cathode end

• Mounting Position: Any

• Weight: 0.0007 ounce.0.02 grams
