Top 10 best-selling products of Slkor

release time:2024-05-28Author source:SlkorBrowse:1991

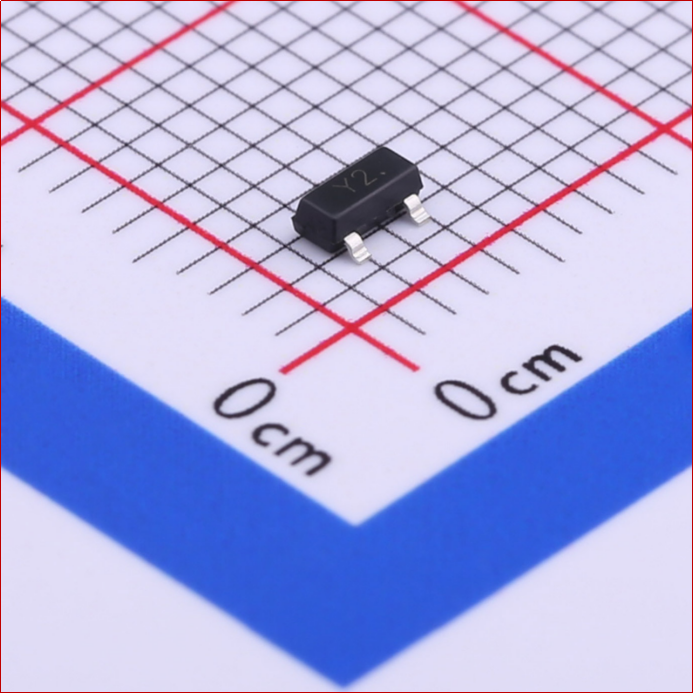

No.1. S8050

The first best-selling product of Slkor is S8050, which is used to amplify weak signals into electrical signals with a large amplitude.


The transistor S8050 is a small-power NPN silicon transistor, and its main applications include but are not limited to the following aspects:

Amplifier circuit: S8050 can be used to amplify audio, video, RF and other signals, such as in audio equipment, radios, televisions, etc. as a preamplifier or power amplifier.


Switch circuit: Because the switching speed of S8050 is fast, it can be used in digital circuits for switch control, such as in computers, mobile phones, etc. as a switching element of logic gates.


Power management: In some power management circuits, S8050 can be used as a switching tube to control the on and off of the power supply to achieve efficient power management.


Driver circuit: S8050 can be used to drive loads such as relays, solenoid valves, and motors, such as in automation control systems, robots, etc. as a driving element.


Oscillator: S8050 can be combined with other components to form an oscillator to generate sinusoidal waves, square waves, and other signals, such as in clock circuits, counters, etc. as an oscillating element.


It should be noted that the specific application will vary depending on the circuit design and requirements. When using S8050, a reasonable design and selection should be made according to its parameters and characteristics to ensure the performance and reliability of the circuit. At the same time, attention should also be paid to its working voltage, current, power and other parameters to avoid damage caused by exceeding its rated value.

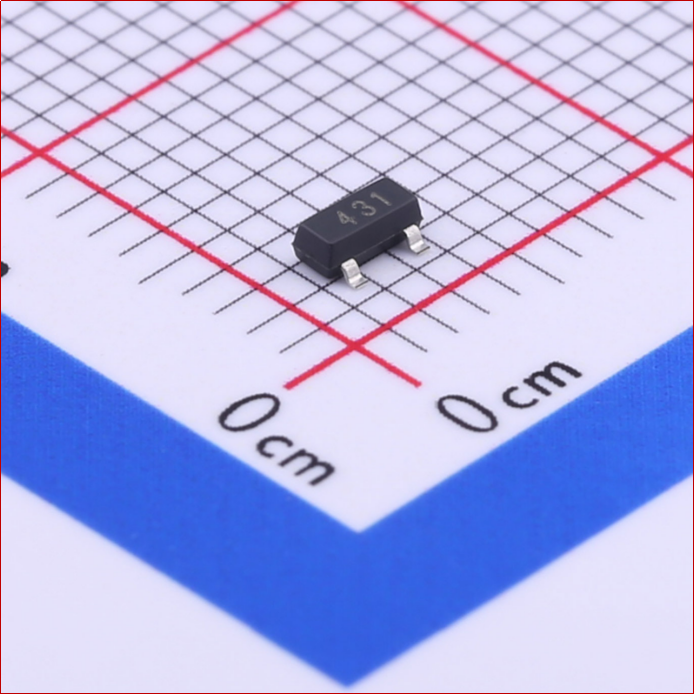

No.2. TL431

The second best-selling product of Slkor is TL431, which is used to measure the voltage value between the two ends of the circuit board and can detect whether there is current flowing through the two ends of the circuit board.


The voltage reference chip TL431 is a commonly used precision voltage source, and its main applications are as follows:


Reference voltage source: TL431 can provide a stable reference voltage for calibration, measurement, and comparison of voltages in circuits. It can be used as a reference voltage for other circuit modules to ensure the accuracy and stability of the entire system.


Voltage regulation: TL431 can be used in conjunction with an external resistor divider network to achieve precise voltage regulation. By changing the value of the voltage divider resistor, the output voltage can be adjusted to meet different application requirements.


Power management
: In power management circuits, TL431 is often used to monitor the power supply voltage and perform feedback control. It can be used with an error amplifier to form a feedback loop to ensure the stability and accuracy of the power supply output.


Overvoltage protection
: TL431 can be used in overvoltage protection circuits. When the input voltage exceeds the set threshold, TL431 can trigger a protection action, such as turning off the power supply or issuing an alarm, to prevent damage to the circuit.


Battery charger: In battery chargers, TL431 can be used to control the charging voltage to ensure the safety and efficiency of the battery charging process.


Sensor interface: TL431 can be used with sensors to convert the output of the sensor into a standard voltage signal for subsequent processing and measurement.


Analog signal processing
: TL431 can be used in analog signal processing circuits, such as as a reference voltage for filters, amplifiers, and comparators.


Here are some specific application examples:


In data acquisition systems, TL431 can be used as a reference voltage for ADC (analog-to-digital converter) to ensure the accuracy of the conversion results.


In electronic loads, TL431 can be used to control the load voltage to achieve constant voltage or constant current mode of operation.


In power supply modules, TL431 can be used to adjust the output voltage to meet the power supply requirements of different devices.


In automotive electronics, TL431 can be used in battery management systems to monitor battery voltage and perform charging control.


In summary, TL431 is a versatile, high-precision, and stable voltage reference chip that is widely used in various electronic circuits to provide stable and reliable reference voltage and voltage regulation functions for the system.

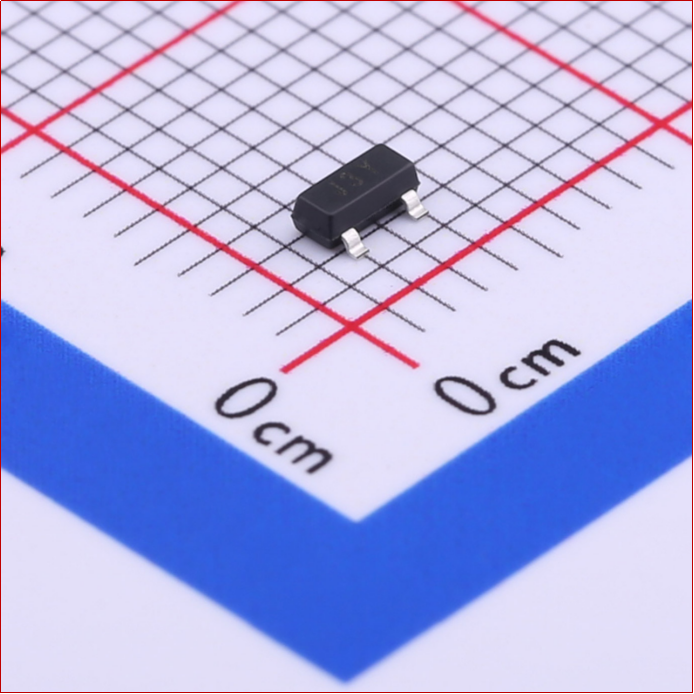

No.3. SS8550

The third best-selling product of Slkor is SS8550, which is used to amplify weak signals into electrical signals with a large amplitude.


SS8550 is a PNP transistor with the following uses:


Amplification: It can amplify weak signals into electrical signals with a large amplitude, and is often used in audio amplification, oscillators, and other circuits.


Switch control
: It can be used as a contactless switch to control the on and off of the circuit.


Voltage stabilization: It can play a role in stabilizing the voltage in some voltage stabilization circuits.


Electronic load: It can be used to build an electronic load to simulate the working conditions of the actual load.


RF circuit: It can be used in RF circuits for signal amplification and frequency conversion.


In practical applications, when choosing a transistor, its parameters such as collector current, collector-emitter voltage, power consumption, and gain should be considered to ensure that it can meet the requirements of the specific circuit. At the same time, attention should also be paid to the packaging form and heat dissipation conditions of the transistor to ensure its normal operation and reliability.


No.4. FR107


The fourth best-selling product of Slkor is FR107, which is used for high-frequency rectification, freewheeling, absorption, isolation, and clamping.


The fast recovery diode FR107 is a diode with fast recovery characteristics, which is often used in high-frequency rectification and freewheeling applications. Its main applications include:


High-frequency rectification: In the secondary rectification part of the switching power supply, due to the high operating frequency, a fast recovery diode is required for rectification. FR107 can quickly turn on and off, reducing energy loss and improving the overall efficiency of the power supply.


Freewheeling: In circuits with inductive loads, when the switching tube is turned off, the inductor will generate a reverse electromotive force. FR107 can provide a freewheeling path to protect the switching tube from reverse voltage impact.


Protection circuit
: FR107 can be used in circuit protection, such as at the input or output of the power supply, to prevent damage to the circuit from overvoltage or overcurrent.


Other applications: FR107 can also be used in electronic devices such as charging circuits, LCD power supplies, electronic flash cameras, and Bluetooth devices.


In practical applications, when choosing a diode, its parameters such as reverse voltage, forward current, and recovery time should be considered to ensure that it can meet the requirements of the specific circuit. At the same time, attention should also be paid to the packaging form and heat dissipation conditions of the diode to ensure its normal operation and reliability.

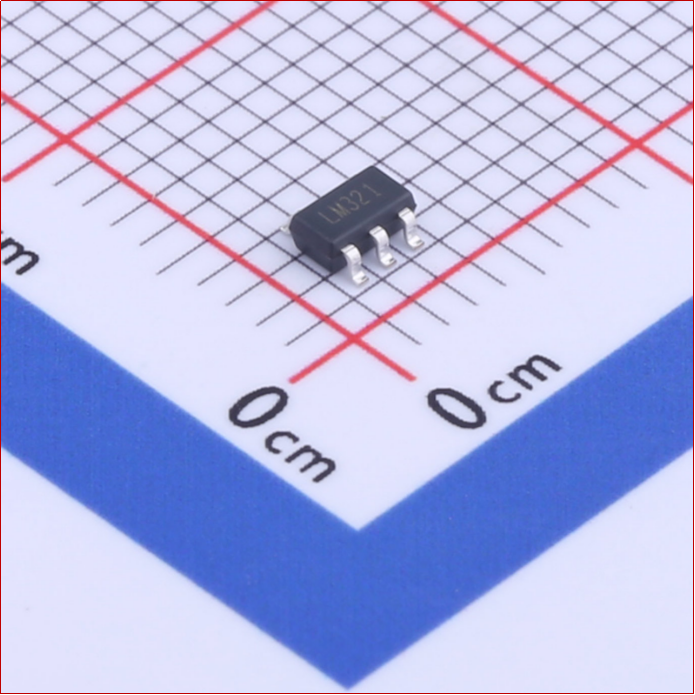

No.5. LM321

The fifth best-selling product of Slkor is LM321, which is used to increase the signal amplitude: the operational amplifier amplifies the input signal to the appropriate amplitude to ensure that the signal can be accurately processed by the subsequent circuit.


The operational amplifier LM321 is a commonly used integrated circuit chip with high gain, high input impedance, and low output impedance. Its main applications include but are not limited to the following aspects:


Signal amplification: LM321 can amplify input signals, such as audio signals and sensor signals. It can amplify weak signals to a level sufficient to drive subsequent circuits.


Signal processing: Operational amplifiers can be used for various signal processing tasks, such as filtering, summing, integration, and differentiation. By configuring external circuit components, different types of filters and signal processing functions can be realized.


Comparator
: LM321 can be used as a comparator to compare the input signal with the reference voltage and output the corresponding logic level. This is very useful in detection and control applications.


Data acquisition: In data acquisition systems, operational amplifiers can be used for signal conditioning and amplification to improve measurement accuracy and resolution.


Sensor interface: It can interface with various sensors to amplify and process the output signals of the sensors for subsequent processing and analysis.


Audio amplification: In audio equipment, LM321 is often used in preamplifiers, power amplifiers, and other circuits to provide audio signal amplification and processing.


Industrial control: In industrial automation systems, operational amplifiers can be used in sensor signal processing, motor control, process control, and other applications.


Laboratory and test equipment: LM321 is widely used in laboratory and test equipment for signal amplification, measurement, and analysis.


These are just some common applications of LM321, and the specific application depends on the circuit design and system requirements. When using an operational amplifier, a suitable circuit configuration and peripheral components should be selected according to the specific application scenario to ensure its performance and stability.

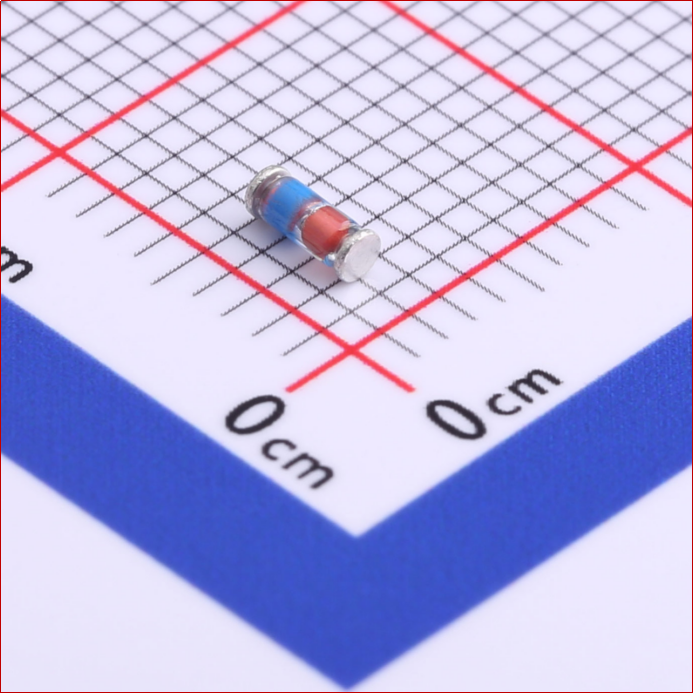

No.6. ZMM5V6

The sixth best-selling product of Slkor is ZMM5V6, which is used for stabilizing the power supply, surge protection, current limiting, and voltage reference; The main purpose of the voltage-stabilizing diode ZMM5V6 is to provide a stable voltage reference. It can play a role in voltage stabilization in the circuit to prevent voltage fluctuations from affecting other components.


Specifically, ZMM5V6 can be used in the following aspects:


Power supply voltage stabilization: In the power supply circuit, ZMM5V6 can stabilize the output voltage to ensure a stable power supply for other components in the circuit.


Signal processing: In signal processing circuits, it can be used as a reference voltage to help maintain the accuracy and stability of the signal.


Protection circuit: ZMM5V6 can be used to protect other components from damage caused by excessive or too low voltage, such as in overvoltage protection circuits.


Reference voltage source: Provide an accurate reference voltage for other circuits.


When using ZMM5V6 or other voltage-stabilizing diodes, the appropriate model and parameters should be selected according to the specific circuit requirements, and attention should be paid to its working conditions and limitations. At the same time, correct installation and connection are also important factors to ensure its normal operation. If you need more detailed information, it is recommended to refer to the relevant datasheet and application guide.

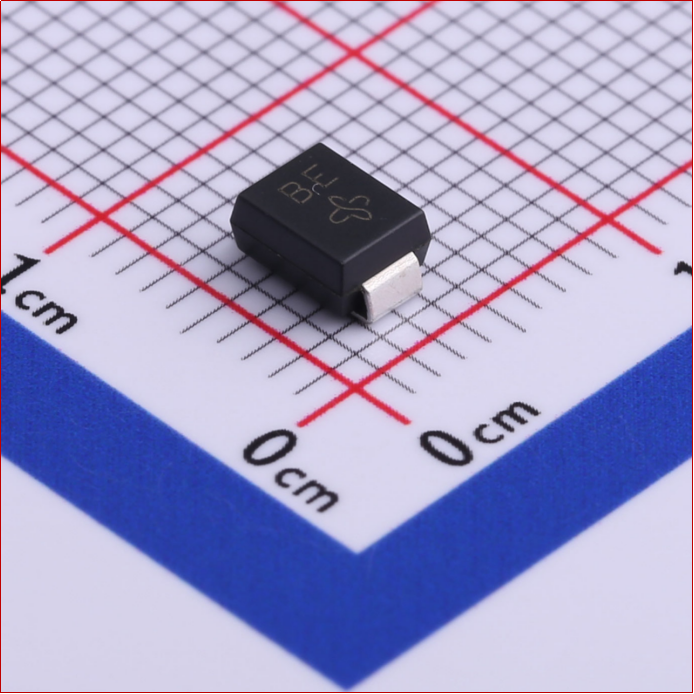

No.7. SMBJ12CA

The seventh best-selling product of Slkor is SMBJ12CA, which is used for stabilizing the power supply, surge protection, current limiting, and voltage reference; The main purpose of the electrostatic and surge protector SMBJ12CA is to protect electronic devices from electrostatic discharge and surge voltage damage.


Electrostatic discharge refers to the sudden charge transfer between two objects, which may cause damage to electronic devices. Surge voltage refers to the sudden appearance of a high-voltage pulse in the power system, which may also cause damage to electronic devices.


SMBJ12CA can protect electronic devices from electrostatic discharge and surge voltage damage by limiting the rate of rise and peak of the voltage. It is usually used in positions such as the power input, signal input, and output of electronic devices.

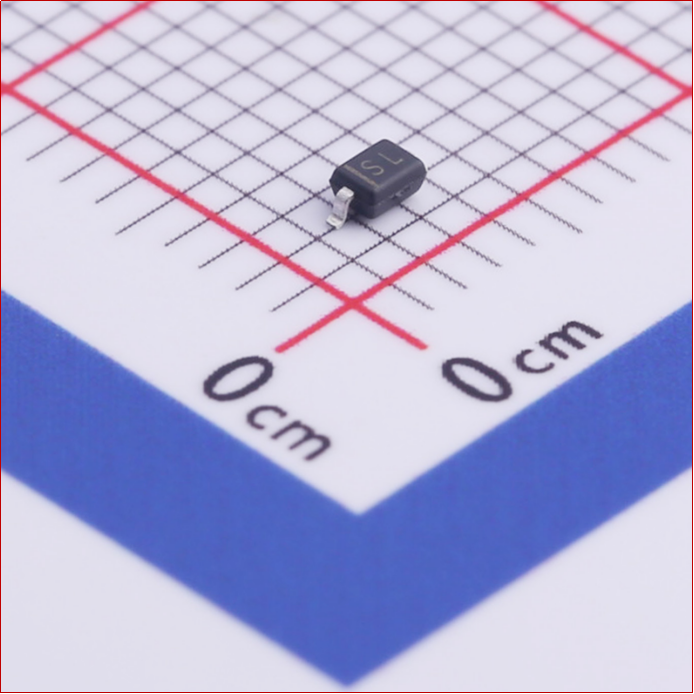

No.8. B5819WS

The eighth best-selling product of Slkor is B5819WS. The Schottky diode B5819WS is a low-power, ultra-high-speed semiconductor device.


It is mainly used in circuits such as switching power supplies, frequency converters, and drivers as a high-frequency, low-voltage, and high-current rectifier diode, freewheeling diode, protection diode, or as a rectifier diode and small-signal detection diode in microwave communication circuits. It can play a role of rectification, freewheeling, and protection in the circuit.

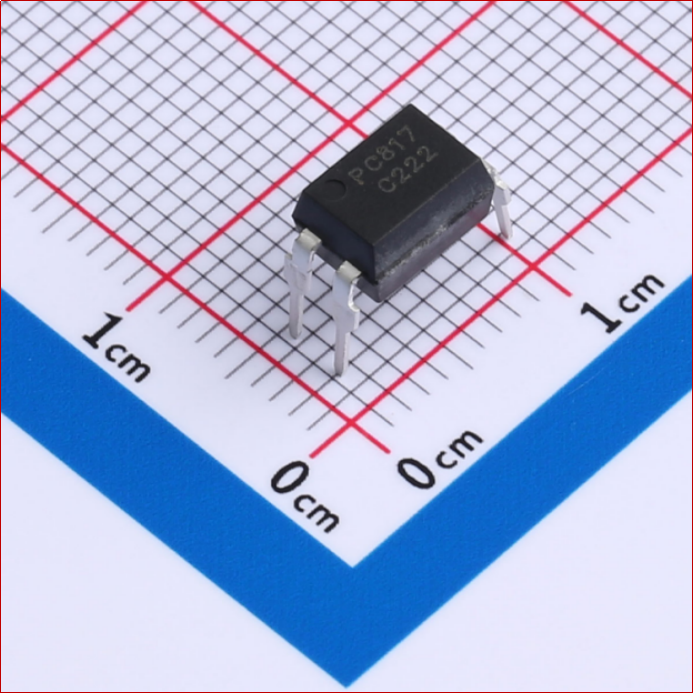

No.9. PC817C

The ninth best-selling product of Slkor is PC817C. The optocoupler PC817C is a commonly used optoelectronic coupler, mainly used for electrical signal isolation and transmission between circuits.


The following are some of its common uses:


Isolation of signals: PC817C can convert the electrical signal on the input side into an optical signal, and then optically couple it to the output side to achieve electrical isolation between the input and output. This helps prevent the spread of noise, interference, and voltage fluctuations, improving the safety and reliability of the system.


Level conversion: It can be used for signal conversion between different levels. For example, convert the TTL level of a logic circuit to the required other level, such as the CMOS level.


Signal amplification: The optocoupler can be used to amplify weak electrical signals. The electrical signal on the input side is optically coupled to the output side, and the photosensitive element on the output side can convert the optical signal into a stronger electrical signal.


Isolation drive: In some applications that require isolated drive, such as motor drive and relay control, PC817C can be used to isolate the control signal and the driven load to ensure safety and prevent interference.


Communication interface: It is often used in data communication interfaces, such as serial ports and parallel ports, to achieve data isolation and transmission.


Power isolation: In power supply circuits, PC817C can be used to isolate the power supply and load to prevent the influence of power supply noise and fluctuations on the load.


System protection: When the electrical signal on the input side is abnormal, such as overvoltage and overcurrent, the optocoupler can play a protective role to prevent damage to the subsequent circuit.


In general, the optocoupler PC817C is widely used in various circuits that require electrical isolation, signal conversion, and amplification. Its use can improve the performance, reliability, and safety of the system. In specific applications, a suitable optocoupler model should be selected according to the circuit requirements, and correct design and use should be carried out.

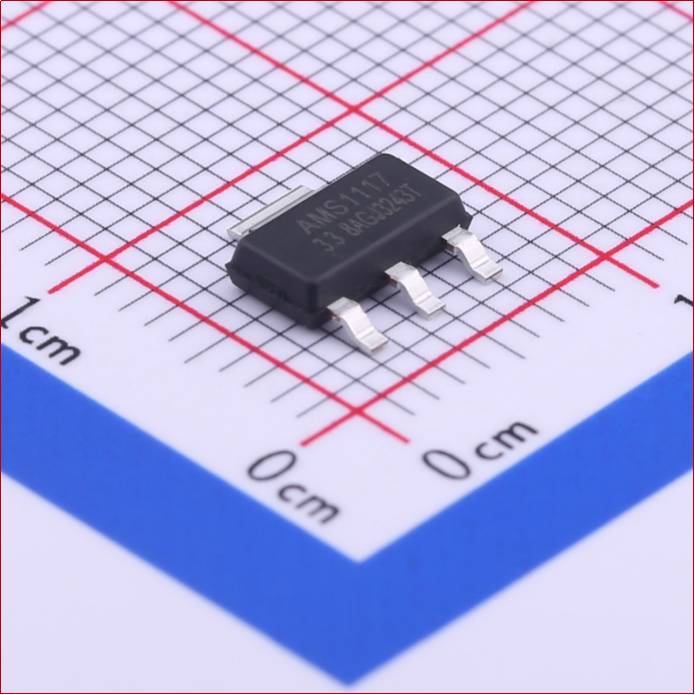

No.10. AMS1117-3.3

The tenth best-selling product of Slkor is AMS1117-3.3. The linear voltage regulator AMS1117-3.3 is a commonly used electronic component, mainly used to stabilize the input voltage to an output voltage of 3.3V.


It has the following characteristics and applications:


Characteristics:

lStable output voltage: It can provide an accurate 3.3V output voltage.

lLow dropout voltage: The dropout voltage between the input voltage and the output voltage is small during operation.

lOvercurrent protection: Has a certain overcurrent protection capability to prevent the circuit from being damaged by excessive current.

lOverheat protection: It has an internal integrated overheat protection circuit to avoid damage to the chip due to overheating.

lSmall package: There are various package forms, such as SOT-223, TO-252, etc., suitable for different application scenarios.


Applications:

lProvide a stable 3.3V power supply for electronic devices, such as embedded systems, sensors, power modules, development boards, etc.

lAs a power management chip in circuits that require 3.3V voltage, ensure the normal operation of the circuit.

lUsed in switched-mode power supplies to convert 5V voltage to 3.3V voltage.

lProvide a stable power supply for various electronic instruments and equipment to ensure their performance and reliability.

lWhen using AMS1117-3.3, attention should be paid to the input voltage range, load current, and heat dissipation conditions to ensure its normal operation and provide a stable output voltage. At the same time, the appropriate package form and pin arrangement should also be selected according to the specific application requirements.
