BAV99 High-speed Switching Diode BAV99 High-speed Switching Diode BAV99 High-speed Switching Diode

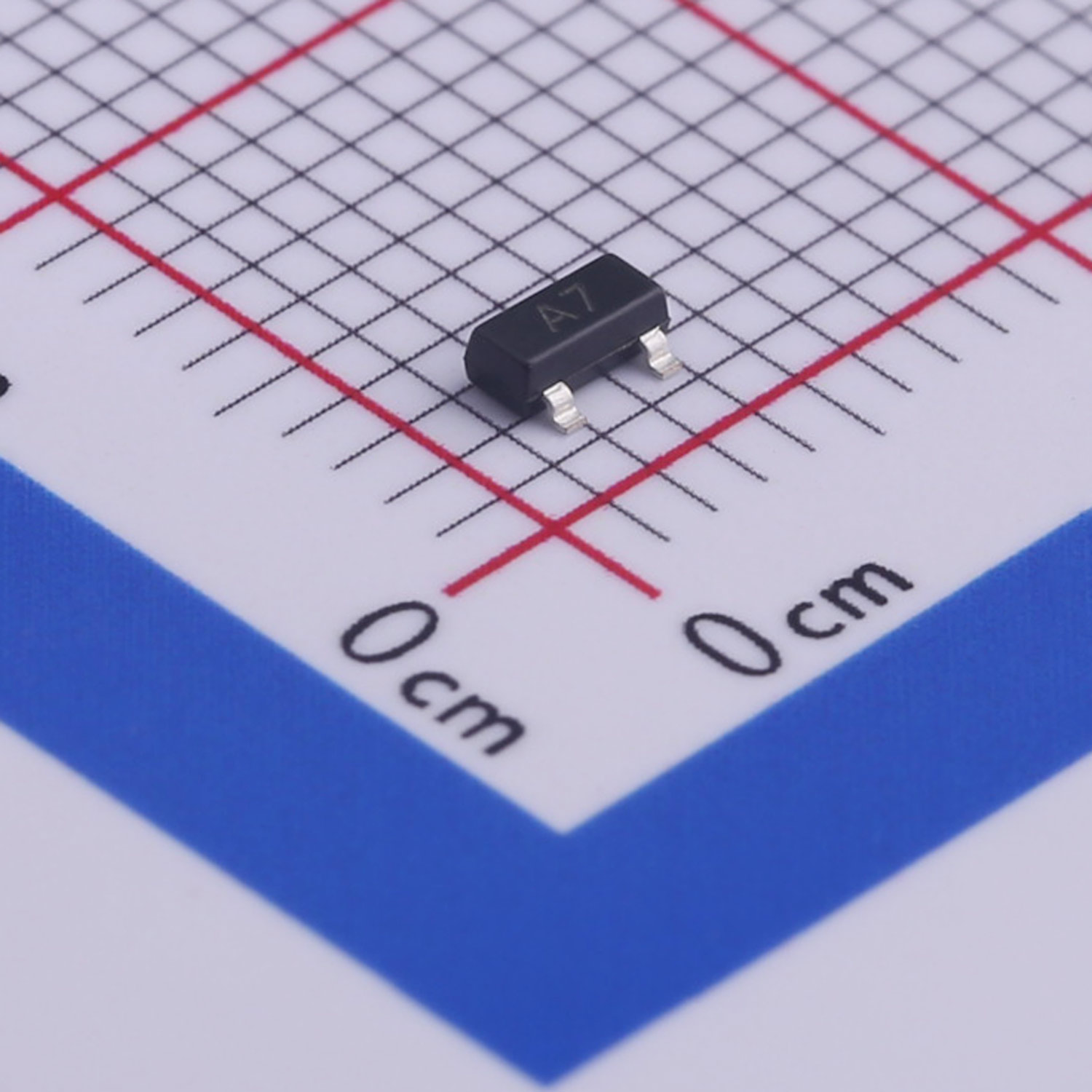

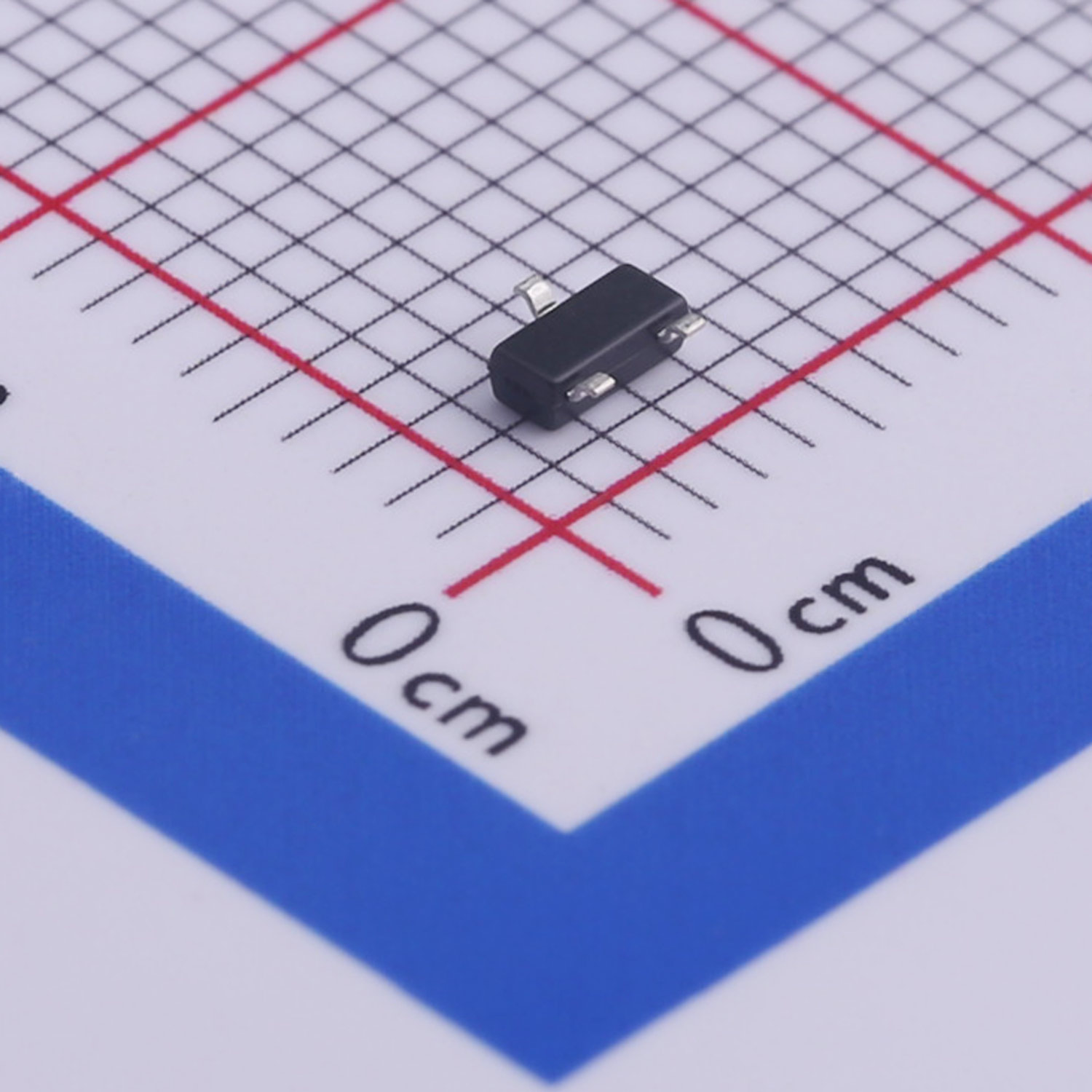

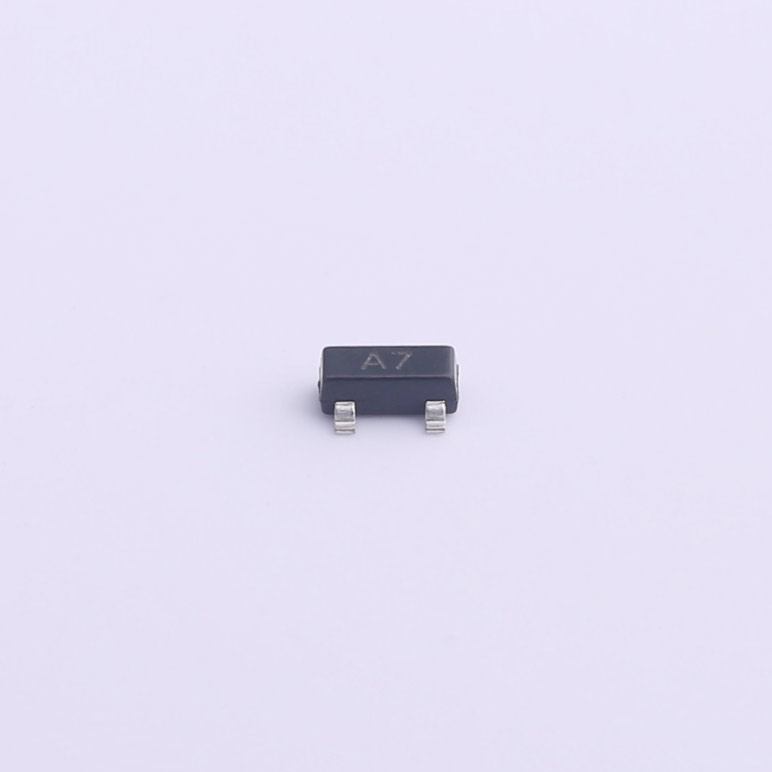

BAV99 High-speed Switching Diode
Slkor offers alternative replacement - BAV99 - for DIODES BAV99-13-F 75V, 125mA High-speed Switching Diode
VRM(V): 75V
IO(mA): 125mA
VF(V): 1V
IR(A): 30nA
trr(ns): 4ns
Package: SOT-23

Product Details

Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Slkor alternative equivalents to DIODES.

DIODES Slkor Replacements
Part Number Part Number Product Category Package
SMAJ5.0A SMAJ5.0A TVS SMA
SMAJ33CA-13-F SMAJ33CA TVS SMA
BAT54C-7-F BAT54C Schottky Diodes SOT-23
TL431AS-13 TL431 Voltage References SOT-23
M8403DR-H PAM8403 Op Amps SOP-16
BC817-25Q-7-F BC807-25 Transistor SOT-23
BC817-40Q-7-F BC817-40 Transistor SOT-23
BAV99-13-F BAV99 Switching Diode SOT-23
BAV19W-7-F BAV19W Switching Diode SOD-123
BAV20W-7-F BAV20W Switching Diode SOD-123
BAV21W-7-F BAV21W Switching Diode SOD-123
SMBJ12A-13-F SMBJ12A TVS SMB
SMBJ24CA-13-F SMBJ24CA TVS SMB
SMAJ13CA-13-F SMAJ13CA TVS SMA
SMAJ15CA-13-F SMAJ15CA TVS SMA
SMAJ6.0A-13-F SMAJ6.0A TVS SMA
US1M US1M Fast Recovery Diode SMA
RS1M RS1M Switching Diode SMA
MMBD4148-7-F MMBD4148 Switching Diode SOT-23

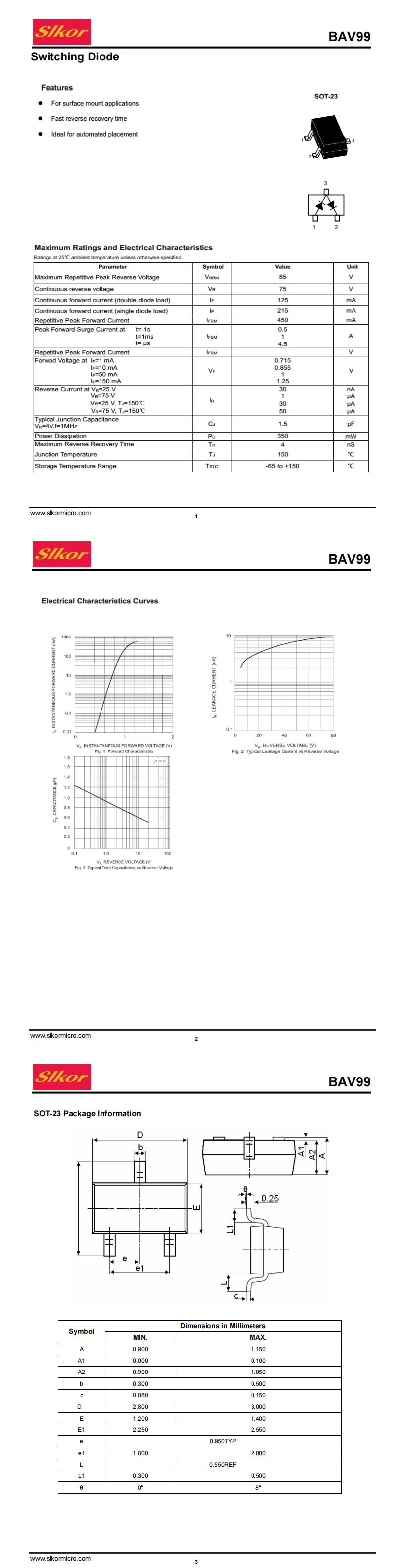

Description

High-speed switching diode, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package.

Features

● For surface mount applications

● Fast reverse recovery time

● Ideal for automated placement

● Small SMD plastic packages

● High switching speed: trr ≤ 4 ns

Applications

● High-speed switching

● Reverse polarity protection

● General-purpose switching

Quick reference data

Symbol Parameter Conditions Max Unit
IR reverse current VR = 25 V; Tamb = 25 °C 30 nA
VR reverse voltage 75 V
trr reverse recovery time Tamb = 25 °C
4 ns
