Description
TheESDA25L is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and otherapplications. These devices are ideal for situations where board space is at a premium.
This series has been specifically designed to protect sensitive components which are connected to power、data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
Features

● IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

● IEC61000-4-4 (EFT) 40A (5/50ηs)

● 350 Watts Peak Pulse Power per (tp=8/20μs)

● Protects one bidirectional line or two unidirectional lines

● Low clamping voltage
● Working voltages : 3.3V to 36V
● Low leakage current

Mechanical Data

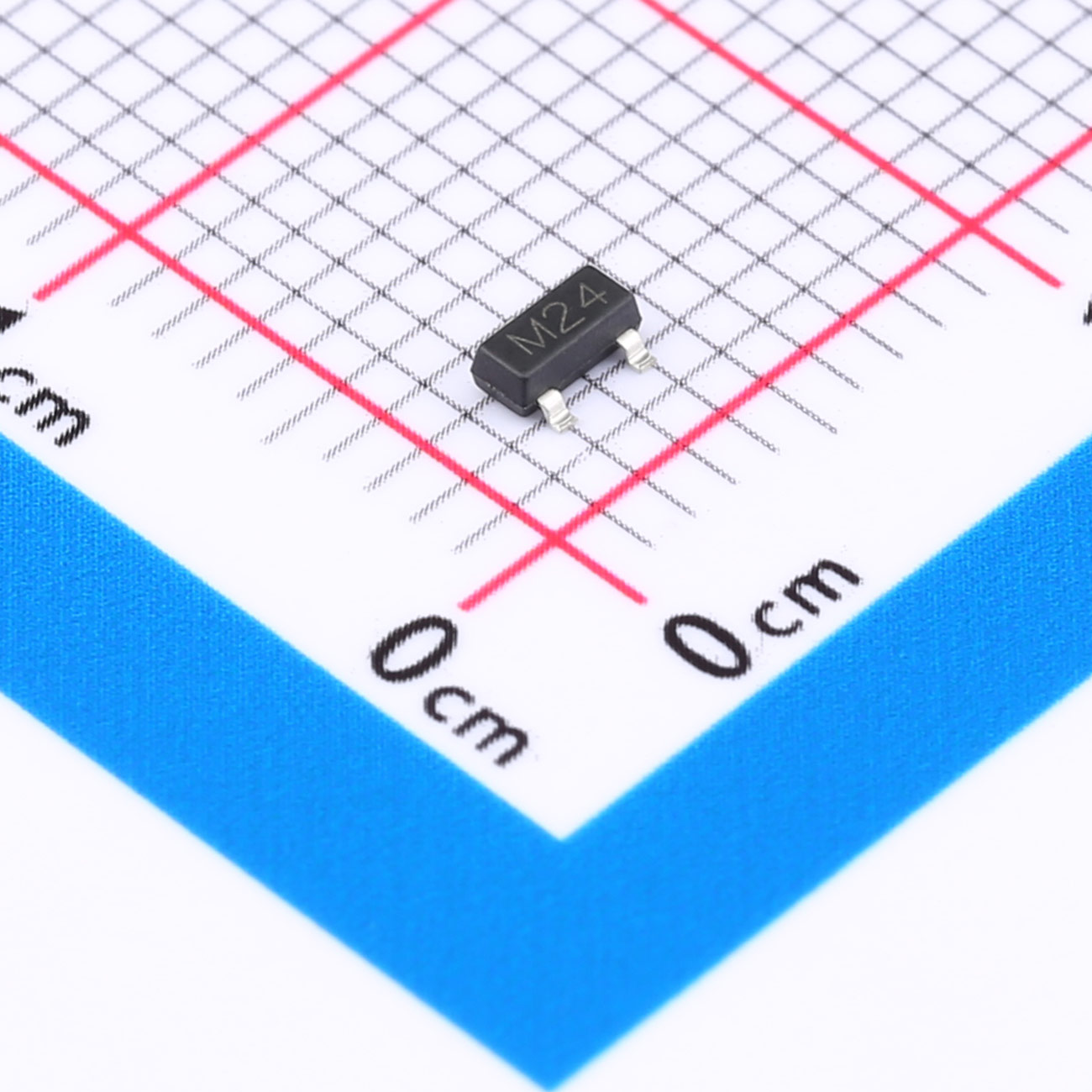

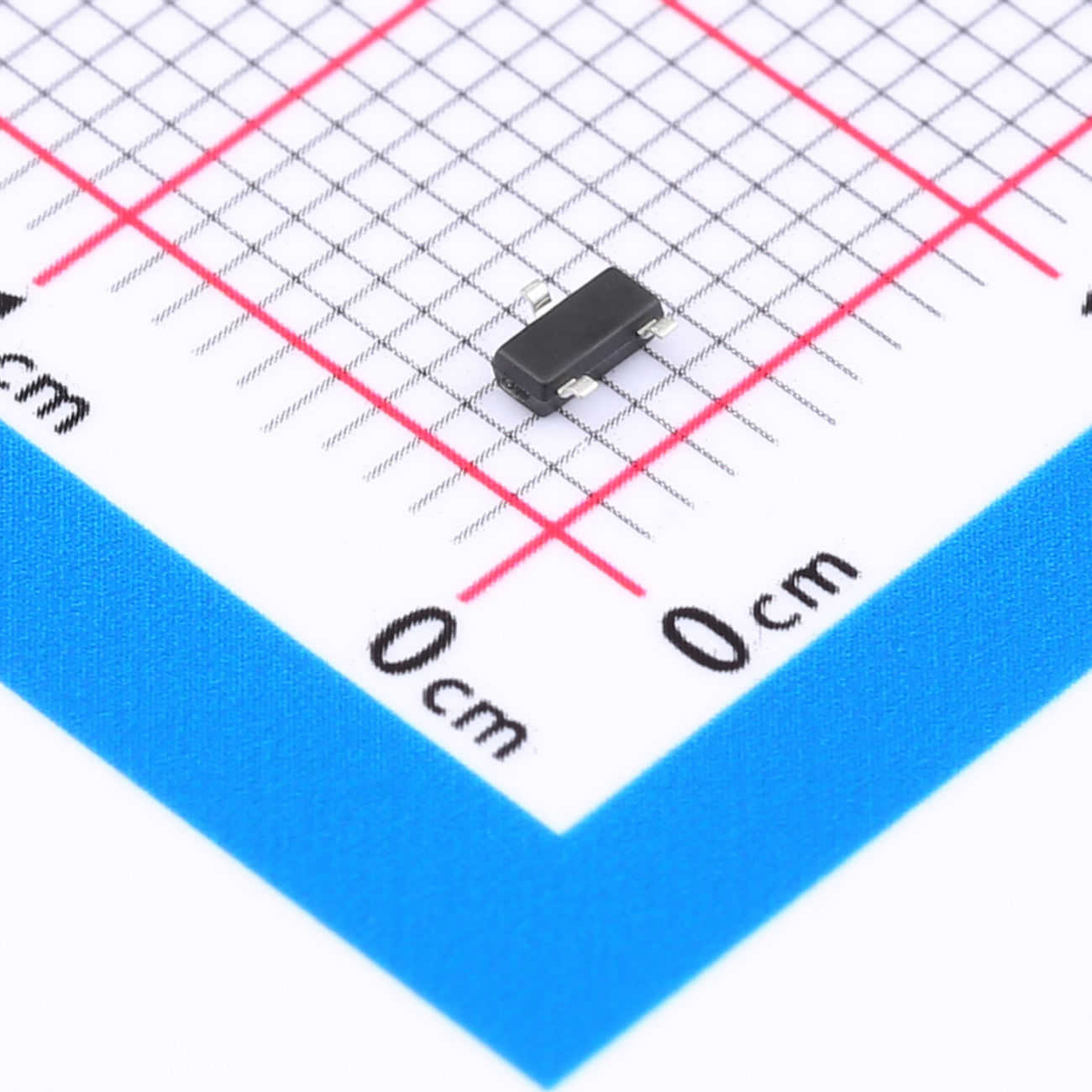

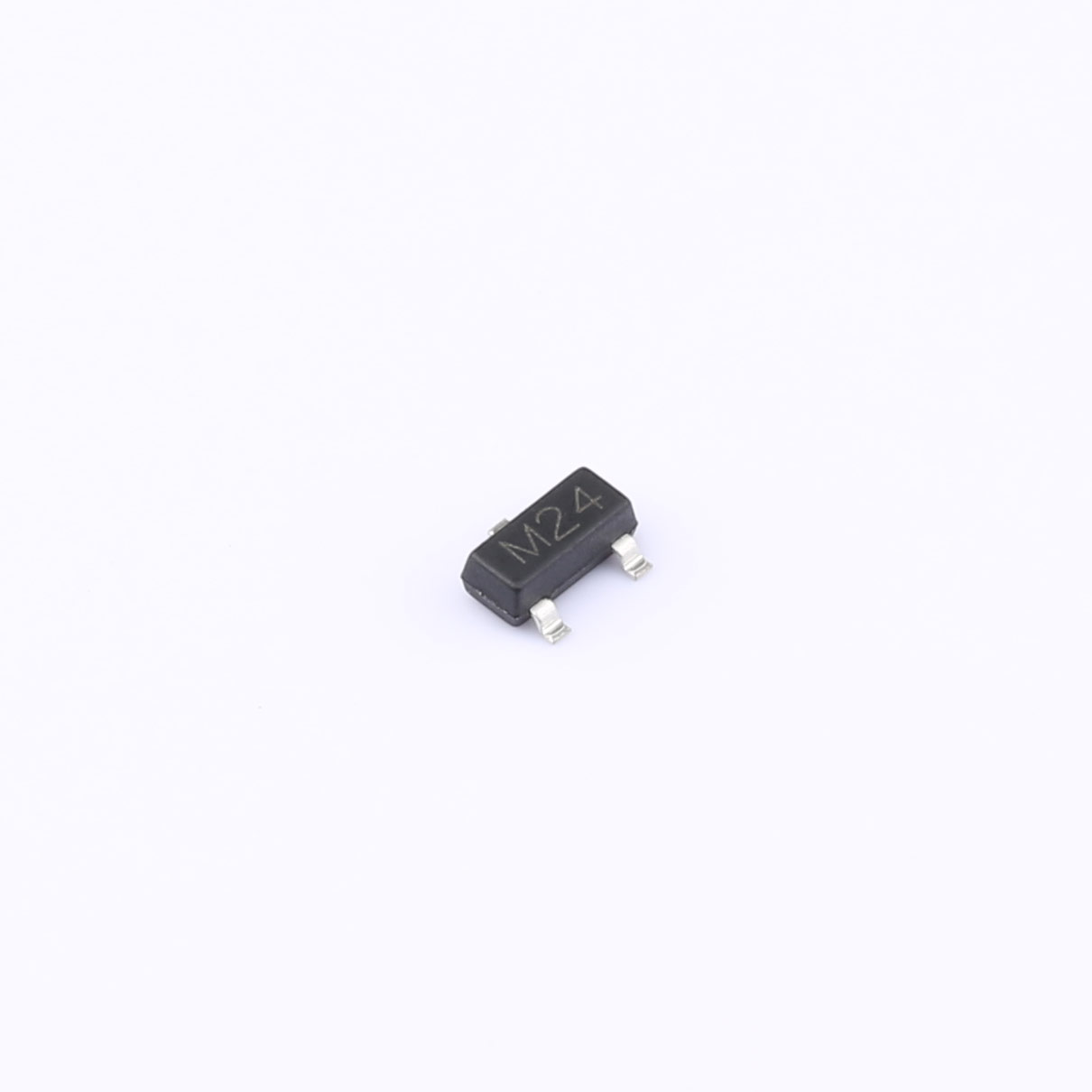

● SOT-23package
● Flammability Rating: UL 94V-0
● High temperature soldering guaranteed:260℃/10s
● Packaging: Tape and Reel
● Reel size: 7 inch
● MSL1

Ordering Information

● Device:  ESDA25L
● Package: SOT-23
● Material: Halogen free
● Packing: Tape & Reel
● Quantity per reel: 3,000pcs

Applications

● Cell Phone Handsets andAccessories
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Networking and Telecom
● Serial and Parallel Ports
● Peripherals
