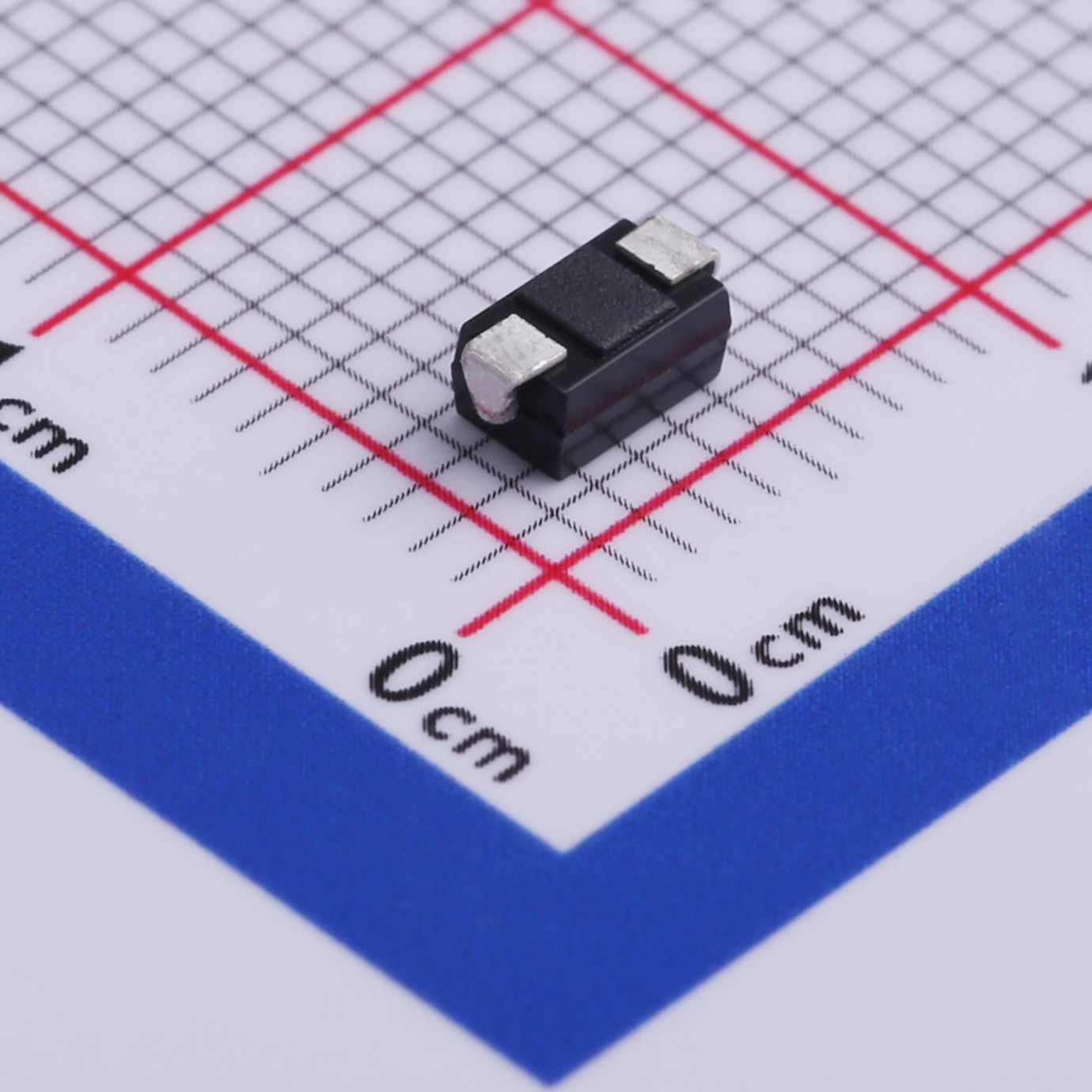

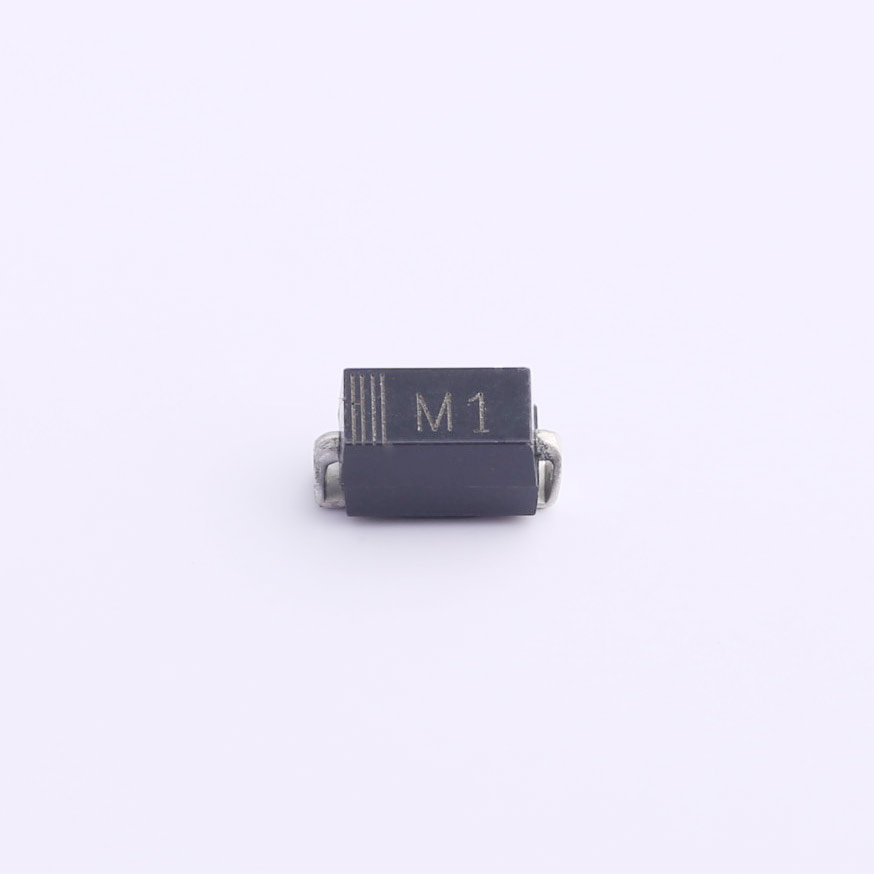

M1 Universal Diode (Equivalent for YANGJIE M1) M1 Universal Diode (Equivalent for YANGJIE M1) M1 Universal Diode (Equivalent for YANGJIE M1)
M1 Universal Diode (Equivalent for YANGJIE M1)
VRRM(V):50V
IO(A):1A
VF(V):1.1V
IR(μA):5μA
Package:SMA

Product Details

Equivalent for YANGJIE M1


Features

  • Low coat construction.

  • Low forward voltage drop.

  • Low reverse leakage.

  • High forward surge current capability.

  • High temperature soldering guaranteed: 260C/10 secods/.375" (9.5mm) lead length at 5 Ibs (2.3kg) tension.


Mechanical Data

  • Case: Transfer molded plastic.

  • Epoxy: UL94V-O rate flame retardant.

  • Polarity: Color band denotes cathode end.

  • Lead: Plated axial lead, solderable per MIL-STD-202E method 208C.

  • Mounting position: Any.


Maximum Ratings And Electrical Characteristics

  • Ratings at 25 C ambient temperature unless otherwise specified.

  • Single Phase, half wave, 60Hz, resistive or inductive load.

  • For capacitive load derate current by 20%.
