M7 1.1V 1A Surface Mount General Rectifier M7 1.1V 1A Surface Mount General Rectifier M7 1.1V 1A Surface Mount General Rectifier

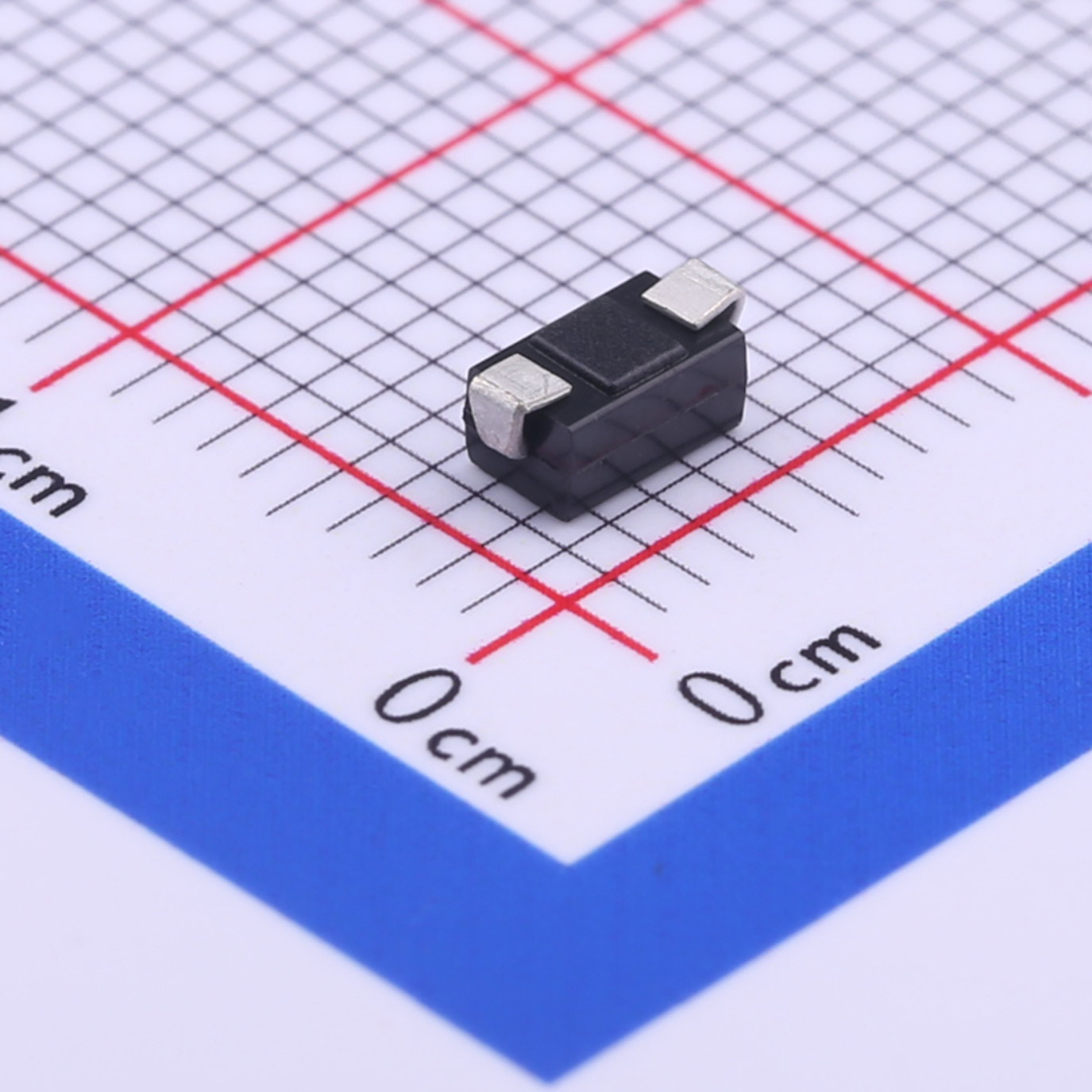

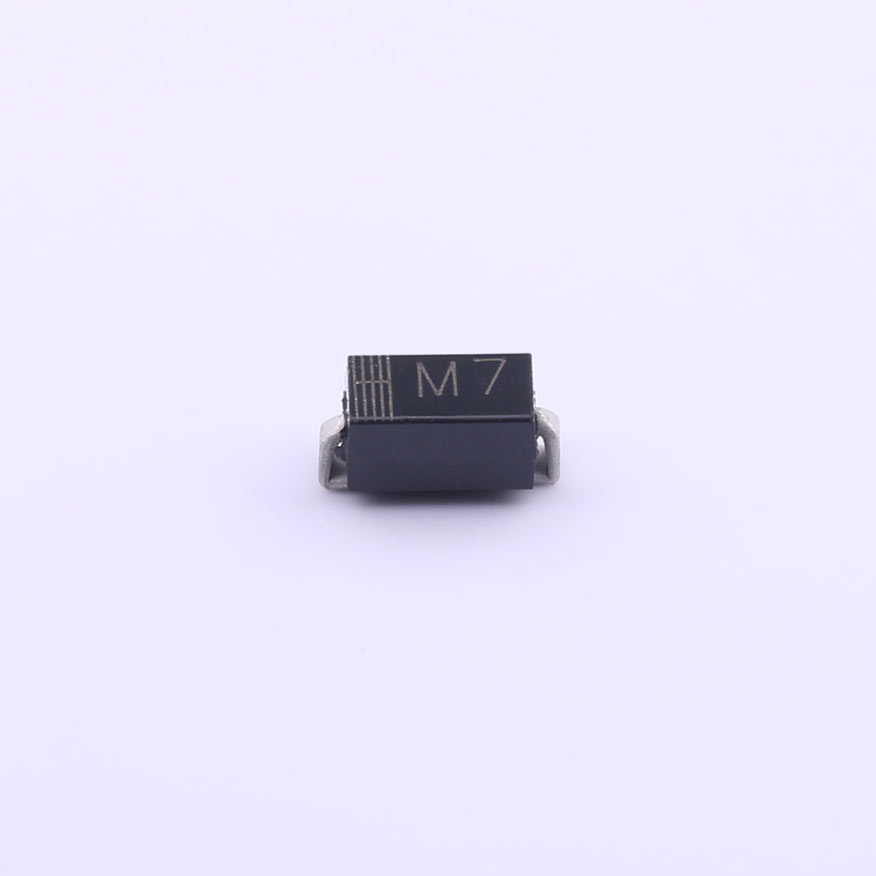

M7 1.1V 1A Surface Mount General Rectifier

VRRM(V):1000V
IO(A):1A
VF(V):1.1V
IR(μA):5μA
Package:SMA

Product Details

Features

Low coat construction.

Low forward voltage drop.

Low reverse leakage.

High forward surge current capability.

High temperature soldering guaranteed: 260C/10 secods/.375" (9.5mm) lead length at 5 Ibs (2.3kg) tension.


Mechanical Data

Case: Transfer molded plastic.

Epoxy: UL94V-O rate flame retardant.

Polarity: Color band denotes cathode end.

Lead: Plated axial lead,solderable per MIL-STD-202E method 208C.

Mounting position: Any.


Maximum Ratings And Electrical Characteristics

Ratings at 25 C ambient temperature unless otherwise specified.

Single Phase,.half wave,.60Hz,.resistive or inductive load.

For capacitive load derate current by 20%.
