Description

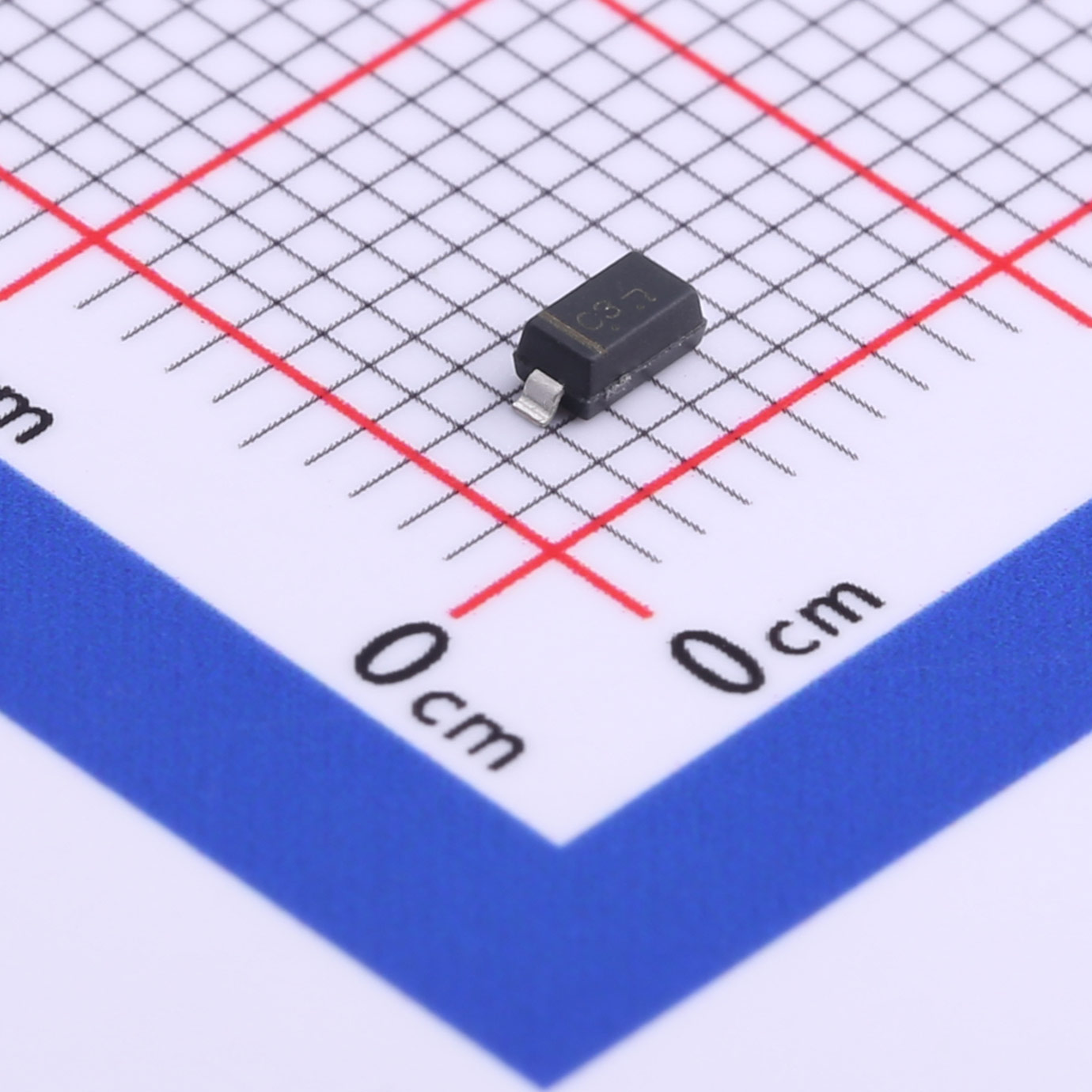

The MMSZ5223B is a voltage regulator diode packaged in SOD-123, featuring a stable reverse operating voltage of 2.7V. Designed for precise voltage regulation and reverse voltage protection in circuits, it is ideal for applications requiring low power consumption and high efficiency. It boasts excellent temperature stability and minimal leakage current to ensure reliable performance across various environmental conditions.
Features
●Total power dissipation:Max. 500mW.
●Wide zener reverse voltage range 2.4V to 39V.
●Small plastic package suitable forsurface mounted design.
●Tolerance approximately ± 5%.
Applications
●Power Management
●Electronic Protection
●Portable Devices
| File Name | Title | Description |
|---|---|---|
| MMSZ5222B.PDF | MMSZ5222B | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
VZTyp- Precision：±5% PD：500mW Ir:3nA@6V
VZTyp- Precision: ±5% PD: 500mW Ir: 3nA@6.5V
VZTyp- Precision：±5% PD：500mW Ir:3nA@8V
VZTyp- Precision：±5% PD：500mW Ir:3nA@8.4V
PD(mW)：500mW VZTyp（V）：12V VZMin(V)：11.4V VZMax(V)：12.6V IZT(mA)：20mA IR(uA)：2uA Package：SOD-123
VZTyp- Precision：±5% PD：500mW Ir:1nA@9.9V
PD(mW)：500mW VZTyp（V）：15V VZMin(V)：14.25V VZMax(V)：15.75V IZT(mA)：7.5mA IR(uA)：0.5uA Package：SOD-123
VZTyp- Precision：±5% PD：500mW Ir：0.1nA@12V
