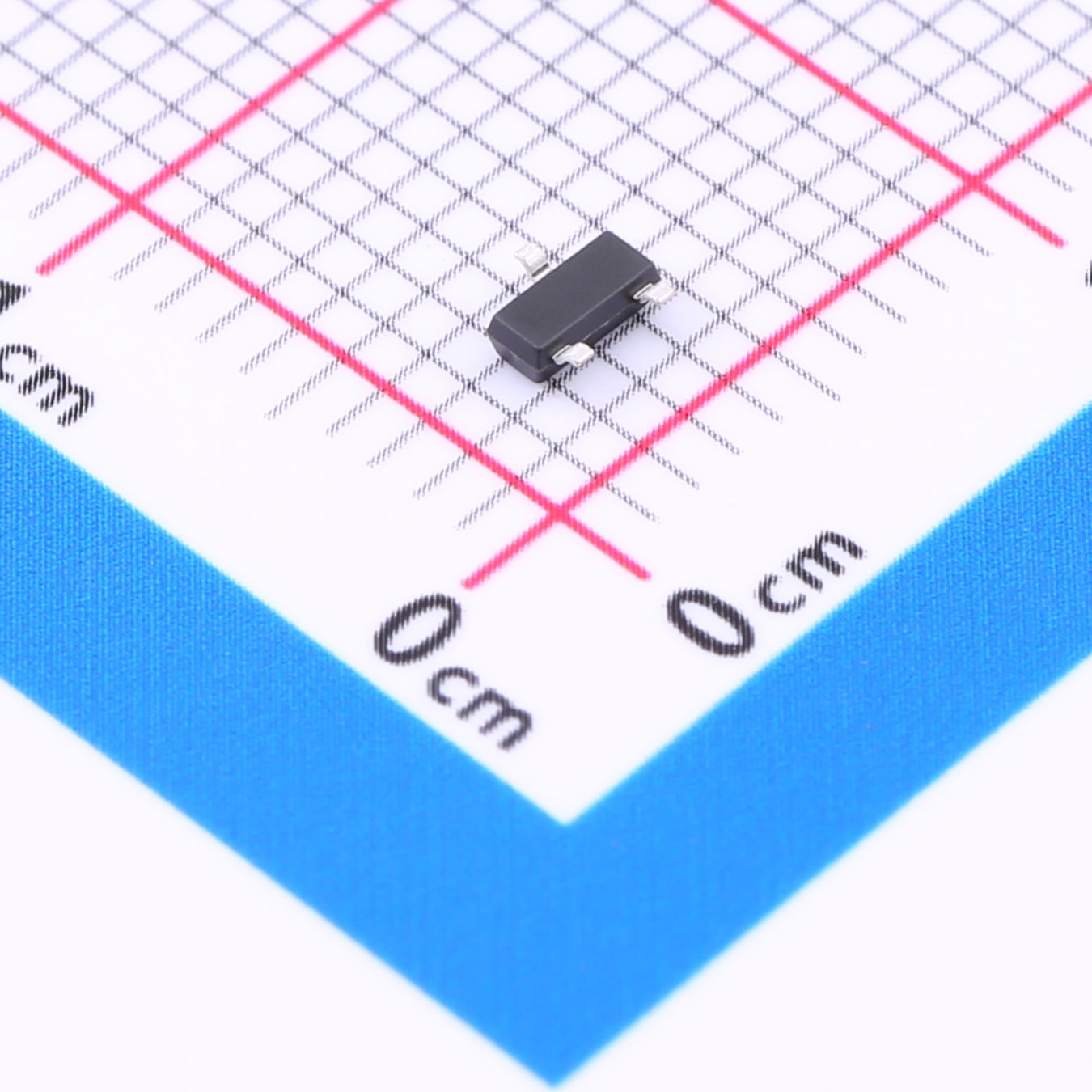

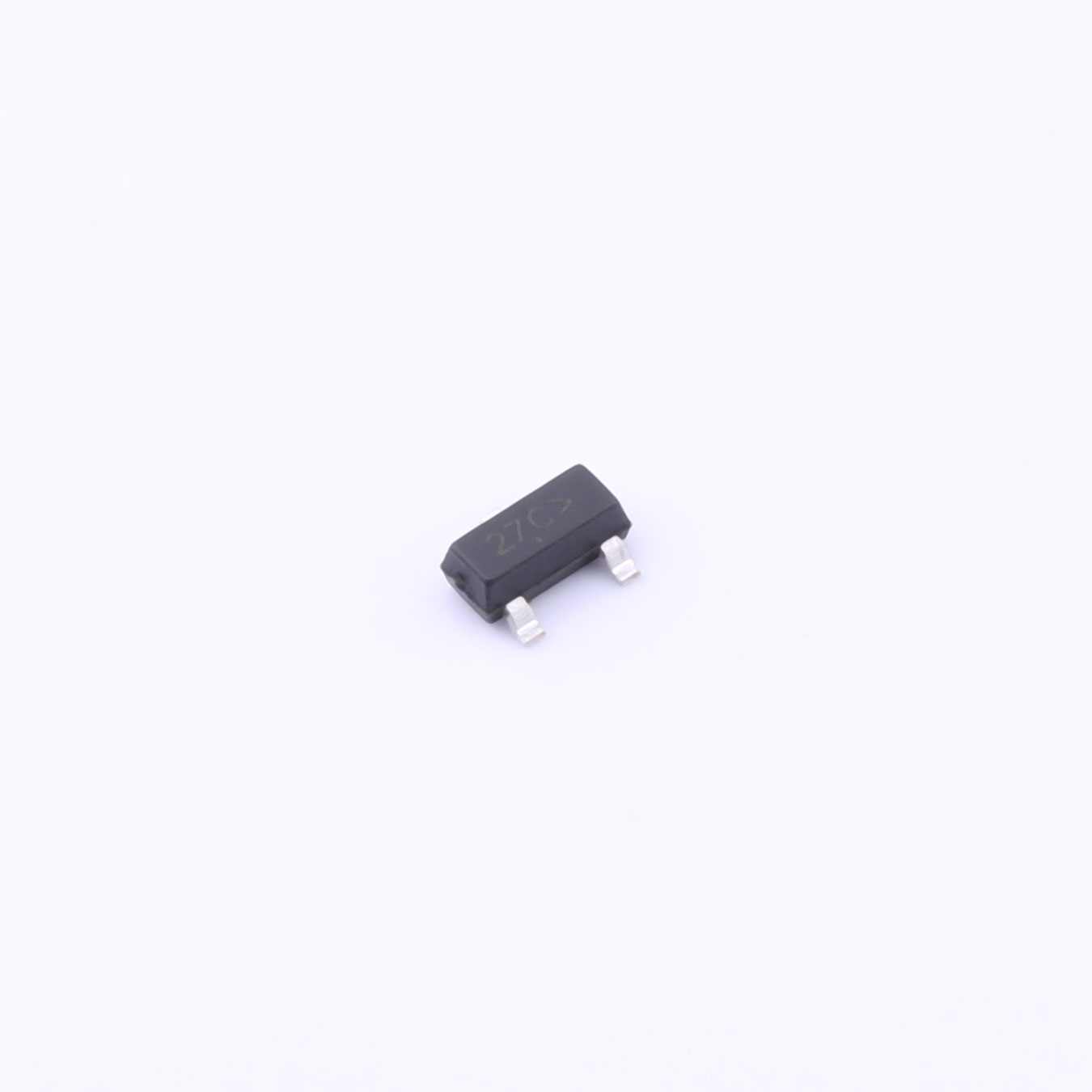

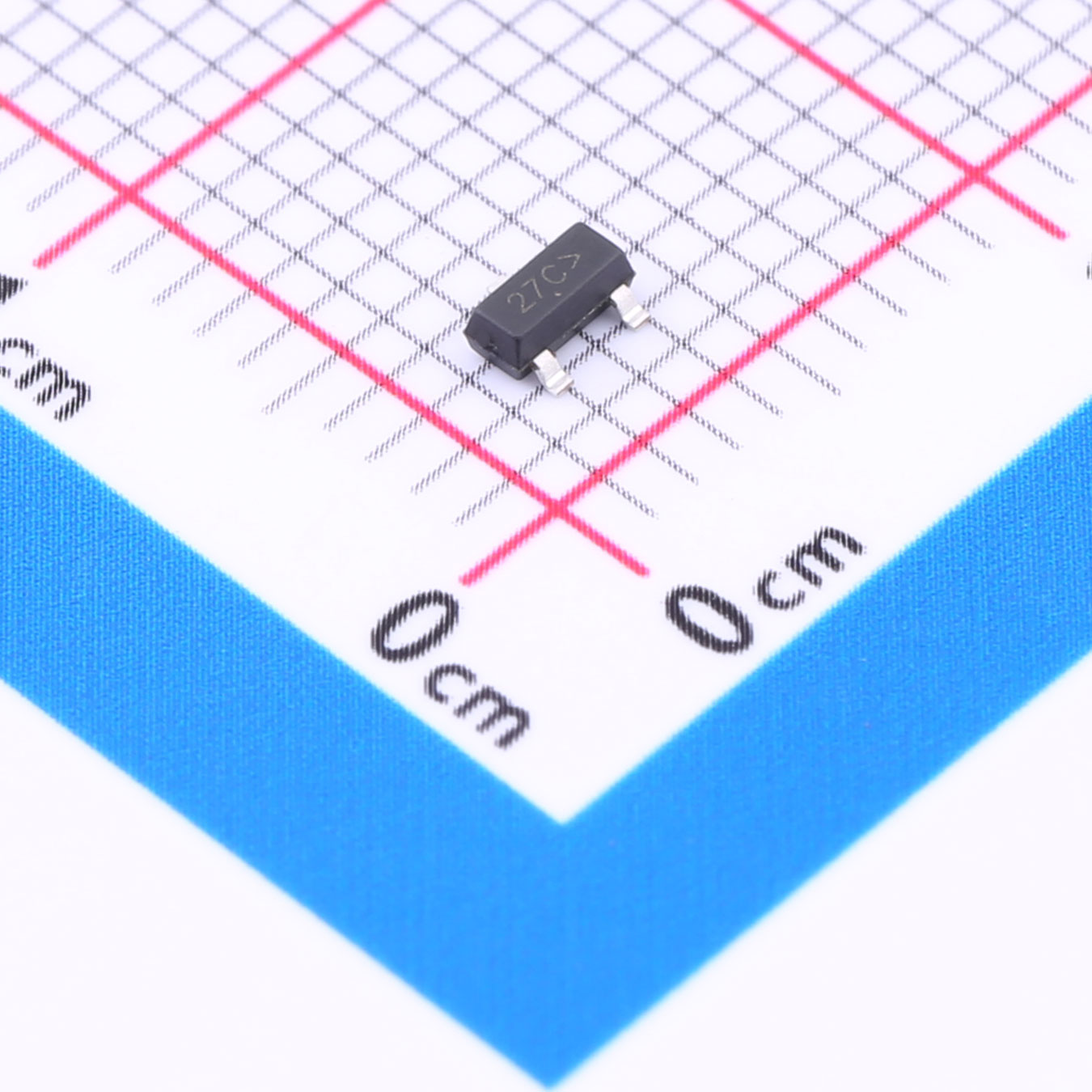

SOT-23 Zener Diode MMBZ27VCLT1G

    These dual monolithic silicon Zener diodes are designed forapplications requiring transient  overvoltage protection capability. Theyare intended for use in voltage and ESD sensitive equipment  such ascomputers, printers, business machines, communication systems,medical equipment and other applications. Their dual junction commonanode design protects two separate lines using only one  package. Thesedevices are ideal for situations where board space is at a premium.

Features

• Pb?Free Packages are Available

• SOT?23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration

• Working Peak Reverse Voltage Range ? 3 V to 26 V


• Standard Zener Breakdown Voltage Range ? 5.6 V to 33 V

• Peak Power ? 24 or 40 Watts @ 1.0 ms (Unidirectional), per Figure 5 Waveform

• ESD Rating of Class N (exceeding 16 kV) per the Human Body Model

• Maximum Clamping Voltage @ Peak Pulse Current

• Low Leakage < 5.0 _A

• Flammability Rating UL 94 V?O

Mechanical Data

• Case: Void-free, transfer-molded, thermosetting plastic case

• Finish: Corrosion resistant finish, easily solderable


• Maximum Case Temperature For soldering Purpose:260℃ for 10 Seconds


  Package designed for optimal automated board assembly

  Small package size for high density applications


  Available in 8 mm Tape and Reel


  Use the Device Number to order the 7 inch/3,000 unit reel.


  Replace the “T1” with “T3” in the Device Number to order the13 inch/10,000 unit reel.
