Low Voltage MOSFET

Product Comparison Clear filters
Name
Package VDSS(V) Id(A) RDSON(Ω) VTH P/N

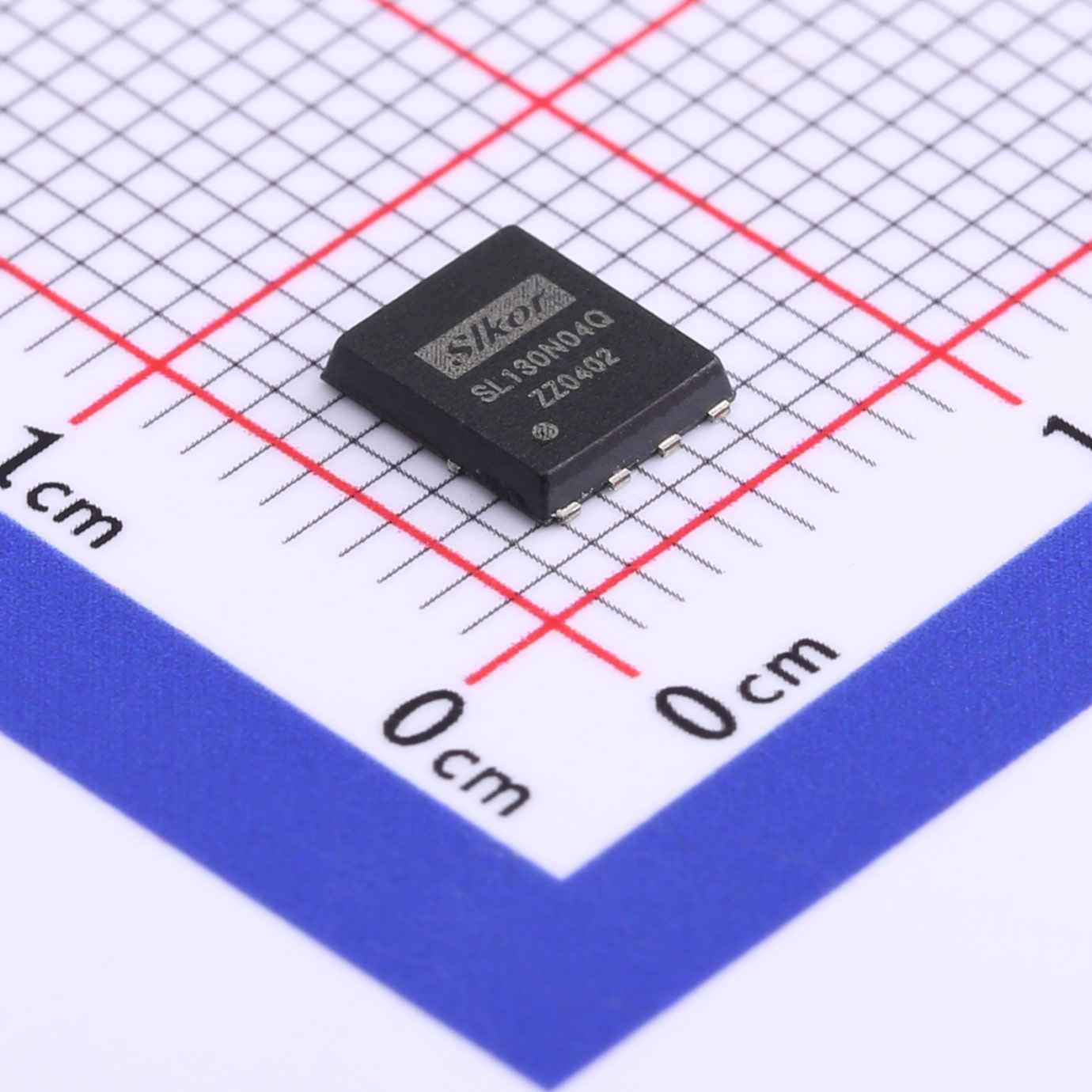

3D model SL130N04Q-正面 SL130N04Q N-Channel Enhancement MOSFET DFN5x6-8

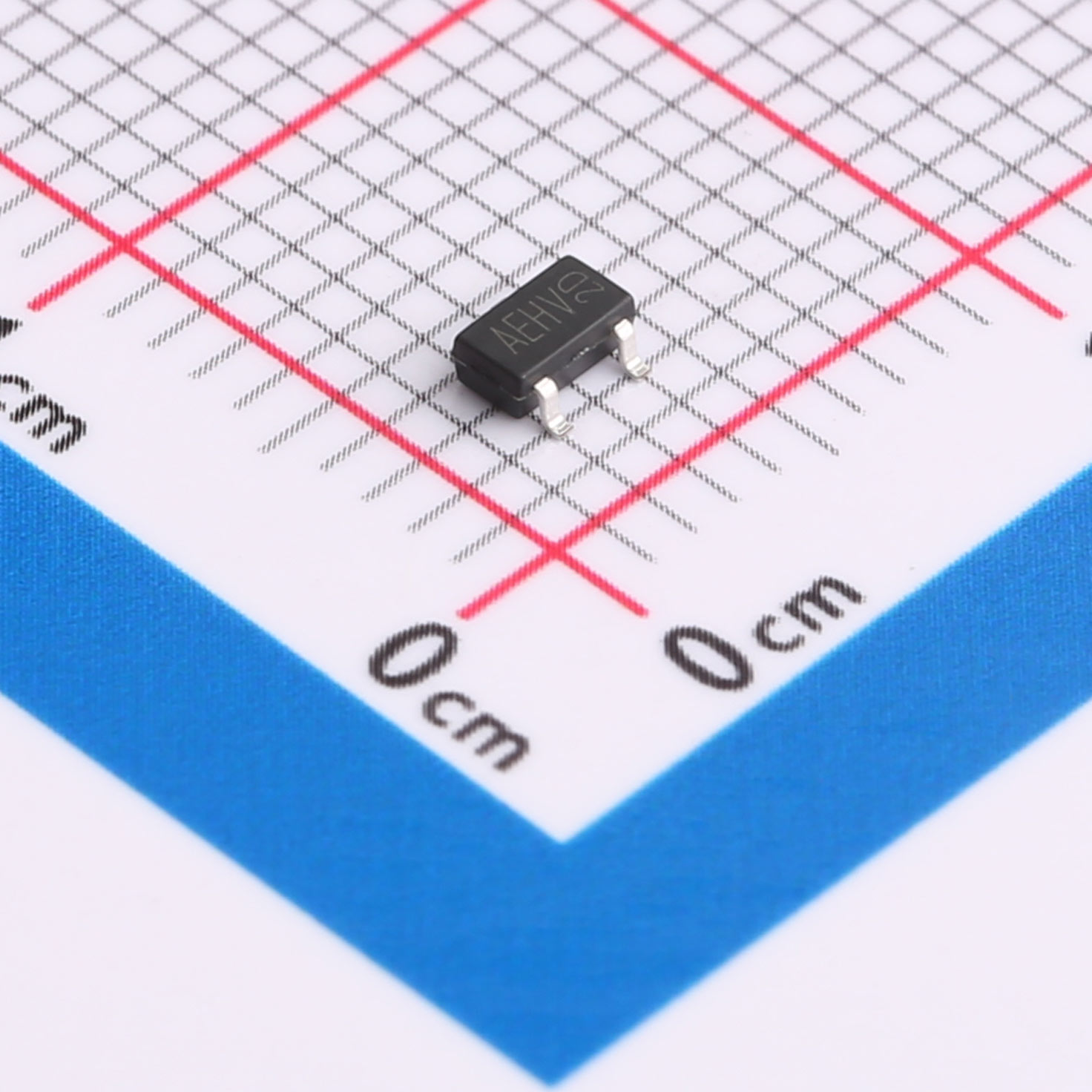

3D model SL2314-正面 SL2318 N-Channel Power MOSFET SOT-23

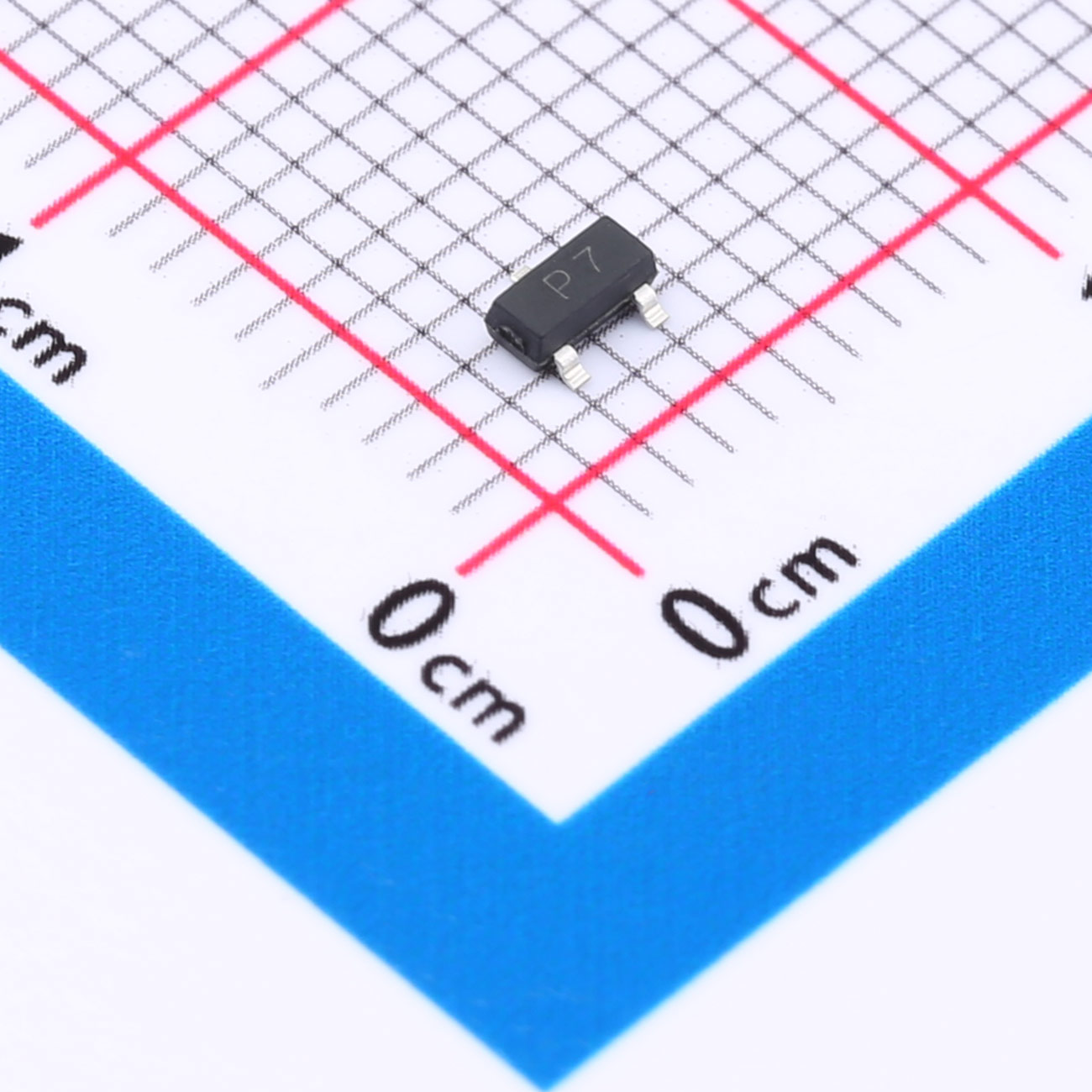

3D model SL2319A-正面 SL2319A P-Channel Enhancement MOSFET SOT-23

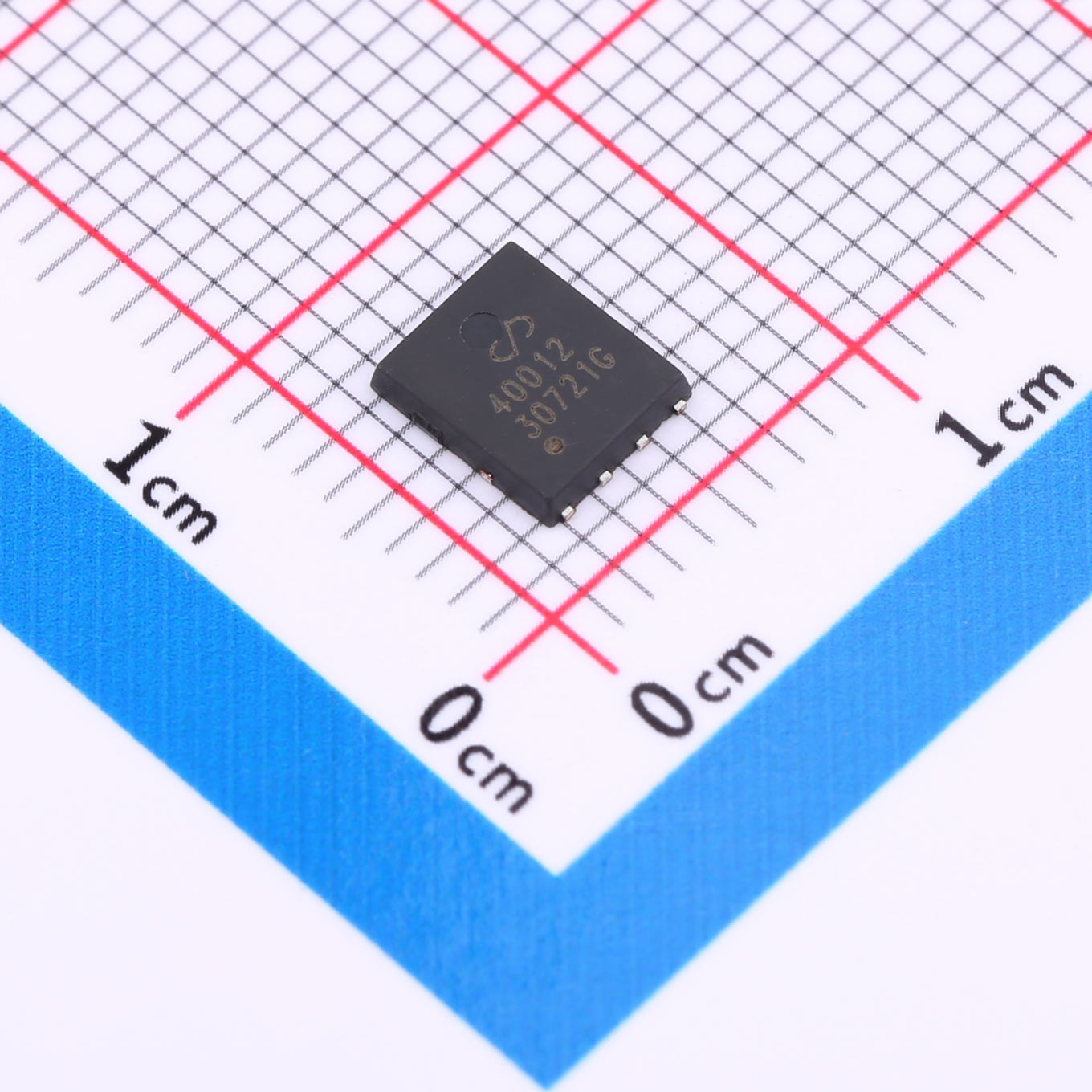

3D model SL250N04Q-正面 SL250N04Q N-Channel Power MOSFET PDFN5x6

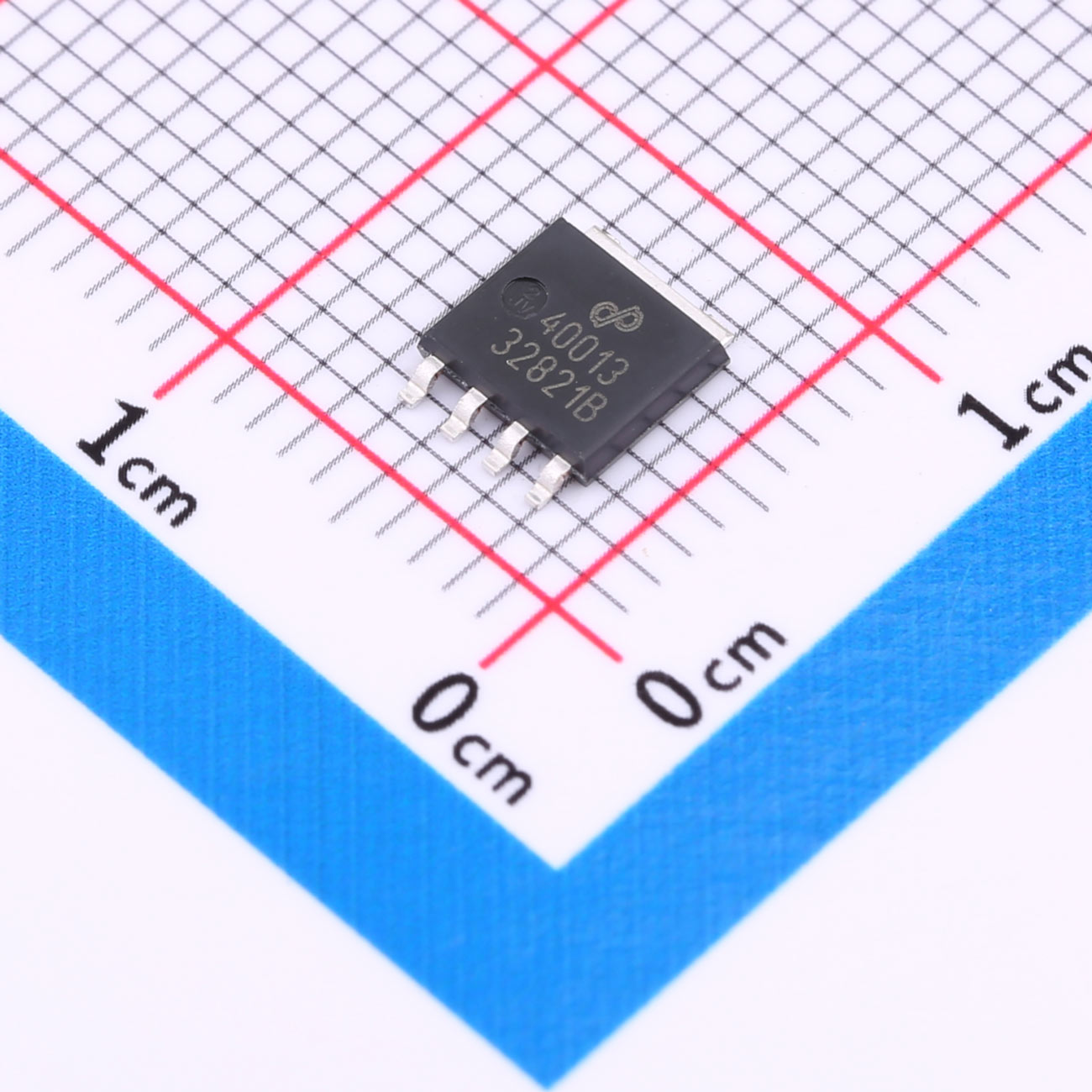

3D model SL276N04M-正面 SL276N04M N-Channel Power MOSFET LFPAK(5x6)

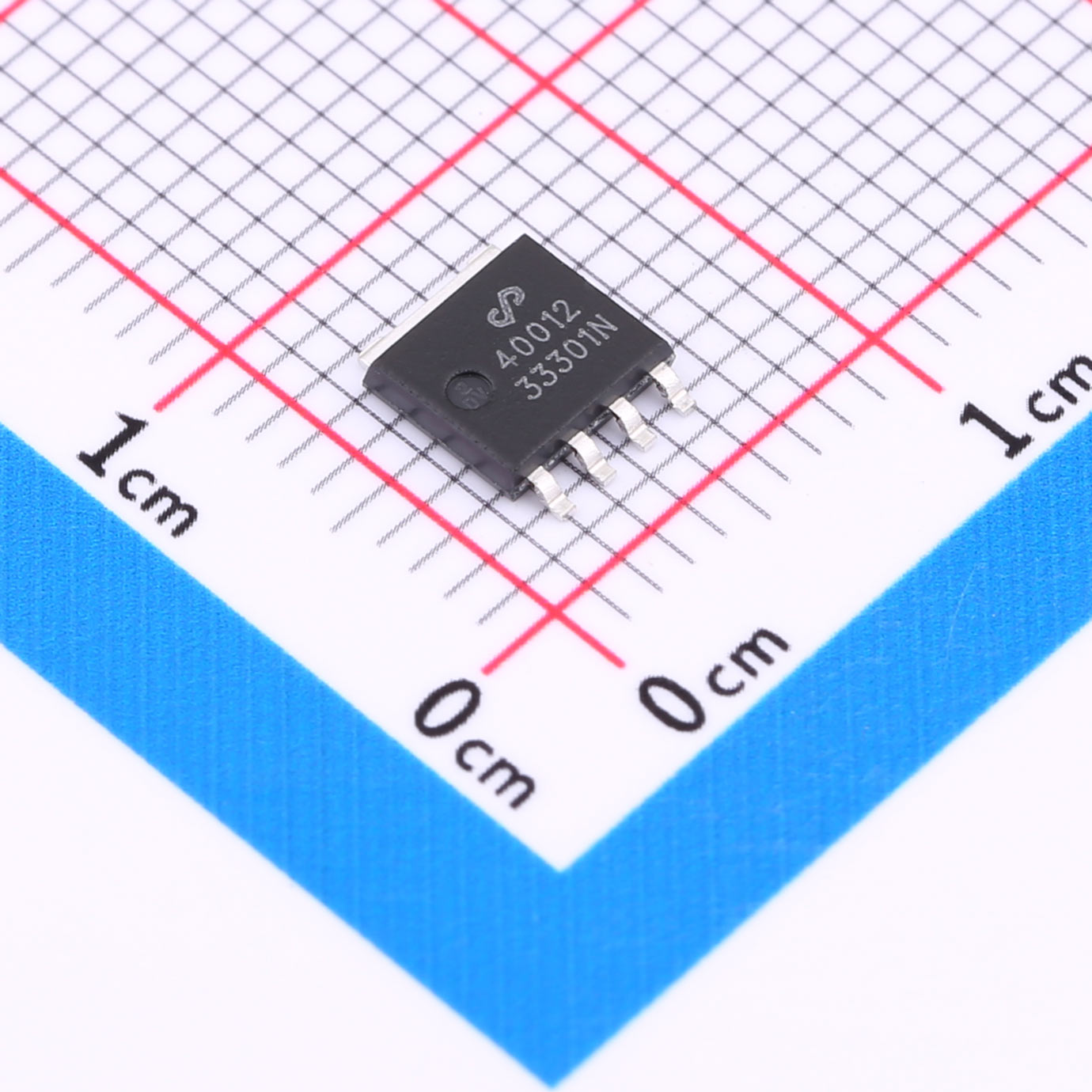

3D model SL318N04M-正面 SL318N04M N-Channel Power MOSFET LFPAK(5x6)
3D model SL4184-正面 SL4184 P-Channel Power MOSFET TO-252

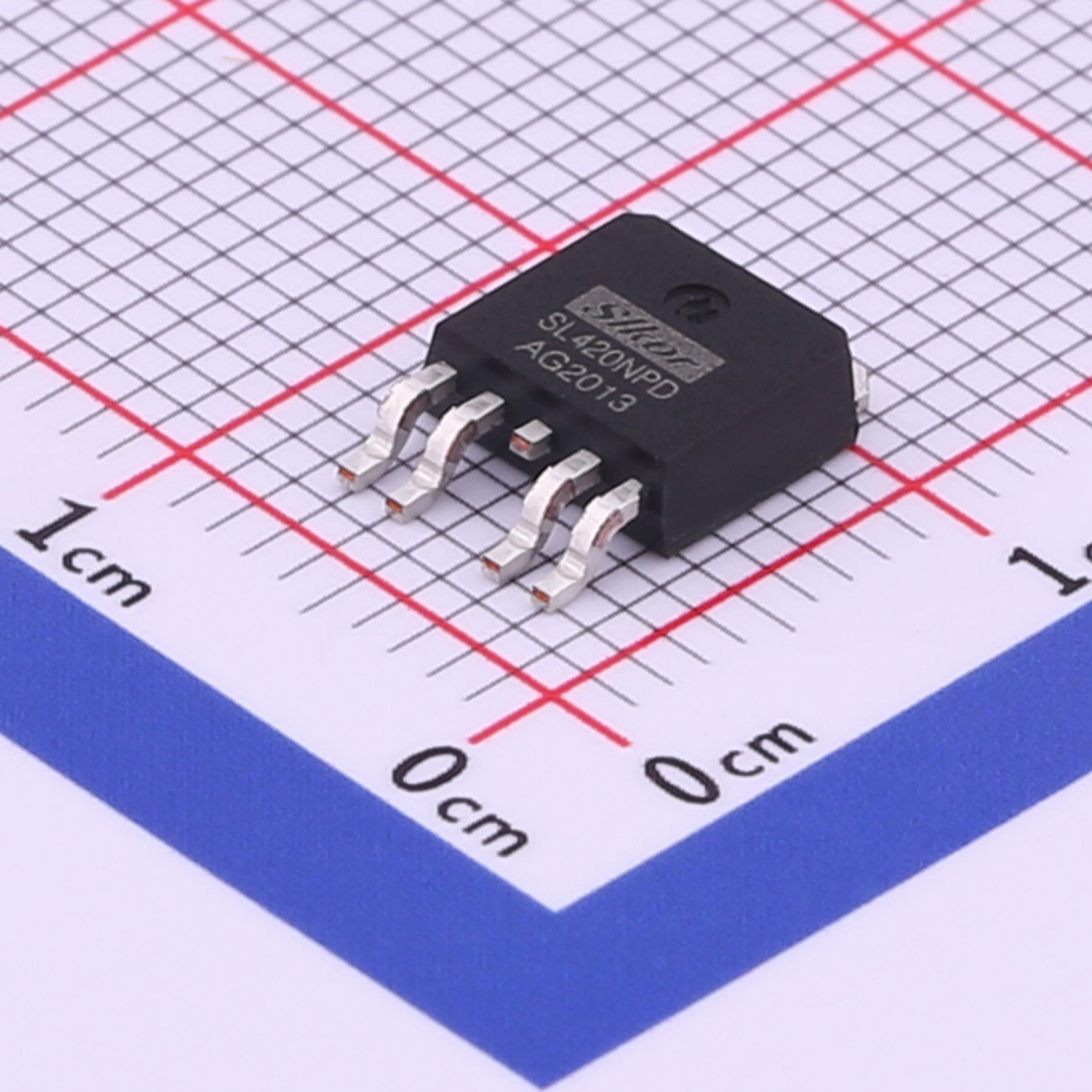

3D model SL420NPD-正面-1 SL420NPD N-Channel and P-Channel Power MOSFET TO-252-4
3D model Low Voltage MOSFET SL4614 N+P-Channel Enhancement MOSFET SOP-8
3D model Low Voltage MOSFET SL4882A N-Channel Enhancement MOSFET SOP-8

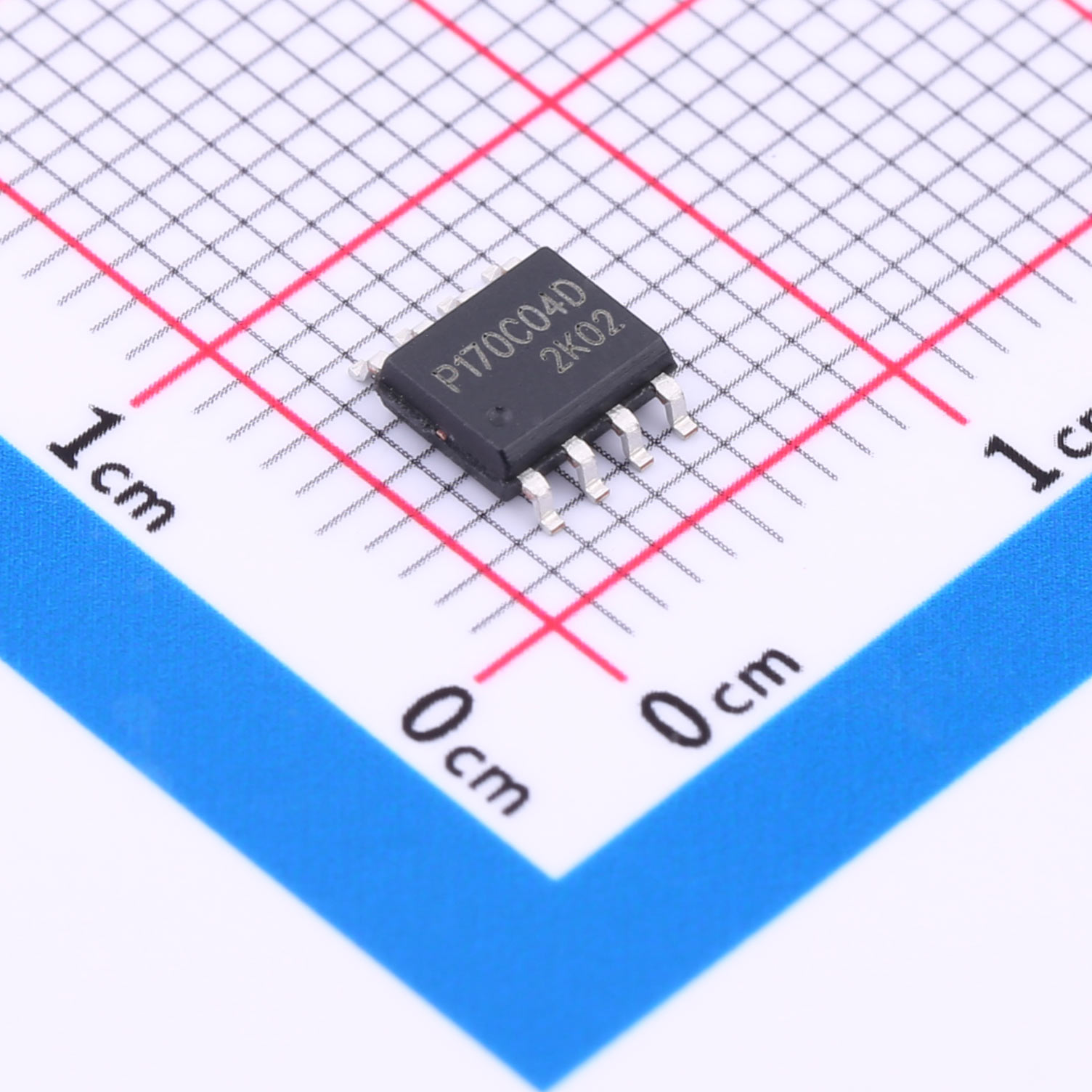

3D model SLP170C04D-正面 SLP170C04D N+P-Channel Power MOSFET SOP-8
DFN5x6-8 40V 100A 1.7mΩ@10V,30A 2.4V@250μA N-Channel
SOT-23-3L 40V 4.1A 38mΩ@10V,5A 1.2V@250μA N-Channel
SOT-23 40V 4.4A 90mΩ@10V，2A 2.5V@250μA P-Channel
PDFN5x6 40V 250A 0.8mΩ@10V,20A 1.7V@250uA N-Channel
LFPAK(5x6) 40V 276A 1.0mΩ@10V,20A 1.7V@250uA N-Channel
LFPAK(5x6) 40V 318A 0.7mΩ@10V,20A 1.7V@250uA N-Channel
TO-252 40V 60A 7.9mΩ@10V,20A 1.6V@250uA P-Channel
TO-252-4 40V 1μA 12A&8A 1.5V N-Channel and P-Channel
SOP-8 40V 1μA N-30mΩ/P-16mΩ 2V@250μA N+P-Channel
SOP-8 40V 8A 15mΩ@10V,8A 1.5V@250μA N-Channel
SOP-8 40V 10A 17mΩ@10V,10A 1.5V@250uA N+P-Channel
