TVS Diode

TVS diodes are used to protect electronic components from unexpected overvoltages and surges caused by static electricity and power fluctuations. While rectifier diodes and Schottky barrier diodes utilize the forward characteristics of the diode, TVS diodes utilize the reverse characteristics of the diode, as does the Zener diode (ZD).TVS diodes respond very much faster than Zener diodes and have much smaller junction capacitance values.

Product Comparison Clear filters
Name
VRWM(V) VBR min(V) VBR max(V) IR(uA) VC(V) Package
3D model P6SMB10A-正面3 P6SMB10A Transient Protection Diode SMB
3D model P6SMB10CA-正面7 P6SMB10CA Transient Voltage Suppression Diode SMB
3D model P6SMB11CA-正面1 P6SMB11CA TVS Diode SMB
3D model P6SMB12CA-正面2 P6SMB12CA Transient Voltage Suppressor SMB
3D model P6SMB13CA-正面3 P6SMB13CA ESD Protection Devices SMB
3D model P6SMB15CA-正面4 P6SMB15CA ESD Suppressors SMB
3D model P26SMB6.8A-正面 P6SMB18A Transient Voltage Diode SMB
3D model P6SMB18CA-正面6 P6SMB18CA Transient Protection Diode SMB
3D model P6SMB20A-正面1 P6SMB20A TVS Diode SMB
3D model P6SMB22A-正面2 P6SMB22A Transient Voltage Suppressor SMB
3D model P6SMB24A-正面3 P6SMB24A ESD Protection Devices SMB
3D model P6SMB24CA-正面 P6SMB24CA Transient Protection Diode SMB
3D model P6SMB27A-正面4 P6SMB27A ESD Suppressors SMB
3D model P6SMB27CA-正面 P6SMB27CA Transient Protection Diode SMB
3D model P6SMB30A-正面5 P6SMB30A Transient Protection Diode SMB
3D model P6SMB30CA-正面 P6SMB30CA Transient Protection Diode SMB
3D model P6SMB33CA-正面 P6SMB33CA Transient Protection Diode SMB

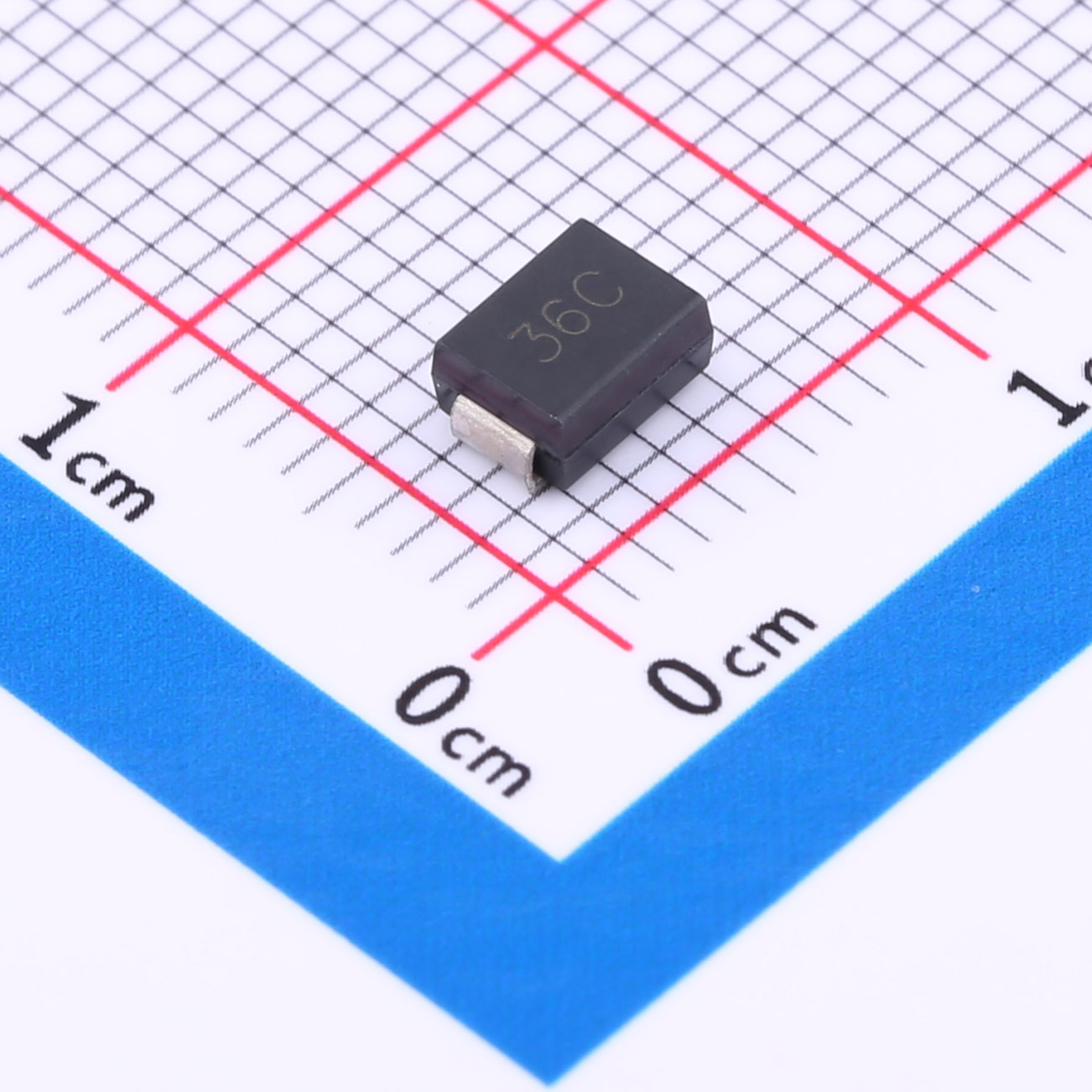

3D model P6SMB36CA-正面 P6SMB36CA Transient Protection Diode SMB
3D model P6SMB39CA-正面 P6SMB39CA Transient Protection Diode SMB
3D model P26SMB6.8A-正面 P6SMB6.8A ESD Suppressors SMB
8.55V 9.5V 10.5V 10μA 14.5V 600W
8.55V 9.5V 10.5V 10μA 14.5V 600W
9.4V 10.5V 11.6V 5μA 15.6V 600W
10.2V 11.4V 12.6V 5μA 16.7V 600W
11.1V 12.4V 13.7V 5μA 18.2V 600W
12.8V 14.3V 15.8V 5μA 21.2V 600W
15.3V 17.1V 18.9V 5μA 25.2V 600W
15.3V 17.1V 18.9V 5μA 25.2V 600W
17.1V 19V 21V 5μA 27.2V 600W
18.8V 20.9V 23.1V 5μA 30.6V 600W
20.5V 22.8V 25.2V 5μA 33.2V 600W
20.5V 22.8V 25.2V 5μA 33.2V 600W
23.1V 25.7V 28.4V 5μA 37.5V 600W
23.1V 25.7V 28.4V 5μA 37.5V 600W
25.6V 28.5V 31.5V 5μA 41.4V 600W
25.6V 28.5V 31.5V 5μA 41.4V 600W
28.2V 31.4V 34.7V 5μA 45.7V 600W
30.8V 34.2V 37.8V 5μA 49.9V 600W
33.3V 37.1V 41.0V 5μA 53.9V 600W
5.8V 6.45V 7.14V 1000μA 10.5V 600W
