TVS Diode

TVS diodes are used to protect electronic components from unexpected overvoltages and surges caused by static electricity and power fluctuations. While rectifier diodes and Schottky barrier diodes utilize the forward characteristics of the diode, TVS diodes utilize the reverse characteristics of the diode, as does the Zener diode (ZD).TVS diodes respond very much faster than Zener diodes and have much smaller junction capacitance values.

Product Comparison Clear filters
Name
VRWM(V) VBR min(V) VBR max(V) IR(uA) VC(V) Package
3D model SMAJ13CA-正面 Alternative equivalent for DIODES SMAJ13CA-13-F | Slkor SMAJ13CA Surface Mount Transient Voltage Suppressor
3D model SMAJ5.0A-正面 Alternative equivalent for DIODES SMAJ5.0A | Slkor SMAJ5.0A Transient Voltage Suppressor
3D model SMAJ5.0A-正面 Alternative equivalent for VISHA SMAJ5.0A | Slkor SMAJ5.0A Transient Voltage Suppressor
3D model SLESD5311N-2TR-正面 SLESD5311N-2TR Bidirectional TVS Diodes DFN1006
3D model SMAJ10A-反面 SMAJ10A Bidirectional TVS Diodes SMA
3D model SMAJ11CA-正面 SMAJ11CA Bidirectional TVS Diodes SMA
3D model SMAJ13A-正面 SMAJ13A Bidirectional TVS Diodes SMA
3D model SMAJ13CA-正面 SMAJ13CA Bidirectional TVS Diodes SMA
3D model SMAJ13CA-正面 SMAJ13CA Surface Mount Transient Voltage Suppressor SMA

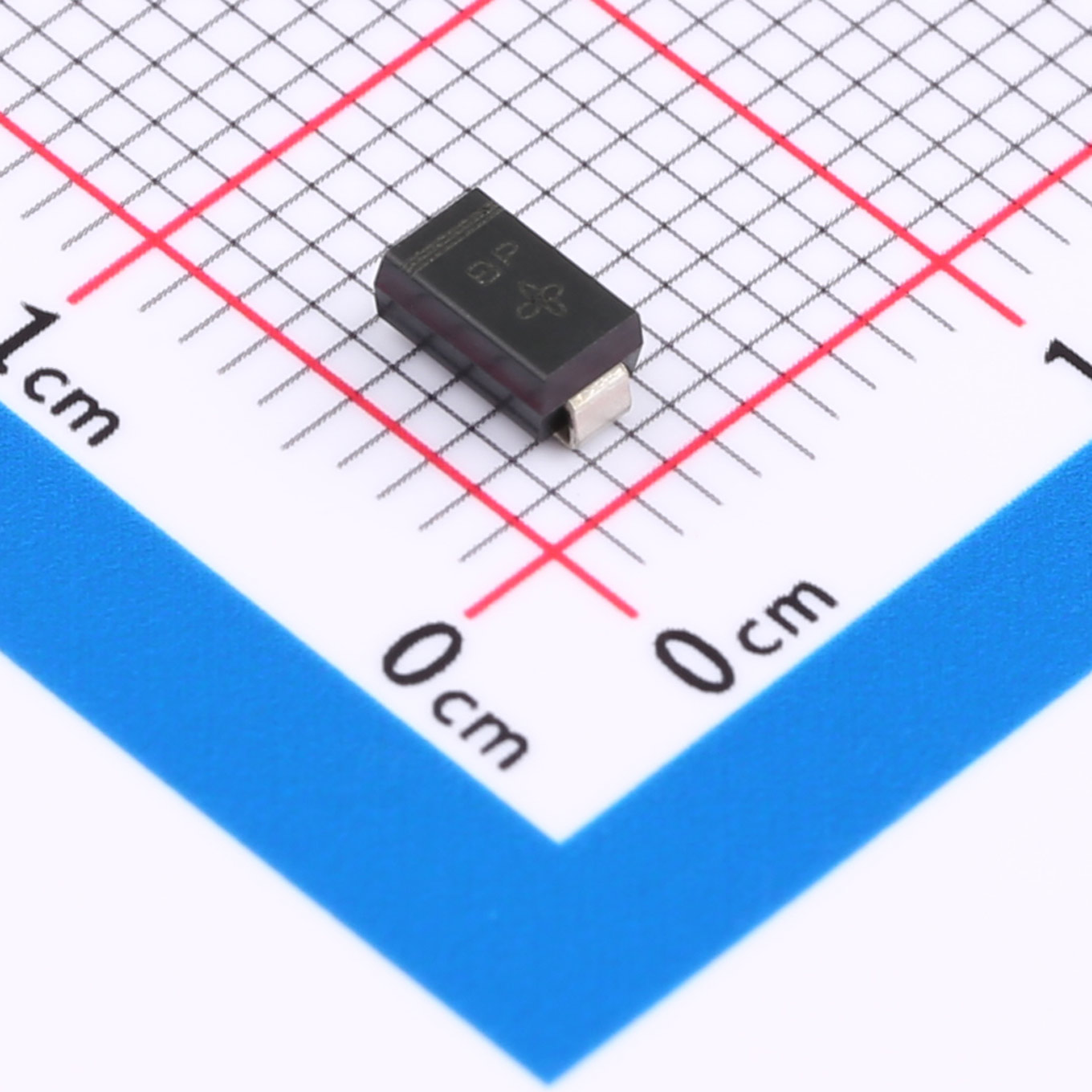

3D model SMAJ16A-正面 SMAJ16A Bidirectional TVS Diodes SMA
3D model SMAJ170A-正面 SMAJ170A ESD Suppressors ESD Suppressors SMA

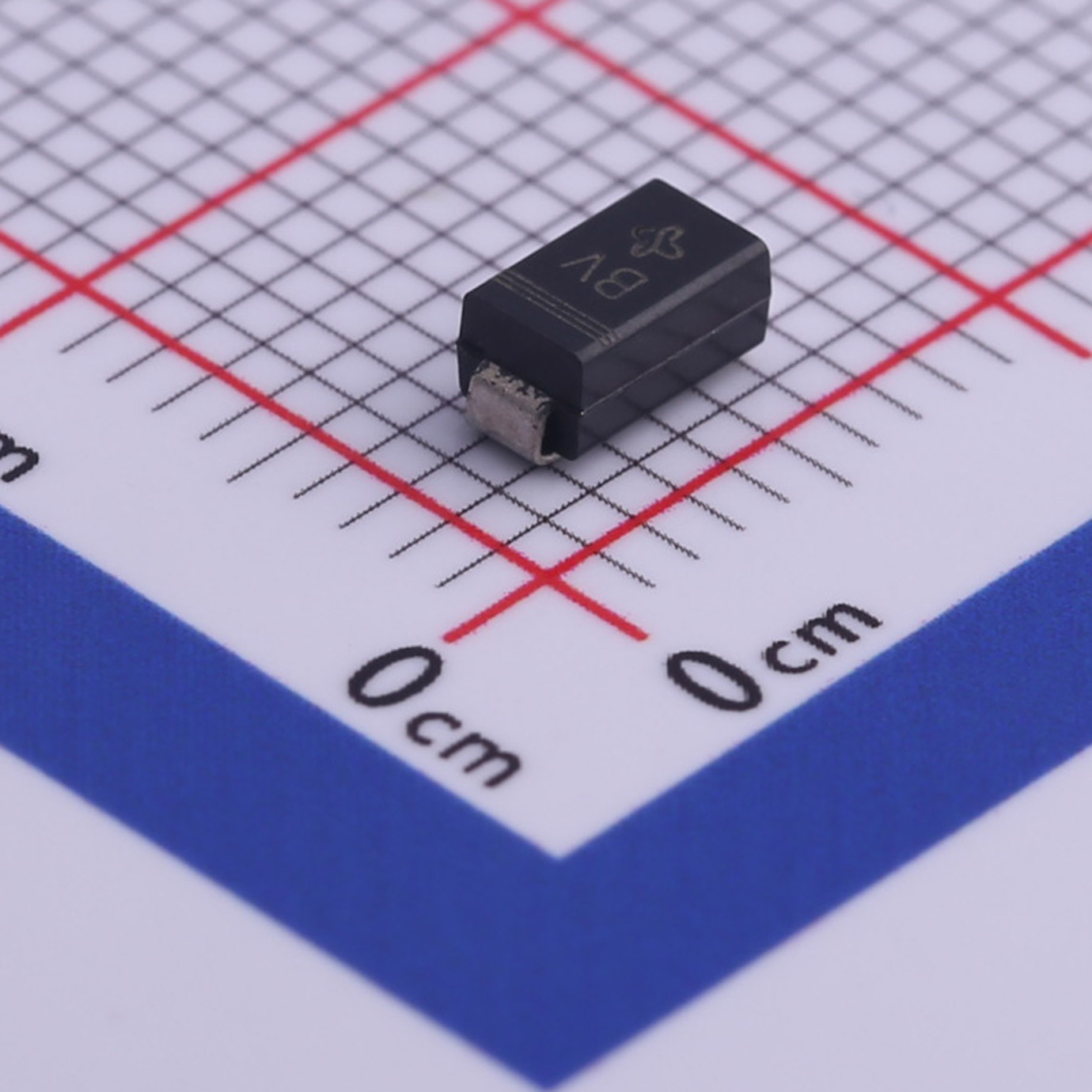

3D model SMAJ20A-正面 SMAJ20A Transient Voltage Suppression Diode SMA

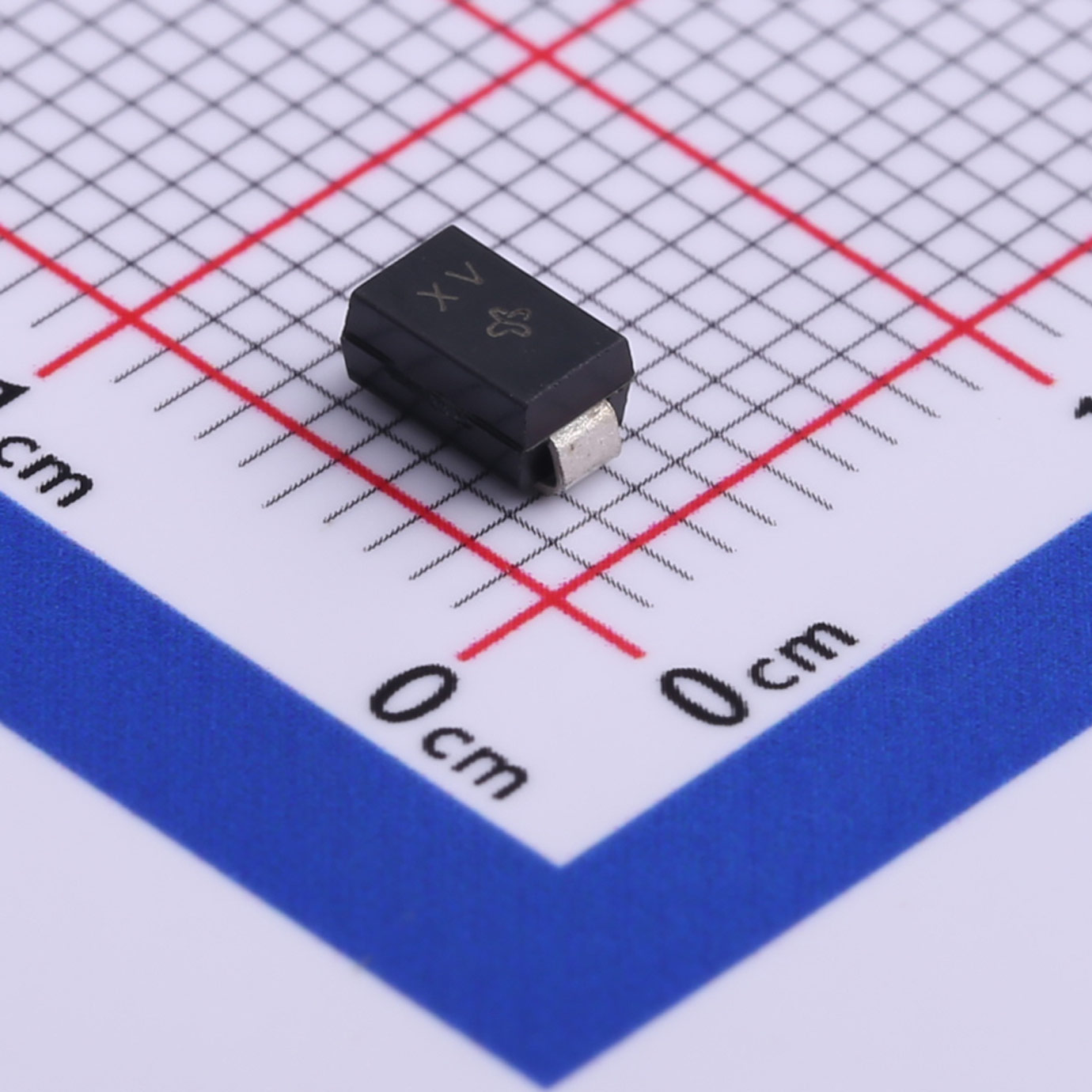

3D model SMAJ20CA-正面 SMAJ20CA ESD Protection Devices SMA

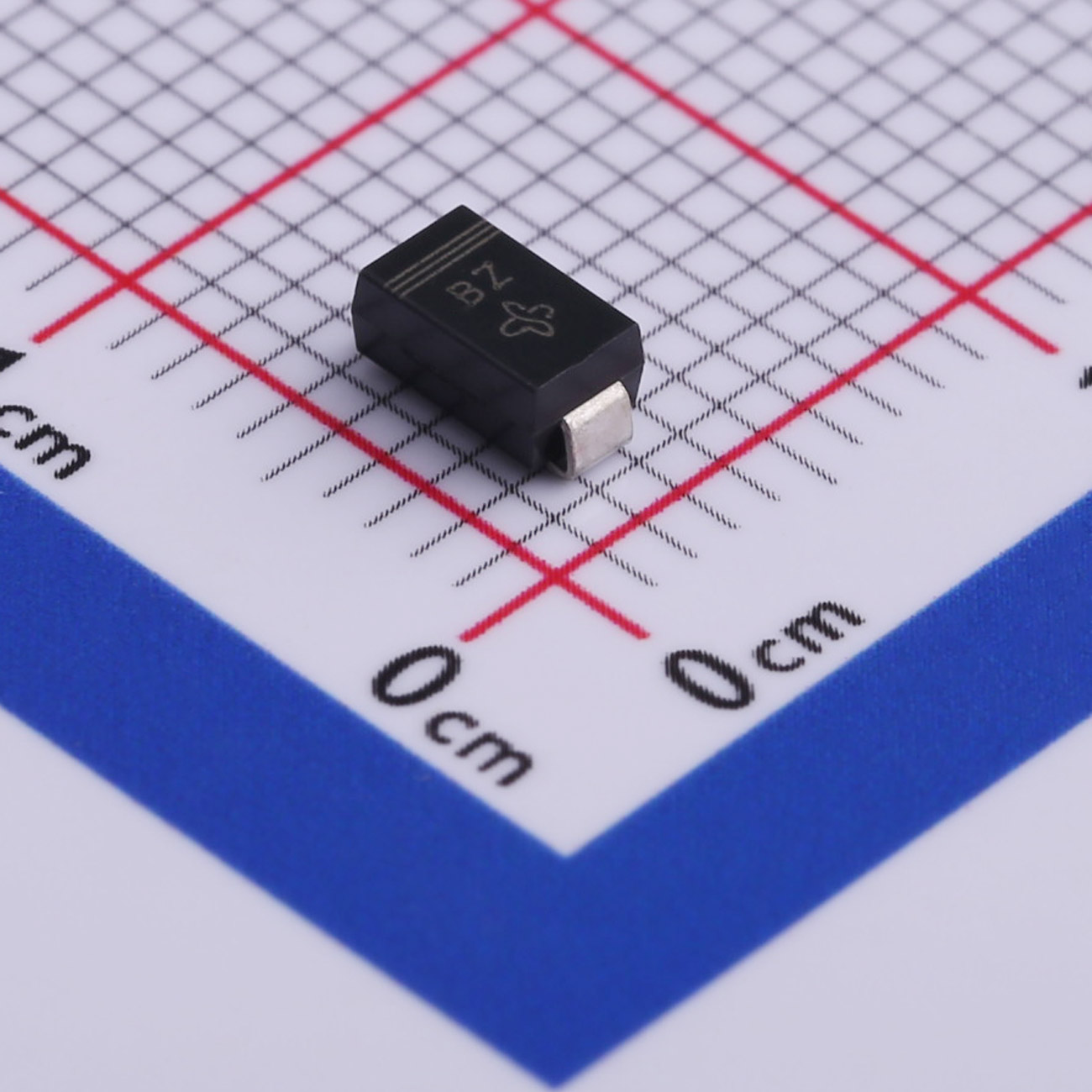

3D model SMAJ24A-正面 SMAJ24A Transient Voltage Diode SMA

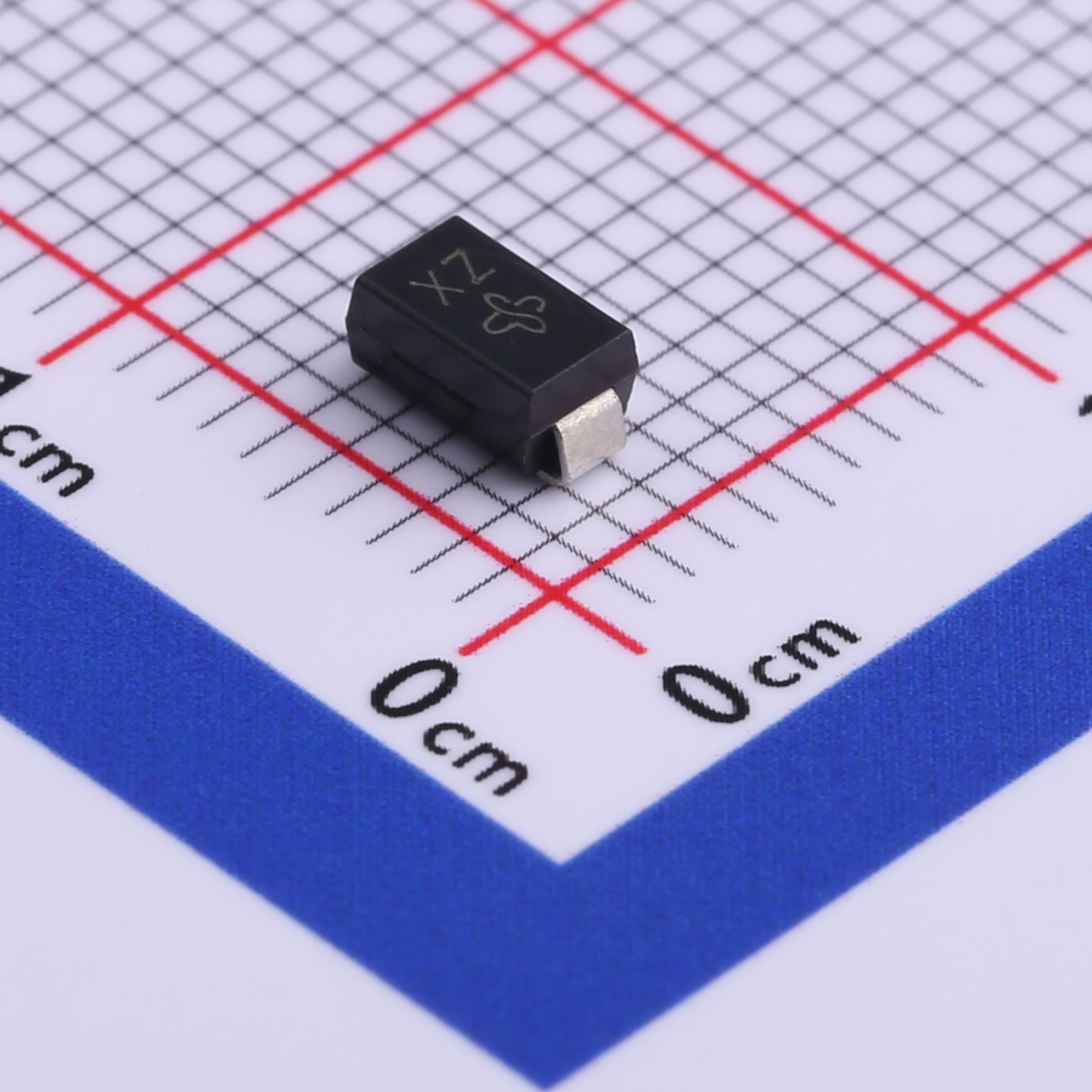

3D model SMAJ24CA-正面 SMAJ24CA TVS Diode SMA

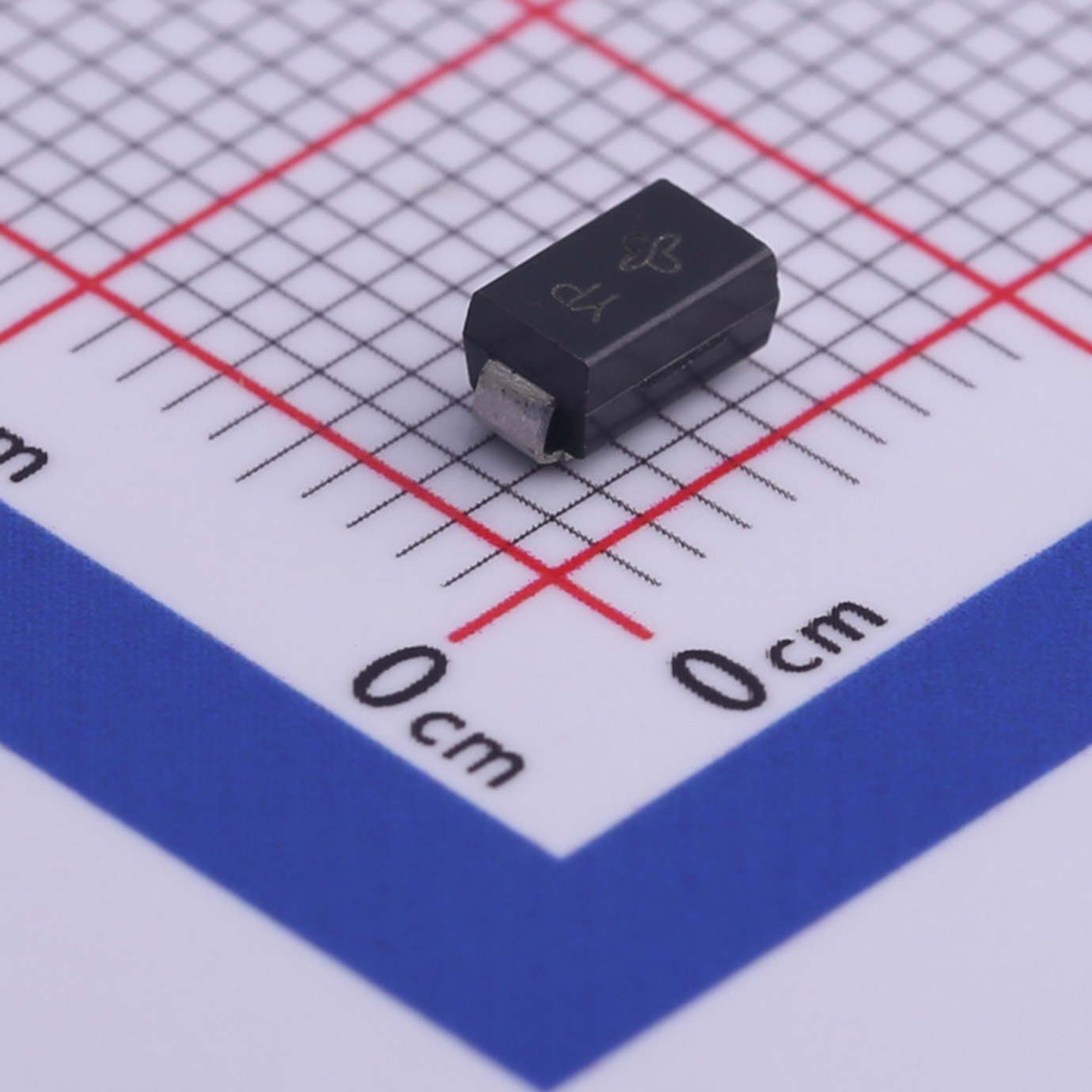

3D model SMAJ36CA-正面 SMAJ36CA ESD Protection Devices SMA

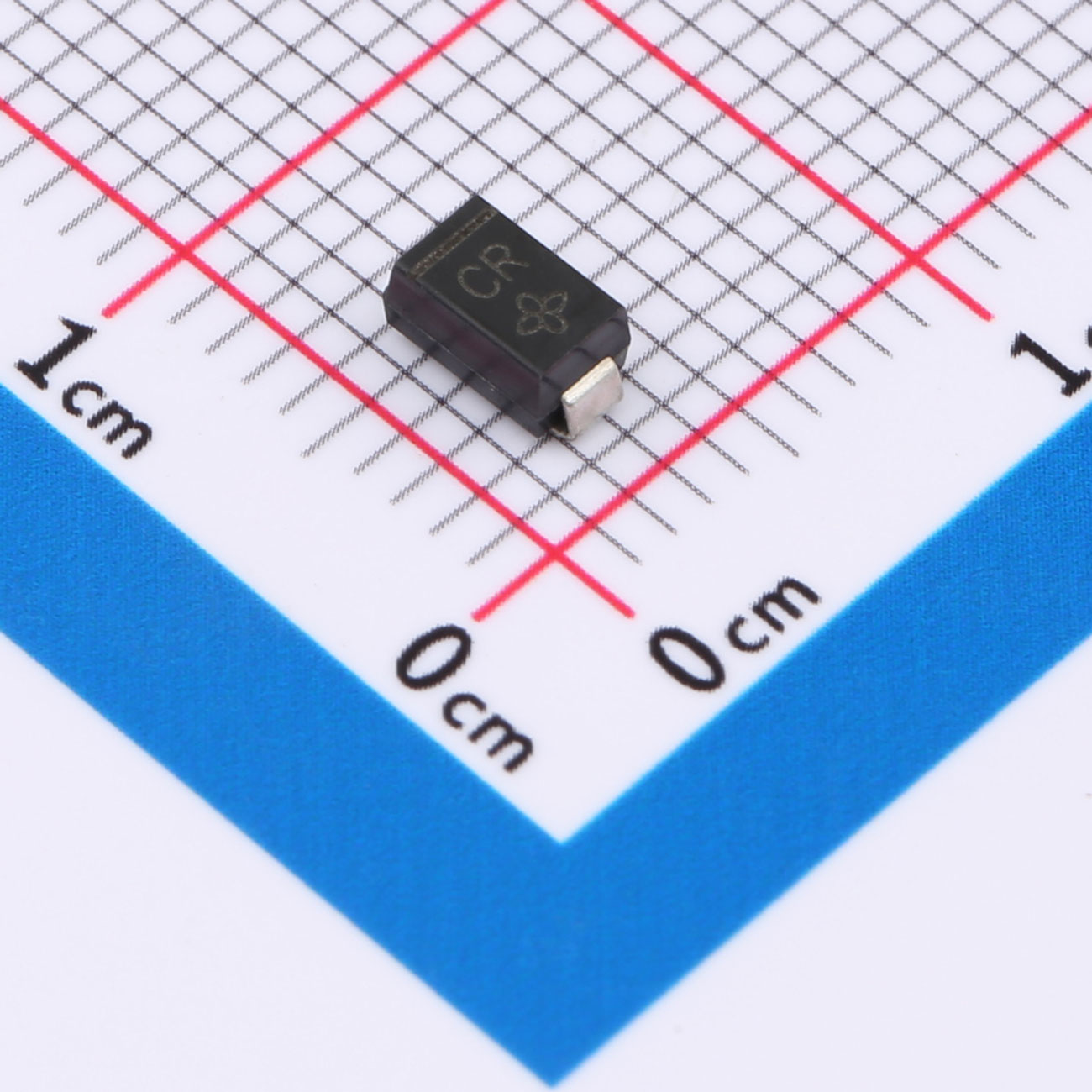

3D model SMAJ40A-正面 SMAJ40A Bidirectional TVS Diodes SMA

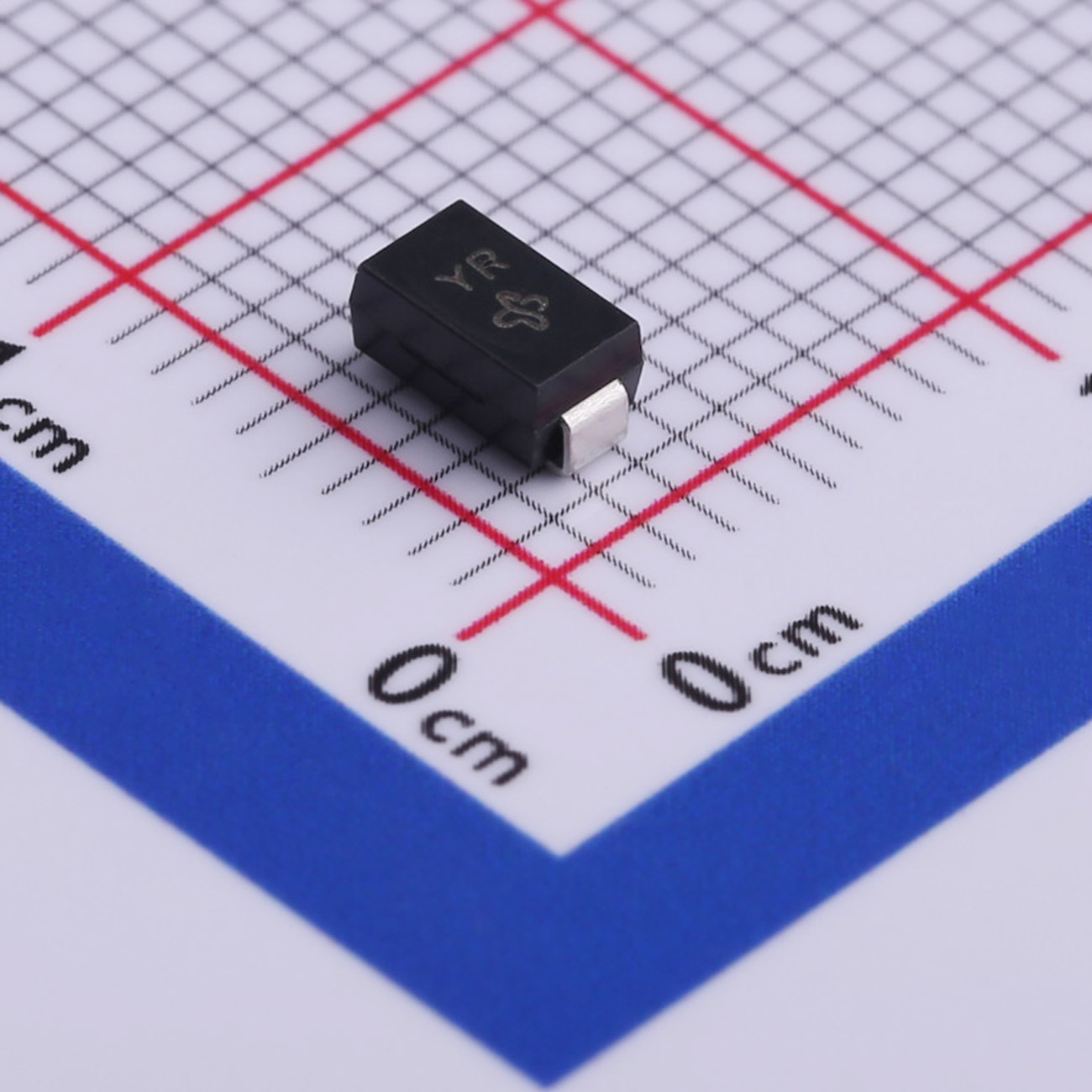

3D model SMAJ40CA-正面 SMAJ40CA Transient Voltage Diode SMA
3D model SMAJ48CA-反面 SMAJ48CA Bidirectional TVS Diodes SMA
3D model SMAJ5.0A-正面 SMAJ5.0A Transient Voltage Suppressor SMA
13V 14.4V 15.9V 5μA 21.5V SMA
5V 6.4V 7V 800μA 9.2V SMA
5V 6.4V 7V 800μA 9.2V SMA
5V 6V 9V 1μA 10V SMA
10V 11.1V 12.3V 5μA 17V SMA
11V 12.2V 13.5V 5μA 18.2V SMA
13V 14.4V 15.9V 5μA 21.5V SMA
13V 14.4V 15.9V 5μA 21.5V SMA
13V 14.4V 15.9V 5μA 21.5V SMA
16V 17.8V 19.7V 5μA 26V SMA
170V 189V 209V 5μA 275V SMA
20V 22.2V 24.5V 5μA 32.4V SMA
20V 22.2V 24.5V 5μA 32.4V SMA
24V 26.7V 29.5V 5μA 38.9V SMA
24V 26.7V 29.5V 5mA 38.9V SMA
36V 40V 44.2V 5μA 58.1 SMA
40V 44.4V 49.1V 5μA 64.5V SMA
40V 44.4V 49.1V 5μA 64.5V SMA
48V 53.3V 58.9V 5μA 77.4V SMA
5V 6.4V 7V 800μA 9.2V SMA
