With the increasing prevalence and enhanced functionality of smart devices, electrostatic discharge (ESD) has become one of the critical factors affecting the stability and reliability of everyday consumer electronics. To effectively address this challenge, Slkor has introduced the SLESD3V3D5, an ultra-low junction capacitance ESD protection diode. This diode is specifically designed to provide robust protection for the electronic systems of smart speakers, household appliances, wireless communication devices, and other consumer electronics, safeguarding them from ESD events in various electrical environments.

Overview and Features of SLESD3V3D5

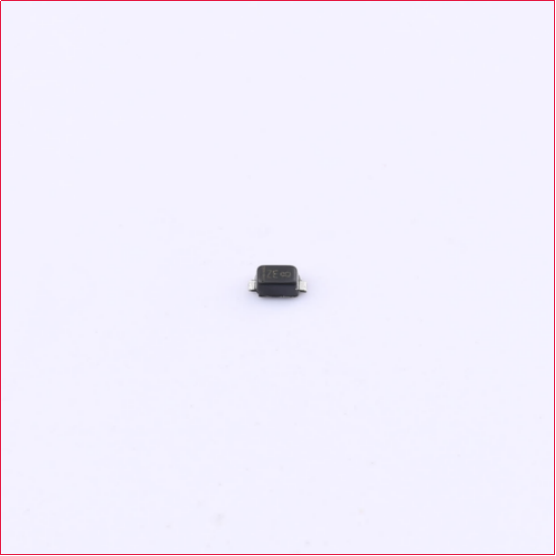

The SLESD3V3D5 is an ultra-low junction capacitance ESD protection diode with a 3.3V operating voltage, packaged in the compact SOD-523 form factor. It is designed to protect electronic devices in low-voltage environments. The diode has a minimum breakdown voltage (VBR) of 5V, effectively absorbing and dissipating ESD energy from the external environment to protect sensitive components from electrostatic damage. Its reverse leakage current (IR) is as low as 0.9µA, which ensures minimal current loss and helps maintain system stability and reliability during normal operation.

With a clamping voltage (VC) of 9.4V, the diode can rapidly absorb and limit voltage during an ESD event, preventing high voltage from damaging the circuit. Its junction capacitance (CJ) is 105pF, which reduces signal crosstalk and attenuation, ensuring stability and clarity when processing high-frequency signals. The SOD-523 package is compact, making it ideal for the miniaturized designs required by smart consumer electronics.

Impact of Electrostatic Discharge on Smart Consumer Electronics

In smart consumer devices, ESD not only has the potential to damage hardware but can also have long-term effects on the device's lifespan and stability. Many modern electronics require data exchange or signal transmission with the external environment, such as smart speakers, home appliances, smartphones, and wireless communication modules. The core components of these devices are typically highly sensitive to static electricity. When external environmental interference occurs during operation, ESD events can damage components, leading to device failure.

For devices like smart speakers, an ESD event could cause failure in critical components such as audio processing chips, wireless communication modules, or display driver ICs, disrupting normal operation or even rendering the device inoperable. As such, effectively preventing electrostatic damage has become a key issue in the design of modern smart electronics.

The Protective Role and Design Advantages of SLESD3V3D5

The SLESD3V3D5 provides outstanding ESD protection for smart consumer electronics through its efficient ESD absorption and dissipation mechanisms. During an ESD event, the diode rapidly absorbs excessive voltage, preventing core system components from damage due to overvoltage. Its ultra-low reverse leakage current and low junction capacitance ensure that ESD protection does not interfere with signal transmission or system performance. This is particularly important for high-frequency signal processing, where the diode helps minimize signal attenuation and distortion.

With a clamping voltage (VC) of 9.4V, the SLESD3V3D5 protects devices by clamping voltage during an ESD event, keeping the device within a safe operating range and preventing damage from static discharge. Its low junction capacitance (CJ = 105pF) makes it an ideal choice for protecting high-speed signal modules, such as audio processing and wireless communication, avoiding the signal distortion and transmission delay that other ESD protection diodes might cause.

Applicable Scenarios and Wide Applications

The high performance of the SLESD3V3D5 makes it suitable for a wide range of smart consumer electronics, particularly those sensitive to electrostatic discharge and requiring efficient ESD protection. Examples include smart speakers, wireless earphones, appliance control panels, sensors, and smart home devices. In these applications, the SLESD3V3D5 effectively mitigates the impact of static electricity on system components, ensuring long-term stable operation.

Furthermore, the SOD-523 package of the SLESD3V3D5 is well-suited to the miniaturization and integration needs of modern consumer electronics. This compact package not only saves space but also facilitates integration into complex circuit designs, enhancing the flexibility and adaptability of product designs.

The Importance of Electrostatic Protection for Device Reliability

Electrostatic discharge is an issue that cannot be ignored in electronic device design, especially with the growing popularity of smart devices in complex and dynamic environments. Without effective ESD protection, devices may experience frequent failures, impacting user experience and potentially leading to premature obsolescence.

As an efficient ESD protection diode, the SLESD3V3D5 effectively prevents electrostatic damage to electronic devices. By providing stable and reliable protection, it significantly improves the system reliability and longevity of smart consumer electronics, ensuring that these devices perform reliably in various electrical environments and offering consumers a safer, more durable product experience.

Conclusion

In summary, Slkor' SLESD3V3D5 ESD protection diode, with its excellent electrical performance and ultra-low junction capacitance characteristics, has become an indispensable protective component in the design of smart consumer electronics. Through its efficient ESD absorption and clamping mechanisms, it ensures the stability and reliability of devices in various electrical environments. As smart home, wireless communication, and other consumer electronics continue to evolve, the application prospects for the SLESD3V3D5 will grow, providing consumers worldwide with safer and more reliable electronic product protection solutions.
