In the rapid development of automation technology, various precision electronic devices have become the core driving force in industries such as manufacturing, intelligent transportation, and smart homes. However, as the integration and complexity of these devices continue to increase, the threat posed by electrostatic discharge (ESD), often referred to as the "invisible killer," to electronic components is becoming more severe. The WE12DF-B electrostatic protection diode, with its exceptional ESD protection performance and compact packaging design, has become an indispensable invisible shield in the automation industry, ensuring the stable operation of devices.

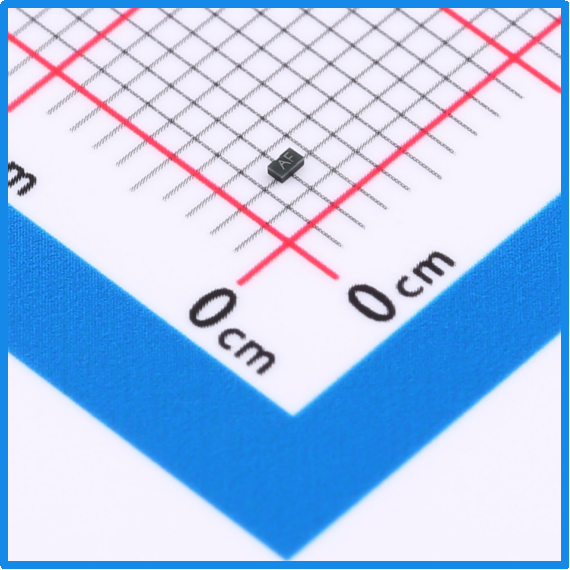

Slkor Electrostatic Discharge Diode WE12DF-B product photo

Precise Protection: Building an ESD Safety Line

Electrostatic discharge often occurs instantaneously, and the energy released can instantly break down electronic components, causing irreversible damage. The WE12DF-B electrostatic protection diode is specifically designed to address this challenge. Its VRWM (Reverse Working Voltage) is 12V, which maintains a high impedance state under normal operating voltages, ensuring that the circuit operates without interference. When subjected to electrostatic discharge, the diode's VBR min (minimum breakdown voltage) is 14V, allowing it to quickly respond and shift from high impedance to low impedance, rapidly discharging the electrostatic energy to the ground, effectively protecting subsequent circuits from ESD impact.

In addition, the WE12DF-B has a VC (clamping voltage) of 19V, which means the diode can clamp the voltage to a safe range during ESD events, preventing excessive voltage from damaging the circuit. Furthermore, its extremely low IR (reverse leakage current) is just 0.01μA, ensuring that the diode consumes almost no energy during long-term operation, improving the system's energy efficiency and extending the device's lifespan.

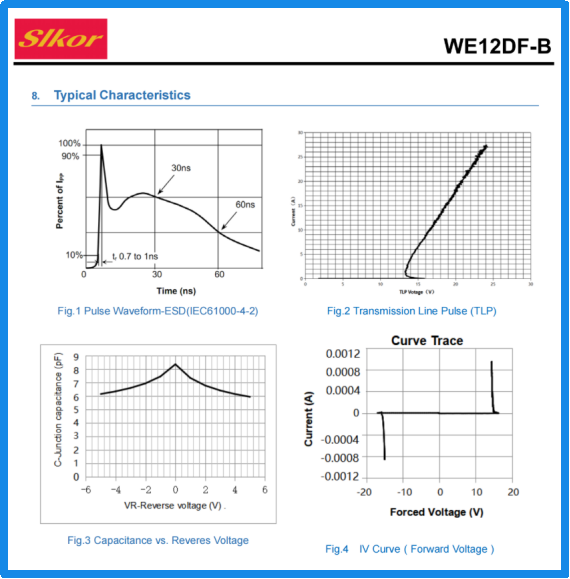

Slkor Electrostatic Discharge Diode WE12DF-B specification

Compact Packaging: Adapting to Space Constraints

In automation equipment, space is often limited, and achieving efficient and stable circuit design within a confined space is a major challenge for engineers. The WE12DF-B uses a DFN1006 package, with dimensions of just 1.0mm × 0.6mm. This ultra-small size greatly saves PCB space, making it easy to integrate into various miniaturized and high-density electronic devices.

The DFN package not only has a compact size but also offers excellent thermal and electrical performance. Its outstanding thermal performance ensures that the diode maintains a stable operating temperature even under prolonged and high-load operation, preventing performance degradation or damage due to overheating. At the same time, the DFN package's electrical performance ensures the integrity and stability of signals during transmission, improving the overall system reliability.

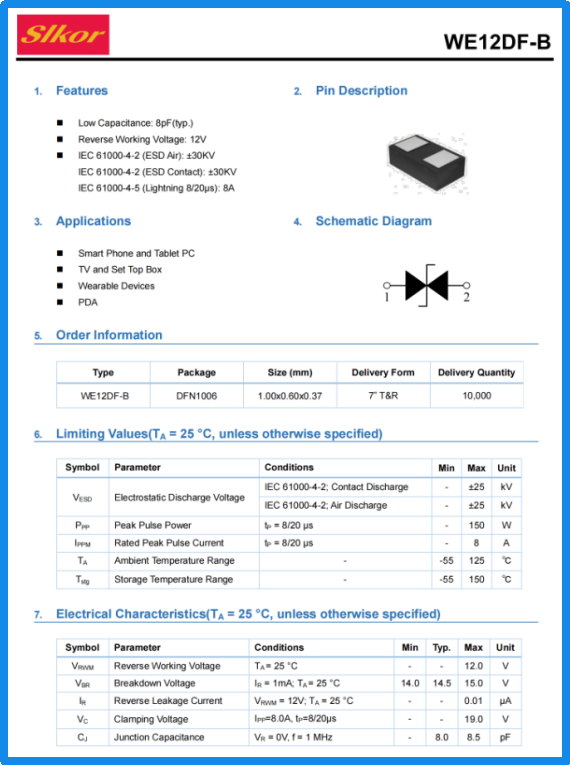

Parameters of Slkor Electrostatic Discharge Diode WE12DF-B

Wide Applications: Safeguarding Automation Safety Across Multiple Fields

The superior performance of the WE12DF-B has led to its wide application in the automation industry. In industrial automation, it can protect key devices such as PLCs (Programmable Logic Controllers), sensors, and actuators from electrostatic interference, ensuring stable operation on production lines. In intelligent transportation systems, the WE12DF-B ensures the stable operation of in-vehicle electronic devices, improving driving safety and reducing the risk of device failures and traffic accidents caused by ESD. In the smart home field, it can protect various smart appliances from electrostatic damage, extending their lifespan and enhancing the user experience.

Additionally, with the rapid development of technologies such as the Internet of Things (IoT) and 5G, the demand for electrostatic protection in automation devices is increasing. The WE12DF-B, with its exceptional electrostatic protection capabilities and compact design, is perfectly suited to meet this trend, providing strong support for the innovative development of the automation industry.

Conclusion

The electrostatic protection diode WE12DF-B plays a crucial role in the automation industry with its precise ESD protection capabilities, compact packaging design, and broad application value. It is not only an invisible shield for electronic devices but also an important force driving the advancement of automation technology. As the automation industry continues to evolve and transform, the WE12DF-B is expected to play a unique role in more fields, contributing to the creation of a smarter, more efficient, and safer automated world.
