In the current era of popularized 4K/8K video transmission and Gigabit Ethernet, high-speed data links in electronic devices are facing the dual challenges of "signal integrity" and "electrostatic protection." Industry reports indicate that the signal transmission rate of high-speed interfaces (such as HDMI 2.1 and PCIe 4.0) has exceeded 20Gbps, and even a parasitic capacitance of 0.5pF may cause signal distortion. Moreover, interface failures caused by electrostatic discharge (ESD) account for over 35%. Slkor has specifically launched the SLESD0524P ultra-low capacitance ESD protection array, which, with its DFN2510 package and ultra-low junction capacitance of 0.2pF, provides a "zero-interference" protection solution for multi-line high-speed interfaces.

As a transient voltage suppressor designed for parasitic-sensitive systems, the SLESD0524P achieves precise adaptation to high-frequency scenarios in core performance: the reverse working voltage (VRWM) reaches 5.0V, compatible with mainstream low-voltage high-speed circuits; the minimum reverse breakdown voltage (VBR) is 6.0V, ensuring no interference with signal transmission during normal operation; the forward clamping voltage (VC) is only 10V under 1A pulse and 15V under 4A pulse, which can quickly limit transient overvoltage to a safe range and protect backend sensitive chips. Its most prominent advantage lies in the ultra-low junction capacitance — only 0.2pF (typical value) between I/Os and 0.4pF (typical value) from I/O to ground. Combined with a reverse leakage current (IR) of 1μA, it perfectly solves the industry pain point of "protection vs. signal interference," maintaining integrity even in high-speed differential signal transmission.

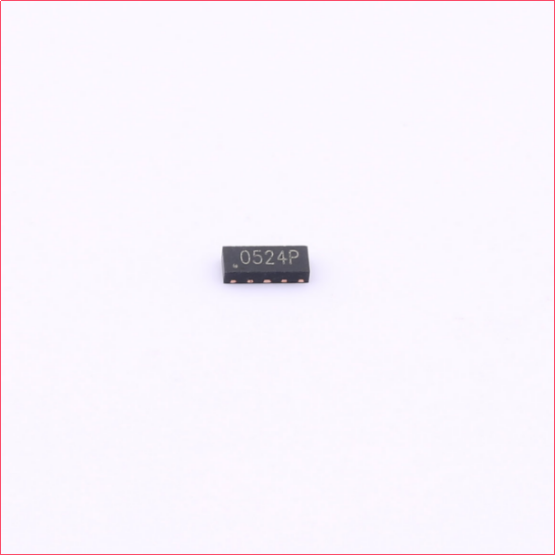

In terms of protection capability, the device complies with IEC 61000-4-2 Level 4 certification, with contact discharge up to ±20kV and air discharge up to ±25kV. It can withstand a peak pulse current of 4A (8/20μs) with a peak pulse power of 60W, and also complies with IEC 61000-4-4 (EFT) 40A (5/50ns) certification, comprehensively resisting electrostatic and fast transient interference. The adopted DFN2510 package (dimensions 2.45-2.55mm × 0.95-1.05mm × 0.45-0.55mm) supports simultaneous protection of 4 high-speed data lines, saving over 50% space compared to traditional multi-device combination schemes. It supports 260℃/10s lead-free reflow soldering, complies with UL 94V-0 flame retardant and RoHS standards, and is suitable for high-density PCB layouts.

The core advantages of the product are concentrated in three aspects:

All-domain protection capability: ±25kV air discharge + ±20kV contact discharge, covering extreme ESD scenarios in consumer electronics and industrial equipment; each I/O can withstand over 1000 ±8kV contact discharges;

Zero high-frequency interference: 0.2pF junction capacitance between I/Os has negligible impact on high-speed signal transmission, suitable for high-frequency interfaces such as HDMI, DVI, and USB 3.0;

Multi-line integration efficiency: The DFN2510 package protects 4 lines with a single device, replacing traditional multi-device schemes, significantly simplifying design and reducing layout difficulty.

Application fields precisely cover high-speed data interface scenarios: Serial ATA, PCI Express, high-speed ports of desktops/servers/notebooks, MDDI interfaces, USB 2.0/3.0 power and data lines, as well as High-Definition Multimedia Interface (HDMI) and Digital Visual Interface (DVI), performing particularly well in 8K video transmission links.

A responsible person from Slkor's high-speed protection product line stated, "The design breakthrough of SLESD0524P lies in the combination of 'multi-line collaborative protection' and 'ultra-low parasitic parameters' — achieving ±25kV protection with 0.2pF capacitance, while covering 4 lines with a single device. This is a response to the trend of 'high-speed and integrated' interfaces, making protection no longer a bottleneck for signal transmission."

Currently, the SLESD0524P has achieved stable mass production, adopting 7-inch tape and reel packaging (3,000 pieces per reel) and supporting bulk purchasing. As an innovator in the semiconductor protection field, Slkor has always focused on "adaptation to high-frequency scenarios" in R&D. Its products have passed multiple international compliance certifications, continuously providing efficient protection solutions for the high-speed data communication field. For technical manuals or samples, please visit Slkor's official website (SLKOR Semiconductor: Discrete Semiconductors, TVS、ESD、diodes、 components、transistors、mosfet、igbt、Rectifier、Discrete Power Devices、SCR、TRIAC、Zener Diode; Integrated Semiconductors, Op-amp、hall sensor、 Linear Regulator / LDO、DC-DC Convertor、AC-DC Convertor and Optocoupler).
