As consumer electronics move toward "millimeter-level slimming," the PCB space in portable devices such as mobile phones and tablets has been compressed to the limit, while the signal transmission rates of high-speed interfaces like USB 2.0 and VGA continue to rise — this contradiction makes "small size" and "high protection" the core demands for electrostatic protection devices. Market research shows that over 60% of portable device failures stem from electrostatic interference, among which 35% are cases where layout is restricted due to excessively large protection devices. Slkor has specifically launched the SLESD0521D52RG low-capacitance bidirectional ESD protection diode, which, with its ultra-small SOD-523 package and 35W peak power, provides an efficient protection solution for space-sensitive devices.

I. Product Overview

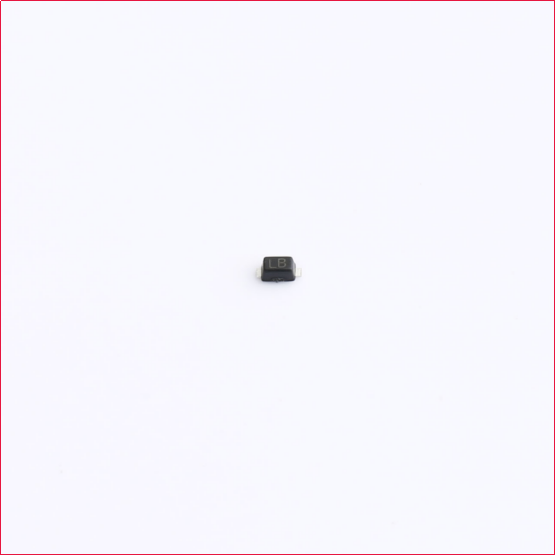

The SLESD0521D52RG is an electrostatic protection device designed by Slkor for high-density circuits, utilizing advanced semiconductor technology to achieve a precise balance between "protection and integration." Its core positioning is to address the ESD and transient voltage threats to sensitive components in slim devices — through fast response (<1ns) and low parasitic parameters, it resists electrostatic discharge (ESD) and electrical fast transient (EFT) interference without occupying excessive PCB space, ensuring the stable operation of high-speed signal links. The device adopts the SOD-523 package (approximately 1.50-1.70mm × 0.70-0.90mm) with a single unit weight of only 0.001 grams, perfectly adapting to the high-density layout needs of portable devices.

II. Core Performance Parameters

As a protection device for low-voltage high-speed scenarios, the performance parameters of the SLESD0521D52RG are scenario-adapted:

● Voltage characteristics: Reverse working voltage (VRWM) is 5.0V, compatible with mainstream low-voltage circuits; minimum reverse breakdown voltage (VBR) reaches 5.6V, ensuring no interference with signal transmission during normal operation; clamping voltage (VC) is only 10.5V under 1A pulse and 14.0V under 2A pulse, which can quickly limit transient overvoltage to a safe range.

● Low power consumption and high-frequency compatibility: Reverse leakage current (IR) is only 2.0μA, effectively reducing static power consumption; junction capacitance (CJ) is 3.0pF (typical value), which has minimal impact on high-speed signal transmission such as USB 2.0 and VGA, ensuring signal integrity.

● Protection capability: Complies with IEC 61000-4-2 certification, with air discharge up to ±15kV and contact discharge up to ±8kV; complies with IEC 61000-4-4 certification, capable of withstanding 40A (5/50ns) electrical fast transient interference, with peak pulse power up to 35W (8/20μs), and a single device can protect one I/O line.

III. Core Product Advantages

● Miniaturized integration: The SOD-523 package saves 40% space compared to the traditional SOT-23, with a weight of only 0.001 grams, adapting to space-constrained scenarios such as mobile phone motherboards and portable instruments, simplifying high-density PCB layouts.

● High-speed signal friendly: The 3.0pF low junction capacitance causes negligible attenuation to high-frequency signal transmission, perfectly compatible with high-speed interfaces such as USB 2.0, DVI, and SDI, avoiding signal distortion.

● All-scenario protection: ±15kV air discharge + ±8kV contact discharge capability covers electrostatic threats in daily use; 40A EFT protection resists transient interference on power lines, reducing the risk of device crashes.

● Low power consumption design: The 2.0μA reverse leakage current reduces standby power consumption, extending the battery life of mobile phones, tablets, and other devices, and improving user experience.

IV. Typical Application Fields

The application scenarios of the SLESD0521D52RG precisely cover electronic devices requiring "small size + high protection":

● Consumer electronics: I/O port protection for portable devices such as smartphones and accessories, tablets, and digital cameras;

● Computing equipment: Serial/parallel port protection for laptops, desktops, and servers;

● Display devices: Signal line protection for projection TVs and VGA/DVI interfaces;

● Industrial and medical fields: Electrostatic sensitive circuit protection for portable instruments and medical electronic modules.

A responsible person from Slkor's consumer electronics product line stated, "The design logic of the SLESD0521D52RG is 'seeing the big through the small' — using the miniature SOD-523 package to carry 35W protection power, while being compatible with high-speed signals with 3pF capacitance. This is a response to the trend of 'slimming and high-speed' in portable devices, making protection devices no longer an obstacle to product slimming."

Currently, the SLESD0521D52RG has achieved stable mass production, adopting 7-inch tape and reel packaging (3,000 pieces per reel) and supporting bulk purchasing. For technical manuals or samples, please visit Slkor's official website (SLKOR Semiconductor: Discrete Semiconductors, TVS、ESD、diodes、 components、transistors、mosfet、igbt、Rectifier、Discrete Power Devices、SCR、TRIAC、Zener Diode; Integrated Semiconductors, Op-amp、hall sensor、 Linear Regulator / LDO、DC-DC Convertor、AC-DC Convertor and Optocoupler).
