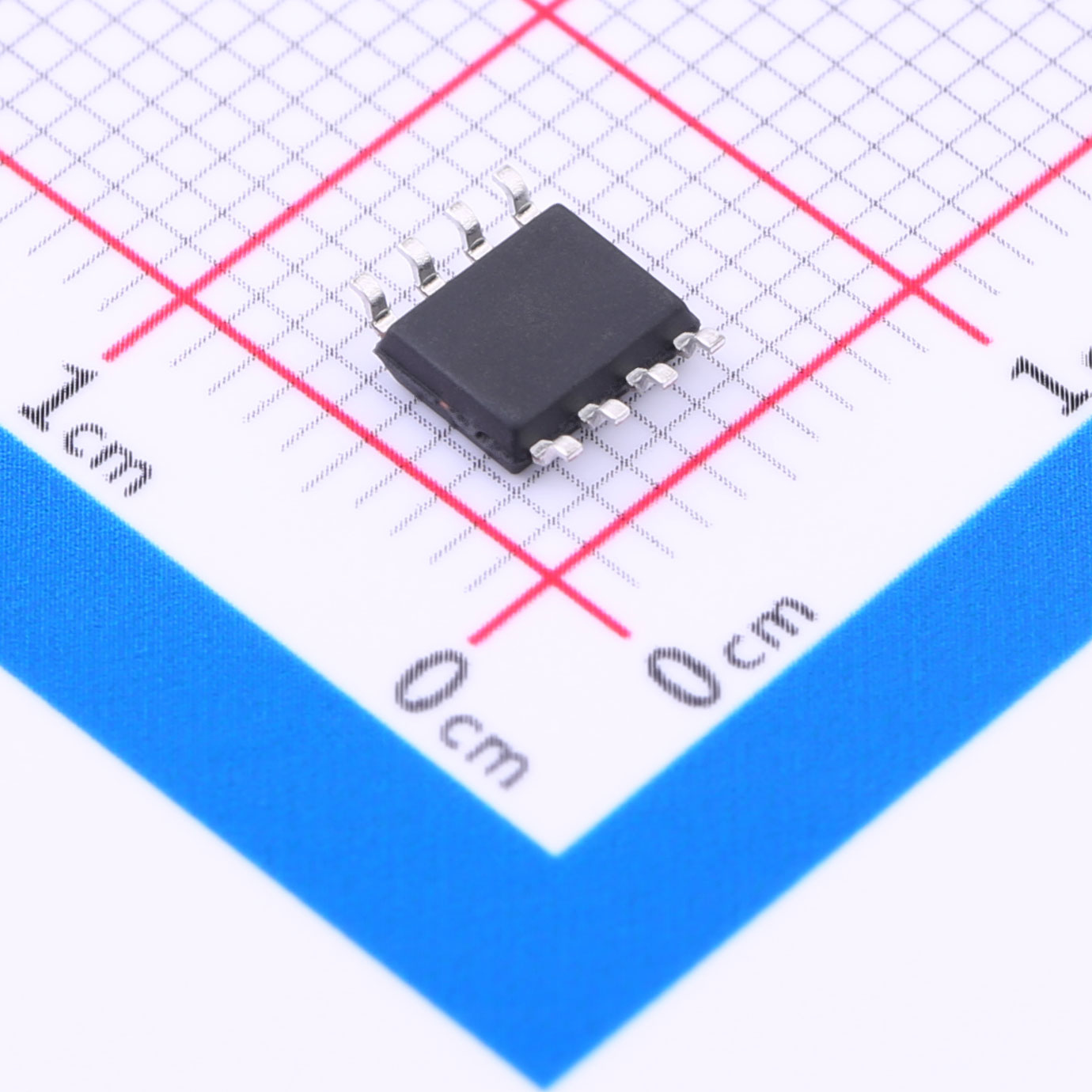

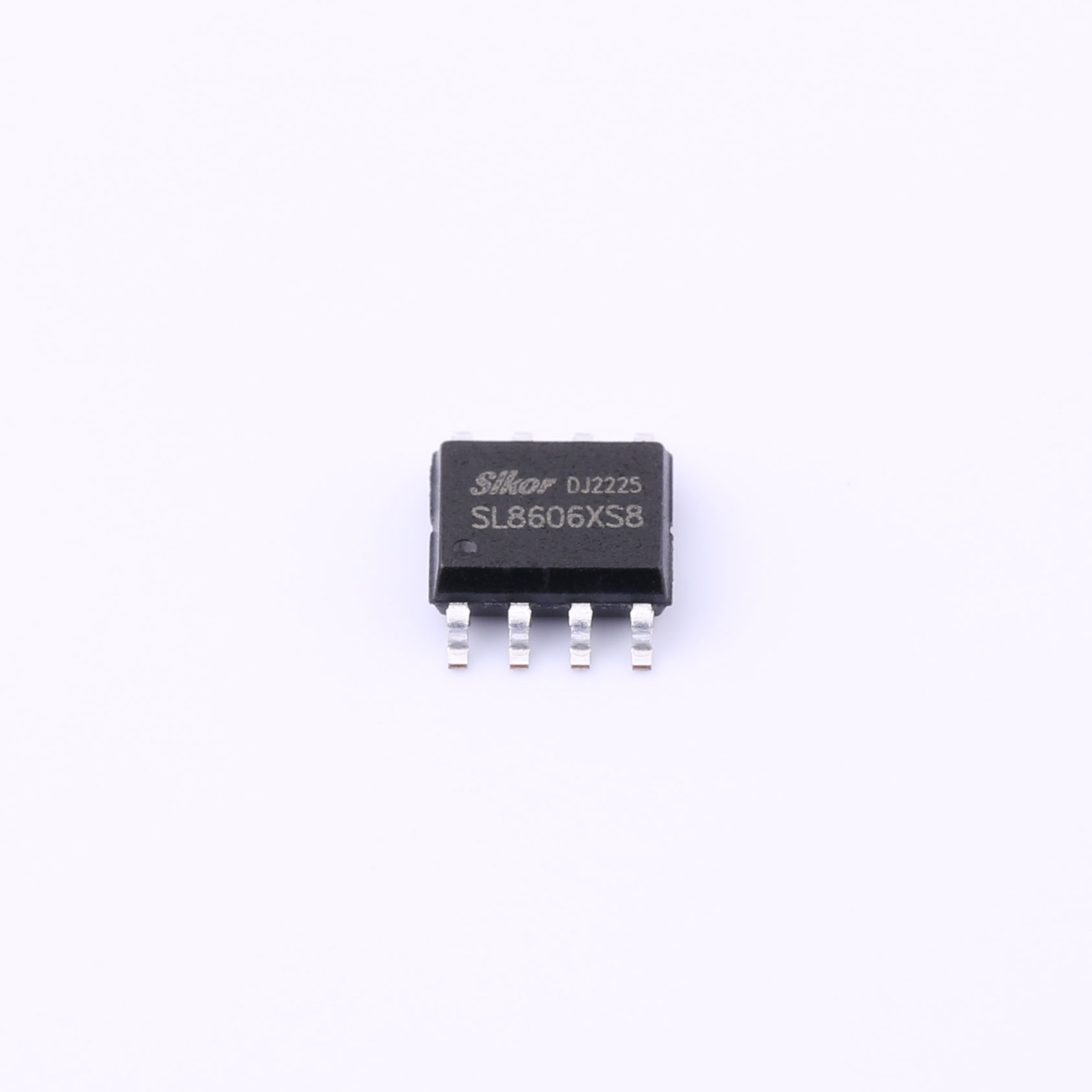

SL8606XS8 nkenke Op-amp SOIC-8L
Ezinụlọ SL860x nke otu-, dual-, na quad-channel arụ ọrụ amplifier na-egosipụta ọgbọ ọhụrụ nke ebumnuche izugbe, op-amps dị ala. Ngosipụta ntinye na mmepụta ụgbọ oloko na-arụ ọrụ (RRl0), obere quiescent dị ugbu a (nke a na-ahụkarị 750 uA) yana nnukwu bandwidth (11 MHz) na mkpọtụ dị ala (8 nV / Hz na 10 kHz) na-eme ka ezinụlọ a mara mma nke ukwuu maka ụdị dị iche iche. nke ngwa batrị kwadoro nke chọrọ nguzozi n'etiti ọnụ ahịa na arụmọrụ, dị ka ntinye ụda olu, ihe nhụsianya nke moto, mmụba fotodiode, nyocha koodu koodu na ngwongwo ọcha. Ntinye ntinye dị ala na-akwado ndị amplifiers ndị a na-eji ngwa na mega-ohm sourceimpedances. Nhazi siri ike nke SL860x amplifiers na-enye mfe-nke-eji sekit designer.unity-enweta nkwụsi ike na capacitive ibu ruo 300 pF, jikọtara ya. RF / EMl rejectionfilter, ọ dịghị usoro ngbanwe na ọnọdụ overdrive, na elu electro-static mwepụ (ESD) nchedo (5-kV HBM) SL860x amplifiers bụ kachasị maka ịrụ ọrụ na voltaji dị ka + 1.8 V (± 0.9 V) na elu. ka +5.5 V (± 2.75 V) na okpomọkụ nso nke 0 'C to70'C, na ọrụ na voltaji si +2.0 V (± 1.0 V) ka +5.5 V (± 2.75 V) n'elu theextended okpomọkụ nso nke -40 'C ruo +125' C. SL8605/SL8607 (otu) dị na ngwugwu SOT23-5L na Sc70-5L. A na-enye SL8606 (abụọ) na ngwugwu SOlc-8L, MSOP-8L na TSSOP-8L. A na-enye quad-channelSL8608 na ngwugwu QFN-16L, S0lC-14L na TSSOP-14L.
Nkenke, 11MHz, mkpọtụ dị ala, RRIO,CMOS Amplifiers
Description
l Ezinụlọ SL860x nke otu-, dual-, na quad-channel arụ ọrụ amplifier na-egosipụta ọgbọ ọhụrụ nke ebumnuche izugbe, op-amps dị ala. Ngosipụta ntinye na mmepụta ụgbọ oloko na-arụ ọrụ (RRl0), obere quiescent dị ugbu a (nke a na-ahụkarị 750 uA) yana nnukwu bandwidth (11 MHz) na mkpọtụ dị ala (8 nV / Hz na 10 kHz) na-eme ka ezinụlọ a mara mma nke ukwuu maka ụdị dị iche iche. nke ngwa batrị kwadoro nke chọrọ nguzozi n'etiti ọnụ ahịa na arụmọrụ, dị ka ntinye ụda olu, ihe nhụsianya nke moto, mmụba fotodiode, nyocha koodu koodu na ngwongwo ọcha. Ntinye ntinye dị ala na-akwado ndị amplifiers ndị a na-eji ngwa na mega-ohm sourceimpedances. Nhazi siri ike nke SL860x amplifiers na-enye mfe-nke-eji sekit designer.unity-enweta nkwụsi ike na capacitive ibu ruo 300 pF, jikọtara ya. RF / EMl rejectionfilter, ọ dịghị usoro ngbanwe na ọnọdụ overdrive, na elu electro-static mwepụ (ESD) nchedo (5-kV HBM) SL860x amplifiers na kachasị maka ịrụ ọrụ na voltaji dị ka + 1.8 V (±0.9 V) na ruo +5.5 V (±2.75 V) na okpomọkụ nso nke 0 'C to70'C, na ọrụ na voltaji si +2.0 V (±1.0 V) ruo + 5.5 V (±2.75V) n'elu theextended okpomọkụ nso nke -40'C ka +125 'C. The SL8605/SL8607 (otu) dị na ma SOT23-5L na Sc70-5L ngwugwu. A na-enye SL8606 (abụọ) na ngwugwu SOlc-8L, MSOP-8L na TSSOP-8L. A na-enye quad-channelSL8608 na ngwugwu QFN-16L, S0lC-14L na TSSOP-14L.
atụmatụ
l Voltaji akwụrụ obere ntinye: ±0.35 mV kacha
l Obosara ịdị n'otu-enweta obosara: 11 MHz
l Ọnụ ọgụgụ dị elu: 11V/μs
l Ndozi ngwa ngwa: 0.26 μs ruo 0.1%
l Obere mkpọtụ: 8 nV/√Hz na 10 kHz
l Ntinye na mmepụta ụgbọ okporo ígwè gaa ụgbọ oloko
l Ihe nzacha RF/EMI dị n'ime
l Naanị 1.8 V ruo 5.5 V na-eweta oke voltaji na0 ℃ka 70 ℃
l Nnweta dị ala ugbu a: 750 μA na 5V na-eweta kwa Amplifier
l Oke okpomoku agbatiri: ?40℃ruo + 125℃
ngwa
l Ngwa eji arụ ọrụ batrị: Onye ahịa, ụlọ ọrụ mmepụta ihe, ọgwụ, akwụkwọ ndetu
l Ntinye ederede
l Usoro moto dị ugbu a
l Mgbasa fotodiode
l Sensọ Siqnal Condition: Ihe mmetụta sensọ, akwadoro anya, ihe nzacha na-arụ ọrụ
