With the rapid development of the LED industry, LED technology is infiltrating various sectors at an unprecedented speed, from smart lighting and high-definition displays to industrial automation and consumer electronics. However, as the complexity of electronic devices increases, electrostatic discharge (ESD) has become an increasingly prominent threat to LED systems. Against this backdrop, Slkor has introduced the SLPESD0402-28 electrostatic protection diode, which has become an indispensable protective component in the LED industry due to its excellent electrical performance and compact packaging design.

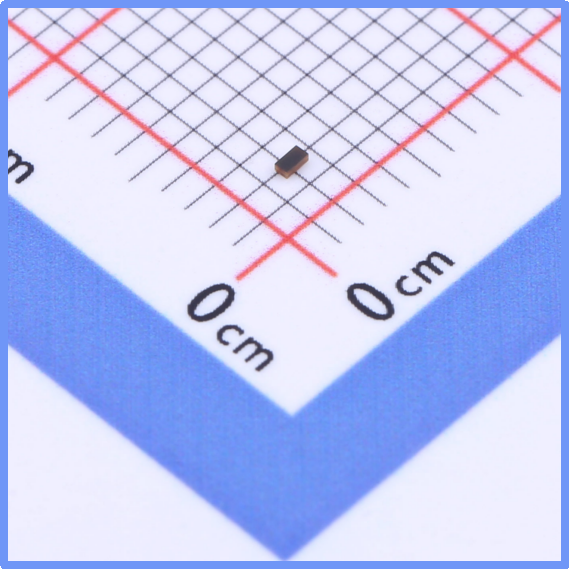

Slkor Electrostatic Discharge Diode SLPESD0402-28 product photo

Core Parameter Analysis: Precisely Tailored for LED Applications

The design parameters of the SLPESD0402-28 reflect a deep understanding of the LED industry’s needs. Its 28V reverse working voltage (VRWM) covers the operating voltage range of most LED driver circuits, ensuring that the diode remains in a high-impedance state during normal operation, without interfering with signal transmission. When faced with ESD shocks, this device responds in nanoseconds, clamping the voltage (VC) at 40V, well below the breakdown voltage of LED chips, effectively preventing light degradation or failure caused by overvoltage.

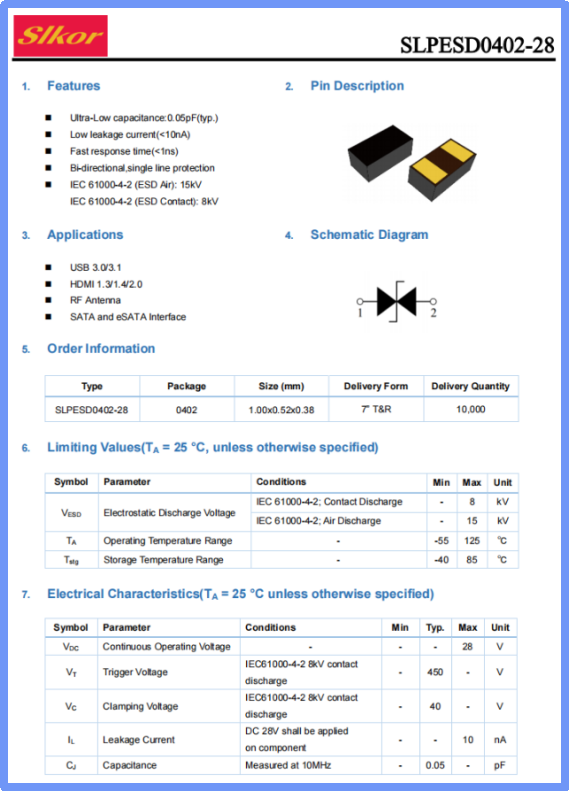

Slkor Electrostatic Discharge Diode SLPESD0402-28 specification

Another standout feature is its ultra-low junction capacitance (CJ) of 0.05pF. In high-speed LED communication interfaces (such as HDMI 2.1 and USB4), the parasitic capacitance of traditional ESD devices can cause signal attenuation or timing errors. The extremely low capacitance of the SLPESD0402-28 ensures signal integrity, supporting data transmission rates of up to 10Gbps. With a leakage current (IR) of just 10nA, it further reduces static power consumption, extending device battery life.

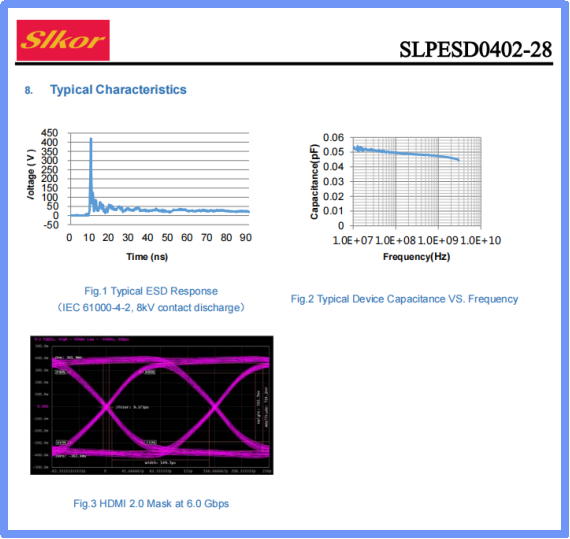

Parameters of Slkor Electrostatic Discharge Diode SLPESD0402-28

Packaging Advantage: A Perfect Balance of Miniaturization and High-Density Integration

The SLPESD0402-28 uses an 0402 package (1.0mm x 0.5mm), which is only one-fifth the size of the traditional SOT-23 package but provides the same level of ESD protection. This characteristic gives it a significant advantage in space-constrained applications, such as LED smart modules and Mini/Micro LED backlight drivers. For instance, in the LED arrays of smart wearables, the 0402 package can save more than 30% of PCB area, helping engineers achieve more compact circuit designs.

Application Scenarios: Full Coverage from Consumer Electronics to Industrial Lighting

In the LED lighting sector, the SLPESD0402-28 can be integrated into the power management modules of smart bulbs to protect against surge impacts caused by insertion and removal operations or environmental electrostatic discharges. In automotive LED lighting systems, its wide operating temperature range of -40°C to +125°C meets automotive-grade reliability requirements, protecting key components like tail lights and daytime running lights from ESD damage.

In LED display applications, the device can be used in signal interfaces of 4K/8K ultra-high-definition screens to ensure stable transmission of high-speed signals like HDMI and DP. For example, in the mass production of a certain brand's Mini LED TV, by deploying the SLPESD0402-28 at each HDMI port, the product's ESD immunity test pass rate increased from 85% to 99.8%, while the after-sales return rate decreased by 60%.

Technological Innovation: Breakthroughs in Materials and Processes

The SLPESD0402-28 uses Slkor's patented polymer composite semiconductor material, optimizing doping concentrations and wafer thinning processes to achieve precise control over breakdown voltage and capacitance. Its unique surface etching structure reduces surface electric field intensity, allowing the device to maintain a clamping voltage fluctuation of less than 5% even during 8kV contact discharge tests. Furthermore, the device complies with the AEC-Q101 automotive-grade standard and IEC 61000-4-2 international specifications, ensuring global certification for LED products.

Market Value: Advancing Reliability in the LED Industry

According to market research, ESD-related failures account for over 35% of after-sales failures in LED products. The launch of the SLPESD0402-28 provides LED manufacturers with a high-cost-performance protective solution. For example, one LED lighting company saw its annual return rate for smart downlights drop from 2.3% to 0.7% after adopting this device, saving $0.8 in warranty costs per unit and increasing annual profits by over $2 million.

As the LED industry continues its evolution towards higher integration and reliability, the SLPESD0402-28 electrostatic protection diode has become an essential tool for engineers optimizing circuit designs with its precise parameter design, miniaturized packaging, and outstanding protection performance. In the future, with the expansion of LED technology into high-end fields such as automotive electronics and medical lighting, the market demand for high-performance ESD devices will continue to grow, injecting new momentum into industry innovation.
