FEATURES

Glass passivated device

Ideal for surface mouted applications

Low reverse leakage

Metallurgically bonded construction

High temperature soldering guaranteed: 250C/10 seconds, 0.375(9.5mm)lead length, 5 Ibs.(2.3kg)tension

MECHANICAL DATA

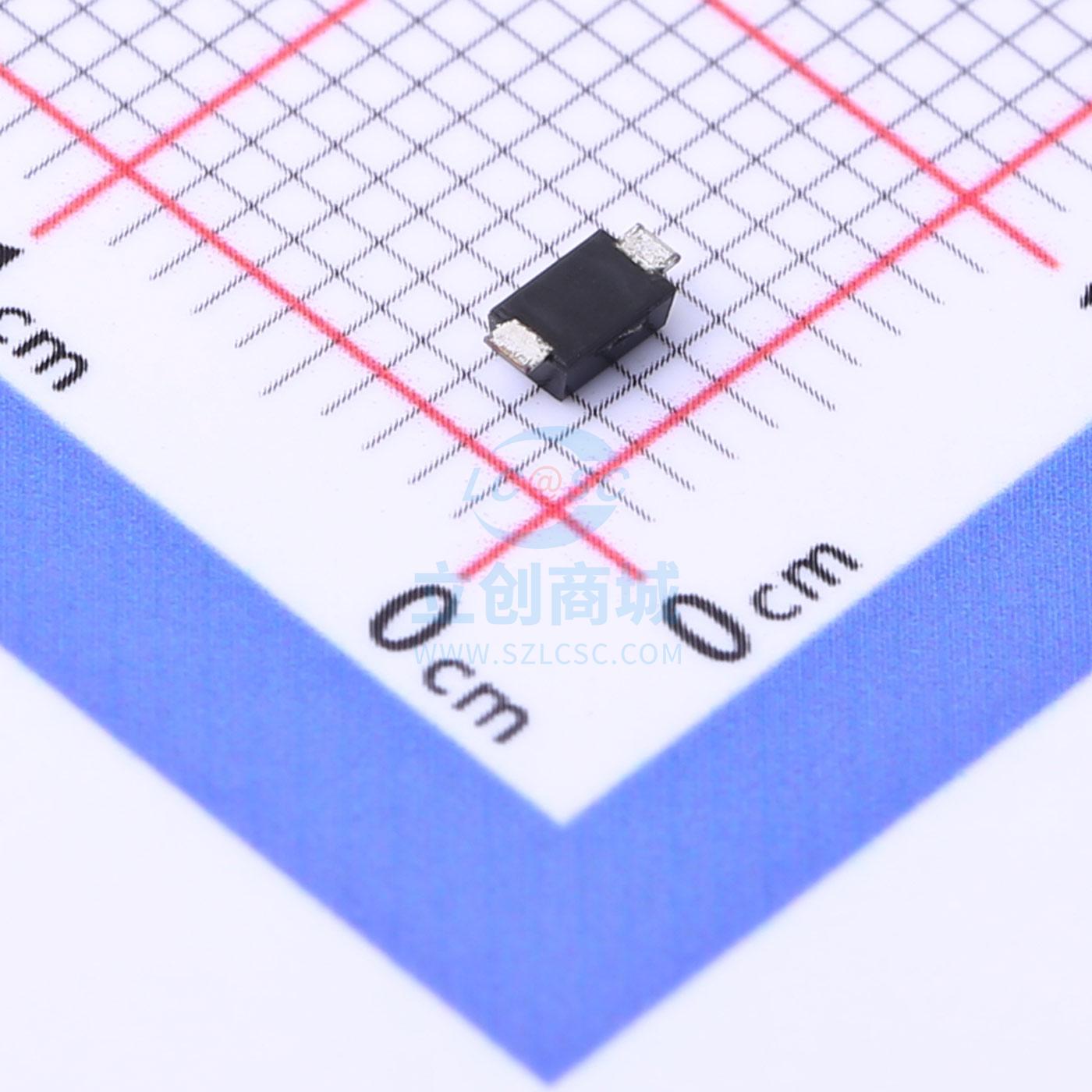

Case: JEDEC SOD-123FL molded plastic body over passivated chip

Torminals: Plated axial leads,solderable per MIL-STD-750. Method 2026

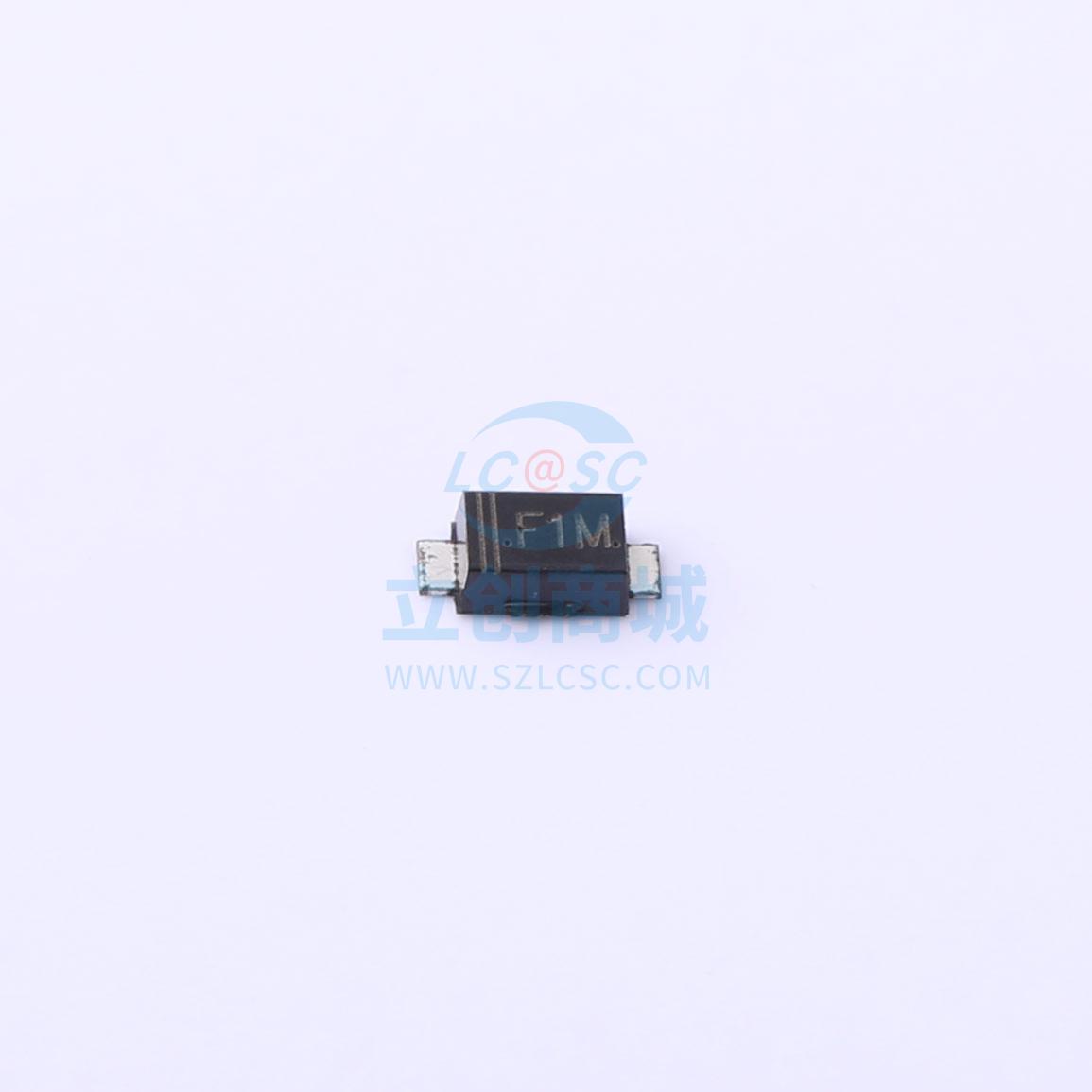

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 00007 ounce.0.02 grams
