GBLC05CI ESD Suppressors Diode SOD-323 GBLC05CI ESD Suppressors Diode SOD-323 GBLC05CI ESD Suppressors Diode SOD-323

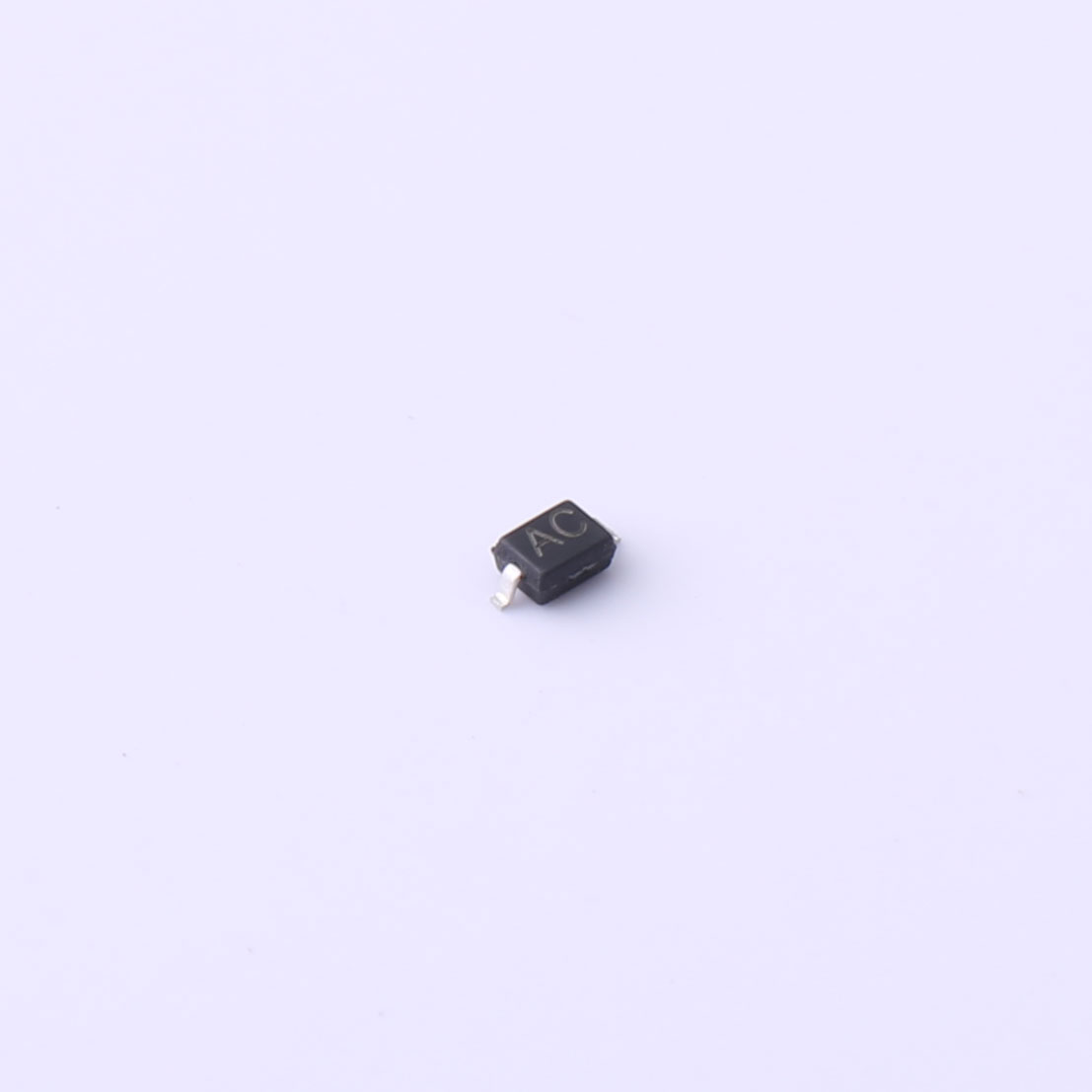

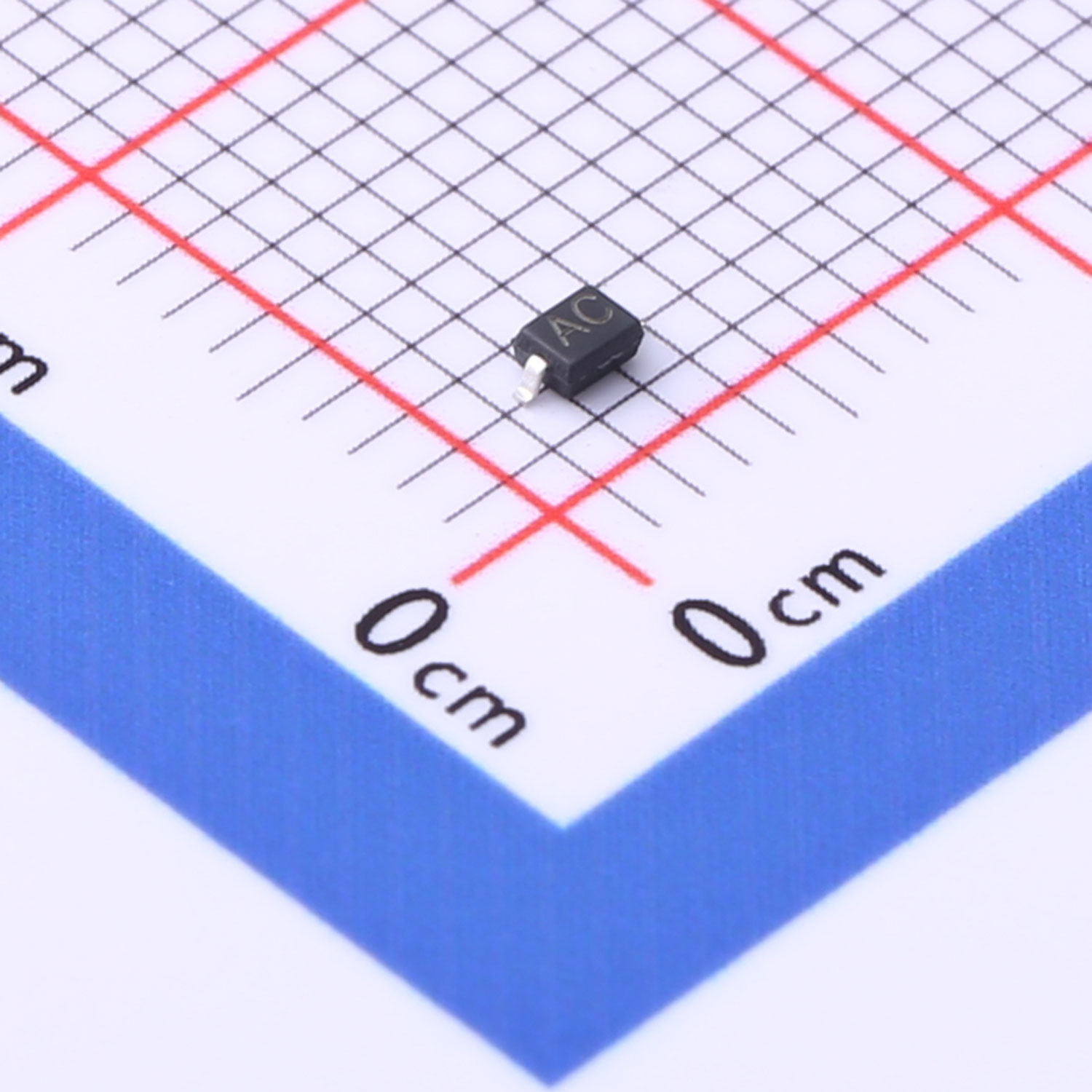

GBLC05CI ESD Suppressors Diode SOD-323
VRWM(V):5V
VBR min(V):6V
IR(A):1μA
VC(V):18V
CJ(pF):0.8pF
Package:SOD-323

Product Details

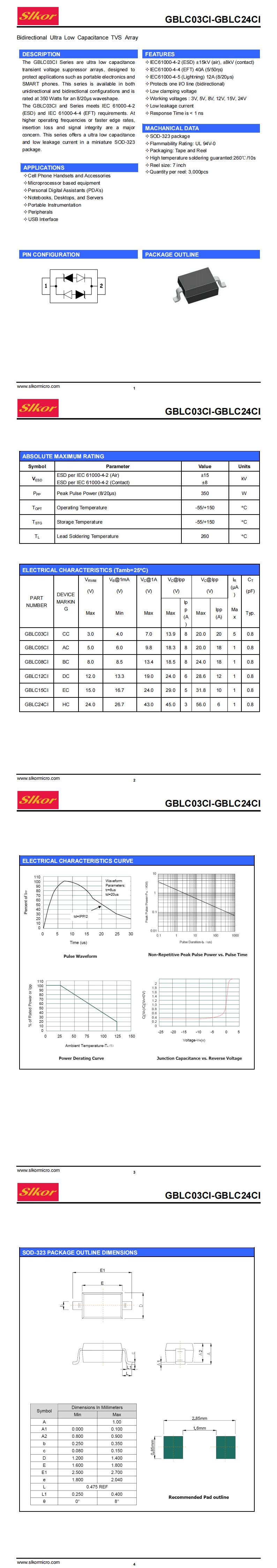

Bidirectional Ultra Low Capacitance TVS Array

DESCRIPTION

  • The GBLC03CI Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and smart phones.This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20us waveshape.

  • The GBLC03CI and Series meets IEC 61000-4-2 (ESD)and IEC 61000-4-4 (EFT)requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern.

  • This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.


FEATURES

  • iEC61000-4-2 (ESD)±15kV(air), ±8kV(contact)

  • EC61000-4-4(EFTD40A(5/50nS)

  • IEC61000-4-5 (Lightning)12A(8/20us)

  • Protects one VO line (bidirectional)

  • Low clamping voltage

  • Working voltages: 3V,5V,8V,12V,15V,24V

  • Low leakage current

  • Response Time is<1ns


APPLICATIONS

  • Cell Phone Handsets and Accessories

  • Microprocessor based equipment

  • Personal Digital Assistants(PDA's)

  • Notebooks, Desktops, and Servers

  • Portable Instrumentation

  • Peripherals

  • USB Interface


MACHANICAL DATA

  • SOD-323 package

  • Flammability Rating: UL 94V-0

  • Packaging: Tape and Reel

  • High temperature soldering guaranted: 260C/10s

  • Reel size: 7inch

  • Quantity per reel: 3,000pcs
