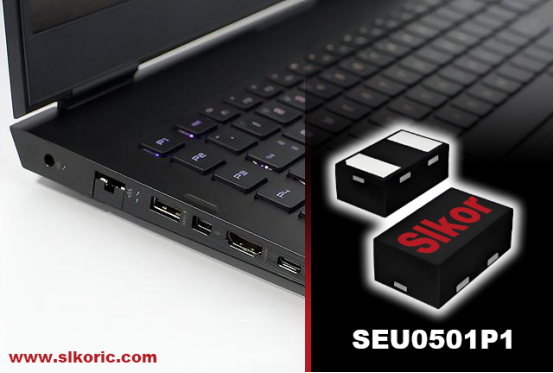

As laptops play an increasingly important role in daily life, users’ demands for their performance, stability, and durability continue to rise. In particular, the stability of signal transmission in high-speed data interfaces like USB, HDMI, and Thunderbolt directly impacts user experience. In this context, electrostatic discharge (ESD) protection becomes a key issue in laptop design. To address this challenge, Slkor has launched its latest SEU0501P1 ultra-low junction capacitance ESD protection diode, providing strong protection for high-speed data interfaces in laptops.

Design Features of the SEU0501P1

Slkor’s SEU0501P1 ESD protection diode adopts an advanced DFN1006 package, which not only provides excellent electrical performance but also significantly reduces the component size, making it ideal for the compact design requirements of modern laptops. The diode has a rated working voltage (VRWM) of 5V, effectively protecting common high-speed data interfaces such as USB, HDMI, and Thunderbolt from ESD damage. Its reverse breakdown voltage (VBR) is a minimum of 6V, which means the diode can quickly activate its protective function during ESD events exceeding this voltage, preventing overvoltage damage to the device.

Impact of Electrostatic Discharge (ESD) and Its Necessity

Electrostatic discharge is one of the main threats to electronic devices, especially for high-speed data interfaces. ESD events can cause data loss, malfunction, or even damage to core electronic components. In laptops, USB ports, HDMI interfaces, and other high-speed data lines are often connected to external devices, making them highly susceptible to external static interference during use. In dry environments, the risk of static buildup increases, and devices may accidentally suffer from ESD damage. To ensure the stability and reliability of laptops, effective protection must be provided for these high-speed data interfaces.

The SEU0501P1, with its low junction capacitance (typical value 0.35pF) and extremely low reverse leakage current (maximum 0.1µA), can quickly divert excess current to ground during an ESD event, protecting the core circuits of the device. At the same time, it does not affect signal integrity, ensuring stable data transmission. This is particularly important for high-speed interfaces, as any signal delay or attenuation caused by protective components can lead to data transmission errors or loss.

Protection Features and Electrical Performance

The SEU0501P1 offers excellent clamping voltage (VC) and reverse leakage current control while protecting high-speed data interfaces in laptops. Its maximum clamping voltage is 11V, allowing it to quickly limit voltage to a safe range during ESD events, preventing overvoltage damage to the device. Additionally, the SEU0501P1’s low junction capacitance (CJ) and low dynamic resistance enable it to absorb and dissipate static energy effectively while maintaining very high signal transmission speeds. This feature makes it highly suitable for laptop applications requiring high-speed data transmission.

Miniaturization and Flexible Design

Modern laptops are increasingly designed to be more compact and lightweight, which places higher demands on the size and installation methods of electronic components. The SEU0501P1’s DFN1006 package not only meets the requirements for small size but also provides excellent thermal management, helping to maintain stable operating temperatures during prolonged usage. The DFN1006 package design ensures higher component density, which is crucial for compact laptops. Designers can minimize space usage without sacrificing performance, achieving more efficient circuit designs.

Enhancing System Reliability and Data Transmission Stability

The SEU0501P1 ultra-low junction capacitance ESD protection diode plays a vital role in improving system reliability. The risks of data loss, device short circuits, or burnouts caused by electrostatic discharge can be effectively mitigated by the protection functionality of this device. For laptops, stable high-speed data transmission is a key factor in user experience, and the SEU0501P1, with its low junction capacitance, low dynamic resistance, and high clamping voltage features, ensures signal integrity for high-speed data interfaces, reducing the risk of signal delay or distortion and enhancing system reliability.

Especially in laptops, interfaces like USB and Thunderbolt are often used to connect to external devices such as hard drives and displays. The stability of data transmission is crucial. The SEU0501P1 provides robust protection for these interfaces, ensuring that even during an ESD event, data transmission will not be disrupted, and the laptop will continue to function normally.
