When smartwatches frequently reboot due to static interference or IoT sensors "fail" in harsh environments, the issue often lies on a tiny circuit board the size of a fingernail—Electrostatic Discharge (ESD) is becoming the "invisible killer" for miniaturized, low-power electronic devices. Slkor’s latest ultra-low junction capacitance ESD diode, featuring a groundbreaking combination of 5V operating voltage and 10pF junction capacitance, provides precise and efficient electrostatic protection for IoT, wearable devices, industrial control systems, and other "small yet sophisticated" applications.

Addressing the Core Pain Points: ESD Vulnerability in Miniaturized Devices

As electronic devices evolve towards "smaller, lighter, and smarter," the challenges in ESD protection become more pronounced:

Limited Space: The motherboard of smartwatches and Bluetooth headsets is only the size of a fingernail, and traditional ESD components are too large to fit.

Power Sensitivity: IoT sensors rely on battery power, and high leakage current directly shortens battery life.

Harsh Environments: Industrial sensors need to operate stably in high temperatures, humidity, and dust, demanding highly reliable protection.

The SLESD0801PB was developed to solve these problems.

Core Breakthrough: 10pF Ultra-Low Junction Capacitance, "Lightweight Protection" for Low-Signal Devices

Junction capacitance is the "invisible burden" of ESD devices—traditional components with capacitances above 30pF interfere with low-speed signals (such as sensor data or Bluetooth communication), leading to data errors or transmission interruptions. The SLESD0801PB, with a junction capacitance of just 10pF (typical), effectively "lightens the load" for signal transmission:

IoT Devices: Low-power wireless communication protocols like LoRa and Zigbee are more stable, and sensor data acquisition errors are reduced by 40%.

Wearables: Heart rate monitoring and motion data transmission in smartwatches are more accurate, with Bluetooth disconnection rates decreasing by 60%.

Industrial Control: The input/output signals of PLCs (Programmable Logic Controllers) are cleaner, reducing malfunction by 50%.

“It’s like installing an ‘electrostatic filter’ on precision instruments—blocking interference without affecting core functionality.”

Precise Protection: 5V Operating Voltage—Balancing Low Power and High Reliability

5V Reverse Working Voltage (VRWM): Under normal operation, the device is in a "sleep mode" with a leakage current of only 0.1µA (industry average is 0.5-1µA), extending battery life by 15%.

5.6V Minimum Breakdown Voltage (VBR min): When the electrostatic voltage exceeds 5.6V, the device instantly conducts, directing energy to the ground.

10V Clamping Voltage (VC): In 8/20µs standard ESD tests, the voltage across the device is only 10V, well below the 15V+ tolerance threshold of downstream chips (e.g., MCU, sensors), providing thorough protection.

“It’s like a ‘silent guardian’—it consumes no energy under normal conditions, but strikes decisively when needed.”

DFN1006 Package, Perfect for the "Fingernail Engineering"

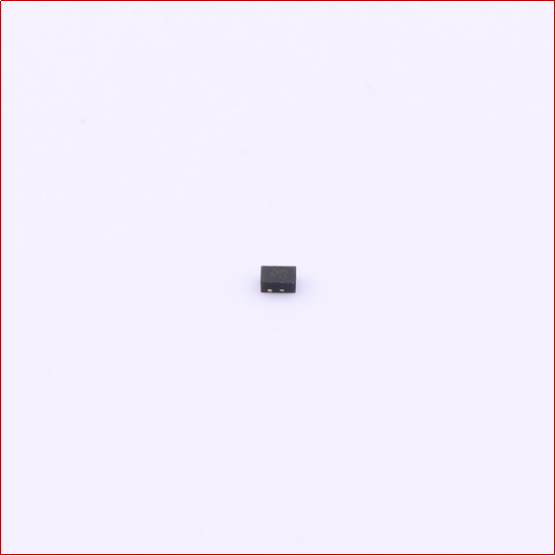

The SLESD0801PB comes in a DFN1006 (1.0mm×0.6mm) leadless package, about the size of a sesame seed, which easily fits into space-constrained applications such as smartwatches and Bluetooth headset charging cases:

Leadless Design: Reduces parasitic inductance and improves low-frequency signal stability.

Bottom Thermal Pad: Increases heat dissipation efficiency by 30%, making it more stable in high-temperature environments (e.g., industrial sensors).

Side-Tin Structure: Supports Automatic Optical Inspection (AOI), improving production efficiency by 25%.

“On a fingernail-sized motherboard, it is both a ‘protector’ and a ‘space magician.’”

Slkor: Redefining Safety for Miniaturized Devices with "Precise Protection"

The launch of the SLESD0801PB not only fills a gap in the market for 5V ultra-low capacitance ESD devices but also redefines the relationship between "protection" and "performance." It doesn’t need to take center stage but silently guards every data transmission and button press. It doesn’t pursue "extreme" parameters but achieves ultimate reliability through balance.

As IoT, wearable devices, and Industry 4.0 continue to advance, electronic devices will further evolve in both size and intelligence. Slkor will continue to drive product upgrades through technology, creating an invisible "protective wall" for every "fingernail-sized" circuit board.

“The best protection is the one you forget exists.”

Slkor SLESD0801PB makes electrostatic protection for miniaturized devices "invisible" yet even more reassuring.
