As electronic devices continue to evolve towards being thinner and more integrated, the design of electrostatic discharge (ESD) protection devices faces new challenges. Traditional ESD protection solutions often require compromises between capacitance, size, and protective performance. However, Slkor's SLESD5451X ESD protection diode offers a new solution with a combination of a 5V reverse working voltage (VRWM), a 5.6V minimum breakdown voltage (VBR), 0.1µA ultra-low leakage current (IR), 10V clamping voltage (VC), and 5pF ultra-low junction capacitance (CJ), all packaged in a DFN1006 ultra-compact package. This device provides high-performance and space-efficient ESD protection for fields such as consumer electronics, IoT, and medical devices. This article explores how this device redefines protection standards for compact devices, analyzing its technical features, application scenarios, and industry trends.

Technical Breakthrough: The Art of Balancing Ultra-Low Capacitance and Low Leakage Current

The core challenge of ESD protection devices lies in efficiently discharging electrostatic energy while minimizing their impact on circuit performance. The SLESD5451X is designed to achieve this balance:

1. 5pF Ultra-Low Junction Capacitance: The Invisible Guardian of High-Frequency Signals

Junction capacitance (CJ) is a critical parameter that determines the effect of an ESD device on signal integrity. In wireless communication modules (such as Bluetooth and Wi-Fi), radio-frequency identification (RFID), or high-speed data interfaces, excessive capacitance can lead to signal attenuation, edge delays, or data errors. With a 5pF junction capacitance, the SLESD5451X leads the industry in minimizing these effects. Even in frequencies above 100MHz, it keeps signal distortion to an extremely low level. For instance, in a 2.4GHz Bluetooth module, traditional ESD devices may have capacitances exceeding 20pF, while the 5pF capacitance of the SLESD5451X reduces insertion loss by over 3dB, significantly enhancing wireless transmission reliability.

2. 0.1µA Ultra-Low Leakage Current: Extending the Battery Life of Portable Devices

For battery-powered portable devices (such as TWS earphones and smartwatches), leakage current (IR) directly affects standby time. The SLESD5451X has an impressive leakage current of just 0.1µA at a 5V working voltage, which is 90% lower than the industry average (typically 1µA). For example, in a TWS earphone charging case with a 40mAh battery, if each protection device has a leakage current of 0.1µA, the cumulative leakage current for 10 interfaces would be just 1µA, leading to an annual self-discharge loss of approximately 0.087mAh, which is nearly negligible. This feature is especially crucial in medical wearable devices (like continuous glucose monitors), where even the smallest noise in power supply can affect measurement accuracy. The ultra-low leakage current prevents baseline drift, ensuring precise readings.

3. Precise Voltage Protection: Seamless Transition from Operation to Protection

The VRWM of the SLESD5451X is 5V, perfectly matching the typical 3.3V/5V system voltages, ensuring that the device remains in a high-impedance state under normal operation. When an ESD event occurs, its minimum breakdown voltage (VBR) of 5.6V ensures a rapid conduction path to ground, protecting the circuit from overvoltage. Additionally, its 10V clamping voltage (VC) limits the ESD impact within a safe range. For example, for a microcontroller (MCU) powered by 5V, the typical tolerance for IO ports is 5.5V. The 10V clamping voltage of the SLESD5451X effectively prevents overvoltage breakdown, and its fast response time (<1ns) guarantees reliable protection even during nanosecond ESD pulses.

Design Advantage: The Fusion of Miniaturization and High Performance

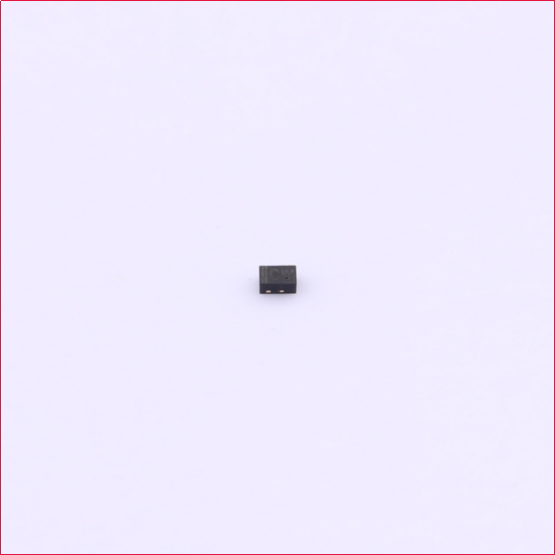

The SLESD5451X uses the DFN1006 package (1.0mm × 0.6mm, thickness 0.4mm), one of the most compact solutions in the ESD device market today. Compared to the traditional SOT-23 package (2.9mm × 1.3mm), it reduces the footprint by 75% and the thickness by 40%, making it easy to integrate into modern electronic devices with highly integrated circuit boards. For example, in a smartphone's mainboard, where space utilization often exceeds 90%, the miniaturized design of the SLESD5451X allows engineers to deploy protection devices directly in tight spaces such as headphone jacks and USB-C interfaces without needing to redesign the layout.

Moreover, the DFN package’s bottom-side thermal pad design effectively dissipates the heat generated by ESD events, preventing localized overheating that could lead to device aging. During continuous ESD testing, the SLESD5451X can withstand over 1,000 ±8kV contact discharges while maintaining stable electrical performance. This reliability is especially important in industrial environments or high-static scenarios (such as synthetic fiber plants).
