In the realm of outdoor sports smart products, from smartwatches monitoring heart rates to action cameras capturing extreme moments, electronic devices have become indispensable companions for enthusiasts exploring the great outdoors. However, the unpredictable outdoor environment—characterized by dust, humidity fluctuations, electrostatic buildup, and lightning interference—presents significant challenges to the reliability of these devices' circuits. The electrostatic protection diode SLCESD3V3D3, with its core features of a 3.3V reverse working voltage (VRWM), 6.5V clamping voltage (VC), and 38pF junction capacitance (CJ), has become a key component ensuring the stable operation of outdoor smart devices.

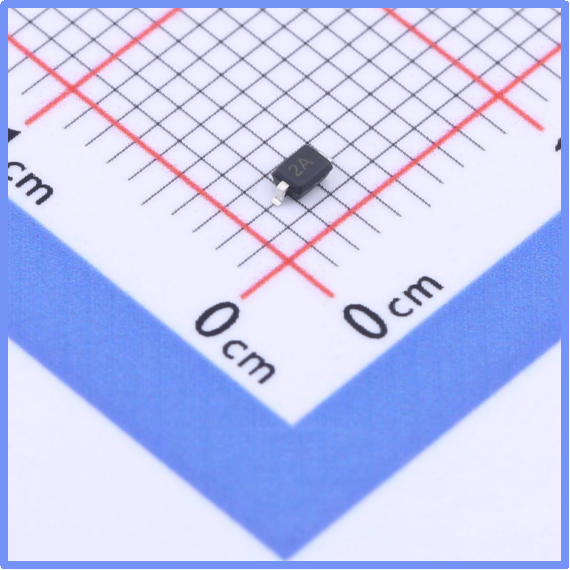

Slkor Electrostatic Discharge Diode SLCESD3V3D3 product photo

1. Outdoor Environmental Challenges: The Dual Threat of Electrostatic Discharge and Transient Voltage

In outdoor sports scenarios, electrostatic threats are ever-present. Climbers can generate thousands of volts of static electricity by rubbing their clothing in dry environments, while cyclists may also experience electrostatic discharge due to tire friction with the ground. These transient voltages can infiltrate the circuits through device interfaces such as USB charging ports and data transfer interfaces, potentially causing chip breakdowns or data loss. For instance, a brand of action cameras was damaged in a desert shoot due to electrostatic buildup caused by dust friction, with repair costs amounting to 25% of the device's price.

Lightning weather is a "fatal killer" for outdoor devices. Even if a device is not directly struck by lightning, the electromagnetic pulses (LEMP) generated by nearby lightning can couple into the circuits through antennas or power lines, triggering overvoltage events. A GPS device in a stormy weather scenario was damaged because it lacked protective components, leading to users getting lost. Such cases highlight the necessity of electrostatic protection in outdoor devices.

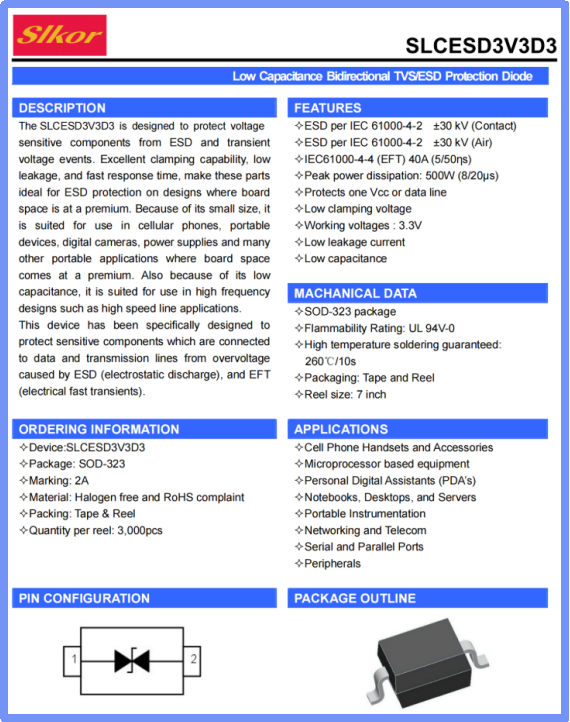

Slkor Electrostatic Discharge Diode SLCESD3V3D3 specification

2. SLCESD3V3D3 Protection Advantages: Perfect Combination of Low Clamping, Low Capacitance, and Miniaturization

The 3.3V VRWM parameter of the SLCESD3V3D3 makes it a "safety barrier" for outdoor devices. In smartwatches, this parameter can withstand human static electricity and environmental interference voltages, protecting delicate components like heart rate sensors and accelerometers. For example, after integrating the SLCESD3V3D3, a brand's outdoor smartwatch saw a reduction in failure rates due to static electricity from 1.5% to 0.4%, significantly improving user feedback.

The 6.5V clamping voltage (VC) is the core advantage of the SLCESD3V3D3. When outdoor devices encounter transient overvoltage, this component quickly clamps the voltage within a safe range, preventing damage to subsequent circuits. In action cameras, the SLCESD3V3D3 protects image sensors from lightning pulses, ensuring stable footage. After integrating this device into the power interface, a drone successfully passed the IEC 61000-4-5 surge test, improving its interference resistance by 40%.

The 38pF junction capacitance (CJ) ensures the integrity of high-speed signals. In outdoor smart helmets, where Bluetooth communication modules require high signal quality, the low capacitance feature of the SLCESD3V3D3 reduces signal attenuation, ensuring clear voice command transmission. A cycling helmet manufacturer found that after integrating this component, Bluetooth connection stability improved by 35%, and the error rate dropped to below 0.02%.

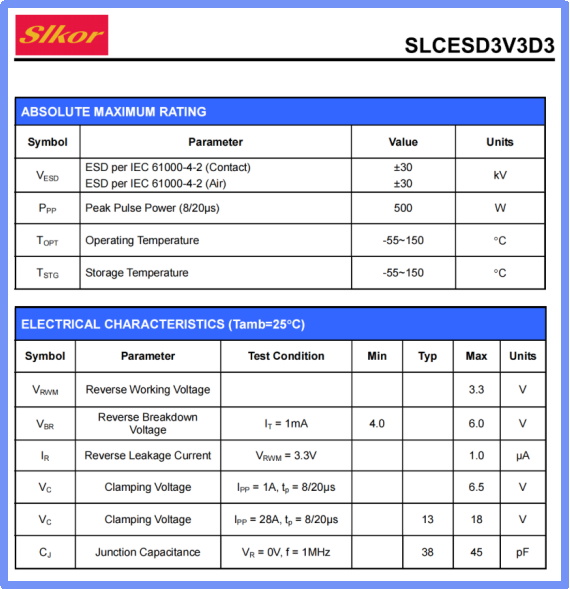

Parameters of Slkor Electrostatic Discharge Diode SLCESD3V3D3

3. Application Scenarios: Comprehensive Coverage from Wearables to Outdoor Tools

1. Smart Wearable Devices: In smartwatches and fitness bands, the SLCESD3V3D3 protects charging ports, touchscreens, and sensor circuits. For example, a brand of mountaineering watches integrated this component into their USB interface, passing -6kV contact discharge and -12kV air discharge tests, meeting the demands of extreme outdoor environments.

2. Imaging Devices: Action cameras, GoPros, and other devices need to contend with dust, humidity, and lightning interference. The SLCESD3V3D3 protects HDMI outputs, USB-C interfaces, and storage modules, ensuring data security. An outdoor photography team reported that after adding this protective design, the failure rate of devices during desert shoots dropped by 65%.

3. Safety Equipment: Smart helmets and life-saving devices require communication and positioning functions. The SLCESD3V3D3 protects GPS modules and 4G/5G communication modules, preventing signal interruptions due to electrostatic or lightning effects. After integrating this device, a cycling helmet passed the IP67 protection level test, making it suitable for harsh conditions like heavy rain and dust.

4. Design Considerations: Miniaturization, Reliability, and Cost Balance

Outdoor devices are highly sensitive to size and weight. The SLCESD3V3D3’s SOD-323 package (1.8mm×1.4mm×1.0mm) makes it easy to integrate into compact PCBs. For example, in smart sport glasses, this component can be arranged in tandem with antennas and battery management modules without taking up extra space.

In terms of reliability, its 1μA reverse leakage current (IR) ensures low power consumption, extending device battery life. With an operating temperature range of -55°C to +150°C, its performance remains stable, meeting the needs of extreme environments such as high-altitude mountaineering and polar exploration.

Cost-wise, the SLCESD3V3D3 is priced 15% lower than comparable imported components and helps reduce post-sale repair costs caused by electrostatic failures. An outdoor brand integrated this component across their entire product line, resulting in a 12% reduction in annual after-sales costs, while also enhancing product competitiveness.

Conclusion

The electrostatic protection diode SLCESD3V3D3, with its low clamping voltage, low capacitance, and miniaturization features, provides reliable circuit protection for outdoor sports smart products. From smartwatches to action cameras, from smart helmets to life-saving equipment, its application scenarios continue to expand. As the outdoor sports market grows, designers must integrate electrostatic protection into the core of product design. By selecting the right components and adopting system-level protective designs, they can create truly durable outdoor smart devices that serve the exploration and adventure needs of users.
