500mA Low Power LDO
Description
The SL7603 series is a group of positive voltage output,three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.
The SL7603 consists of a high-precision voltage reference.an error amplification circuit,and a current limited output driver. Transient response to load variations have improved in comparison to the existing series, SOT89-3, SOT23-3 and SOT23-5 packages are available.
Features
Low voltage drop: 0.17V@100mA
Low Quiescent Current: 1.5uA
High input voltage: 15V
Output voltage accuracy: tolerance+2%
Low temperature coefficient
Built-in current limiter
Large Output Current: 0.5A

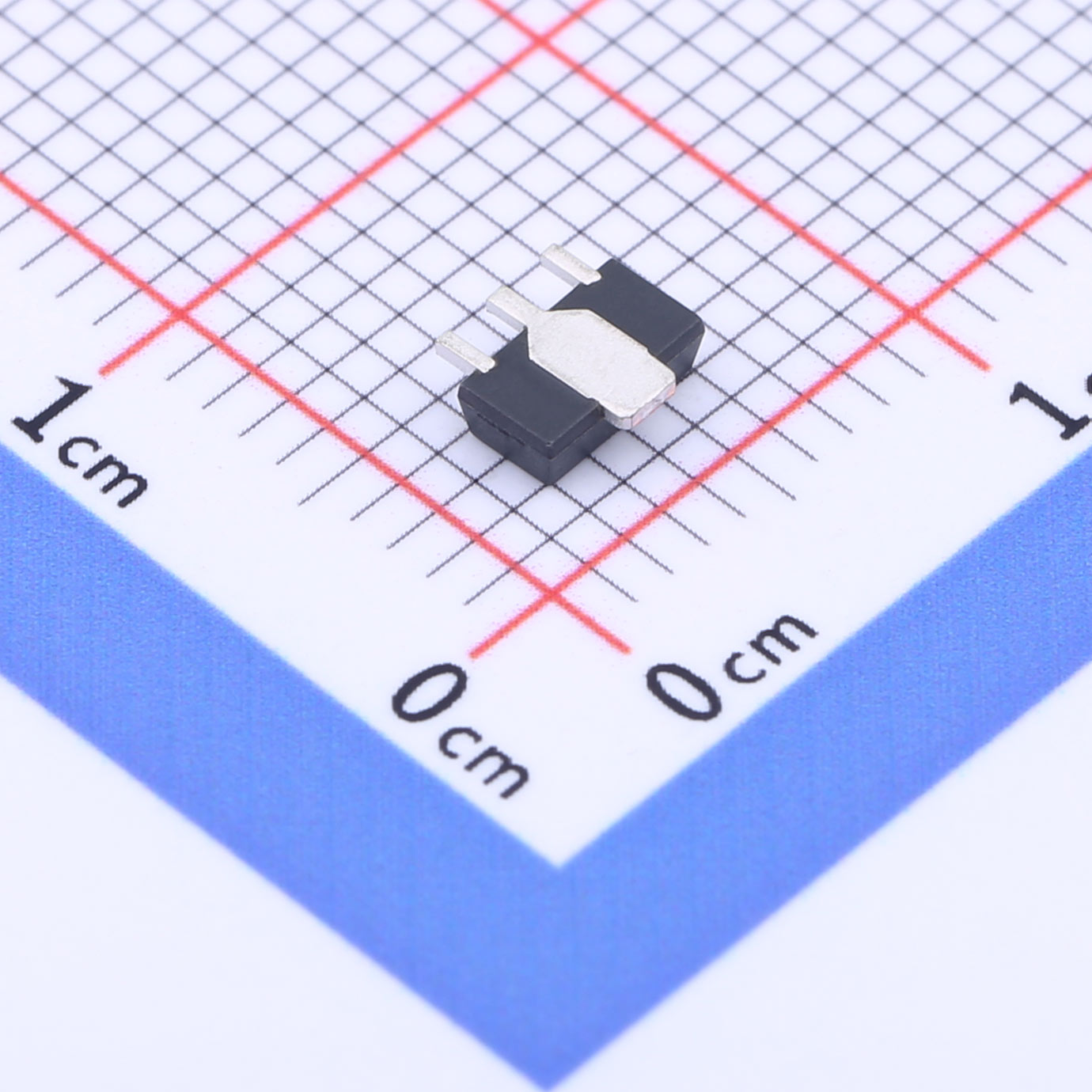

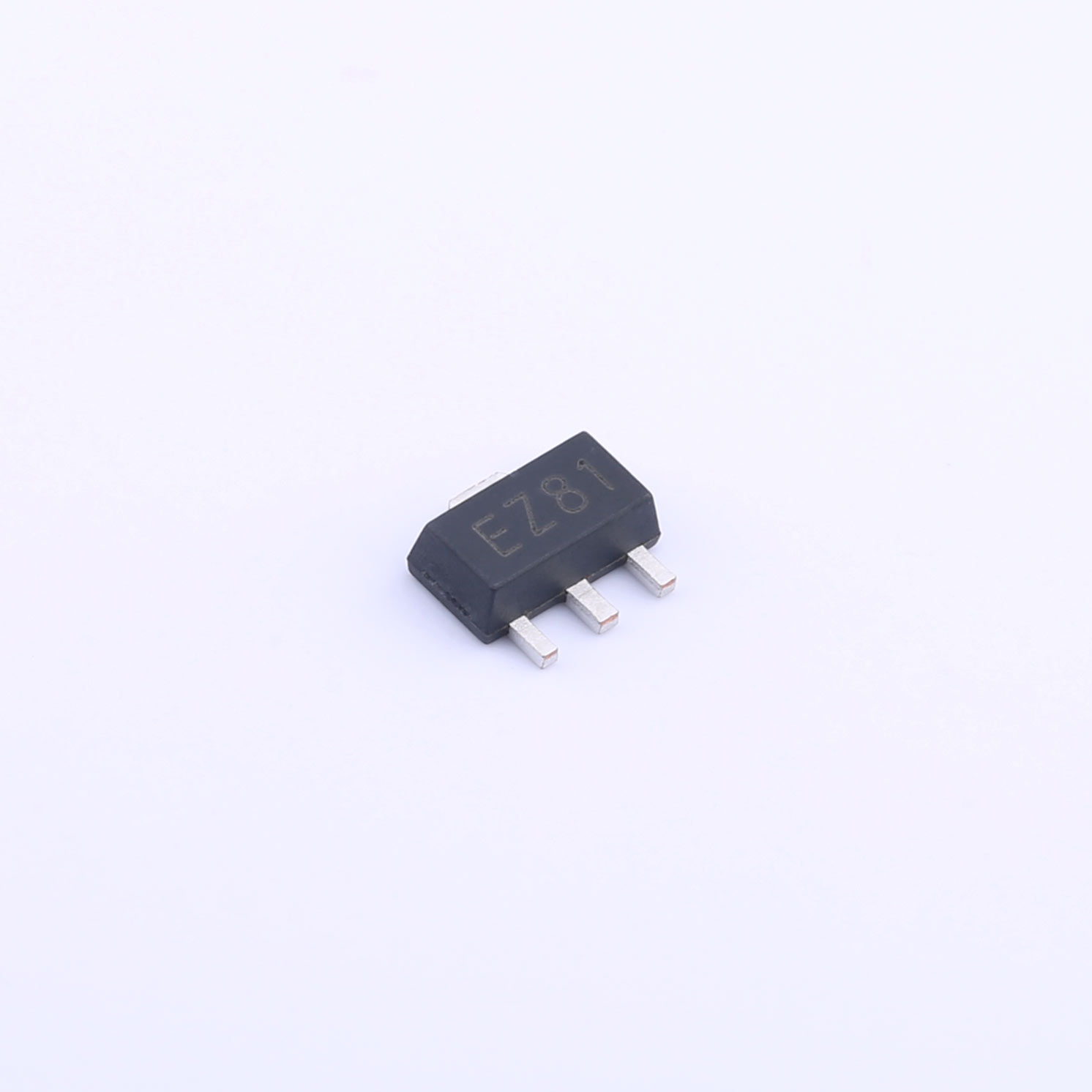

SOT89-3, SOT23-3 and SOT23-5 packages
Applications
Battery-powered equipment
GRS Receivers
Hand-Hold Equipment
Wreless LAN
