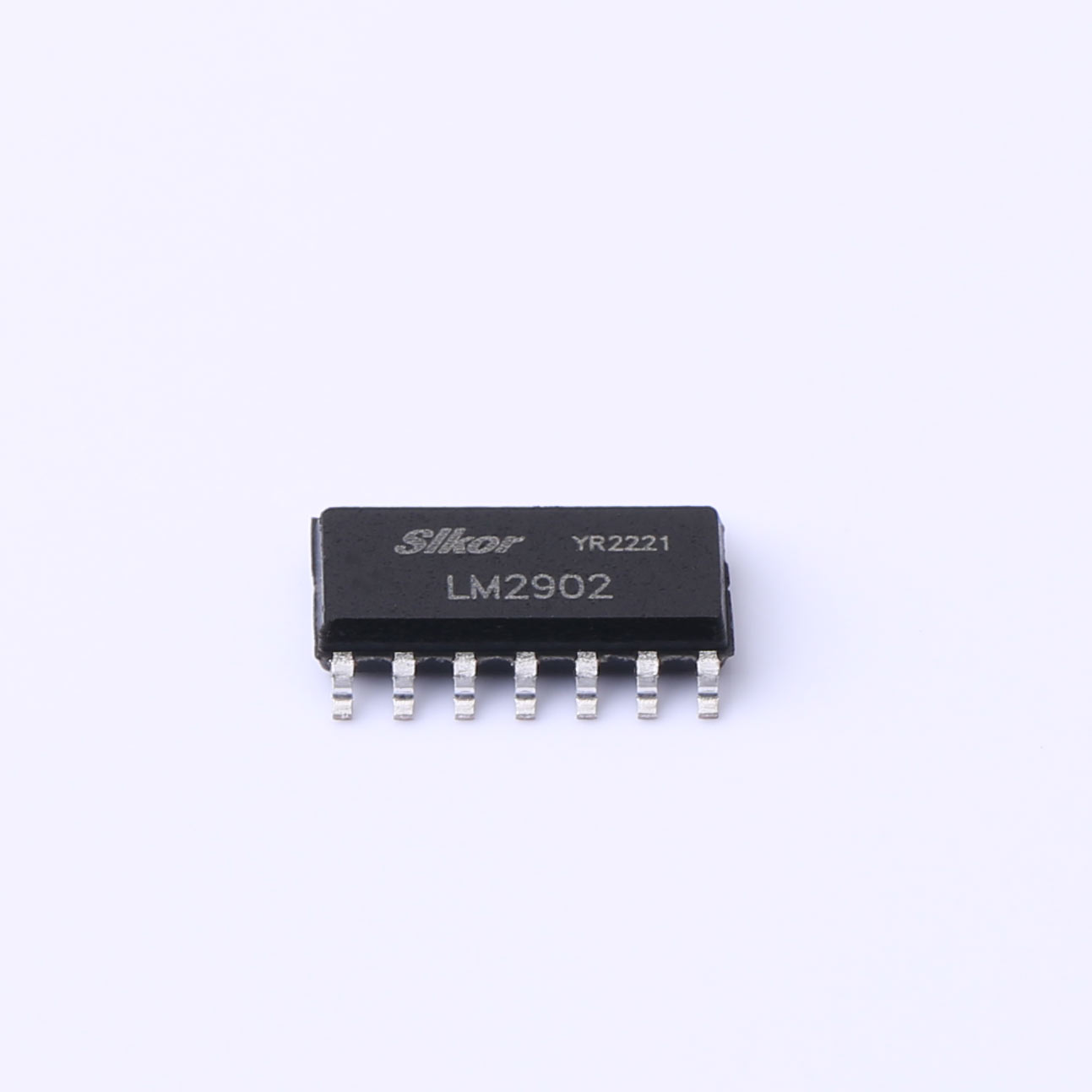

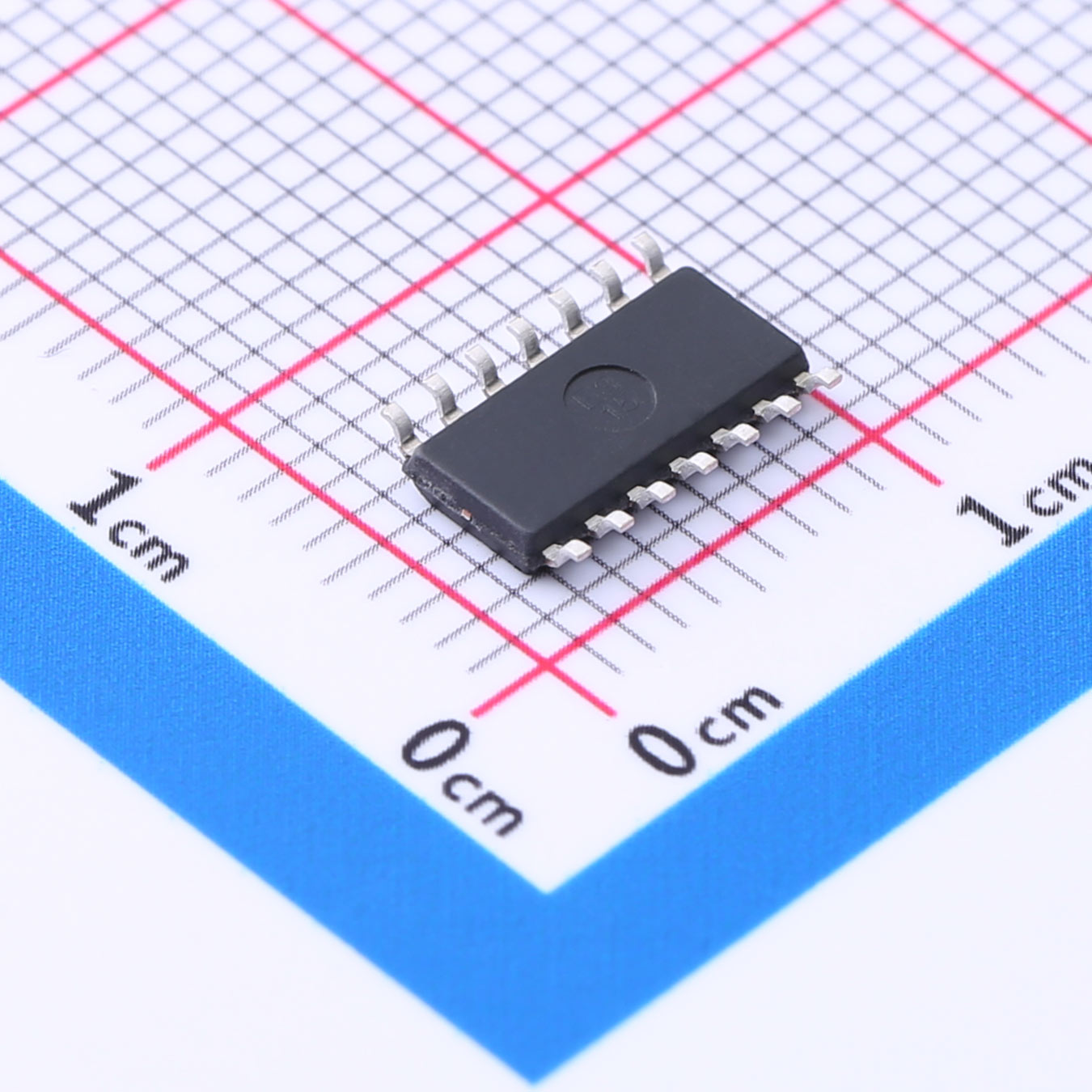

Low Power Quad Operational Amplifier
Description
l This circuit consists of four independent, high gain,internally frequency compensated operational amplifiers which were designed specially for automotive and industrial control systems. It operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Features
l wide gain bandwidth: 1.3mhZ
l input common-mode voltage range includes ground
l large voltage gain: 100Db
l very low supply current/ampli:375µa
l low input bias current: 20Na
l low input offset current:2Na
l wide power supply range:
single supply: +3v to +30v
dual supplies: ±1.5v to ±15v
