As electronic devices evolve towards miniaturization, speed, and intelligence, Electrostatic Discharge (ESD) protection has become a core issue for ensuring device reliability. Whether it’s the sensitive touch operation of smartphones or high-speed data transmission in automotive radar systems, ESD events can lead to data loss, component damage, or even system failure. To address this challenge, the SLESDL0603-05 ESD protection diode stands out with its superior parameter design and compact packaging.

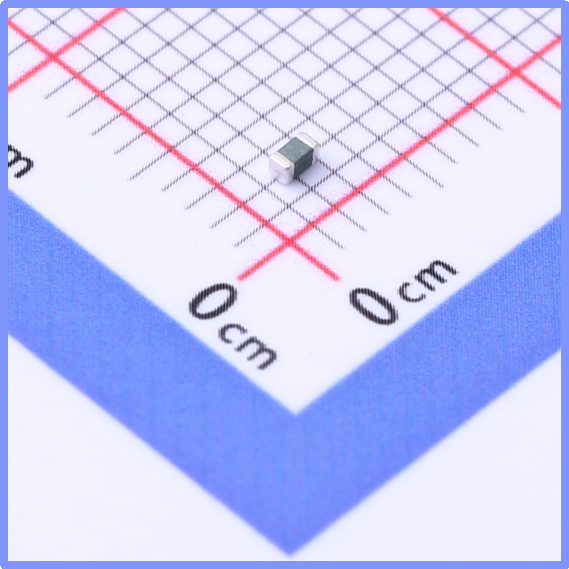

Slkor Electrostatic Discharge Diode SLESDL0603-05 product photo

Key Parameter Analysis: The Protection Logic Behind the Specifications

1. VRWM (Maximum Reverse Working Voltage): 8KV

The 8KV rating of the SLESDL0603-05 significantly exceeds the requirements for conventional low-voltage circuits, directly targeting high-voltage applications such as industrial power supplies and automotive electronics. This parameter ensures the device remains in a high-resistance state when ESD protection is not triggered, preventing interference with the normal circuit.

2. VBR min (Minimum Breakdown Voltage): 15KV

When the voltage exceeds the VBR min, the diode enters avalanche breakdown mode and begins conducting current to discharge the electrostatic energy. The 15KV minimum breakdown voltage design allows the SLESDL0603-05 to withstand the highest level of contact discharge (8KV) and air discharge (15KV) tests per the IEC 61000-4-2 standard. This “high threshold” trigger mechanism effectively prevents false triggers while providing ample protection margin for the circuit.

3. IR (Reverse Leakage Current): 500nA

Leakage current is a key indicator for evaluating the device's static power consumption. The SLESDL0603-05 features a leakage current of only 500nA (0.5μA) at 8KV, which is an order of magnitude lower than similar products (typically 1-10μA). This feature is crucial for battery-powered devices (e.g., IoT sensors, smartwatches), significantly extending device runtime.

4. VC (Clamping Voltage): 65V

The clamping voltage indicates the safe voltage limit that the device can maintain while discharging ESD current. The SLESDL0603-05’s 65V clamping voltage is well below the breakdown voltage of most semiconductor devices (e.g., MOSFET gate oxide breakdown voltage typically exceeds 50V), ensuring that the protected circuit is safe from secondary over-voltage damage. The difference between this value and the VBR (15KV-65V≈14.935KV) reflects the dynamic impedance characteristic of the device. The greater the difference, the better the protection performance.

5. CJ (Junction Capacitance): 1.5pF

Junction capacitance directly affects signal transmission quality, especially in high-speed interfaces where excessive capacitance can lead to signal distortion. The 1.5pF junction capacitance of the SLESDL0603-05 sets an industry benchmark, enabling compatibility with ultra-high-speed signals above 10Gbps and avoiding signal integrity issues caused by protective components. This feature makes it an ideal protection solution for cutting-edge interfaces such as USB 3.2 Gen 2×2 (20Gbps) and HDMI 2.1 (48Gbps).

6. Package: 0603

The 0603 package is a mainstream miniaturized surface-mount technology (SMT) package with dimensions of only 1.6mm×0.8mm, suitable for high-density circuit board designs. Its small size not only saves space but also reduces parasitic inductance, improving ESD response speed.

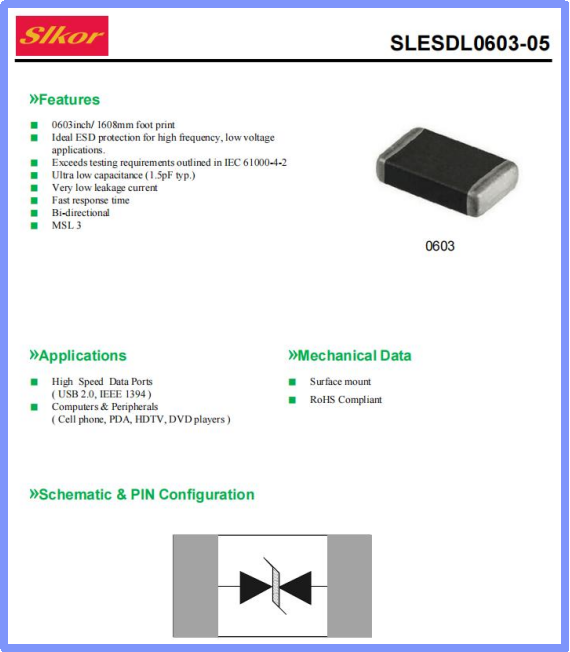

Slkor Electrostatic Discharge Diode SLESDL0603-05 specification

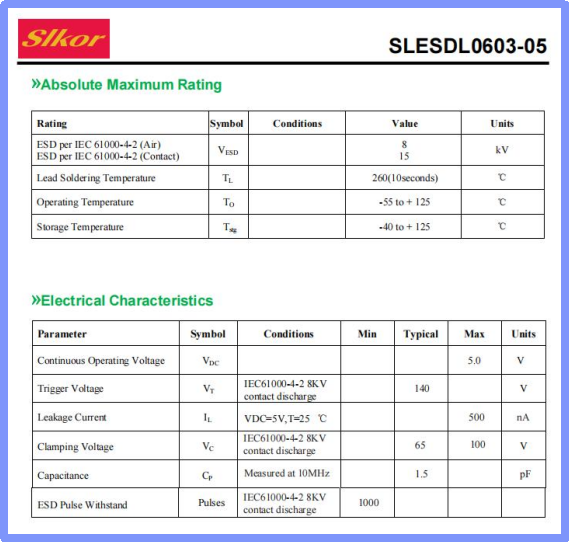

Parameters of Slkor Electrostatic Discharge Diode SLESDL0603-05

Applications and Advantages

1. Consumer Electronics: Invisible Guardian for Ultra-High-Speed Interfaces

In devices such as smartphones and laptops, the SLESDL0603-05 can be mounted on USB Type-C and HDMI interfaces. Its 1.5pF junction capacitance ensures the stability of 4K/8K video signals or high-speed data transmission, while the 8KV voltage rating protects against human body electrostatic discharge (HBM) and over-voltage risks from charging devices.

2. Automotive Electronics: Handling Complex Electromagnetic Environments

In automotive electronic systems, the SLESDL0603-05 can operate stably in a wide temperature range of -55°C to +150°C, effectively protecting key circuits like ADAS cameras and in-vehicle Ethernet, preventing system resets or data loss caused by ESD.

3. Industrial Control: Ensuring High Reliability

In devices such as PLCs and industrial robots, the low leakage current design of the SLESDL0603-05 minimizes energy loss during long-term operation, while the 65V clamping voltage protects against common industrial transients (EFT) and surge pulses.

Conclusion

With its ultra-high voltage rating, ultra-low junction capacitance, and compact package size, the SLESDL0603-05 redefines the technical standards for high-voltage ESD protection diodes. In the technological waves of 5G communication, autonomous driving, and Industry 4.0, the value of these high-performance protection devices will only become more evident. They are not only the "safety valve" for circuits but also the cornerstone of system reliability. As material science and packaging technology continue to advance, ESD protection diodes will undoubtedly protect every innovative breakthrough in the electronic world with even smaller sizes and lower power consumption.
