In the "body" of electronic devices, static electricity acts like an invisible "little devil," always ready to strike a fatal blow to delicate components. Today, we introduce the SD08C electrostatic discharge (ESD) protection diode, which serves as the "low-voltage gatekeeper" in a circuit, protecting critical components with its "reinforced structure." Let’s uncover the mystery of this component through a few everyday analogies.

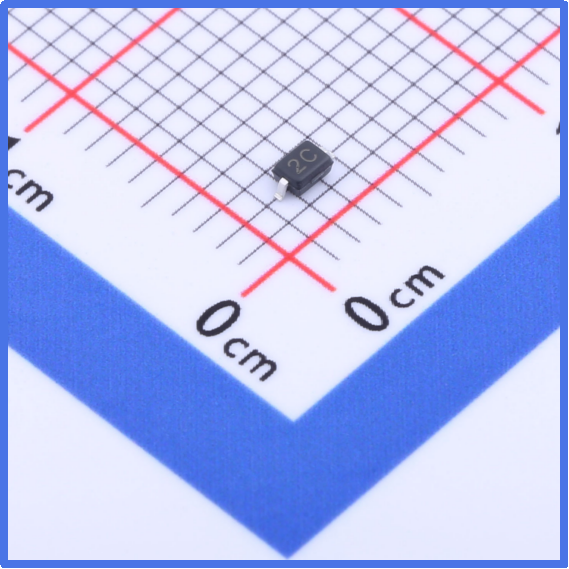

Slkor Electrostatic Discharge Diode SD08C product photo

I. "Safety Code" in Parameters

1. VRWM 8V: The Circuit's "Safety Line"

Imagine your home's main circuit breaker is labeled "220V." The VRWM parameter of the SD08C is similar to this safety threshold. When the circuit is functioning normally, as long as the voltage does not exceed 8V, the diode acts like a tightly shut security door, quietly guarding the system. This parameter determines its ideal use in protecting low-voltage devices such as Bluetooth headphones and wearable health bands.

2. VBR 8.5V: The Precise "Trigger Switch"

When the voltage exceeds 8.5V, the diode immediately activates its protection mode. This is akin to the airbag mechanism in a car – designed to avoid false triggers (such as bumps during normal braking) while ensuring that the airbag deploys promptly during an actual collision. The 8.5V minimum breakdown voltage ensures it never "fails" when needed most.

3. IR 2μA: Preventing "Hidden Currents"

Reverse leakage current is like the cold air seeping through a door crack—small but persistent, and it can impact the lifespan of a device over time. The SD08C's 2μA leakage current is equivalent to consuming 1 kWh of electricity in 100 years. While higher than the SD15C, it remains an excellent choice for battery-powered IoT devices, balancing protection performance with power consumption.

4. VC 24V: The Overvoltage "Airbag"

When subjected to ESD static discharge, the diode instantly clamps the voltage at 24V. This value is like the cushioning force of an airbag – it protects the "passengers" (the downstream circuits) without exerting excessive force that could cause secondary damage, making it ideal for voltage-sensitive precision chips.

5. CJ 120pF: The "Speed Bump" for Data Channels

The junction capacitance is like the speed limit sign on a highway. With a capacity of 120pF, it is more suitable for low-frequency signal lines. In I2C communication interfaces, this capacitance effectively suppresses static electricity without causing noticeable delays in low-speed data transmission.

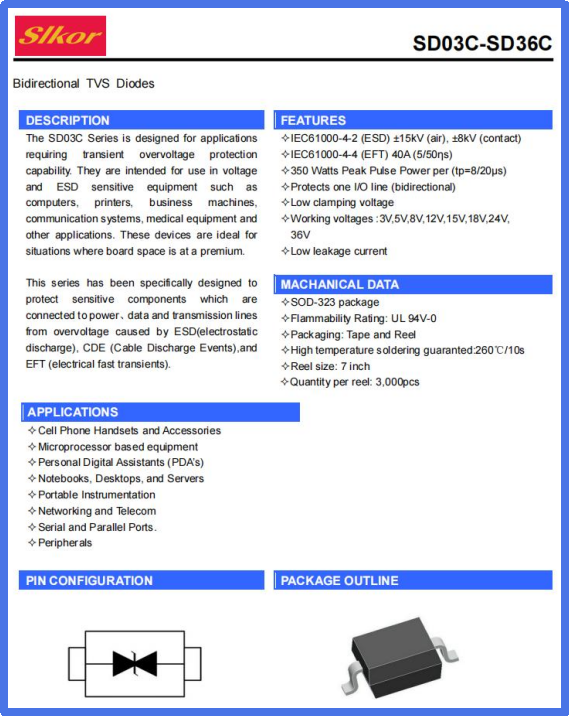

Slkor Electrostatic Discharge Diode SD08C specification

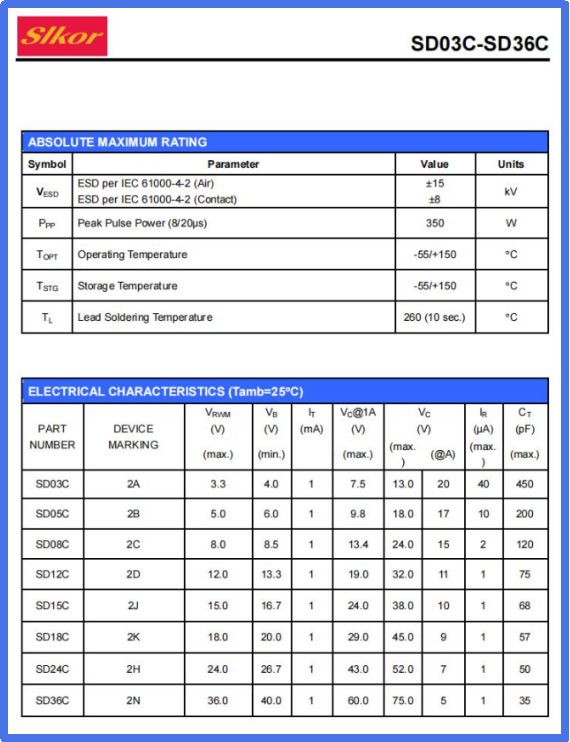

Parameters of Slkor Electrostatic Discharge Diode SD08C

II. "Transformers" of Application Scenarios

1. Invisible Shield for Smart Wearables

In the charging case of true wireless earphones (TWS), the SD08C acts as an invisible bodyguard. When the user touches the charging port with static electricity, it can convert thousands of volts into a safe voltage in nanoseconds, protecting the charging chip from damage and preventing the earphones from suddenly malfunctioning.

2. Life Protector for Medical Devices

In portable electrocardiogram (ECG) devices, the SD08C’s SOD-323 package (2.5mm × 1.25mm) serves as a miniature shield, easily fitting into various narrow spaces. Its 8V VRWM is a perfect match for the low-voltage requirements of medical equipment, and the 24V clamping voltage effectively shields the device from human static, ensuring accurate data collection.

3. Protective Barrier for IoT Nodes

In smart home temperature and humidity sensors, the SD08C forms an electrostatic protection matrix. When the device is charged via human touch, these small components create a protective net, preventing expensive MCU chips from being damaged by static and extending the device's lifespan.

III. "Pitfall Guide" for Component Selection

1. Package Selection: Making the Best of Tight Spaces

Although the SOD-323 package is compact, it requires precise soldering techniques, much like carving on a grain of rice. It’s ideal for space-constrained smart ring circuit boards, but for industrial equipment with strong vibrations, you might need to consider an SMA package with leads.

2. Parameter Balance: The Choice Between Fish and Bear’s Paw

A lower clamping voltage (VC) is not always better. Like an airbag, excessive cushioning force may harm the passengers. In high-speed digital circuits, a lower VC may distort the signal, so it’s essential to strike a balance between protection strength and signal quality, depending on the application.

3. Temperature Considerations: A Test of Extremes

With an operating temperature range from -55°C to 150°C, the SD08C can handle environments ranging from polar research equipment to desert photovoltaic systems. However, extreme temperatures may cause about 10% drift in the parameters, so design allowances should be factored in.

4. Leakage Current Trade-off: The Battle Between Power Saving and Protection

The 2μA leakage current requires special attention in ultra-low-power devices. For example, if the standby current of a device is 10μA, the SD08C’s leakage current could account for 20%, potentially affecting battery life. In such cases, you may consider models with lower leakage currents or compensate through circuit design.

IV. The "Evolution Theory" of Future Progress

With the development of 5G and IoT, ESD protection devices are undergoing three major evolutions:

1. Miniaturization: Evolving from SOD-323 to even smaller DFN0603 packages.

2. Integration: A single chip integrating multiple protection channels, like a Swiss army knife.

3. Smartness: Equipped with status monitoring, recording ESD events like a black box.

Classic components like the SD08C are akin to a "Swiss army knife" in the world of circuits, building a protective wall around electronic devices with solid parameters and reliable performance. The next time you enjoy the convenience of smart devices, don’t forget these silent "security guards" that protect you from invisible electronic storms with nanosecond response times. When selecting components, remember: there is no "best" component, only the most suitable protector, and the SD08C could be the perfect companion for your next project.
