In the "body" of electronic devices, static electricity acts like an invisible "little demon" that could strike a fatal blow to sensitive components at any moment. The SD15C ESD protection diode, which we’ll discuss today, serves as the circuit's "airbag," protecting the core components of devices with its "reinforced structure." Let’s uncover the mystery of this component through some familiar analogies.

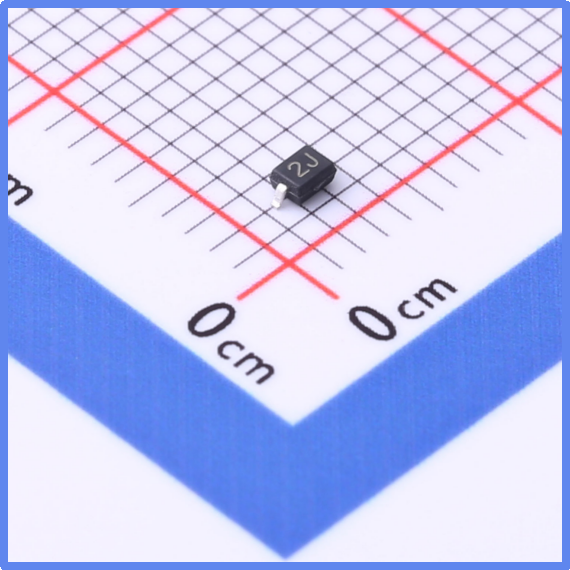

Slkor Electrostatic Discharge Diode SD15C product photo

1. The "Safety Code" in the Parameters

1. VRWM 15V: The "Safety Threshold" of the Circuit

Imagine the main switch of your house's electrical system is labeled "220V." The VRWM parameter of the SD15C is like this safety threshold. When the circuit operates normally, as long as the voltage stays below 15V, the diode quietly protects the system, much like a tightly closed security door. This parameter makes it ideal for protecting low-voltage devices like Bluetooth headsets and wearable devices.

2. VBR 16.7V: The Precise "Trigger Switch"

When the voltage exceeds 16.7V, the diode instantly enters protection mode. This design works like a car’s airbag deployment system—ensuring that it doesn’t trigger accidentally (like during a normal brake bump), but it will deploy at the right moment to protect you in a real crash. The 16.7V breakdown voltage ensures it will never fail at critical moments.

3. IR 1μA: Vigilant against "Underground Currents"

Reverse leakage current is like a cold draft sneaking in through the door crack. Although small, it can reduce the lifespan of a device over time. The SD15C’s 1μA leakage current is equivalent to draining 1 watt of electricity in 200 years, making it perfect for battery-powered IoT devices—no need to worry about the protection component "stealing electricity."

4. VC 38V: The Overvoltage "Airbag"

When facing an ESD static discharge "accident," the diode instantly clamps the voltage at 38V. This value is like the airbag's cushioning force—it protects the passengers (the downstream circuits) without causing any secondary damage.

5. CJ 68pF: The "Speed Bumps" of the Data Channel

The junction capacitance acts like a speed limit sign on a highway. With a capacitance of 68pF, it’s perfectly suited for high-frequency signal lines. For example, in a USB 3.0 interface, this capacitance not only suppresses static electricity effectively but also prevents the high-speed data transmission from turning into "slow motion."

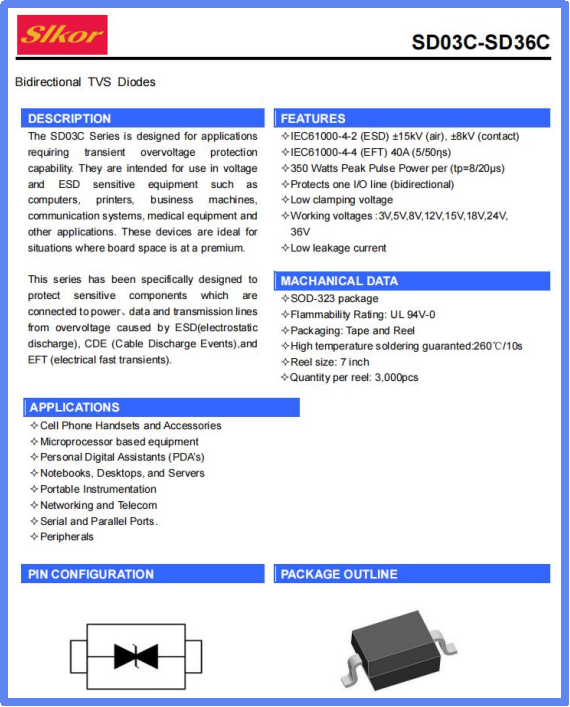

Slkor Electrostatic Discharge Diode SD15C specification

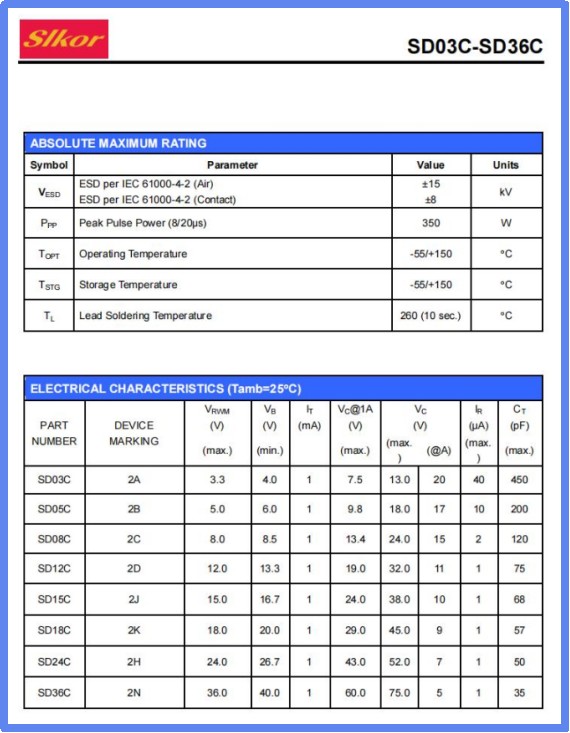

Parameters of Slkor Electrostatic Discharge Diode SD15C

2. Application Scenarios: The "Transformers" of Protection

1. The "Bodyguard" of Consumer Electronics

In the charging case of TWS earphones, the SD15C acts like an invisible bodyguard. When a user touches the charging port with static electricity, it can convert the high-voltage surge into a safe voltage in nanoseconds, protecting the fragile charging chip from harm.

2. The "Safety Guardian" of Automotive Electronics

Modern cars contain hundreds of electronic control units. The SD15C, with its SOD-323 package (2.5mm×1.25mm), is like a miniature shield that fits easily into narrow spaces. In a car’s USB interface, it withstands temperature extremes from -40°C to 125°C and protects against 8kV electrostatic discharge from human contact.

3. The "Bulletproof Vest" for Industrial Equipment

In industrial PLC controllers, the SD15C forms part of an electrostatic protection matrix. When mechanical arms on the production line generate induced static electricity, these tiny components create a protective network to prevent expensive control chips from being damaged by static discharge.

3. A "Pitfall Guide" for Component Selection

1. Package Selection: A Temple Inside a Snail Shell

The SOD-323 package is small, but it requires a more precise soldering process. It’s like carving on a grain of rice and needs accurate placement equipment. For space-tight smartwatch motherboards, it’s the best choice, but in industrial equipment subject to strong vibrations, you may need to consider an SMA package with leads.

2. Parameter Balance: The Dilemma Between Fish and Bear Paws

The clamp voltage VC isn’t better when it’s lower. Just like airbags, excessive cushioning might harm the passengers. In high-speed digital circuits, a too-low VC value could distort the signal, so finding a balance between protection strength and signal quality is crucial based on the specific application.

3. Temperature Considerations: A Test of Ice and Fire

The SD15C’s operating temperature range from -55°C to 150°C enables it to function in various environments, from Arctic research equipment to desert photovoltaic systems. However, when selecting components, keep in mind that extreme temperatures can cause a parameter drift of about 10%, so design margins should be considered.

4. The "Evolution Theory" for Future Progression

With the development of 5G and the Internet of Things, ESD protection devices are undergoing three major evolutions:

● Miniaturization: Progressing from the SOD-323 to even smaller DFN0603 packages.

● Integration: Single-chip integration of multiple protection paths, like a Swiss army knife.

● Intelligence: Self-monitoring capabilities, like a black box recording ESD events.

Classics like the SD15C are the "Swiss army knives" of the electronic world, building a protective fortress for electronic devices with solid parameters and reliable performance. The next time you enjoy the convenience of a smart device, remember the "security guards" quietly guarding your system—they’re blocking invisible electronic storms with nanosecond-level response speeds.
