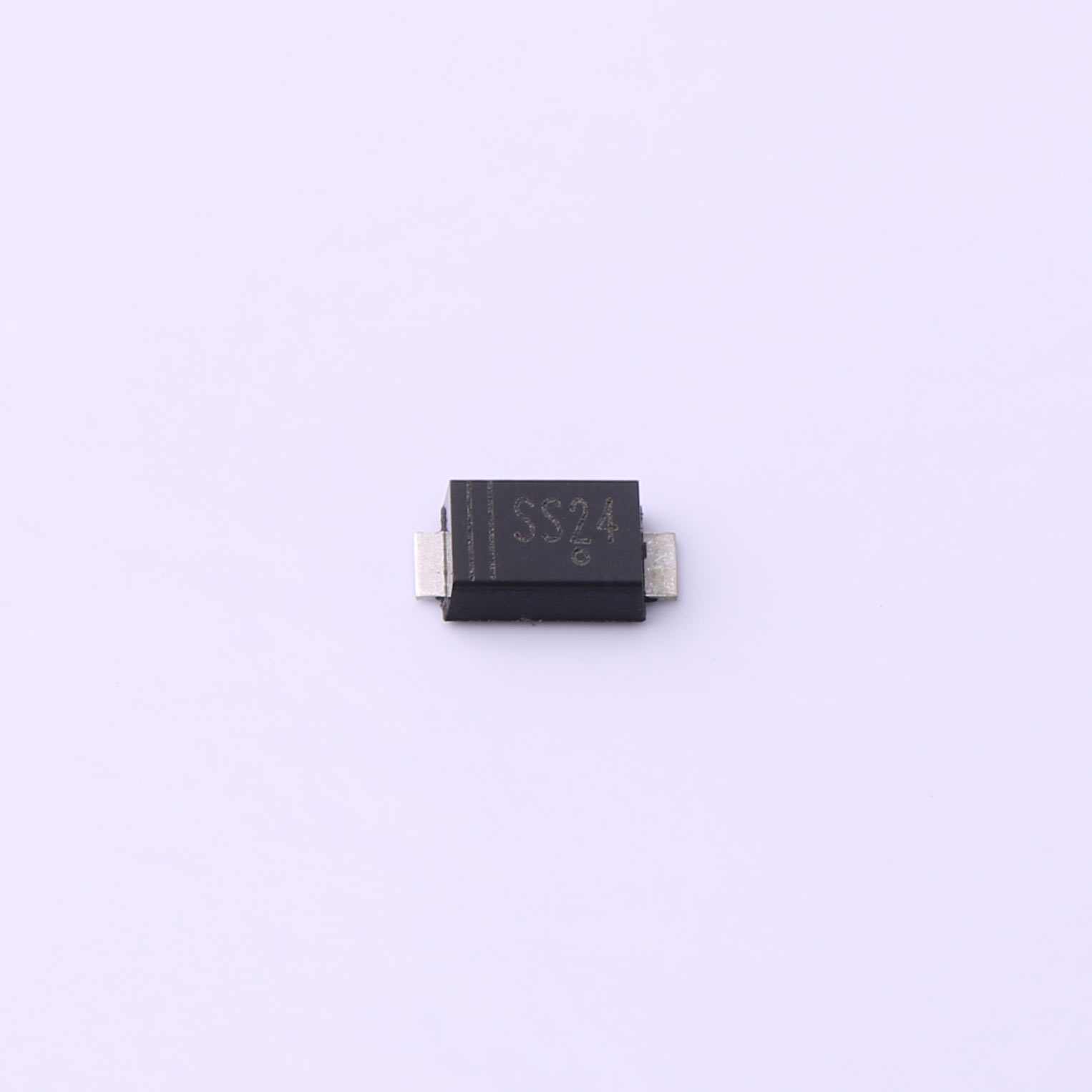

Surface Mount Schottky Barrier Rectifier

Reverse Voltage - 20 to 200 V

Forward Current - 2.0A

Features

l Metal silicon junction, majority carrier conduction

l For surface mounted applications

l Low power loss, high efficiency

l High forward surge current capability

l For use in low voltage, high frequency inverters,

l free wheeling, and polarity protection applications

Mechanical Data

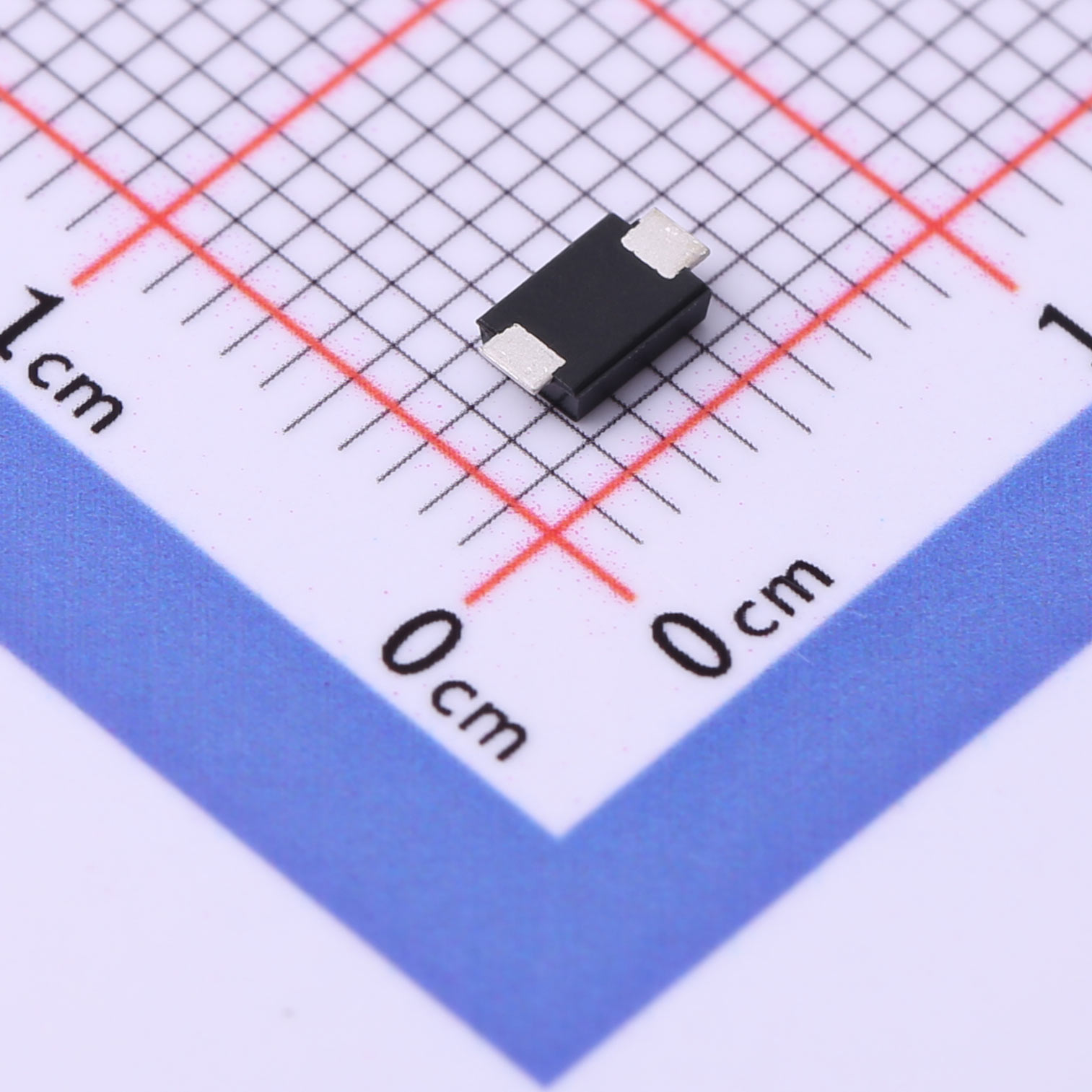

l Case: SMAF

l Terminals: Solderable per MIL-STD-750, Method 2026

l Approx. Weight: 27mg / 0.00095oz
