Surface Mount Schottky Barrier Rectifier

Reverse Voltage: 20 to 200 V

Forward Current: 2.0A

Features

• Metal silicon junction,majority carrier conduction

• For surface mounted applications

• Low power loss,high efficiency

• High forward surge current capability

• For use in low voltage,high frequency inverters, free wheeling, and polarity protection applications

MECHANICAL DATA

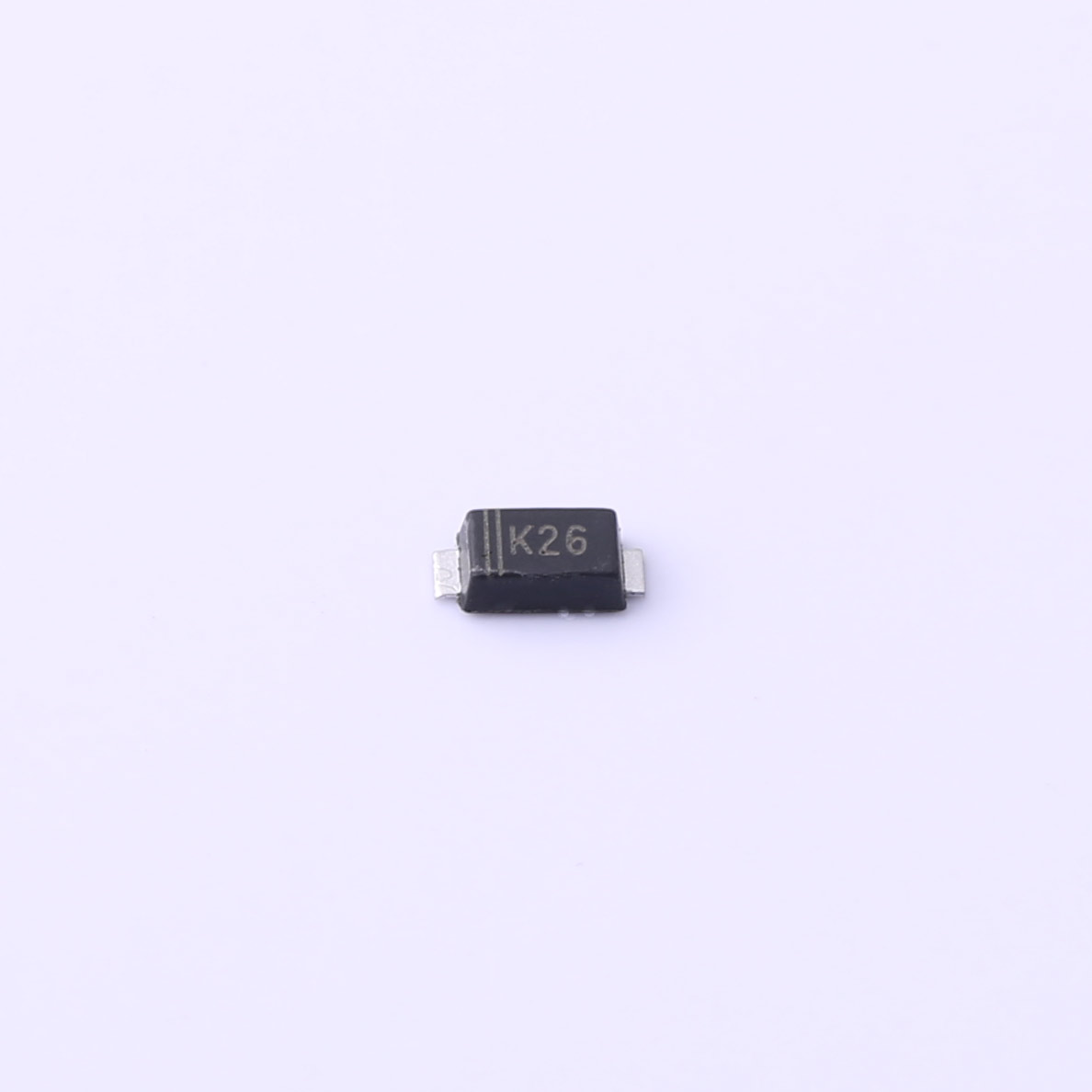

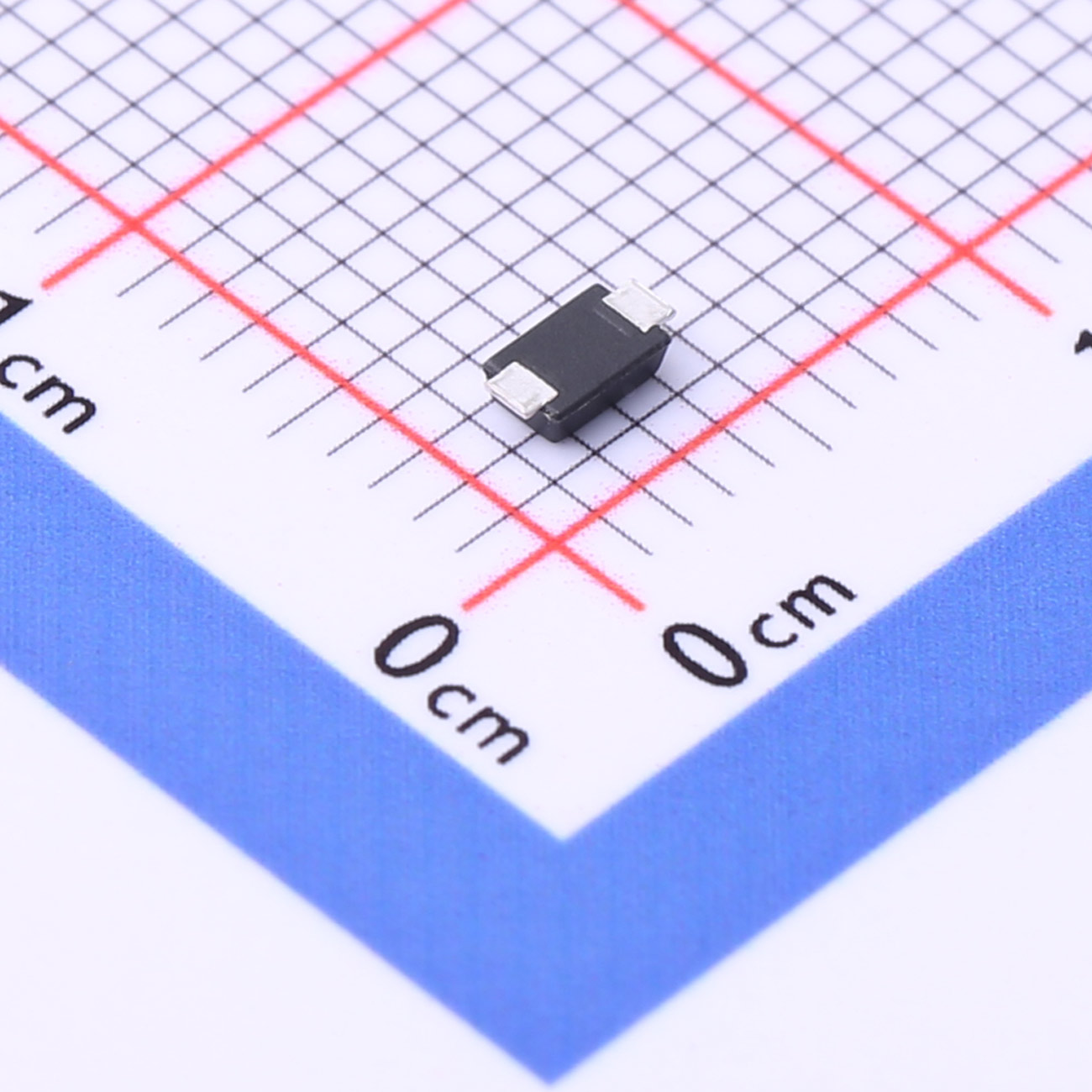

• Case: S0D-123FL

• Terminals: Solderable per MIL-STD-750, Method 2026

• Approx.Weight: 15mg 0.00048oz
