Features

• For surface mounted application

• Easy pick and place

• Metal to silicon rectifier.majorty carner conduction

• Low power loss,high efficiency

• High cumrent capabilty.low VF

• High surge current capabilty

• Plastic material used camriers Underwriters

• Laboratory Classification 94V-0

• Epitaxial construction

• High temperature soldering: 260C /10 seconds at temminals

Mechanical Data

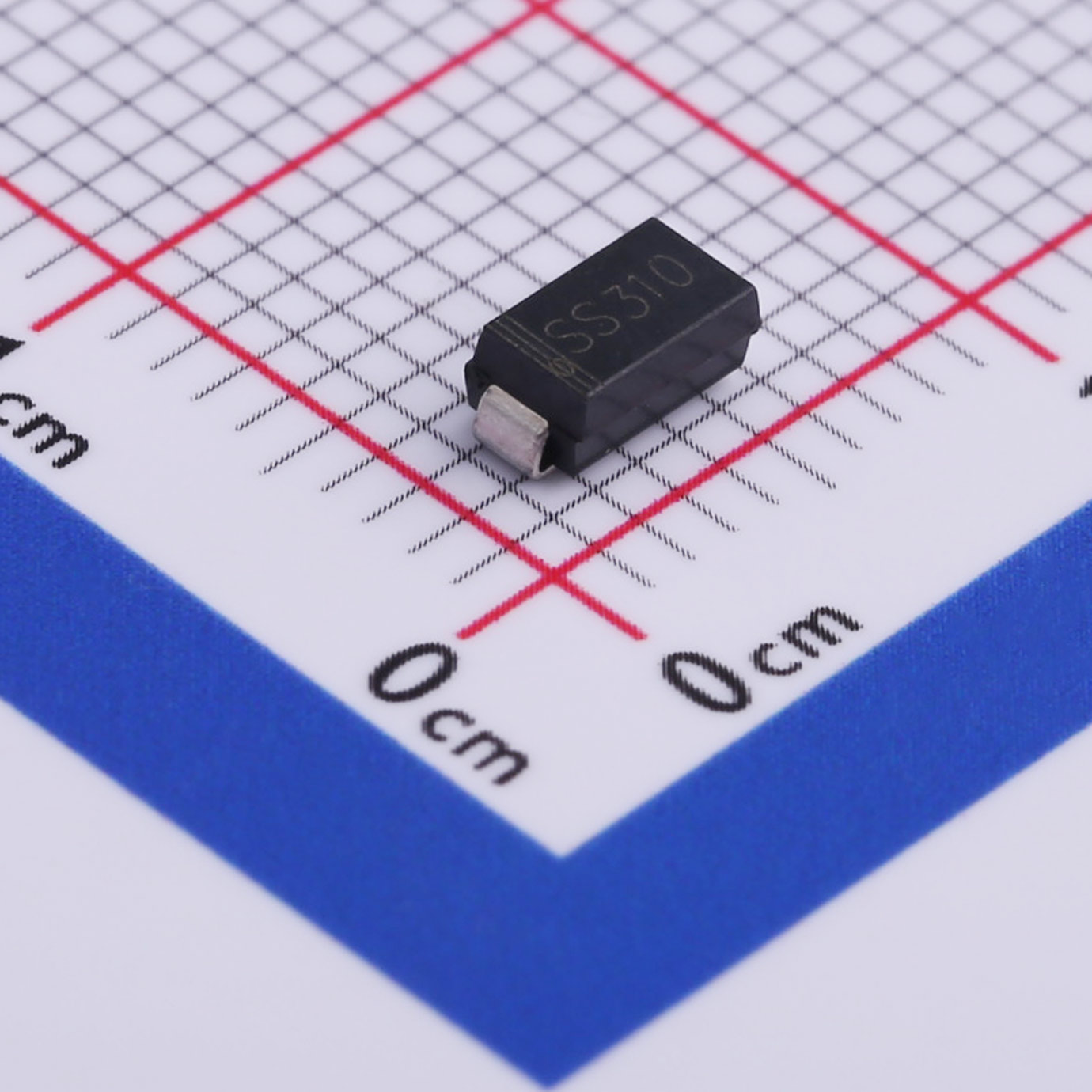

• Case: JEDEC DO-214AC Molded plastic

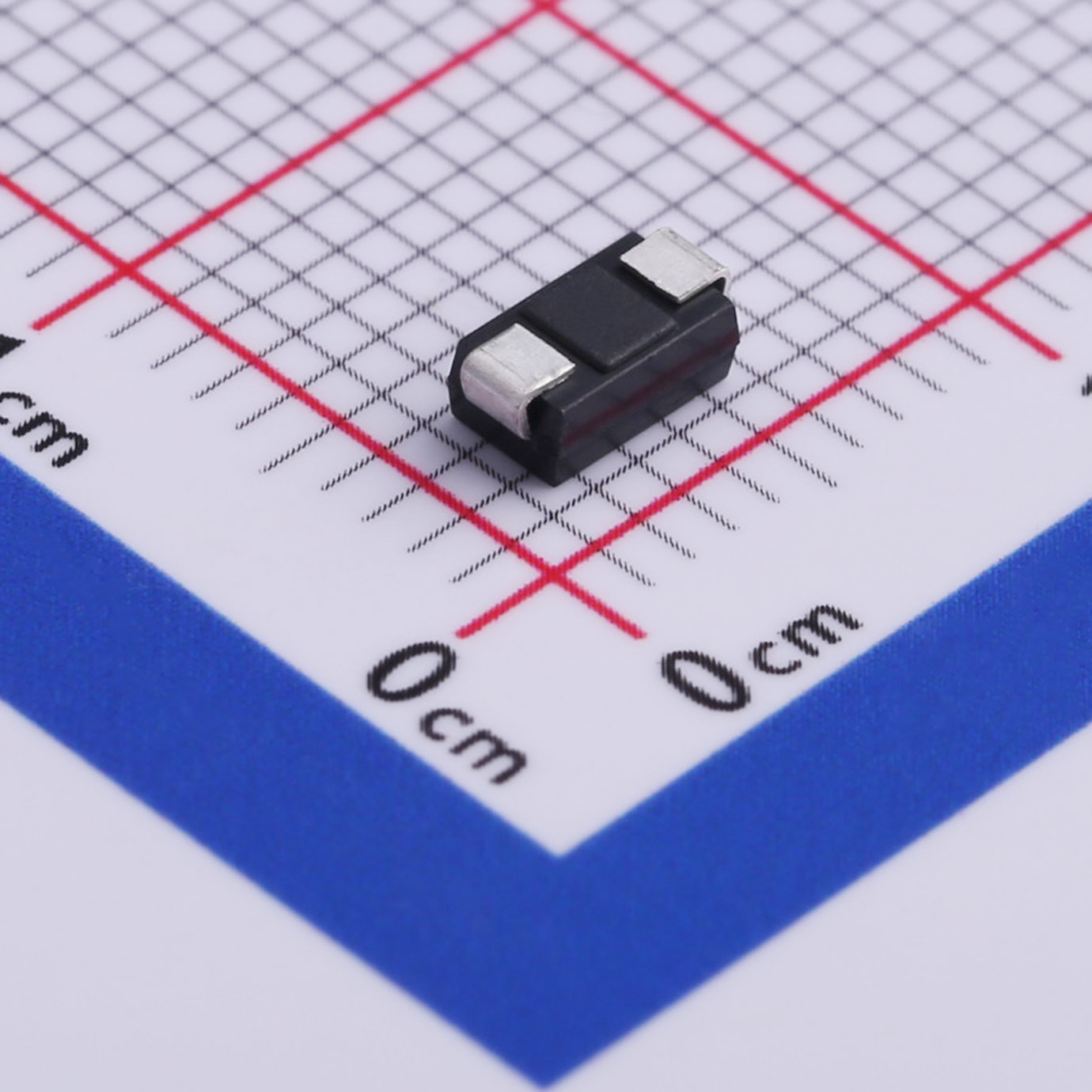

• Terminals: Pure tin plated,lead free

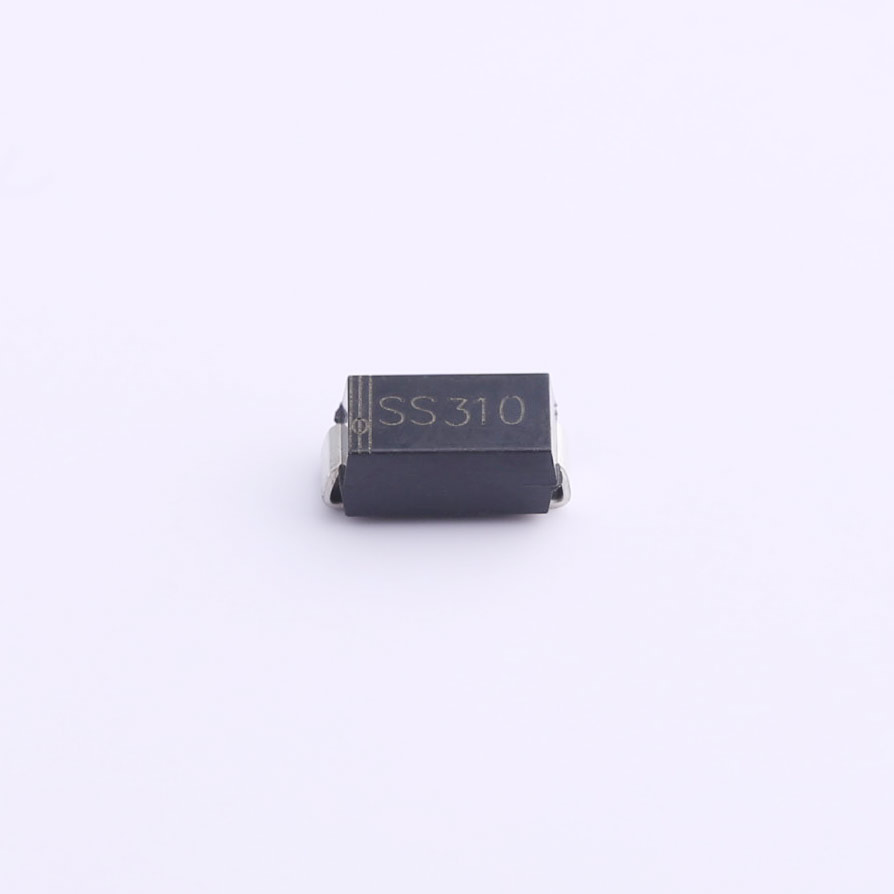

• Polarity: Indicated by cathode band

• Packaging: 16mm tape per EIA STD RS-481
